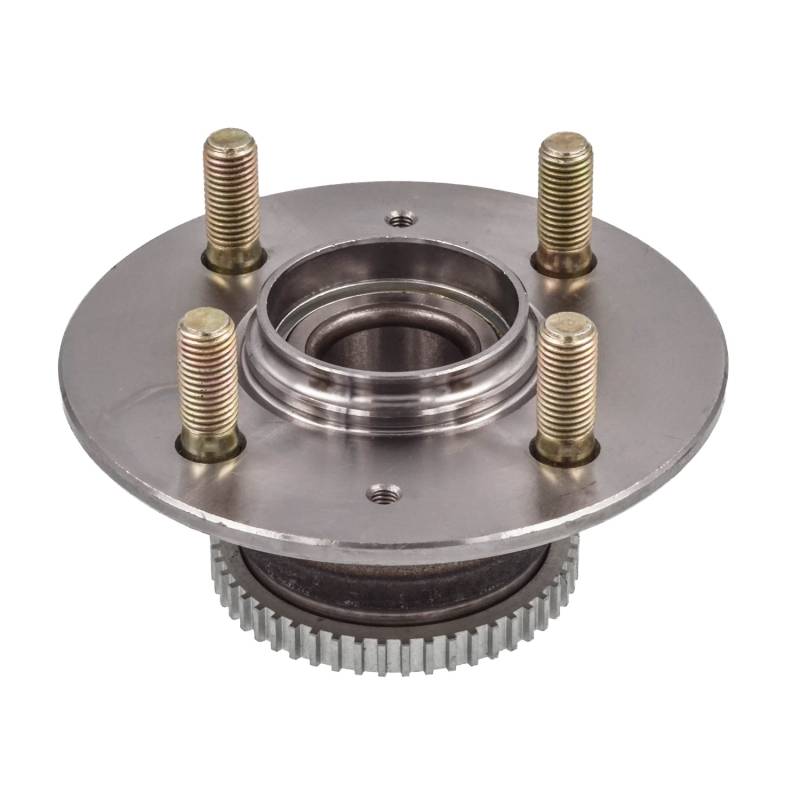

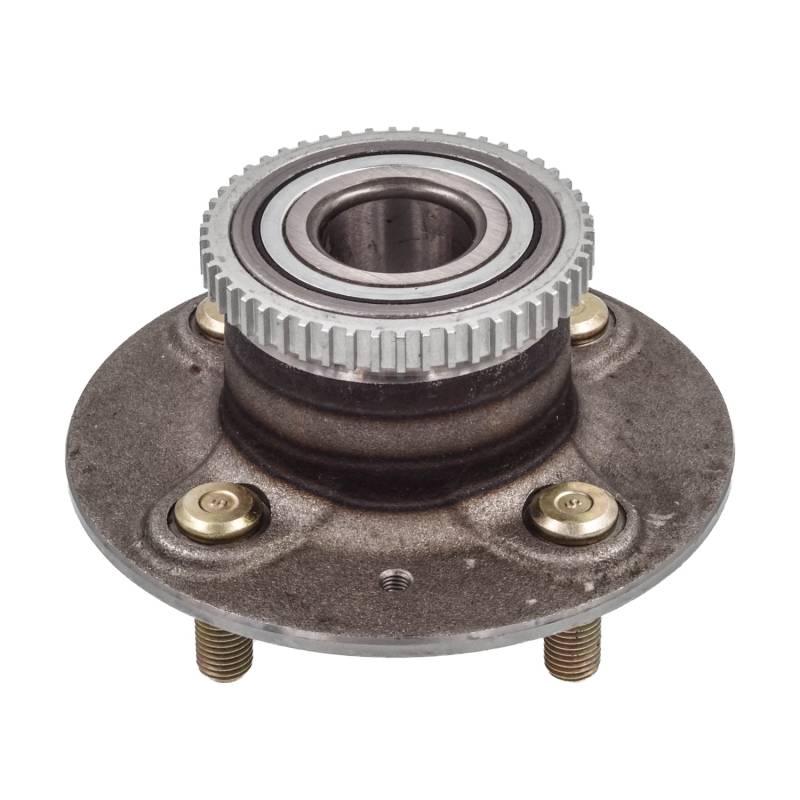

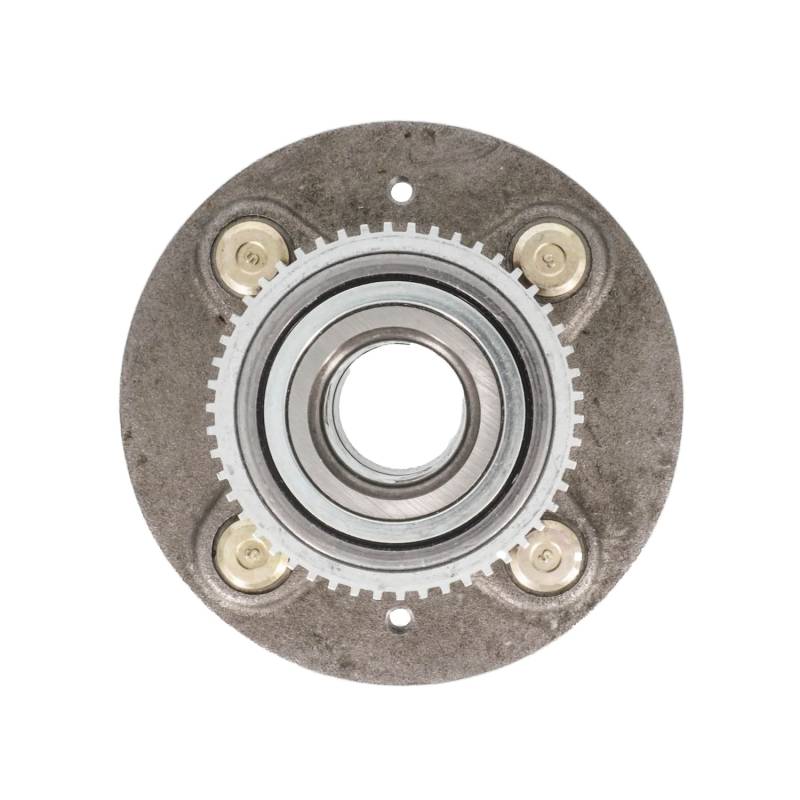

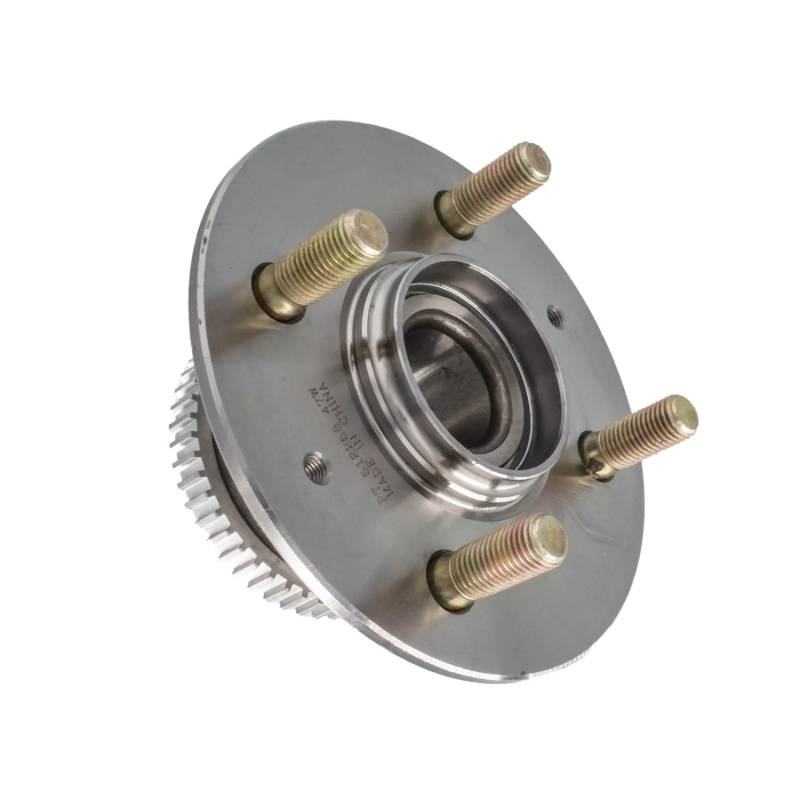

New Hub Assembly Compatible With Honda Civic 1.7L 2.0L 2002 2003 By Part Numbers Ha590009 Pt512258

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.11
ABS SENSOR RING DIAMETER (MM): 79
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.18
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.4
FLANGE OFFSET (INCH): 2.2
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.46
HUB PILOT DIAMETER (INCH): 3.11
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.46
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 3.38
TOTAL HUB HEIGHT (MM): 85
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512258
SKF: BR930381
TIMKEN: HA590009
AUTOPART INTERNATIONAL: 1411-09831
BCA: WE60562
BECK/ARNLEY: 051-6141
CENTRIC PARTS: 40640016E
FAG US: 101770
GSP: 363258
MEVOTECH: H512258
MOOG HUB ASSEMBLIES: 512258
NAPA: PBR930381

APPLICATIONS:
HONDA CIVIC (2002-2003)
