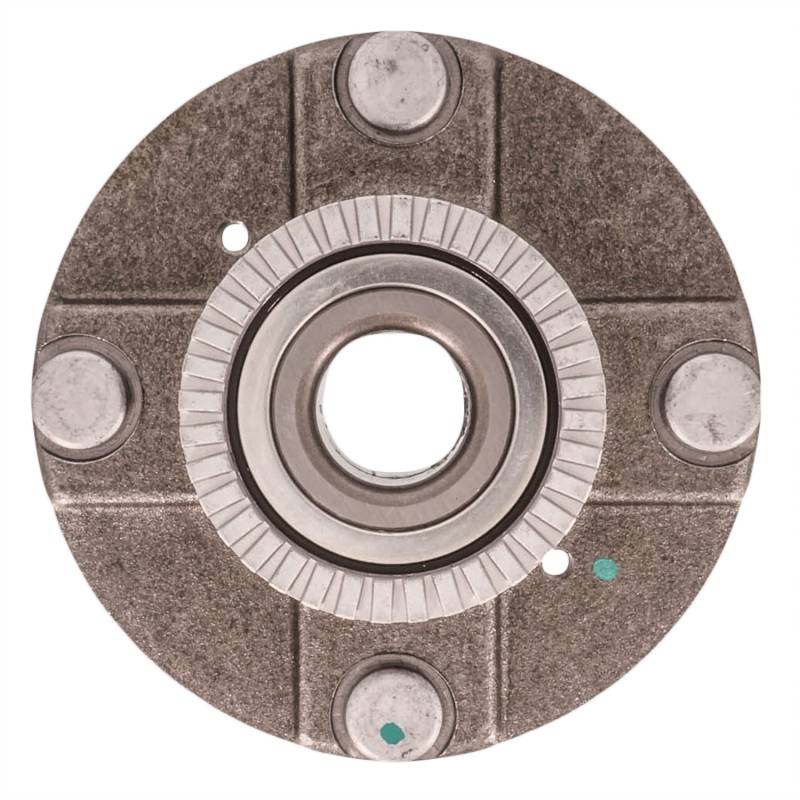

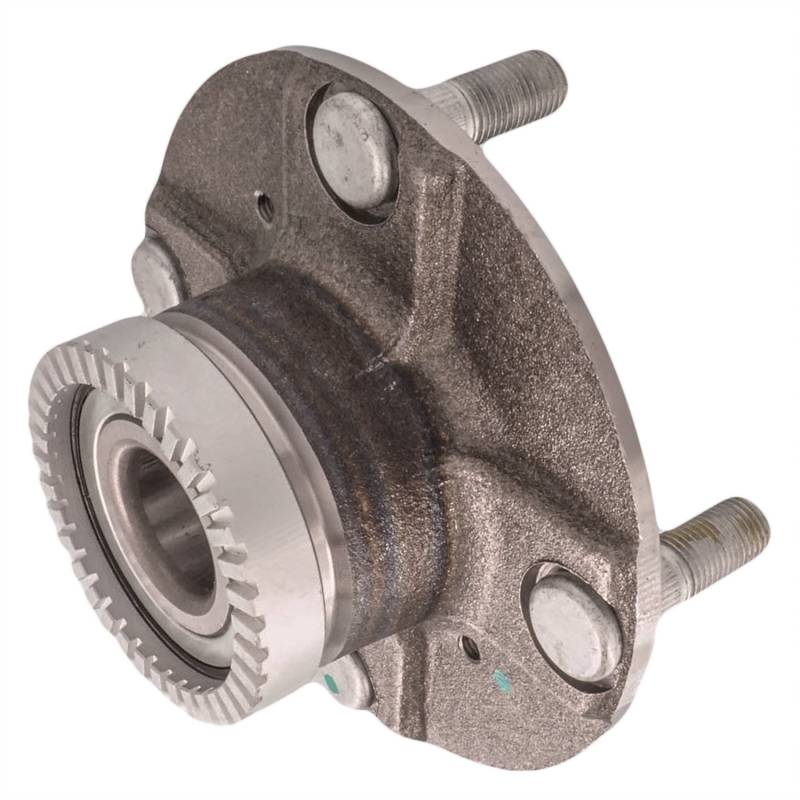

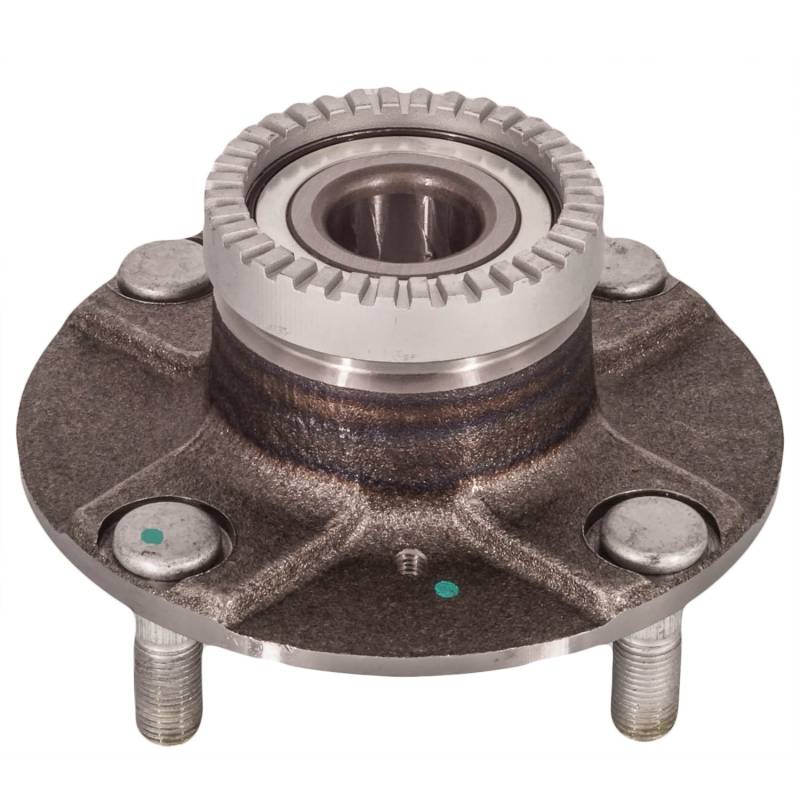

New Hub Assembly Compatible With Geo Pontiac Suzuki Chevrolet Metro Firefly Swift 1.0L 1.3L 1995

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

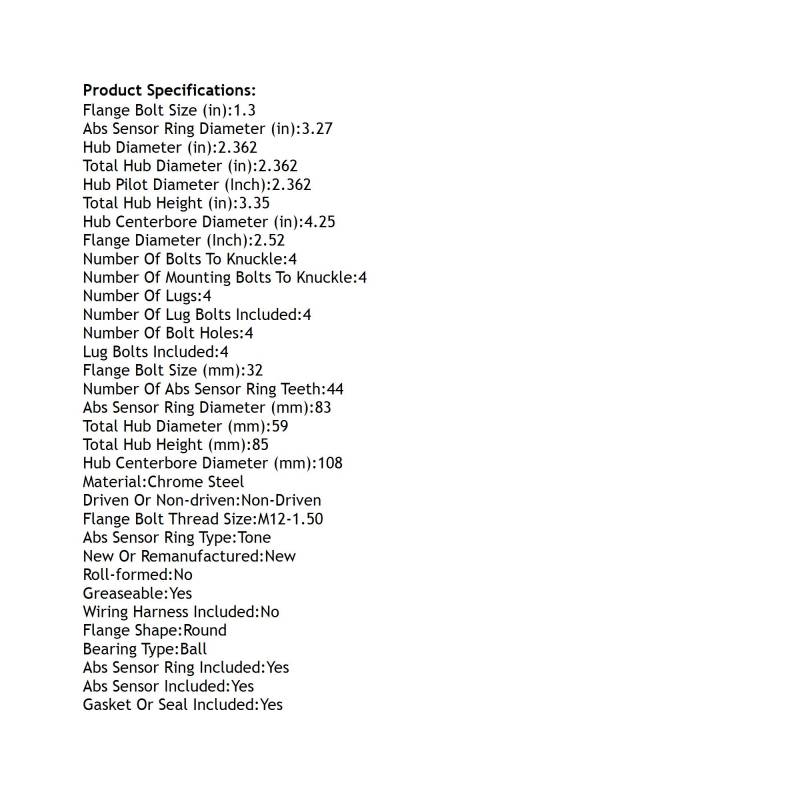

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.27
ABS SENSOR RING DIAMETER (MM): 83
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.3
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.52
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 2.362
HUB PILOT DIAMETER (INCH): 2.362
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 44
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 2.362
TOTAL HUB DIAMETER (MM): 59
TOTAL HUB HEIGHT (IN): 3.35
TOTAL HUB HEIGHT (MM): 85
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512204
TIMKEN: 512204
AUTOPART INTERNATIONAL: 1411-49192
BCA: WE61209
CENTRIC PARTS: 40548003E
FAG US: 102253
GSP: 103204
MOOG HUB ASSEMBLIES: 512204

APPLICATIONS:
GEO METRO (1995-1997)
PONTIAC FIREFLY (1995-2000)
SUZUKI SWIFT (1995-2001)
CHEVROLET METRO (1998-2001)
