THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

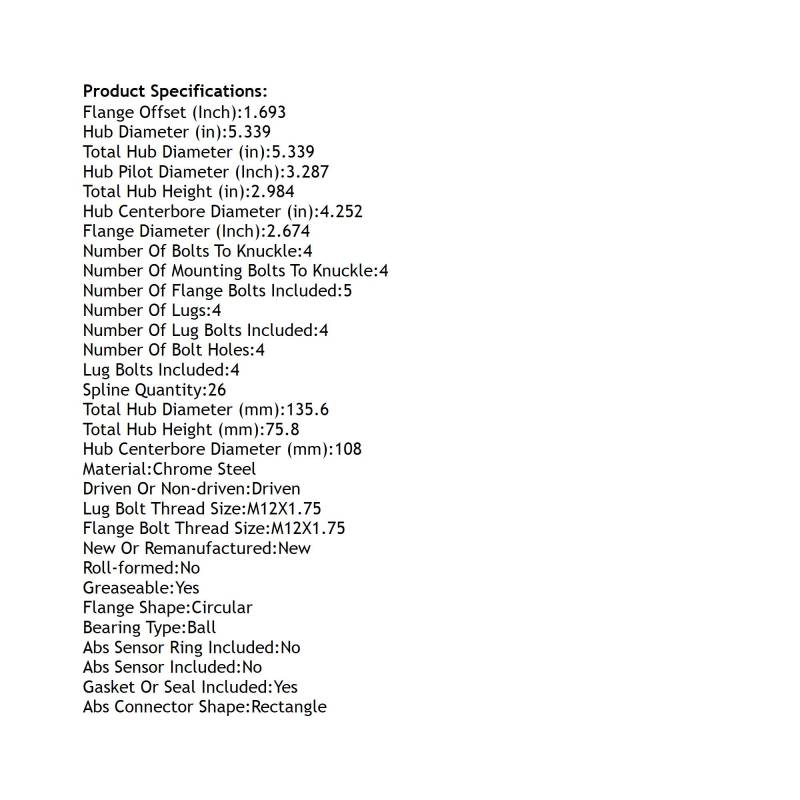

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M12X1.75
FLANGE DIAMETER (INCH): 2.674
FLANGE OFFSET (INCH): 1.693
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.339
HUB PILOT DIAMETER (INCH): 3.287
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.339
TOTAL HUB DIAMETER (MM): 135.6
TOTAL HUB HEIGHT (IN): 2.984
TOTAL HUB HEIGHT (MM): 75.8
REPLACES:
OTHER PART NUMBER: PT513174
SKF: BR930249
TIMKEN: HA594181
AUTOPART INTERNATIONAL: 1411-03942
BCA: WE61526
BECK/ARNLEY: 051-6119
CENTRIC PARTS: 40939002E
FAG US: 574566BE
GSP: 734174
MEVOTECH: H513174
MOOG HUB ASSEMBLIES: 513174
NAPA: PBR930249
VOLVO: 274378
APPLICATIONS:
VOLVO 850 (1994-1997)
VOLVO C70 (1998-1998)
VOLVO S70 (1998-1998)
VOLVO V70 (1998-1998)
