New Hub Assembly Compatible With Honda Isuzu Odyssey Oasis 2.3L 3.5L 1999 2000 2001 2002 2003 2004

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

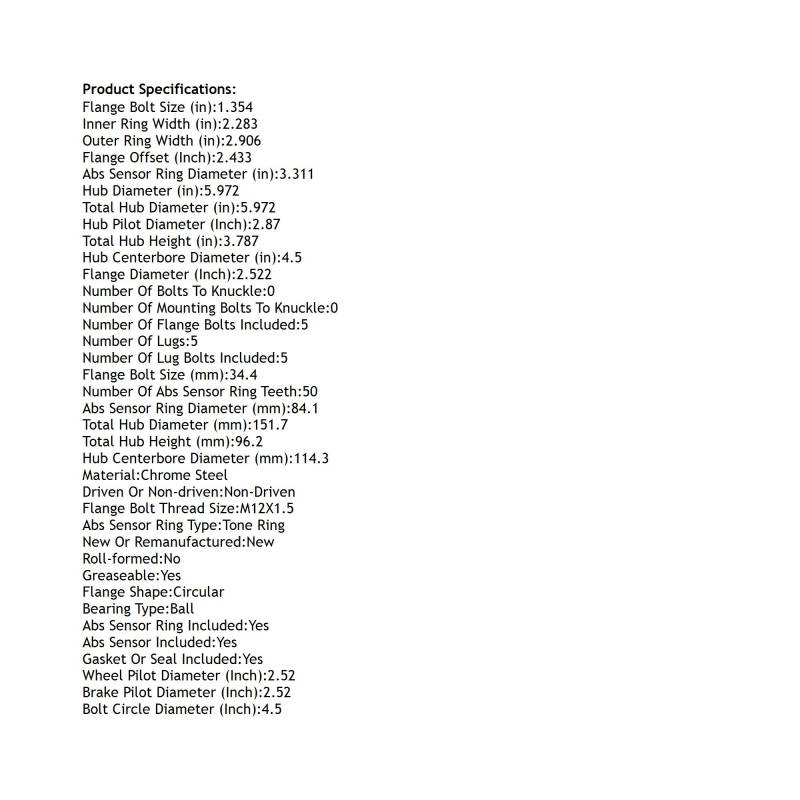

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.311
ABS SENSOR RING DIAMETER (MM): 84.1
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.52
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.354
FLANGE BOLT SIZE (MM): 34.4
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.522
FLANGE OFFSET (INCH): 2.433
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.972
HUB PILOT DIAMETER (INCH): 2.87
INNER RING WIDTH (IN): 2.283
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.906
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.972
TOTAL HUB DIAMETER (MM): 151.7
TOTAL HUB HEIGHT (IN): 3.787
TOTAL HUB HEIGHT (MM): 96.2
WHEEL PILOT DIAMETER (INCH): 2.52

REPLACES:
OTHER PART NUMBER: PT512180
SKF: BR930159
TIMKEN: 512180
AUTOPART INTERNATIONAL: 1411-45602
BCA: WE60538
BECK/ARNLEY: 051-6183
CENTRIC PARTS: 40643000
FAG US: 102092
GSP: 363180
MEVOTECH: H512180
MOOG HUB ASSEMBLIES: 512180
NAPA: PBR930159

APPLICATIONS:
HONDA ODYSSEY (1999-2004)
ISUZU OASIS (1999-1999)
