THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

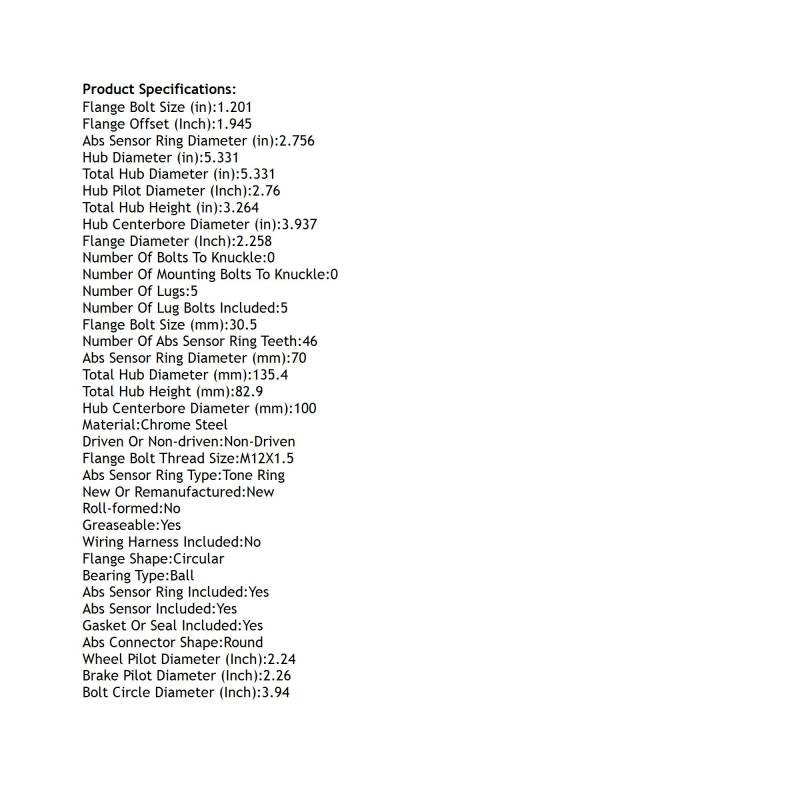

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.756
ABS SENSOR RING DIAMETER (MM): 70
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 3.94
BRAKE PILOT DIAMETER (INCH): 2.26
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.201
FLANGE BOLT SIZE (MM): 30.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.258
FLANGE OFFSET (INCH): 1.945
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.331
HUB PILOT DIAMETER (INCH): 2.76
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.331
TOTAL HUB DIAMETER (MM): 135.4
TOTAL HUB HEIGHT (IN): 3.264
TOTAL HUB HEIGHT (MM): 82.9
WHEEL PILOT DIAMETER (INCH): 2.24
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512013
SKF: BR930206
TIMKEN: 512013
AUTOPART INTERNATIONAL: 1411-44940
BCA: WE61452
CENTRIC PARTS: 40663008E
FAG US: 102484
GSP: 123013
MEVOTECH: H512013
MOOG HUB ASSEMBLIES: 512013
NAPA: PBR930206
APPLICATIONS:
DODGE NEON (1998-1999)
PLYMOUTH NEON (1998-1999)
