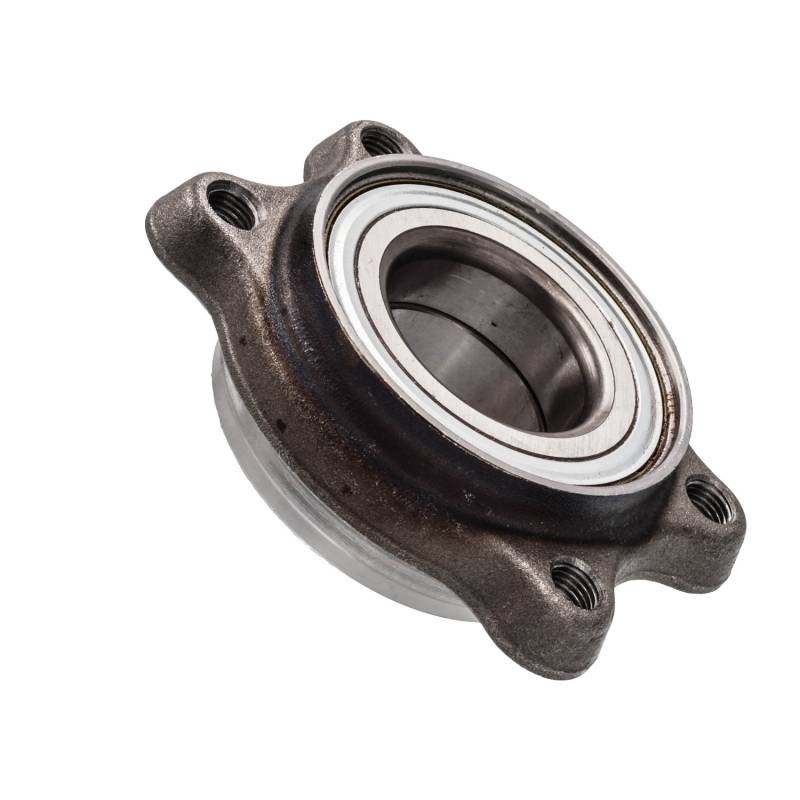

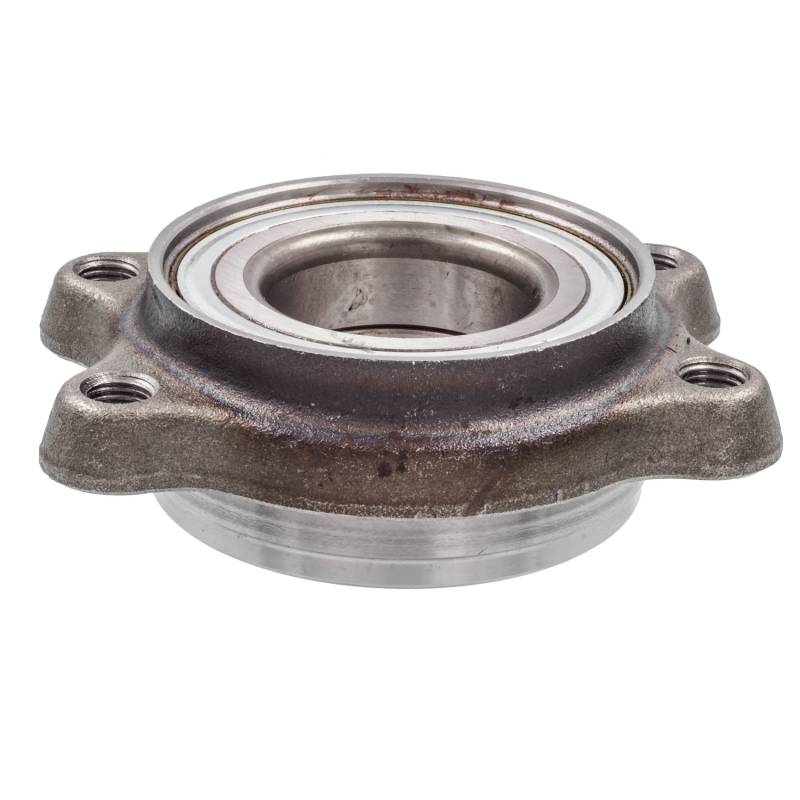

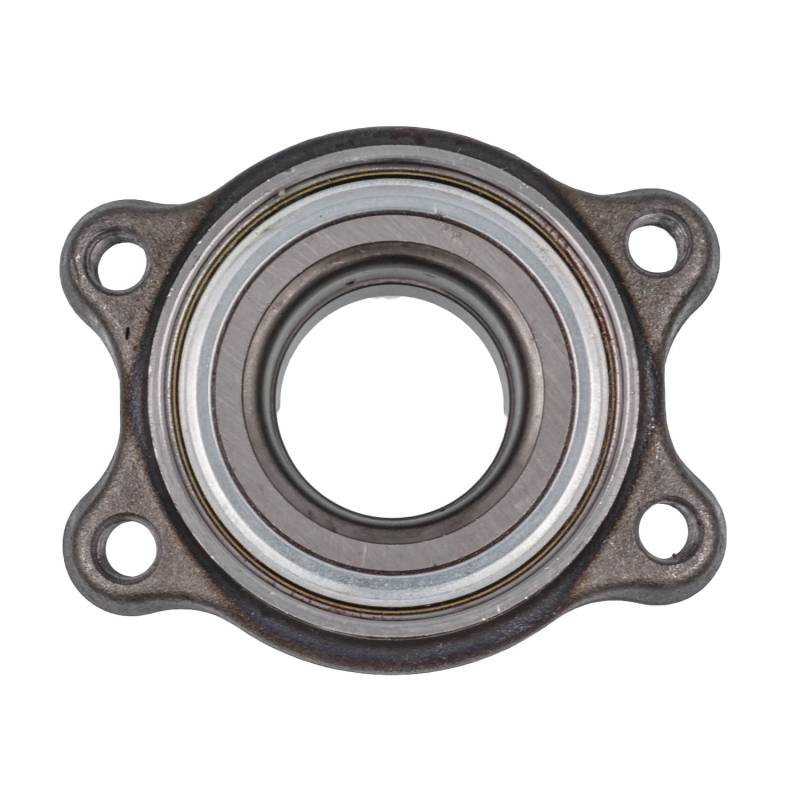

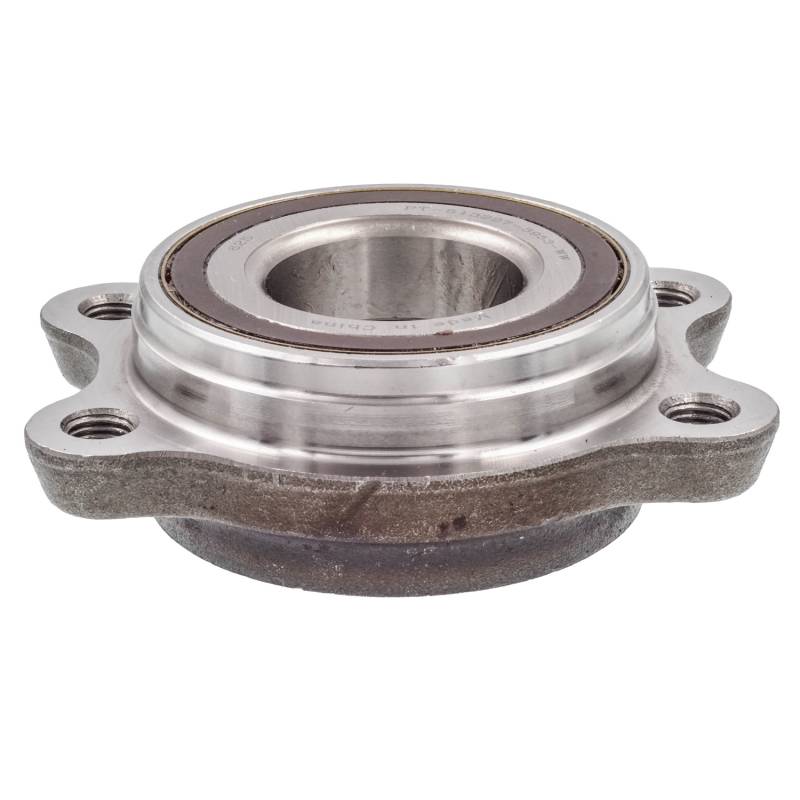

New Hub Assembly Compatible With Audi Volkswagen A8 Quattro Phaeton A6 Quattro A6 S6 S8 R8 S5 A7

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

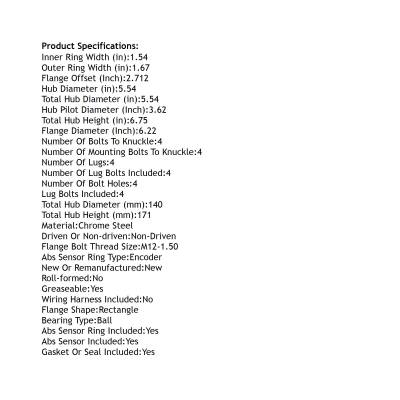

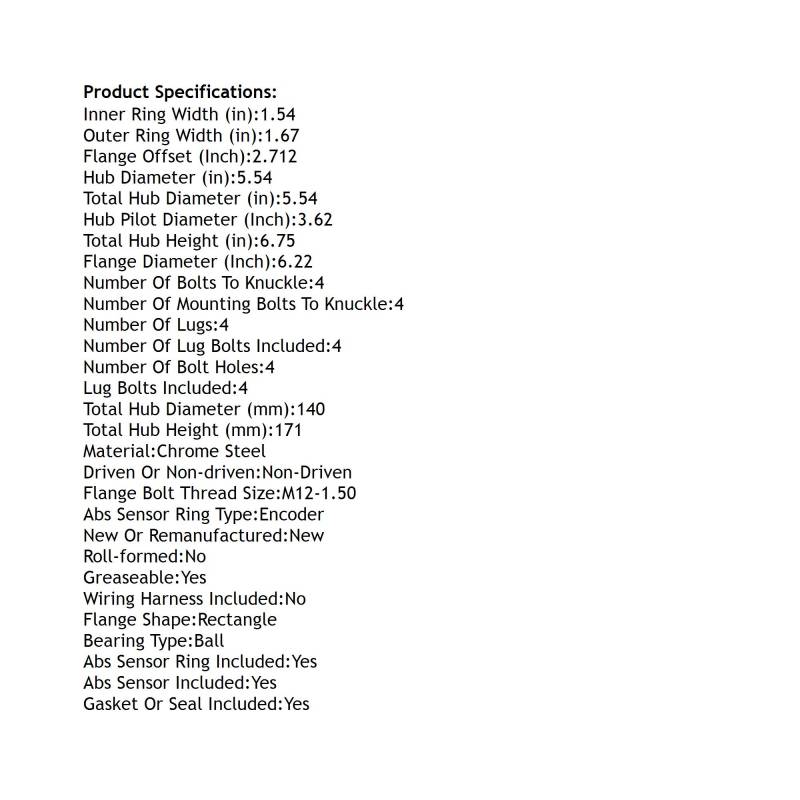

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: RECTANGLE
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB DIAMETER (IN): 5.54
HUB PILOT DIAMETER (INCH): 3.62
INNER RING WIDTH (IN): 1.54
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 1.67
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.54
TOTAL HUB DIAMETER (MM): 140
TOTAL HUB HEIGHT (IN): 6.75
TOTAL HUB HEIGHT (MM): 171
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513227
SKF: FW81
TIMKEN: HA590227
AUTOPART INTERNATIONAL: 1411-316482
BCA: WE61236
BECK/ARNLEY: 051-4203 051-4284
CENTRIC PARTS: 40533001 40533002
FAG US: 101468 101645
GSP: 234227
MEVOTECH: H513227
MOOG HUB ASSEMBLIES: 513227
NAPA: PWKH6546 PFW81

APPLICATIONS:
AUDI A8 QUATTRO (2004-2012)
VOLKSWAGEN PHAETON (2004-2006)
AUDI A6 QUATTRO (2005-2011)
AUDI A6 (2005-2011)
AUDI S6 (2007-2011)
AUDI S8 (2007-2009)
AUDI R8 (2008-2018)
AUDI S5 (2008-2008)
AUDI A7 QUATTRO (2012-2012)
