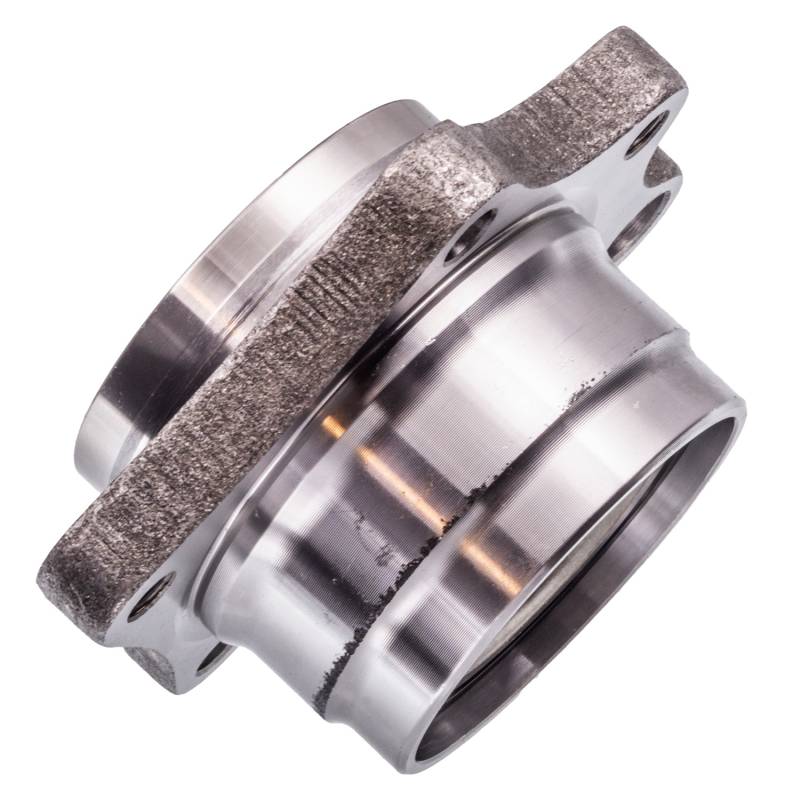

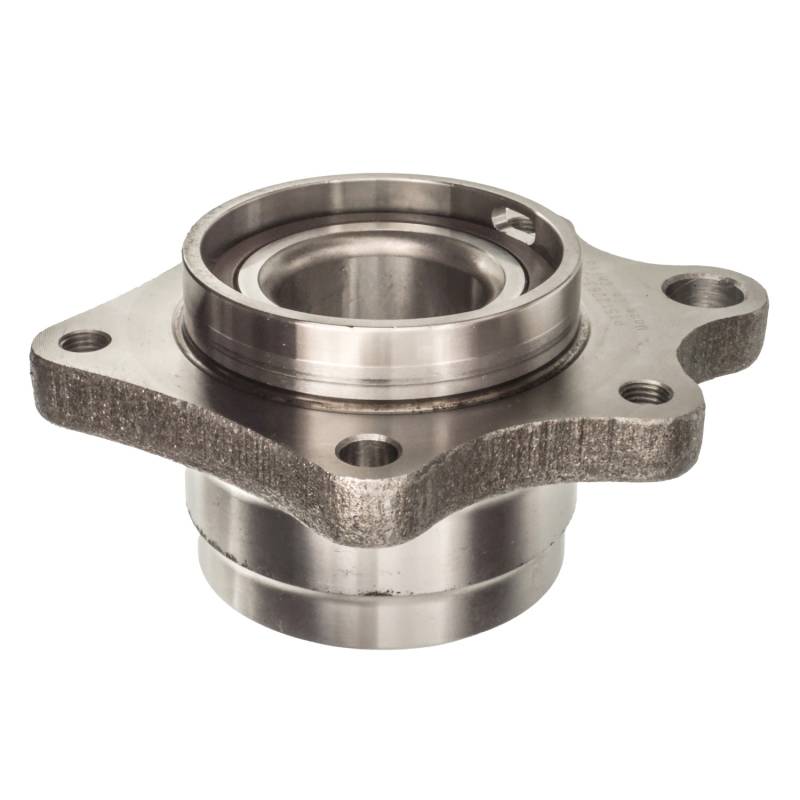

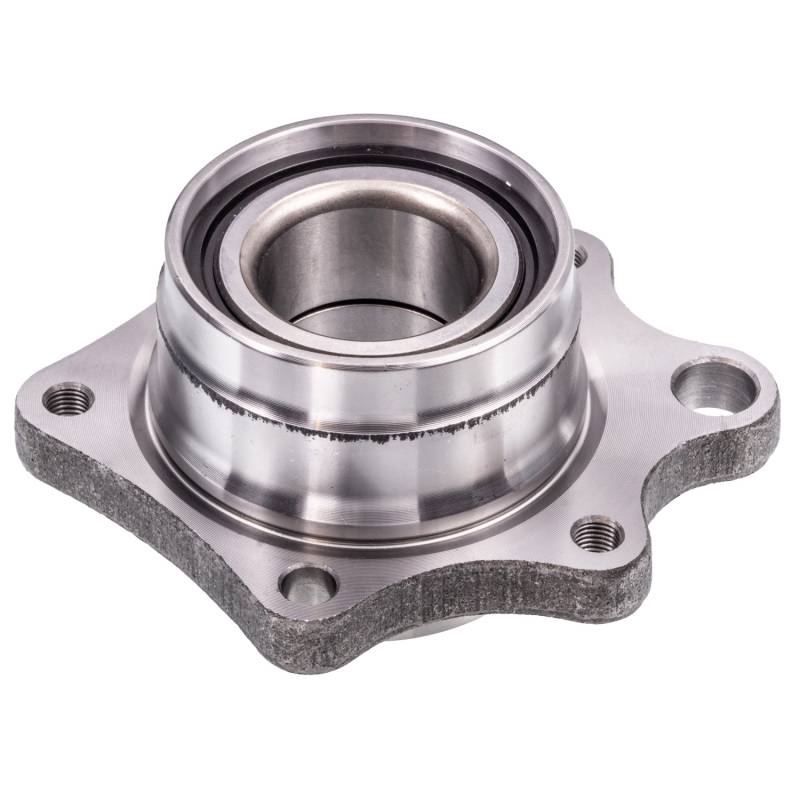

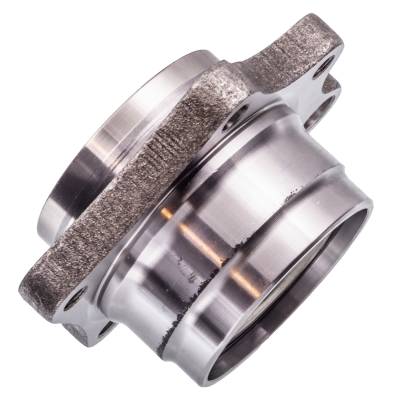

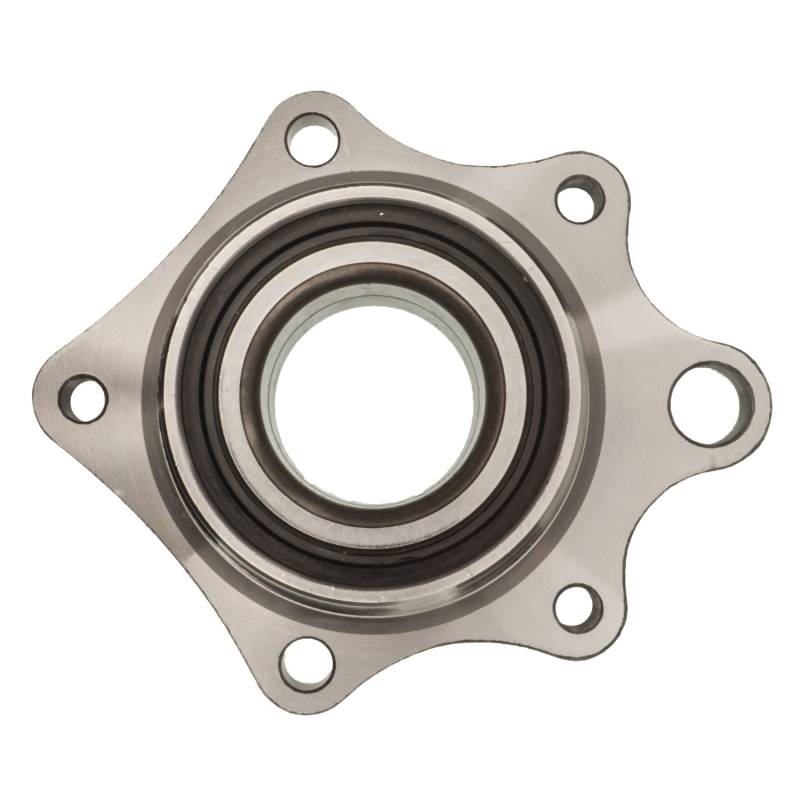

New Hub Assembly Compatible With Honda Element 2.4L 2003 2004 2005 2006 2007 2008 2009 2010 2011 By

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

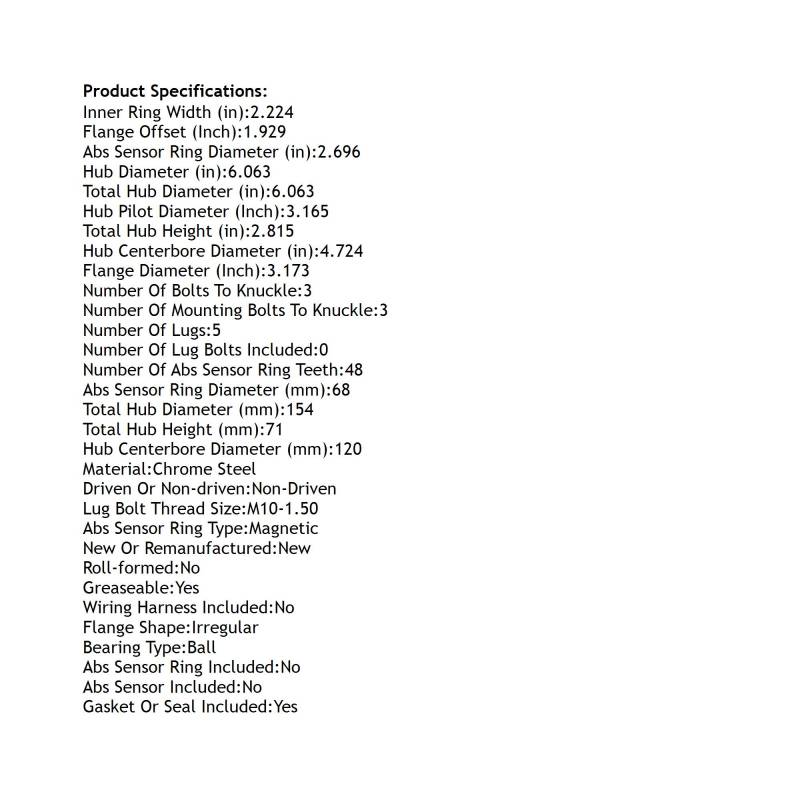

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 2.696
ABS SENSOR RING DIAMETER (MM): 68
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 3.173
FLANGE OFFSET (INCH): 1.929
FLANGE SHAPE: IRREGULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.724
HUB CENTERBORE DIAMETER (MM): 120
HUB DIAMETER (IN): 6.063
HUB PILOT DIAMETER (INCH): 3.165
INNER RING WIDTH (IN): 2.224
LUG BOLT THREAD SIZE: M10-1.50
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.063
TOTAL HUB DIAMETER (MM): 154
TOTAL HUB HEIGHT (IN): 2.815
TOTAL HUB HEIGHT (MM): 71
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512263
SKF: BR930619
TIMKEN: BM500003
BCA: WE60582
CENTRIC PARTS: 40540018
FAG US: 102510
GSP: 363263
MEVOTECH: H512263
MOOG HUB ASSEMBLIES: 512263
NAPA: PBR930619

APPLICATIONS:
HONDA ELEMENT (2003-2011)
