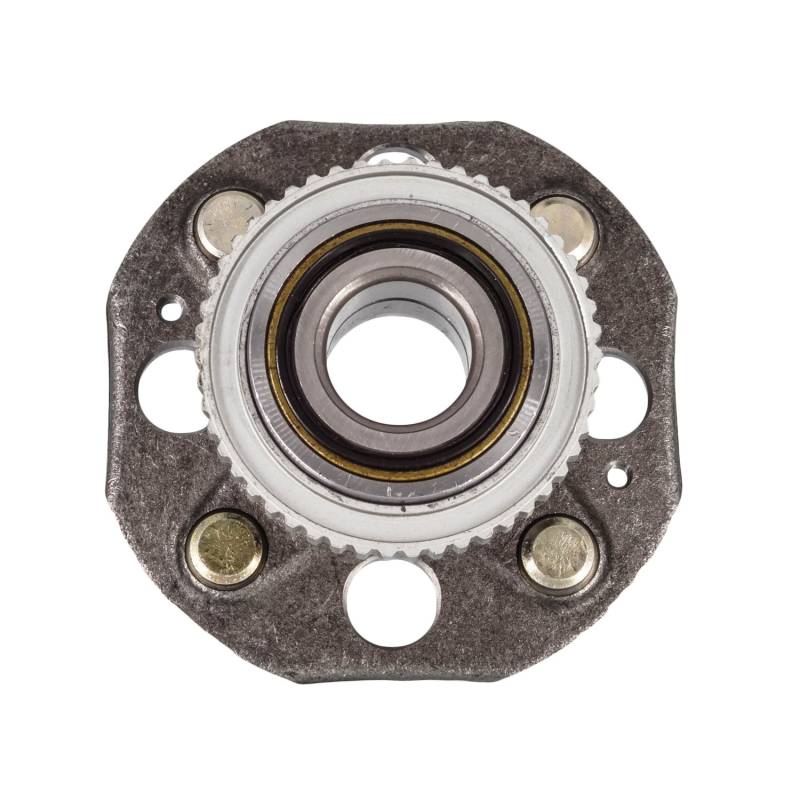

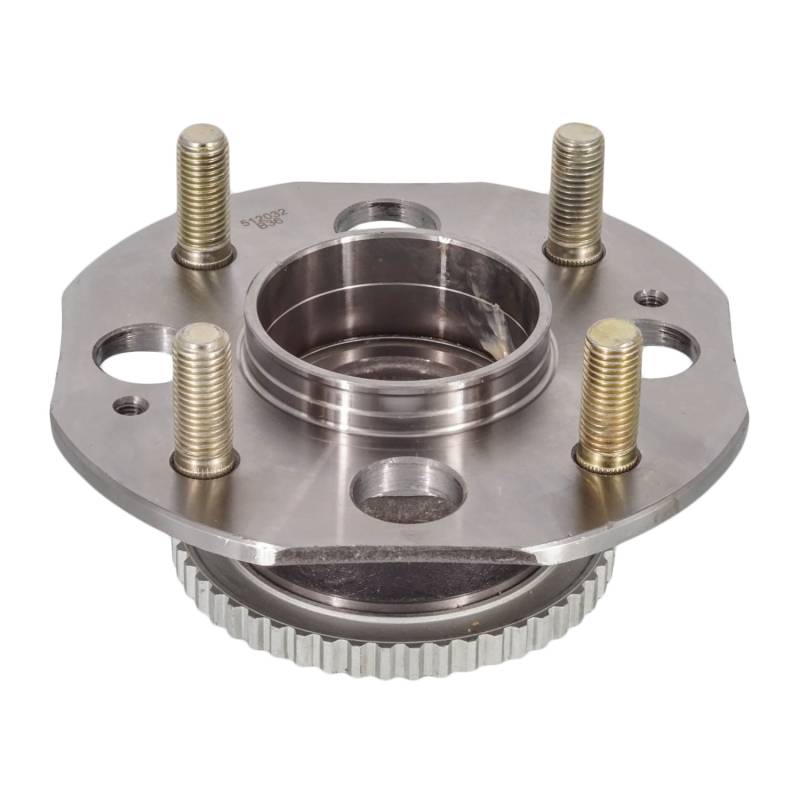

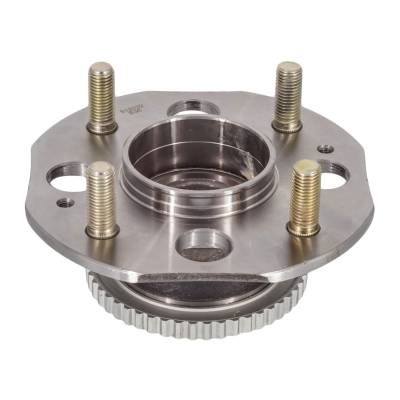

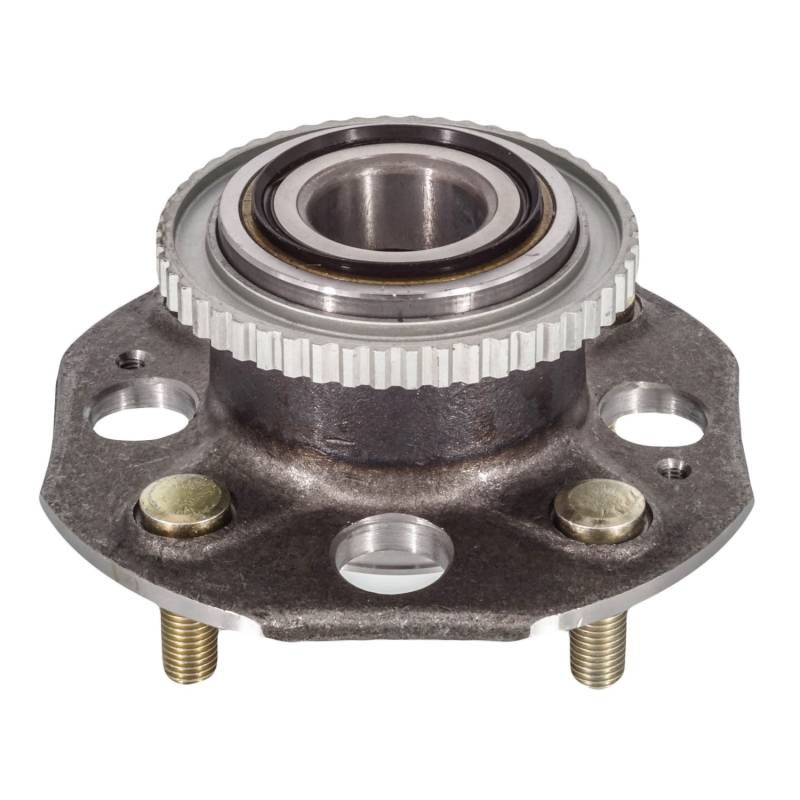

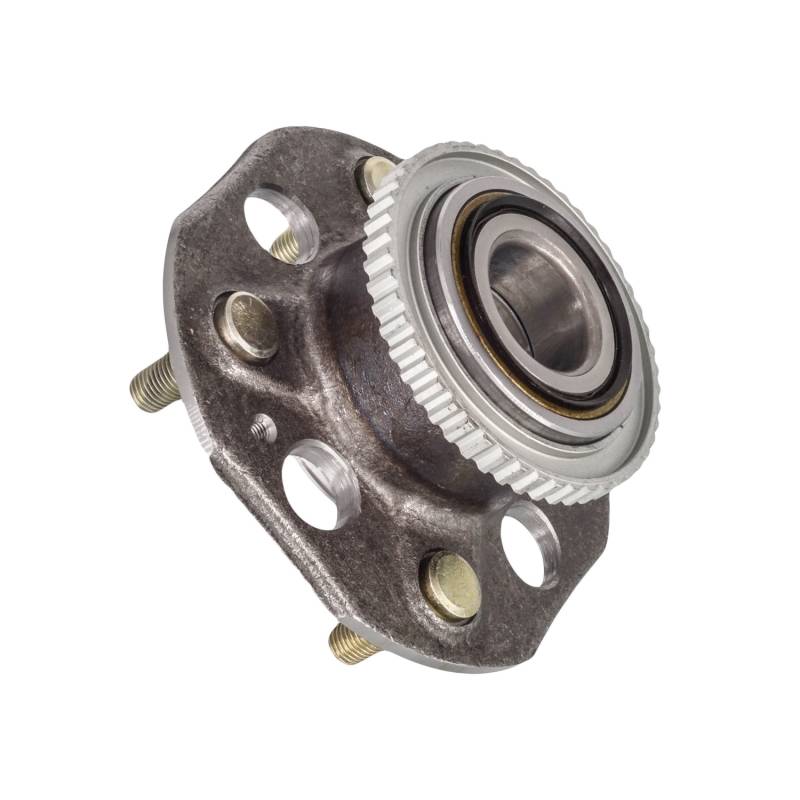

New Hub Assembly Compatible With Honda Accord 2.2L 1992 1993 By Part Numbers Br930126 Pt512032

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

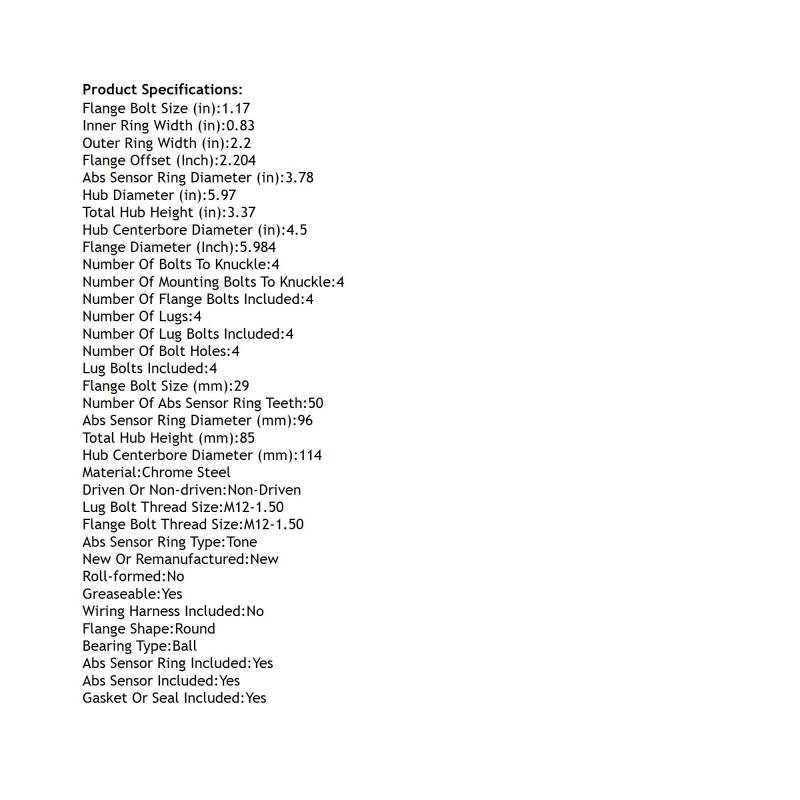

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.78
ABS SENSOR RING DIAMETER (MM): 96
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.17
FLANGE BOLT SIZE (MM): 29
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 5.984
FLANGE OFFSET (INCH): 2.204
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.97
INNER RING WIDTH (IN): 0.83
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 2.2
ROLL-FORMED: NO
TOTAL HUB HEIGHT (IN): 3.37
TOTAL HUB HEIGHT (MM): 85
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512032
SKF: BR930126
TIMKEN: 512032
AUTOPART INTERNATIONAL: 1411-45156
BCA: WE60475
CENTRIC PARTS: 40640012E
FAG US: 101691
GSP: 363032
MEVOTECH: H512032
MOOG HUB ASSEMBLIES: 512032
NAPA: PBR930126

APPLICATIONS:
HONDA ACCORD (1992-1993)
