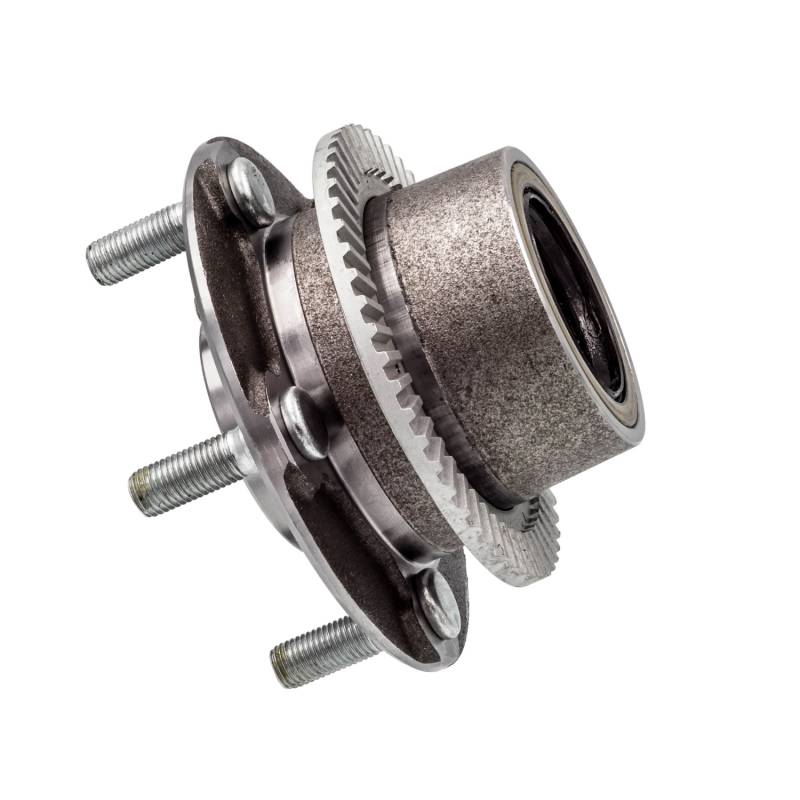

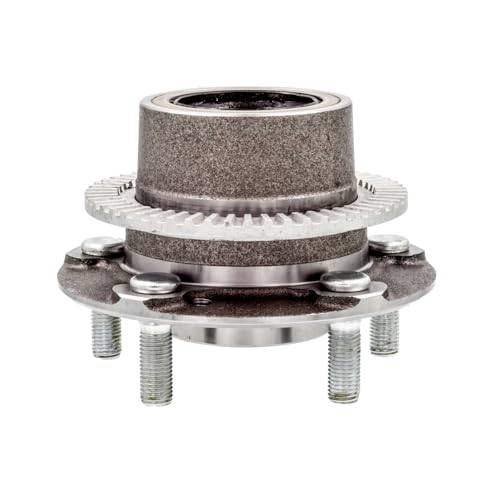

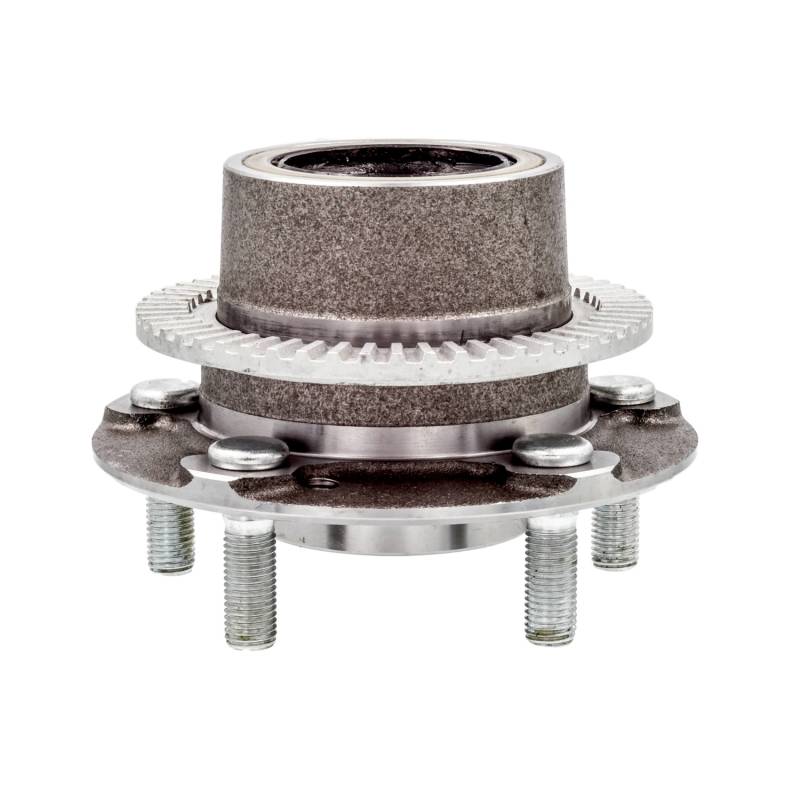

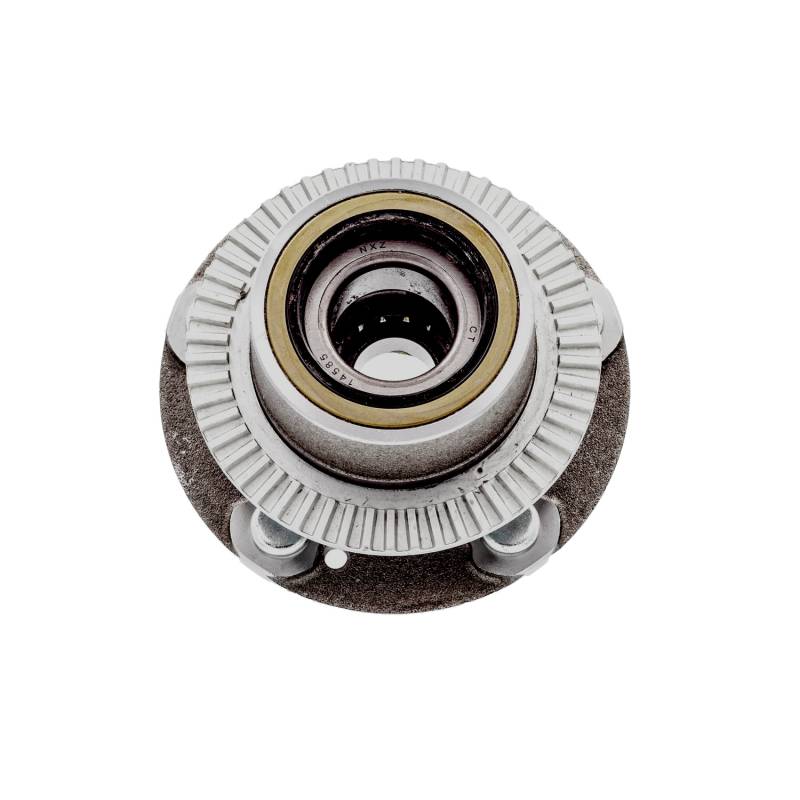

New Hub Assembly Compatible With Kia Sedona 3.5L 2003 2004 2005 By Part Numbers Ha590013 Pt590013

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

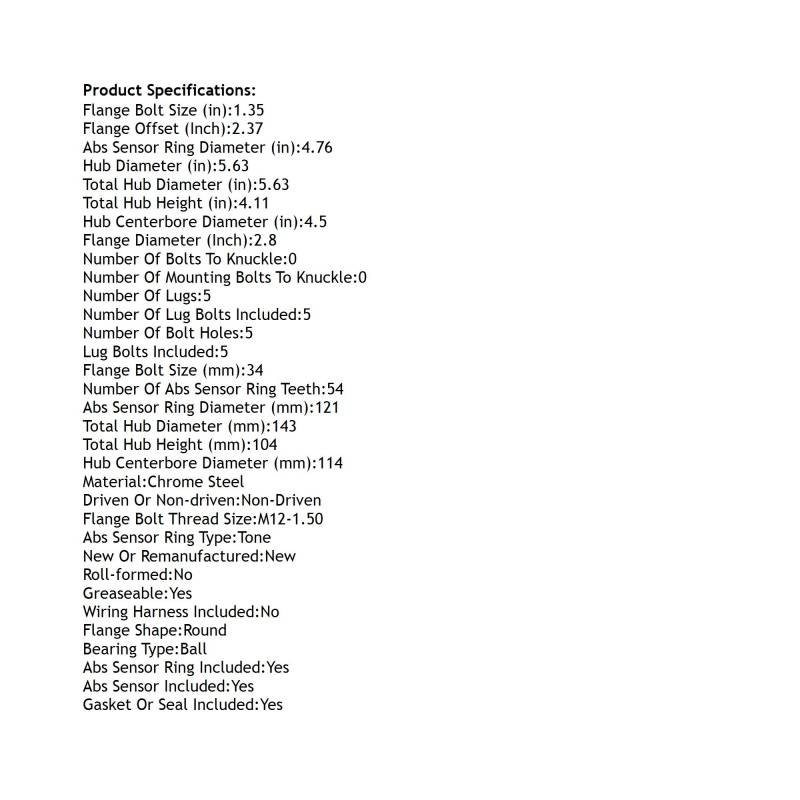

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.76
ABS SENSOR RING DIAMETER (MM): 121
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.35
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.8
FLANGE OFFSET (INCH): 2.37
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.63
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.63
TOTAL HUB DIAMETER (MM): 143
TOTAL HUB HEIGHT (IN): 4.11
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT590013
TIMKEN: HA590013
AUTOPART INTERNATIONAL: 1411-09833
BECK/ARNLEY: 051-6156 051-6157
MEVOTECH: MB90305

APPLICATIONS:
KIA SEDONA (2003-2005)
