THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

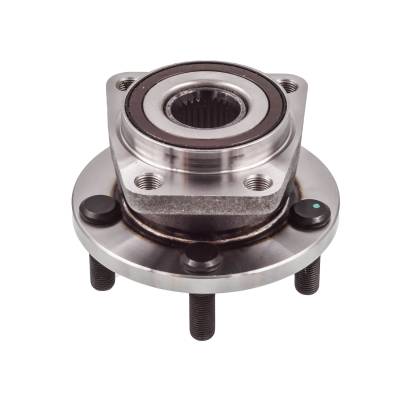

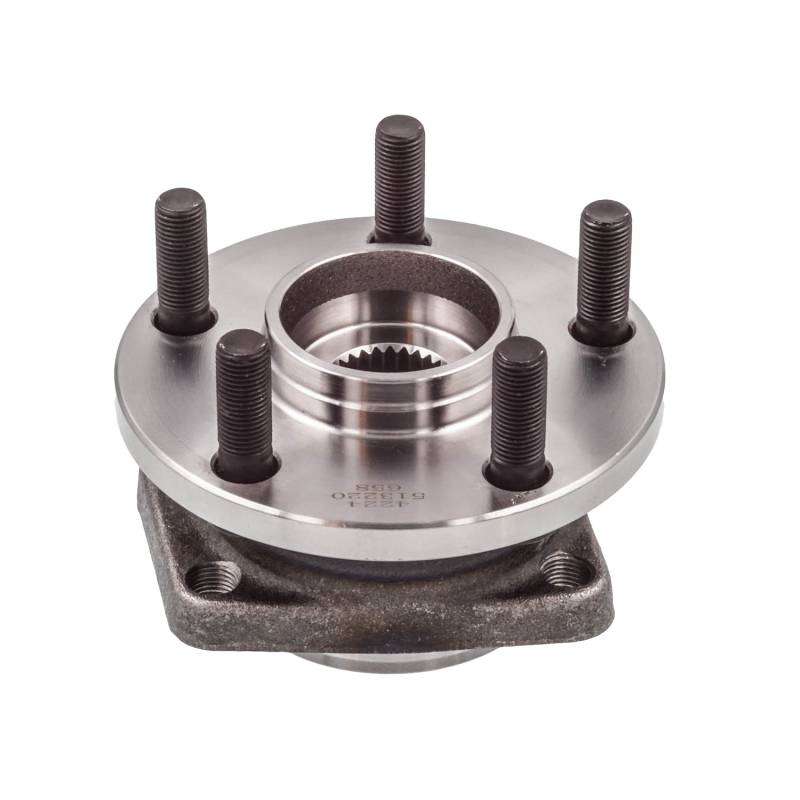

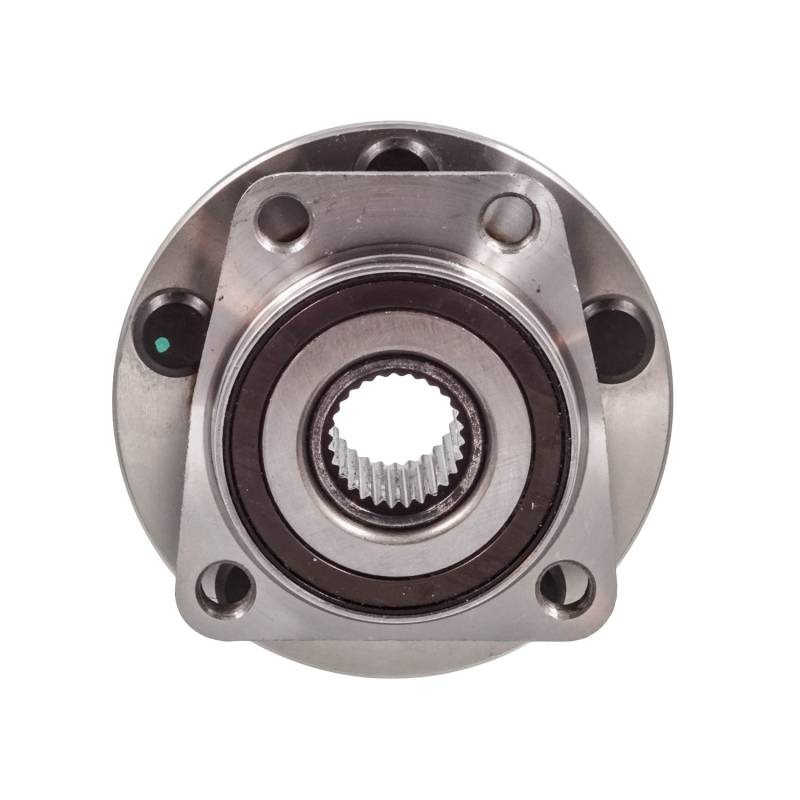

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.18
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12-1.25
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.94
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 4.88
HUB PILOT DIAMETER (INCH): 2.99
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 4.88
TOTAL HUB DIAMETER (MM): 124
TOTAL HUB HEIGHT (IN): 6.75
TOTAL HUB HEIGHT (MM): 171
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT513220
SKF: BR930473
TIMKEN: HA590118
AUTOPART INTERNATIONAL: 1411-09870
BCA: WE60548
BECK/ARNLEY: 051-6461
CENTRIC PARTS: 40147001E 40147001
FAG US: 101908
GSP: 664220
MEVOTECH: H513220
MOOG HUB ASSEMBLIES: 513220
NAPA: PBR930473
APPLICATIONS:
SUBARU LEGACY (2005-2014)
SUBARU OUTBACK (2005-2014)
