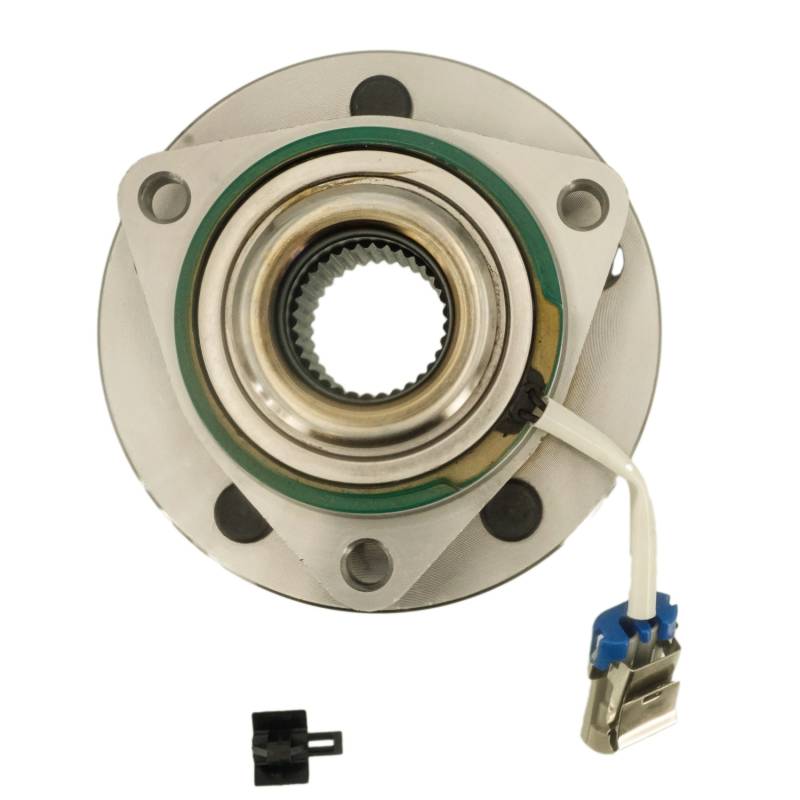

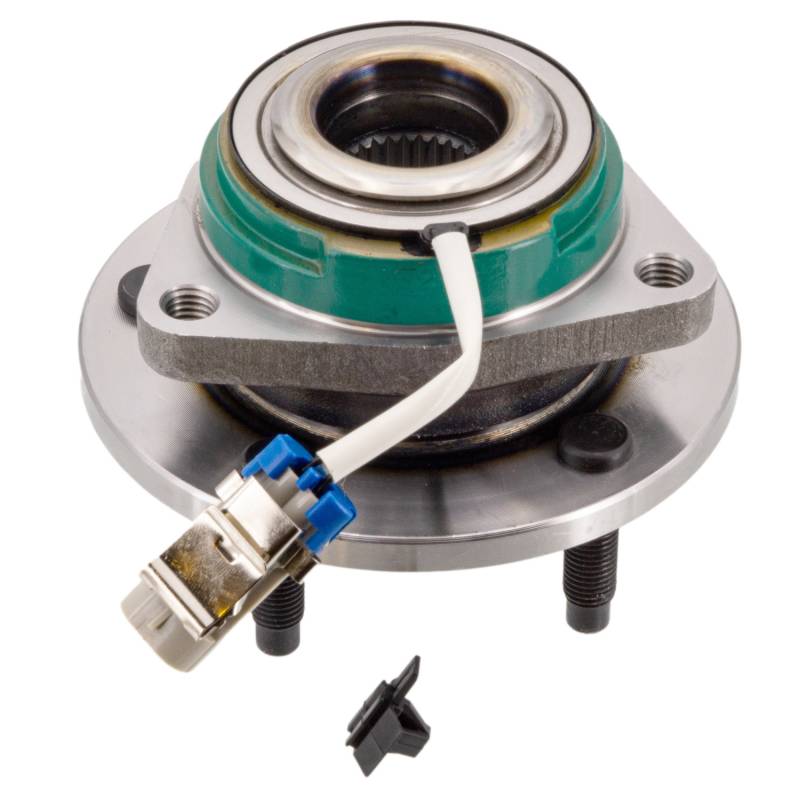

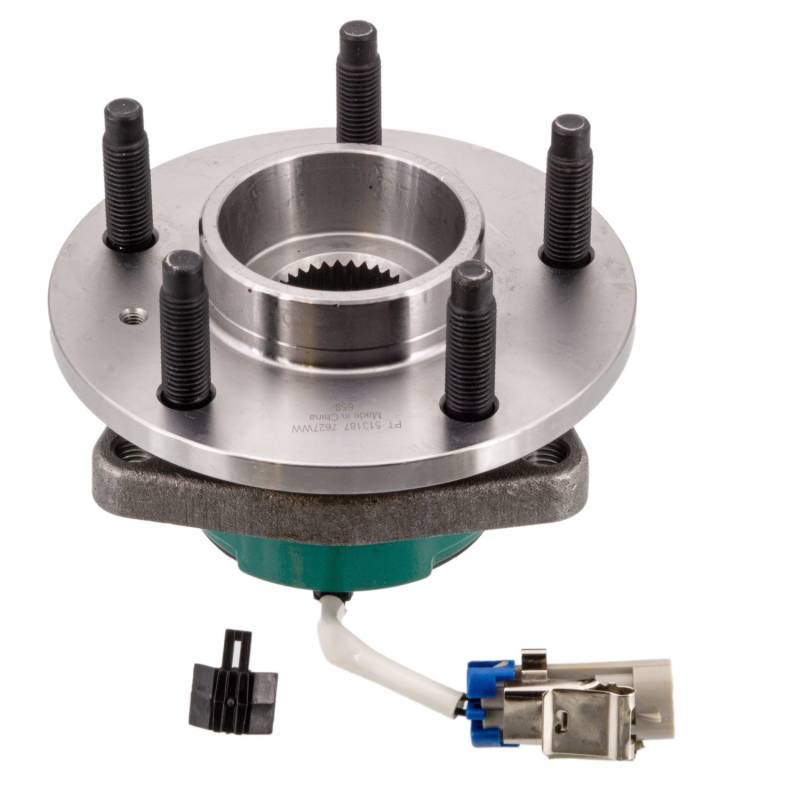

New Hub Assembly Compatible With Pontiac Buick Chevrolet Oldsmobile Aztek Montana Rendezvous Venture

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

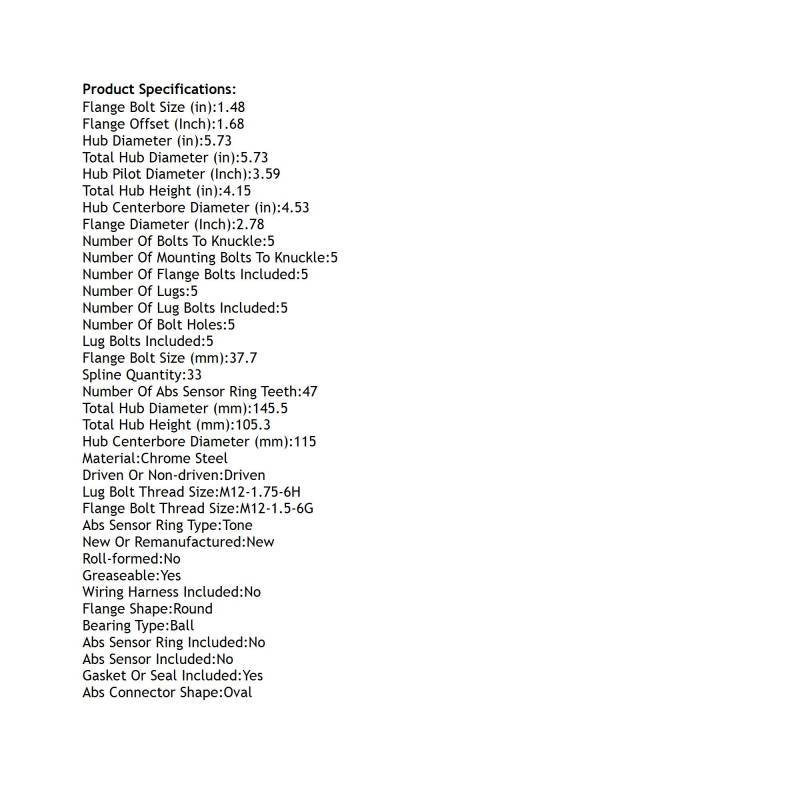

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.48
FLANGE BOLT SIZE (MM): 37.7
FLANGE BOLT THREAD SIZE: M12-1.5-6G
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.68
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.73
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLT THREAD SIZE: M12-1.75-6H
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 5
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 5
ROLL-FORMED: NO
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.73
TOTAL HUB DIAMETER (MM): 145.5
TOTAL HUB HEIGHT (IN): 4.15
TOTAL HUB HEIGHT (MM): 105.3
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513187
SKF: BR930548K
ACDELCO: 89047684 FW293
AUTOPART INTERNATIONAL: 1411-259919
BCA: WE60702
CENTRIC PARTS: 40262002
GENERAL MOTORS: 89047684
MEVOTECH: H513187
MOOG HUB ASSEMBLIES: 513187
NAPA: PBR930548K

APPLICATIONS:
PONTIAC AZTEK (2001-2005)
PONTIAC MONTANA (2001-2005)
BUICK RENDEZVOUS (2002-2007)
CHEVROLET VENTURE (2002-2004)
OLDSMOBILE SILHOUETTE (2002-2004)
