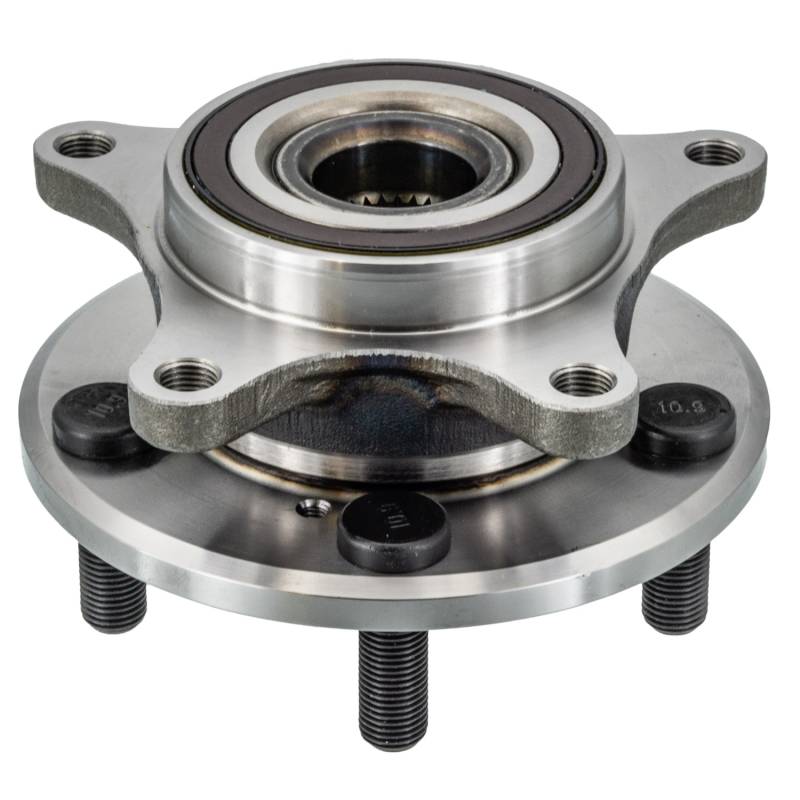

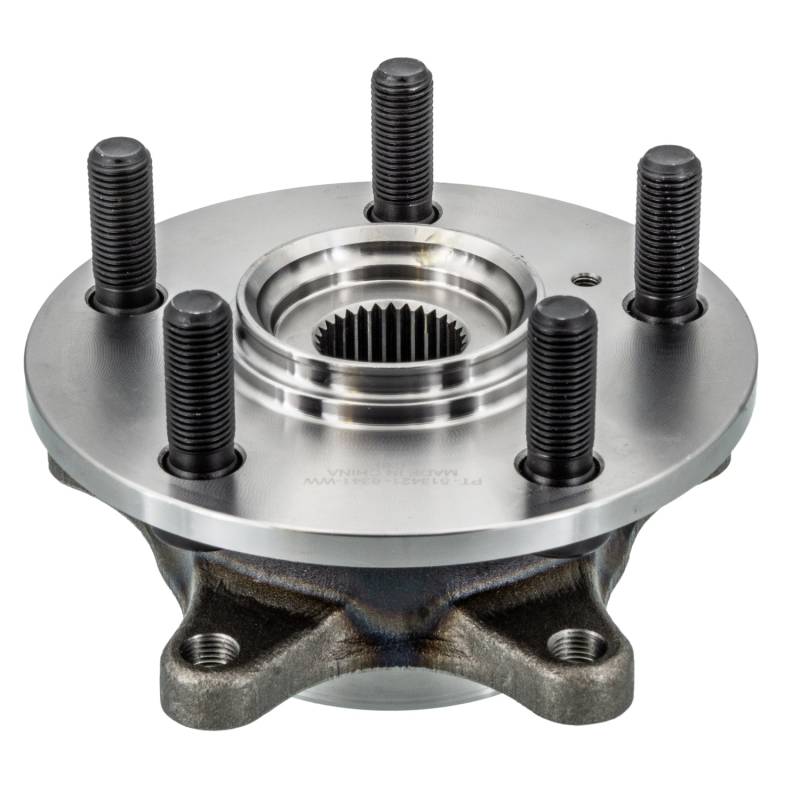

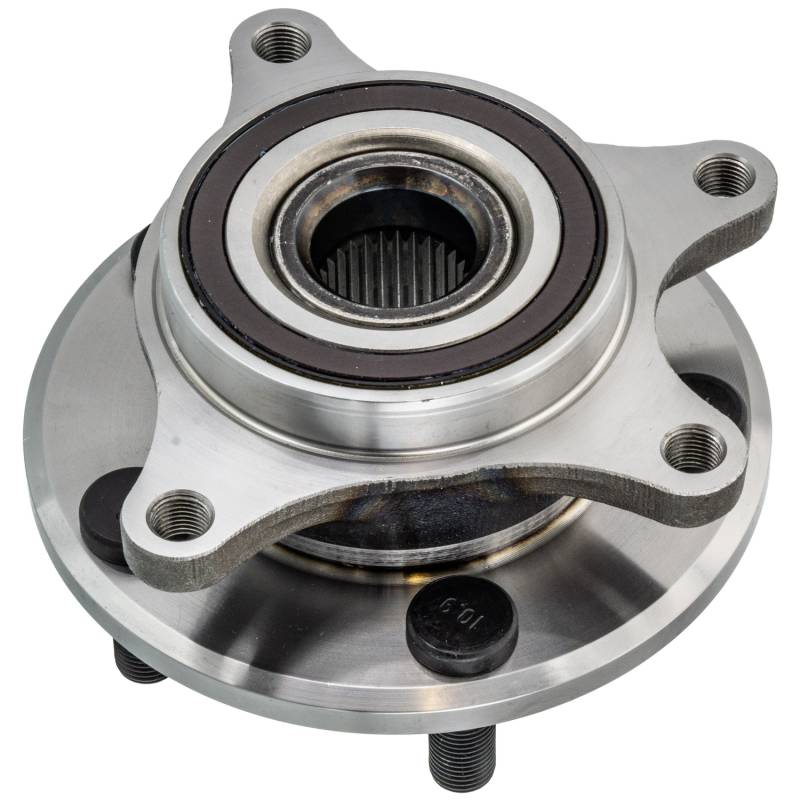

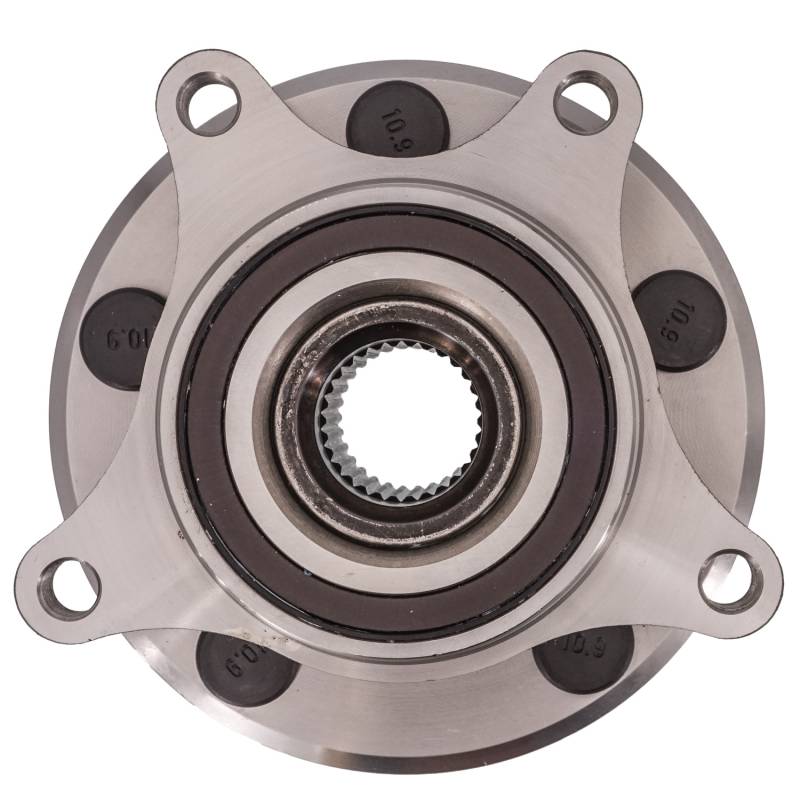

New Hub Assembly Compatible With Honda Civic 2.0L 2017 2018 2019 2020 2021 By Part Numbers Pt513421

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

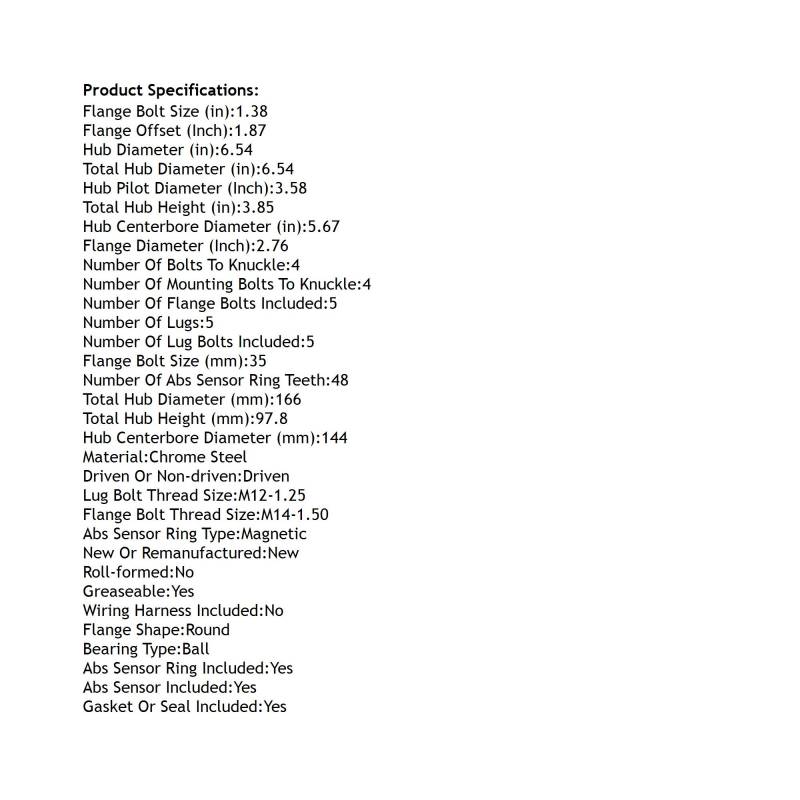

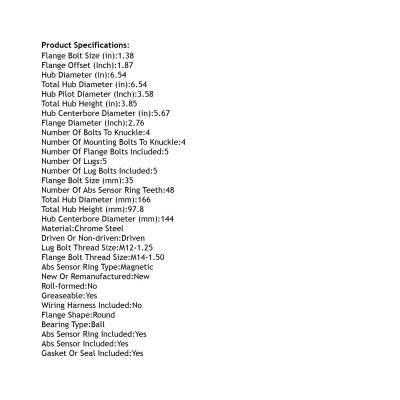

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.38
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M14-1.50
FLANGE DIAMETER (INCH): 2.76
FLANGE OFFSET (INCH): 1.87
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.67
HUB CENTERBORE DIAMETER (MM): 144
HUB DIAMETER (IN): 6.54
HUB PILOT DIAMETER (INCH): 3.58
LUG BOLT THREAD SIZE: M12-1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.54
TOTAL HUB DIAMETER (MM): 166
TOTAL HUB HEIGHT (IN): 3.85
TOTAL HUB HEIGHT (MM): 97.8
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513421
AUTOPART INTERNATIONAL: 1411-657294
GSP: 364421
MOOG HUB ASSEMBLIES: 513421

APPLICATIONS:
HONDA CIVIC (2017-2021)
