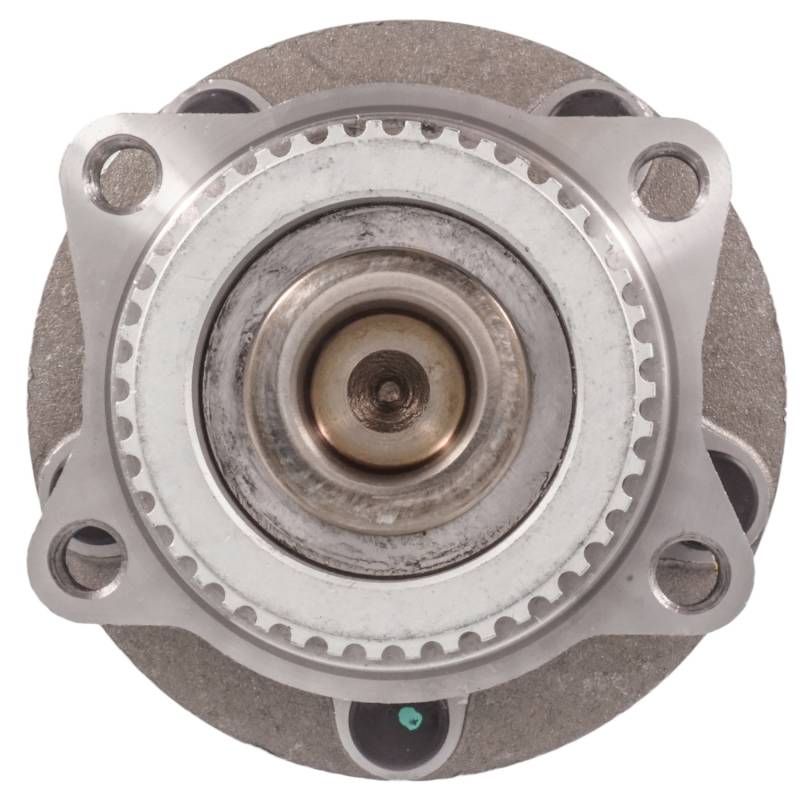

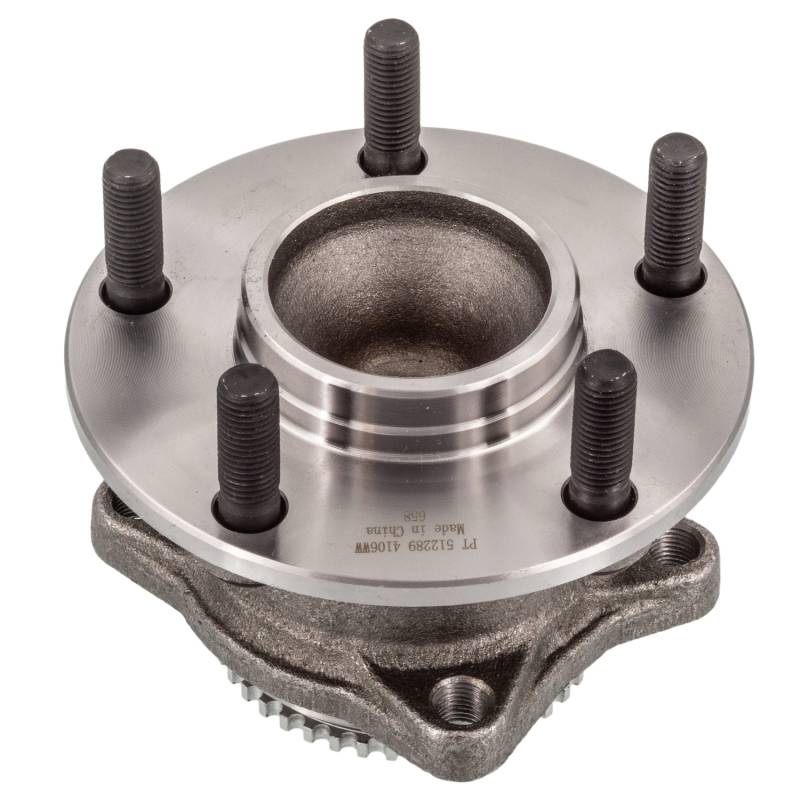

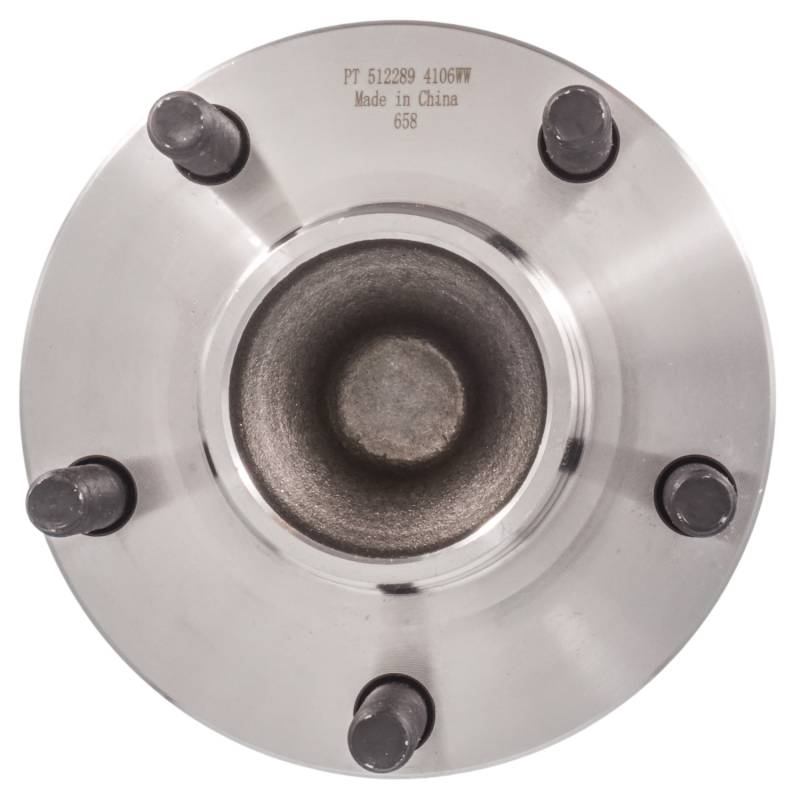

New Hub Assembly Compatible With Mitsubishi Endeavor 3.8L 2005-2005 By Part Numbers Ha590143

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.27
ABS SENSOR RING DIAMETER (MM): 83
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.31
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.72
FLANGE OFFSET (INCH): 2.33
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.43
HUB PILOT DIAMETER (INCH): 3.46
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.43
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 4.44
TOTAL HUB HEIGHT (MM): 112
WIRING HARNESS INCLUDED: NO

REPLACES:
BCA: WE60424
CENTRIC PARTS: 40546009
FAG US: 102518
MOOG HUB ASSEMBLIES: 512290
NAPA: PBR930431

APPLICATIONS:
MITSUBISHI ENDEAVOR (2005-2005)
