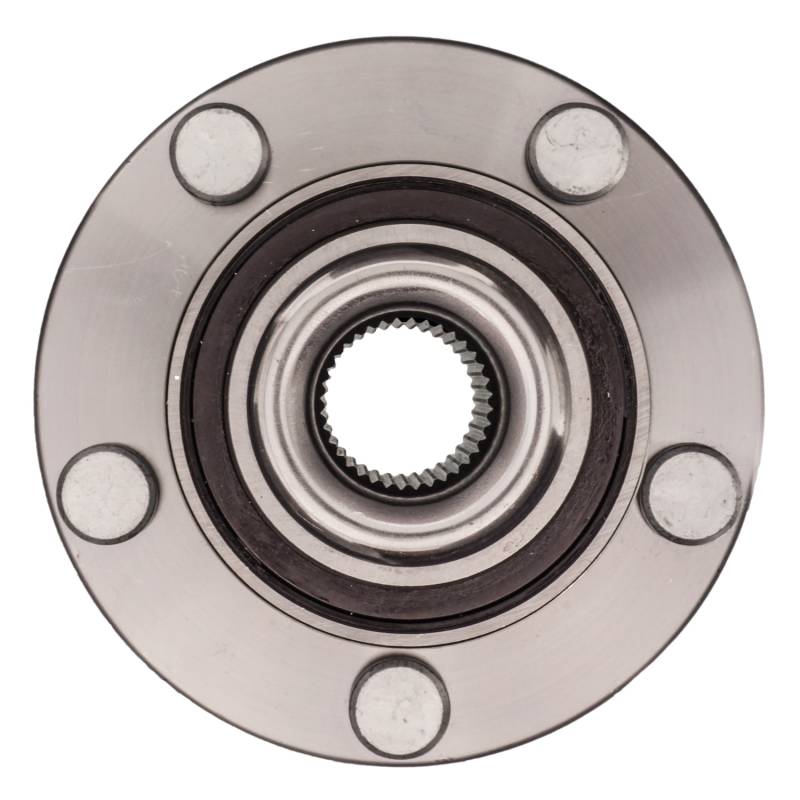

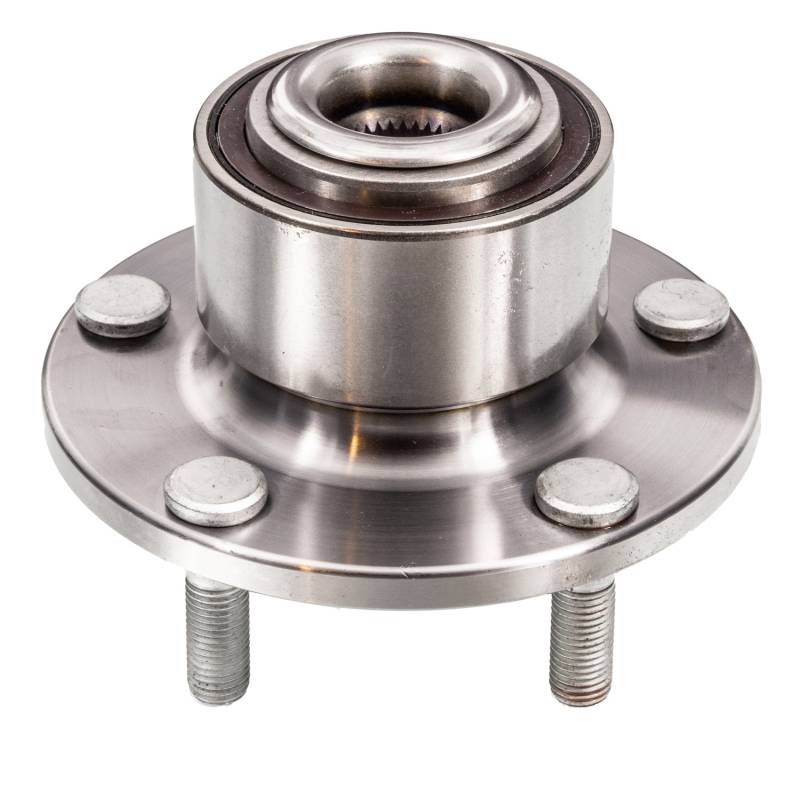

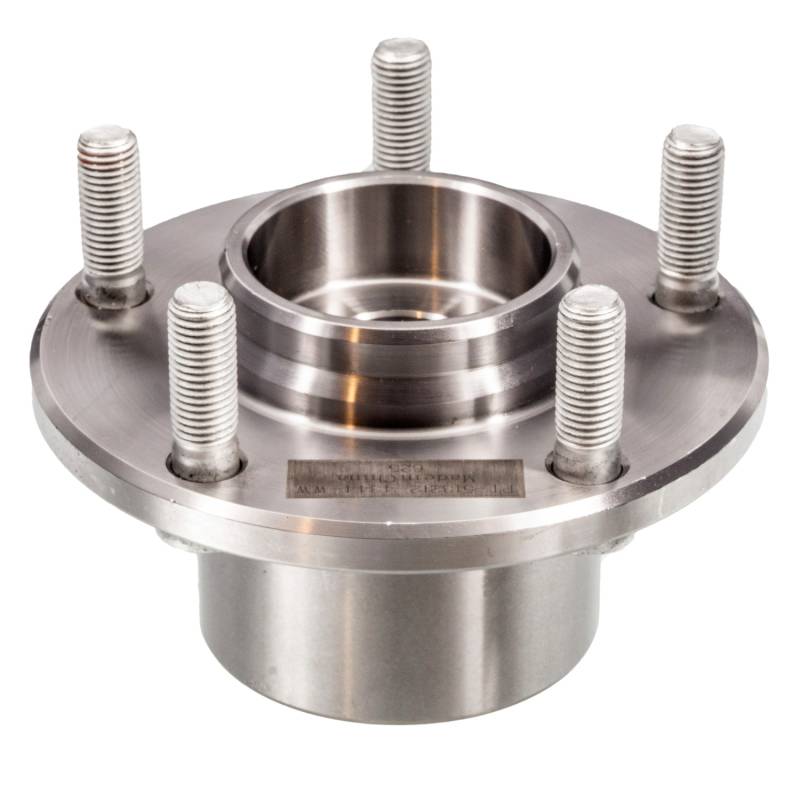

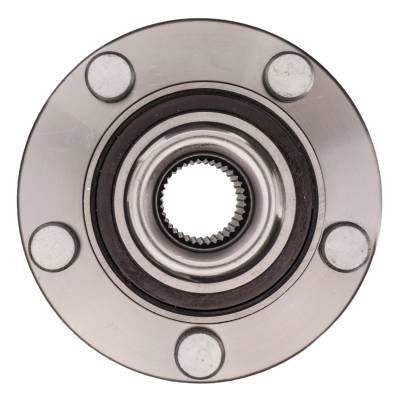

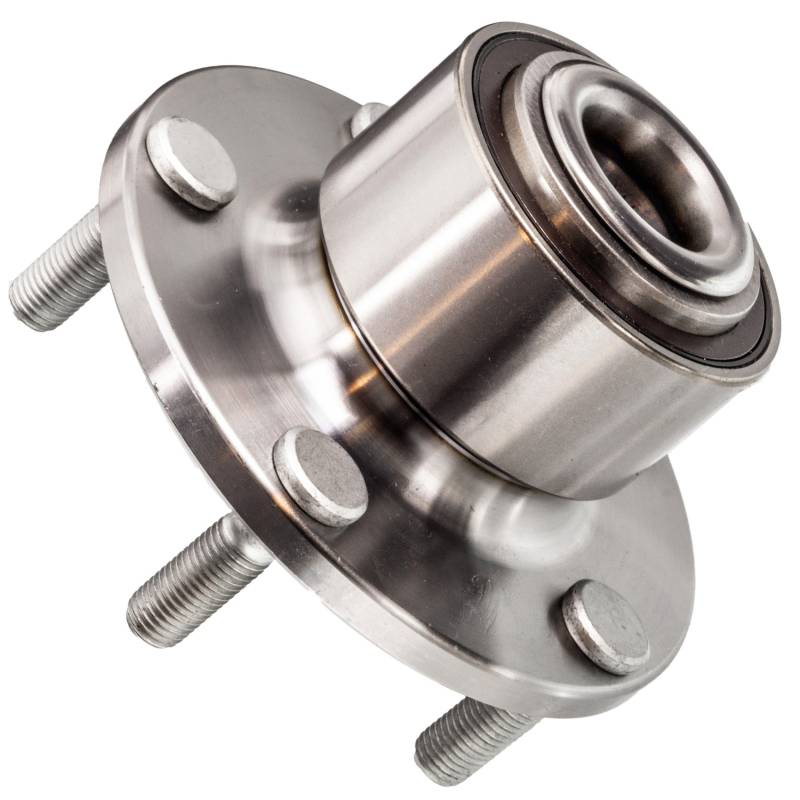

New Hub Assembly Compatible With Mazda 3 2.0L 2.3L 2004 2005 By Part Numbers Br930603 Ha590072

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

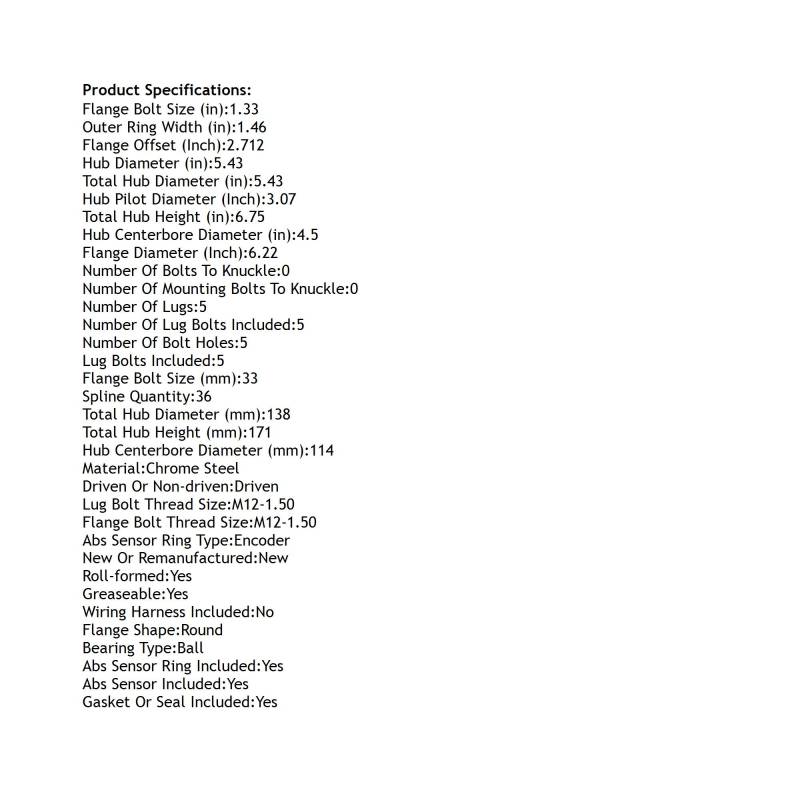

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: ENCODER
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.33
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 6.22
FLANGE OFFSET (INCH): 2.712
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.43
HUB PILOT DIAMETER (INCH): 3.07
LUG BOLT THREAD SIZE: M12-1.50
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 1.46
ROLL-FORMED: YES
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 5.43
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 6.75
TOTAL HUB HEIGHT (MM): 171
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513212
SKF: BR930603
TIMKEN: HA590072
AUTOPART INTERNATIONAL: 1411-09845
BECK/ARNLEY: 051-6216
CENTRIC PARTS: 40045000
MEVOTECH: H513212
MOOG HUB ASSEMBLIES: 513212
NAPA: PBR930603

APPLICATIONS:
MAZDA 3 (2004-2005)
