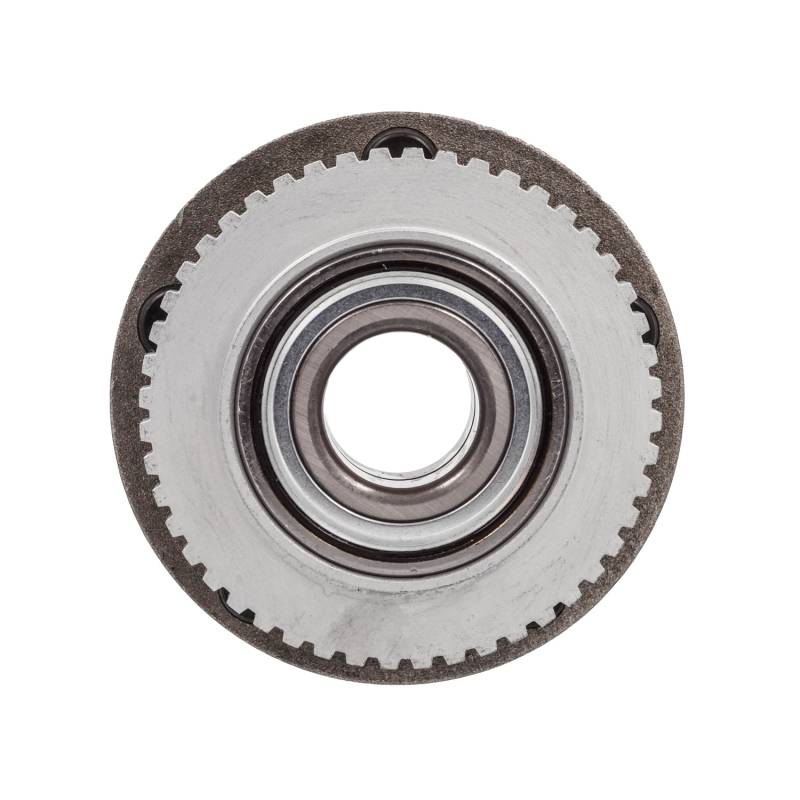

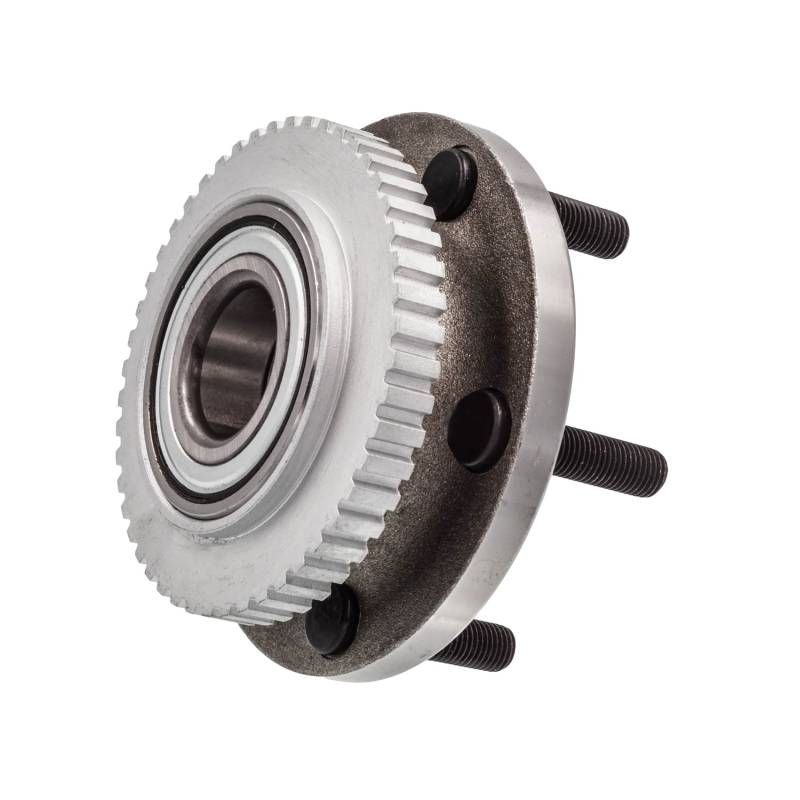

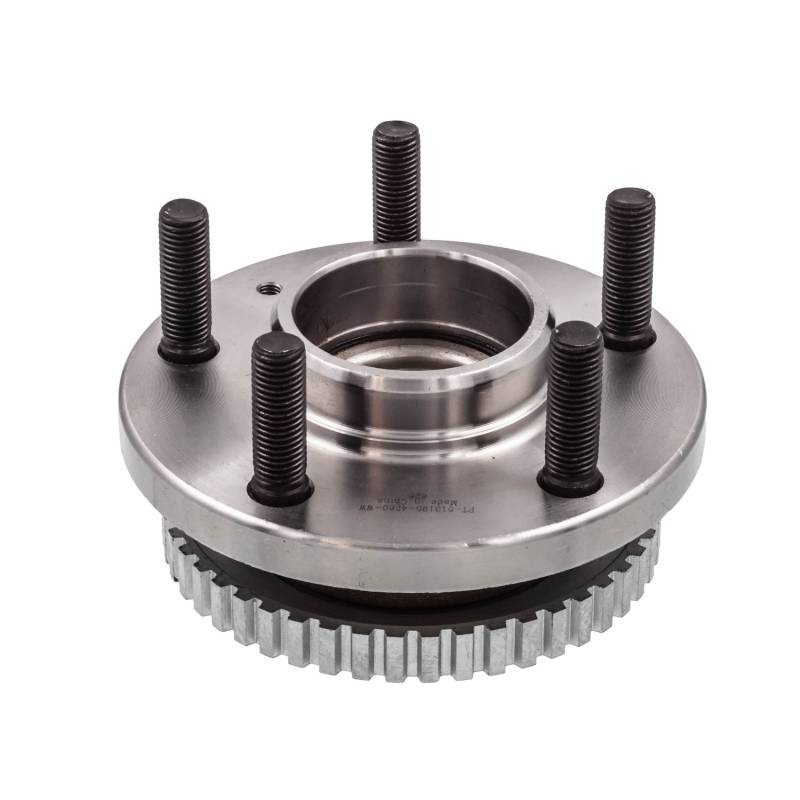

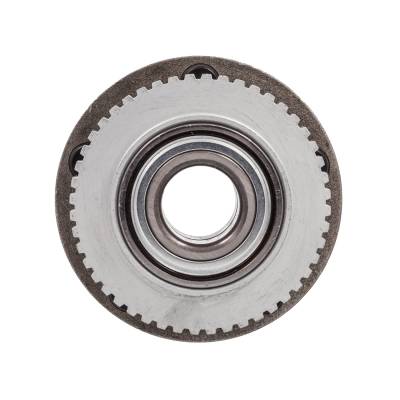

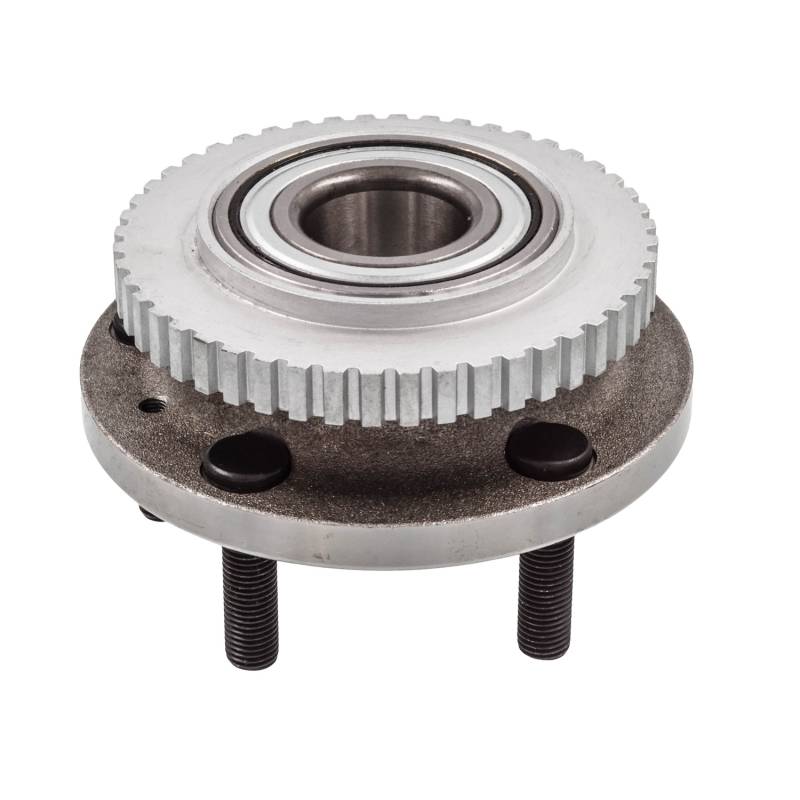

New Hub Assembly Compatible With Volvo S90 V90 2.9L 1997 1998 By Part Numbers Br930241k Pt513195

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.65
ABS SENSOR RING DIAMETER (MM): 118
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.5
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 1.93
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 2.93
INNER RING WIDTH (IN): 1.76
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 3.43
TOTAL HUB HEIGHT (MM): 87
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513195
SKF: BR930241K
TIMKEN: HA590241K
AUTOPART INTERNATIONAL: 1411-45890
CENTRIC PARTS: 40639003E
FAG US: 102456
GSP: 724195
MOOG HUB ASSEMBLIES: 513195
NAPA: PBR930241K

APPLICATIONS:
VOLVO S90 (1997-1998)
VOLVO V90 (1997-1998)
