THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

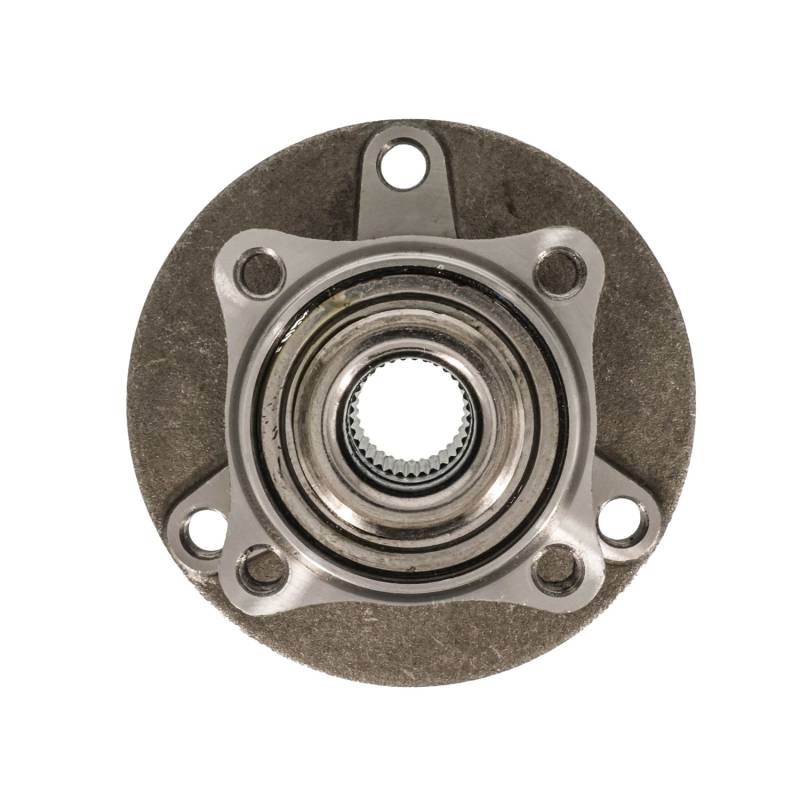

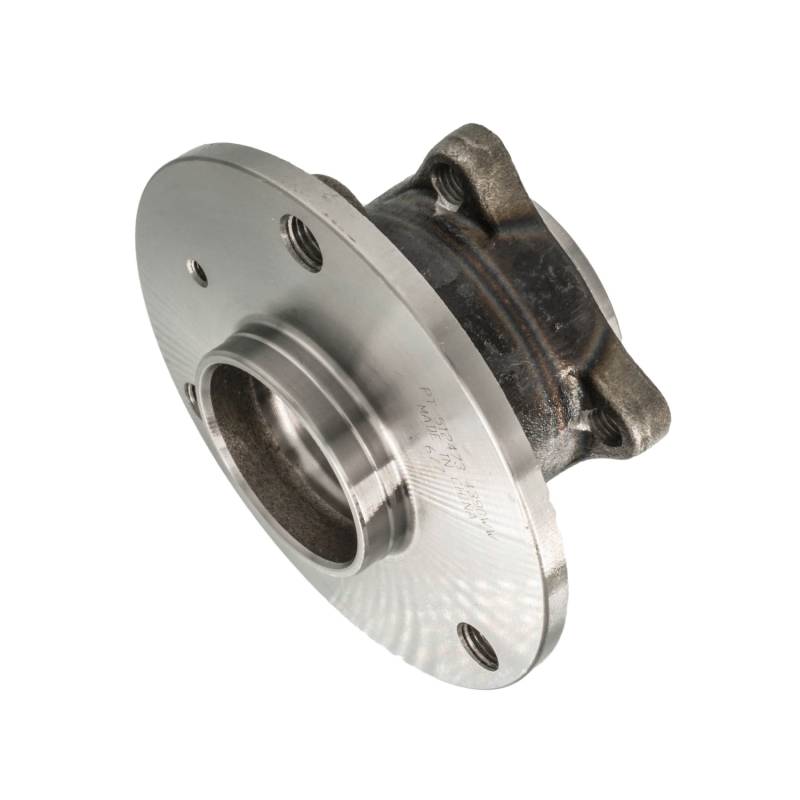

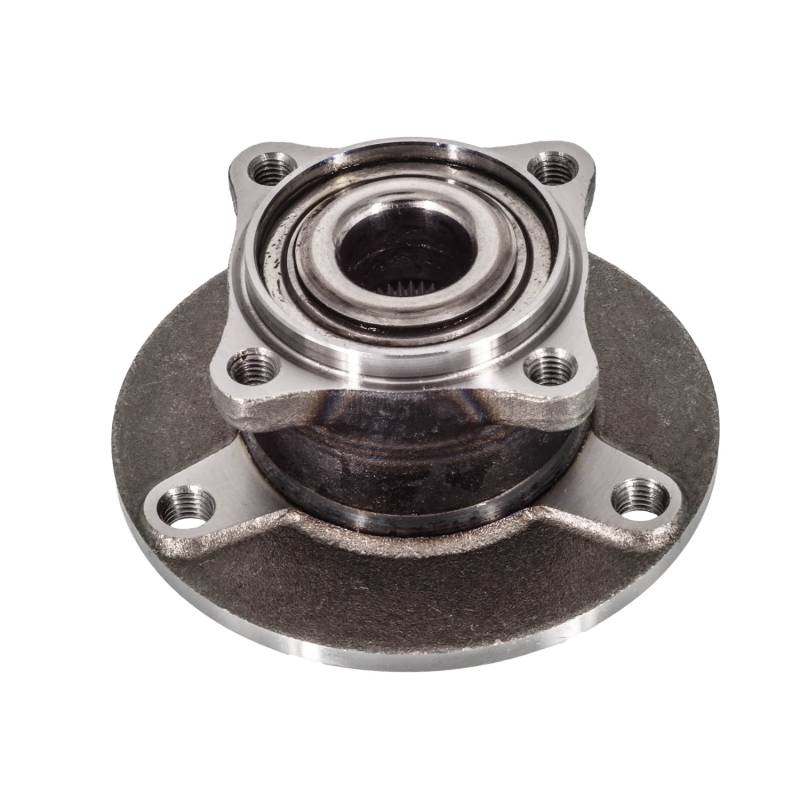

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 5.275
FLANGE OFFSET (INCH): 2.125
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.41
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.26
HUB PILOT DIAMETER (INCH): 2.677
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 33
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TOTAL HUB DIAMETER (IN): 5.26
TOTAL HUB DIAMETER (MM): 133
TOTAL HUB HEIGHT (IN): 2.87
TOTAL HUB HEIGHT (MM): 73
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512473
SKF: BR930549
AUTOPART INTERNATIONAL: 1411-425416
BECK/ARNLEY: 051-6440
FAG US: 102760
GSP: 573473
MEVOTECH: H512473
MOOG HUB ASSEMBLIES: 512473
NAPA: PBR930549
APPLICATIONS:
SMART FORTWO (2008-2015)
