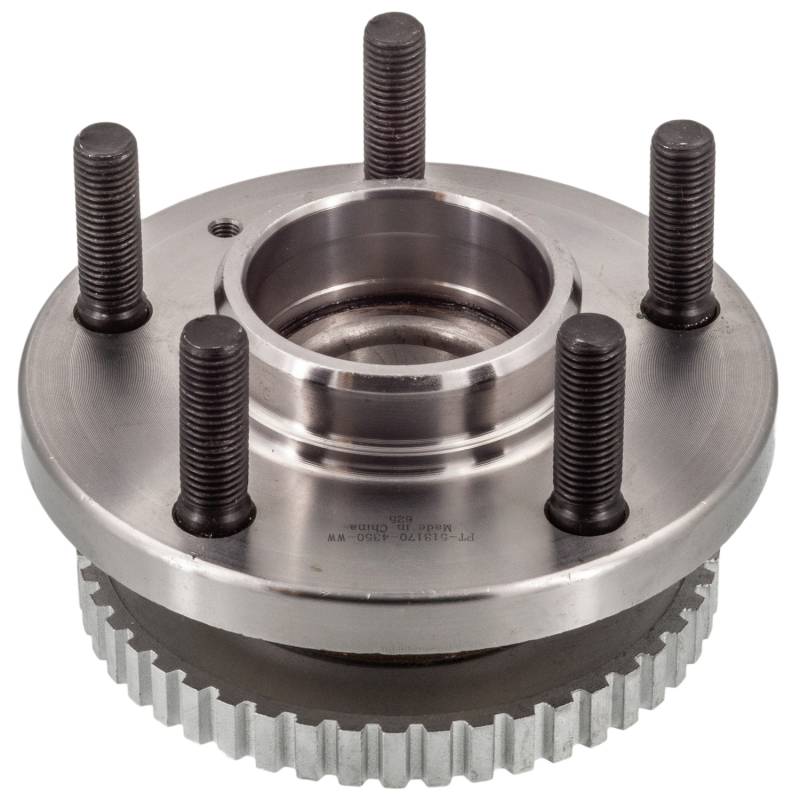

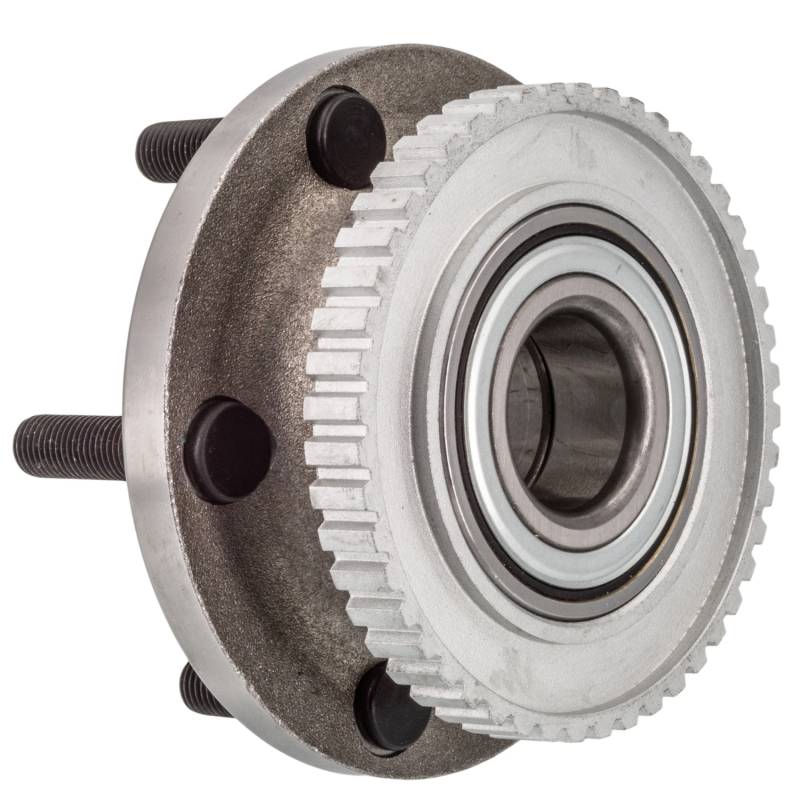

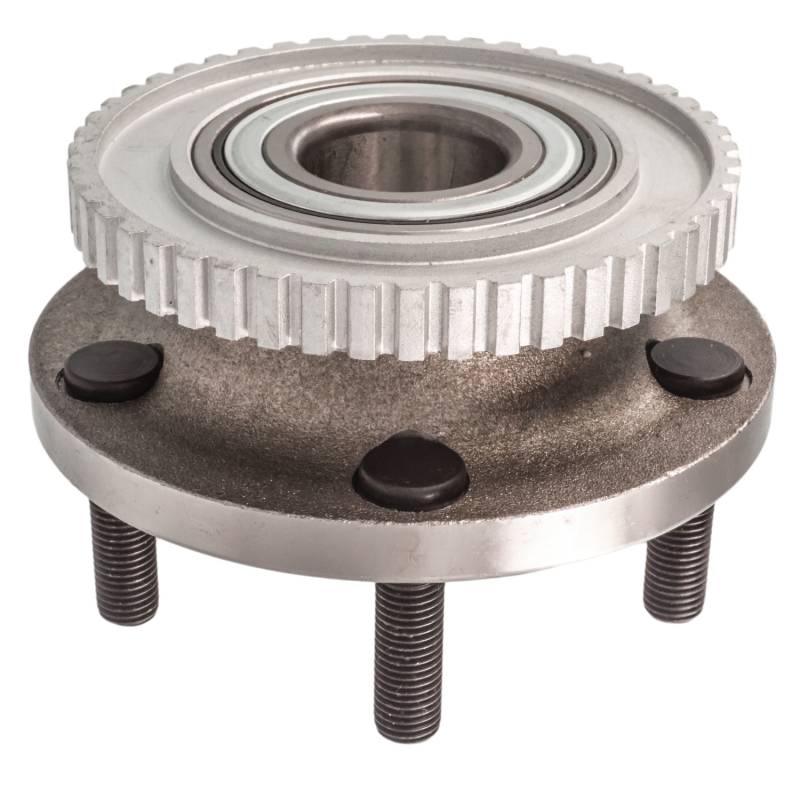

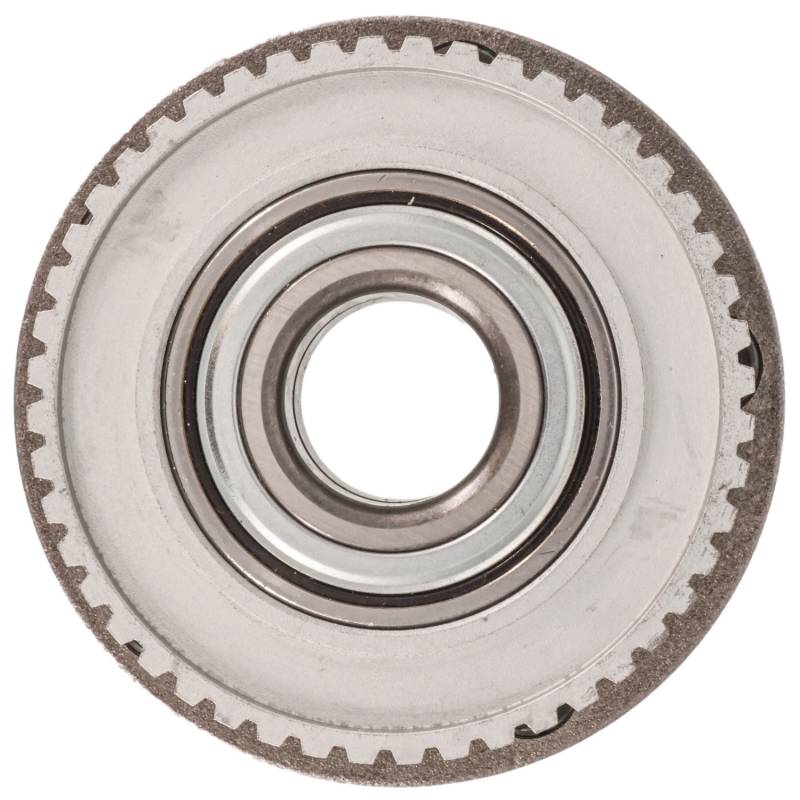

New Hub Assembly Compatible With Volvo 740 940 2.3L 1989 1990 1991 1992 1993 1994 1995 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 4.65
ABS SENSOR RING DIAMETER (MM): 118
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.5
FLANGE BOLT SIZE (MM): 38
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 1.93
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
INNER RING WIDTH (IN): 1.763
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 3.43
TOTAL HUB HEIGHT (MM): 87
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT513170
SKF: BR930056K
TIMKEN: HA590056K
AUTOPART INTERNATIONAL: 1411-45374
BCA: WE61525
CENTRIC PARTS: 40639000E
FAG US: 102454
GSP: 734170
MEVOTECH: H513170
MOOG HUB ASSEMBLIES: 513170
NAPA: PBR930056K

APPLICATIONS:
VOLVO 740 (1989-1992)
VOLVO 940 (1991-1995)
