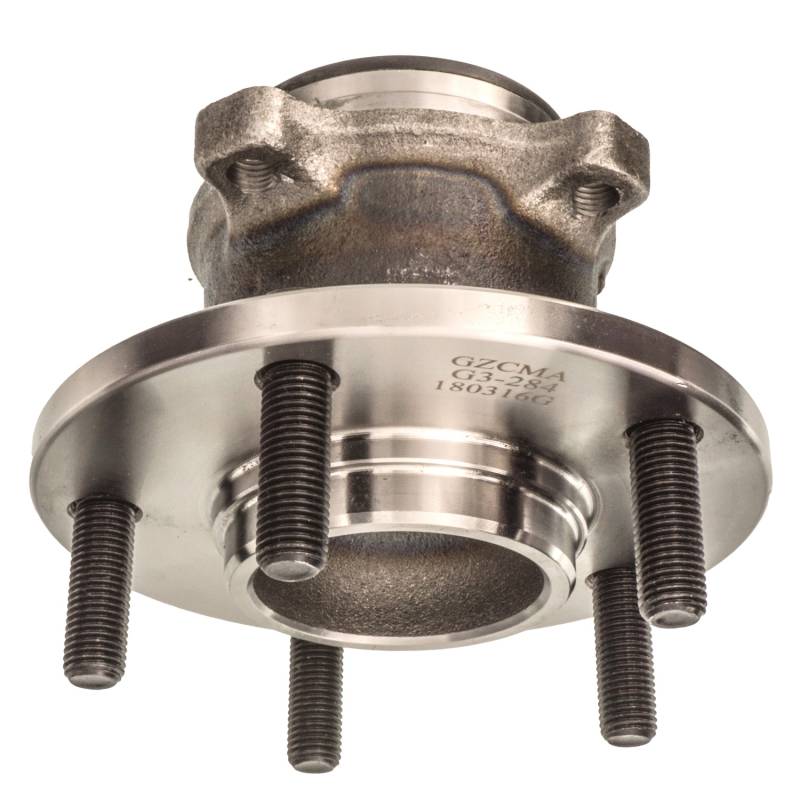

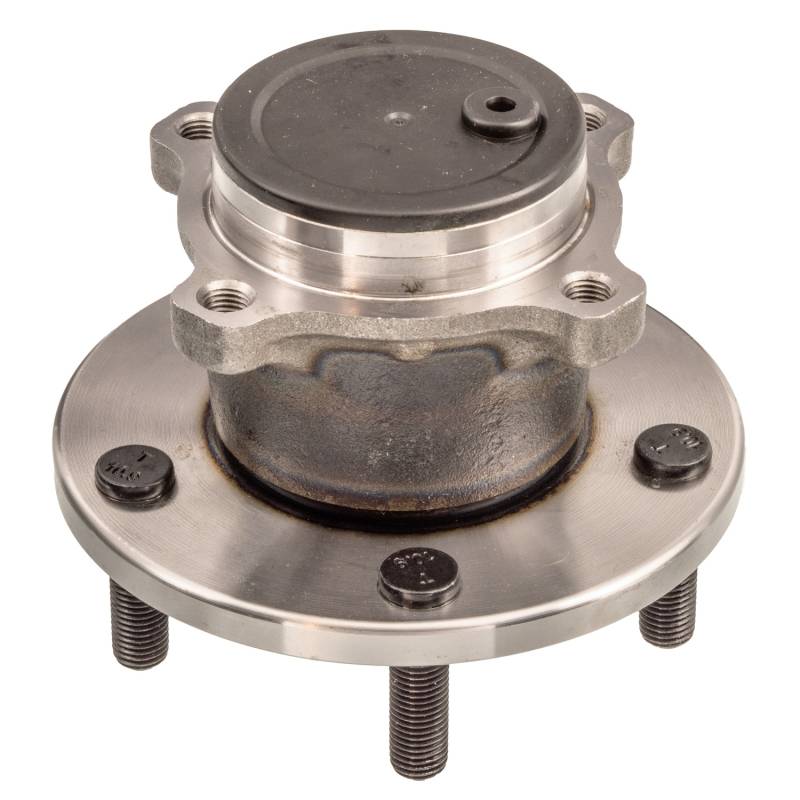

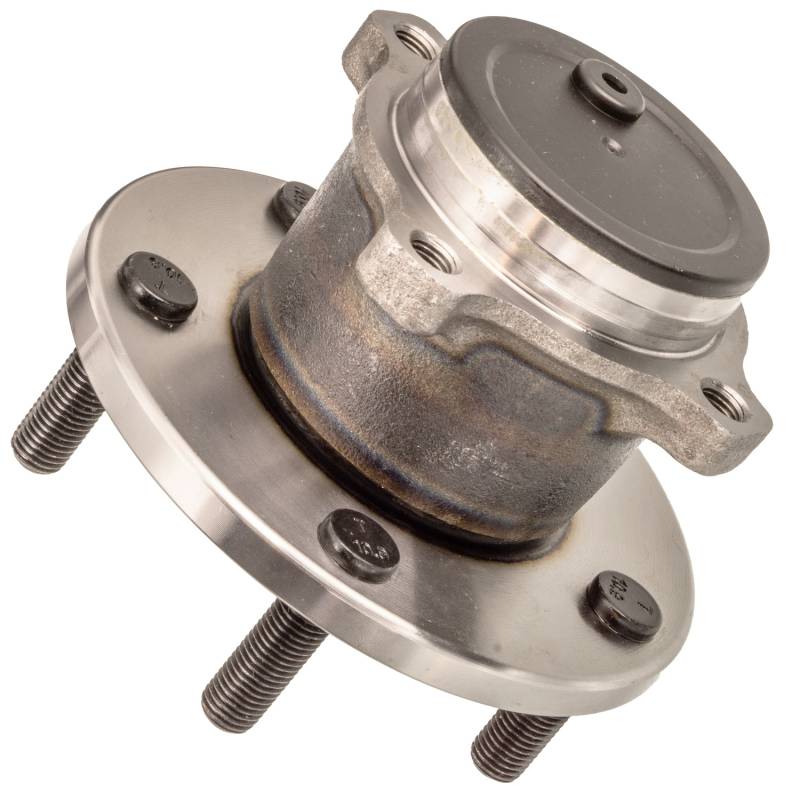

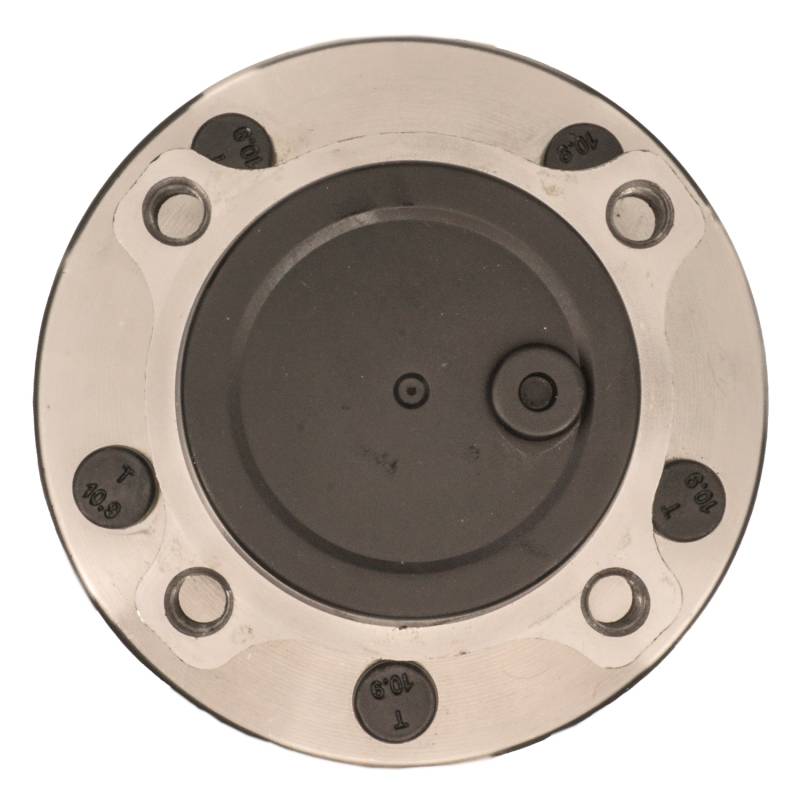

New Hub Assembly Compatible With Mazda 3 2.0L 2.3L 2004 2005 2006 2007 2008 By Part Numbers Ha590098

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

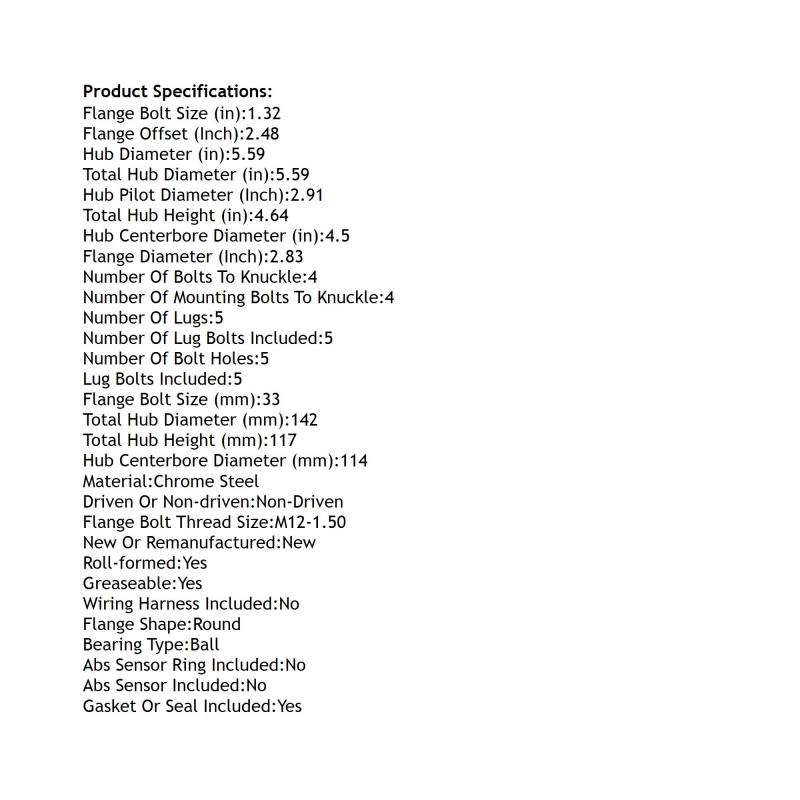

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.32
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.83
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114
HUB DIAMETER (IN): 5.59
HUB PILOT DIAMETER (INCH): 2.91
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.59
TOTAL HUB DIAMETER (MM): 142
TOTAL HUB HEIGHT (IN): 4.64
TOTAL HUB HEIGHT (MM): 117
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-09816
BCA: WE60618
BECK/ARNLEY: 051-6321
CENTRIC PARTS: 40545003
FAG US: 102131
GSP: 473348
MEVOTECH: H512348
MOOG HUB ASSEMBLIES: 512348
NAPA: PBR930680

APPLICATIONS:
MAZDA 3 (2004-2008)
