THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.
PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

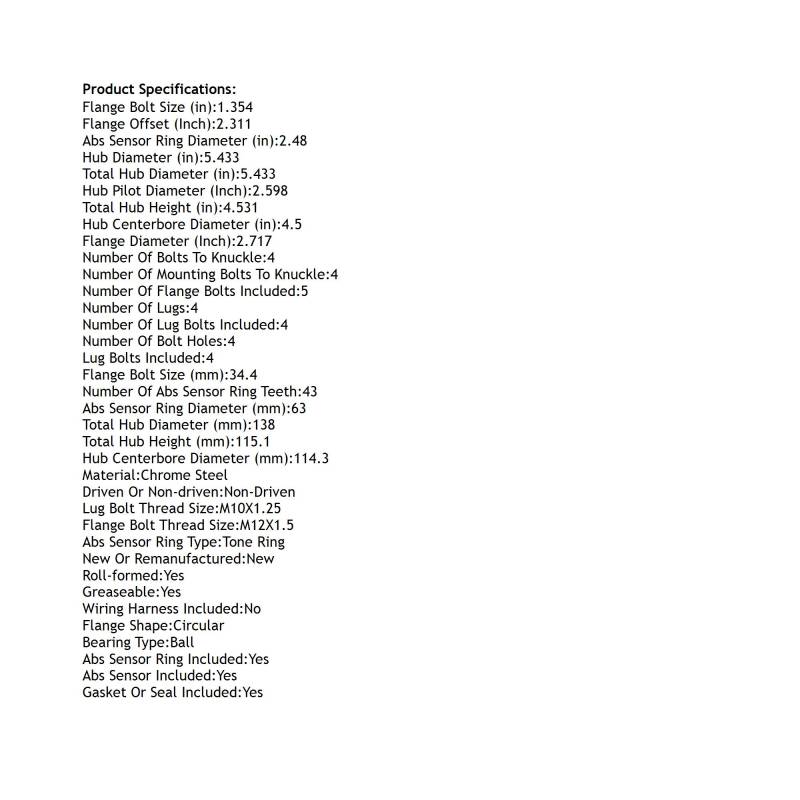

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.48
ABS SENSOR RING DIAMETER (MM): 63
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.354
FLANGE BOLT SIZE (MM): 34.4
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.717
FLANGE OFFSET (INCH): 2.311
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.433
HUB PILOT DIAMETER (INCH): 2.598
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 43
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.433
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 4.531
TOTAL HUB HEIGHT (MM): 115.1
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-09825
BCA: WE60955
BECK/ARNLEY: 051-6187
CENTRIC PARTS: 40646001E
FAG US: 102514
GSP: 513274
MEVOTECH: H512274
MOOG HUB ASSEMBLIES: 512274
NAPA: PBR930499
APPLICATIONS:
MITSUBISHI GALANT (2004-2012)
MITSUBISHI ECLIPSE (2005-2012)
