THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

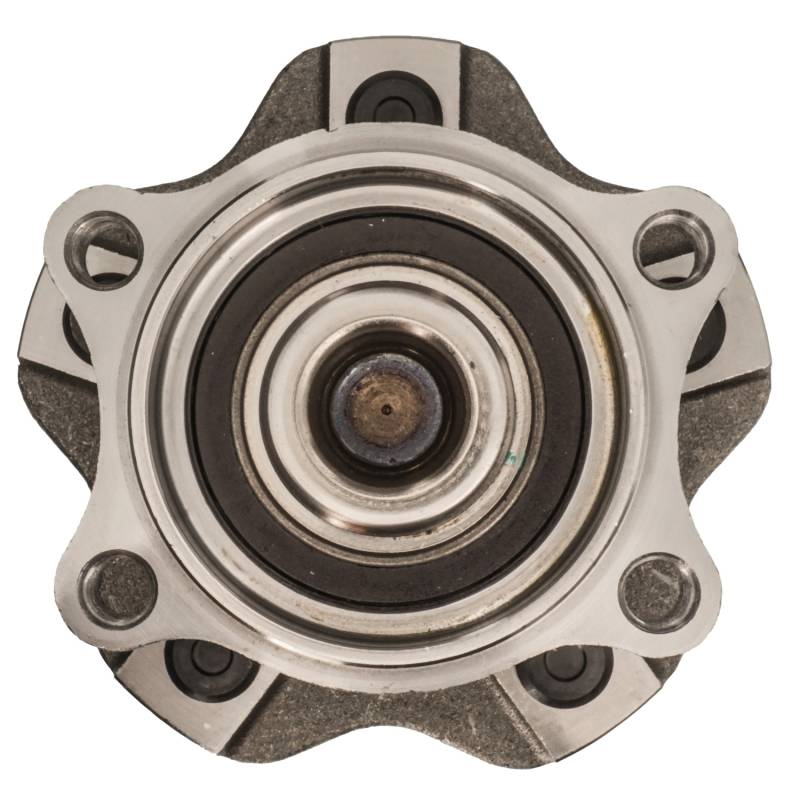

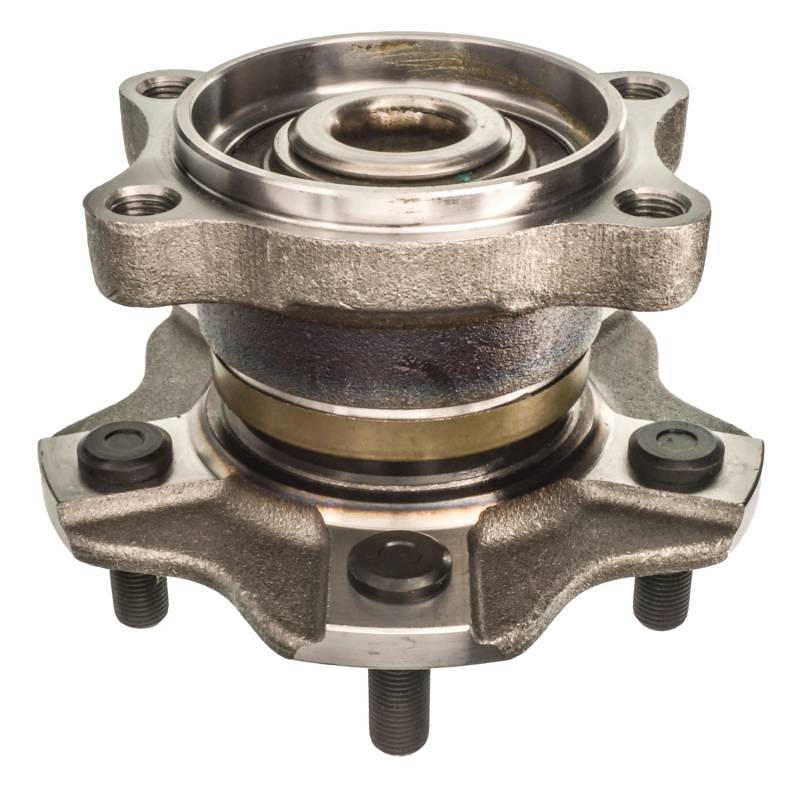

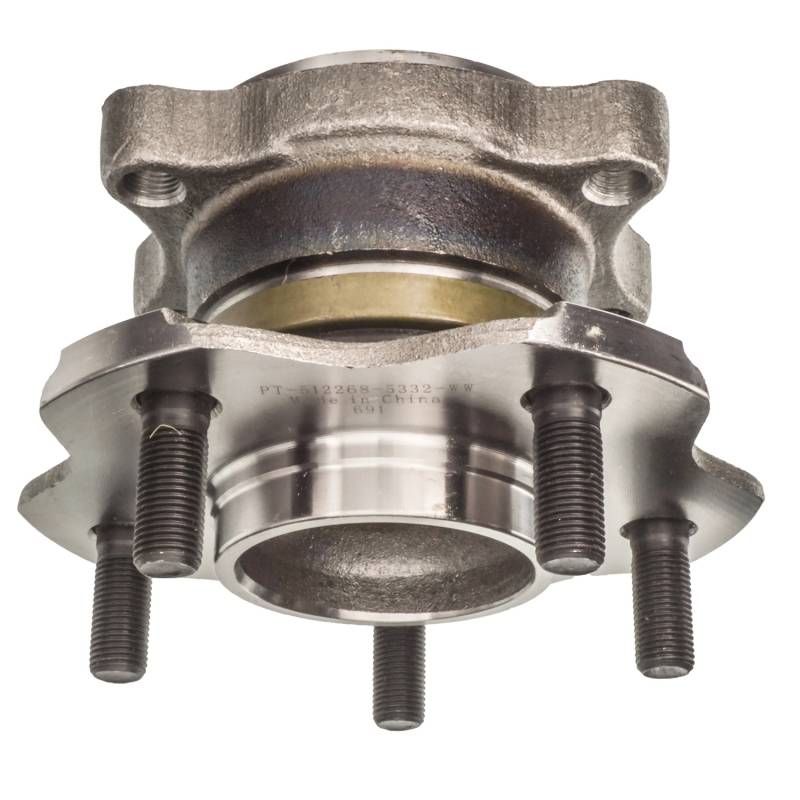

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

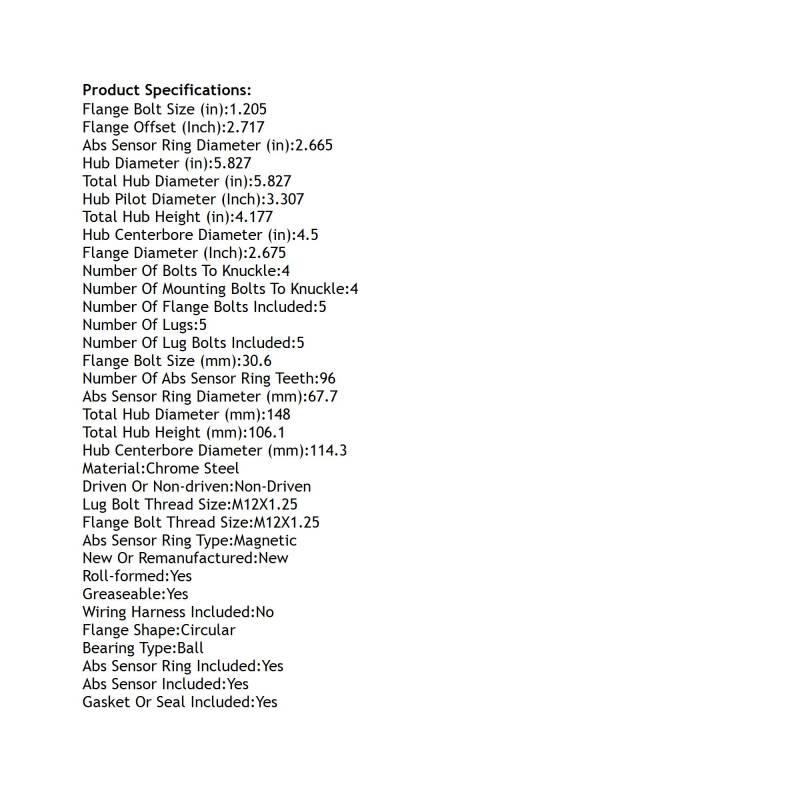

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.665
ABS SENSOR RING DIAMETER (MM): 67.7
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.205
FLANGE BOLT SIZE (MM): 30.6
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.675
FLANGE OFFSET (INCH): 2.717
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.827
HUB PILOT DIAMETER (INCH): 3.307
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 4.177
TOTAL HUB HEIGHT (MM): 106.1
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512268
SKF: BR930463
TIMKEN: HA590109
BCA: WE60431
BECK/ARNLEY: 051-6289
CENTRIC PARTS: 40542005E
FAG US: 102108
GSP: 533268
MEVOTECH: H512268
MOOG HUB ASSEMBLIES: 512268
NAPA: PBR930463
APPLICATIONS:
NISSAN QUEST (2004-2009)
