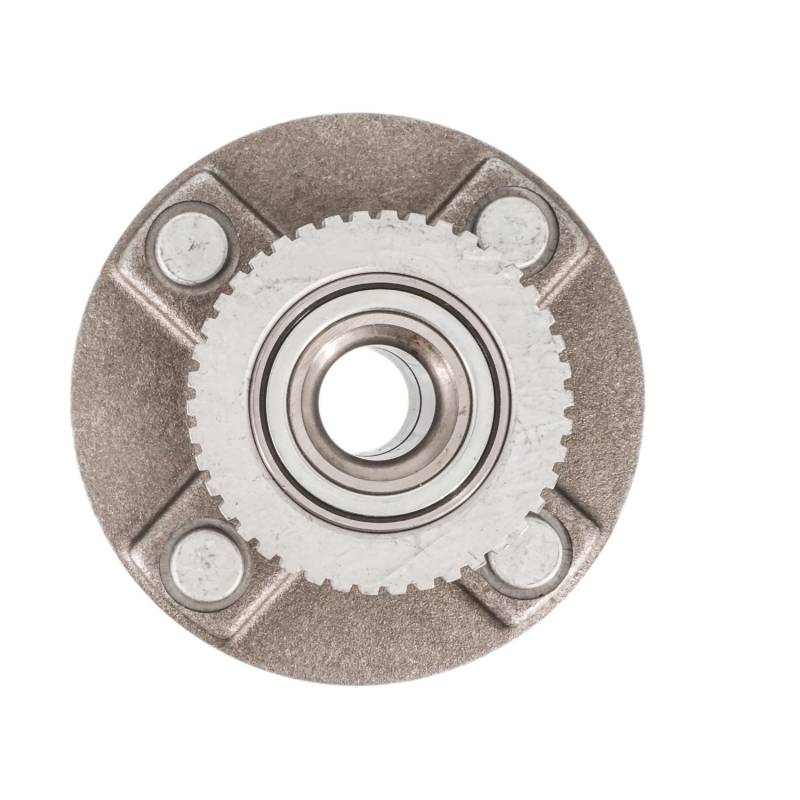

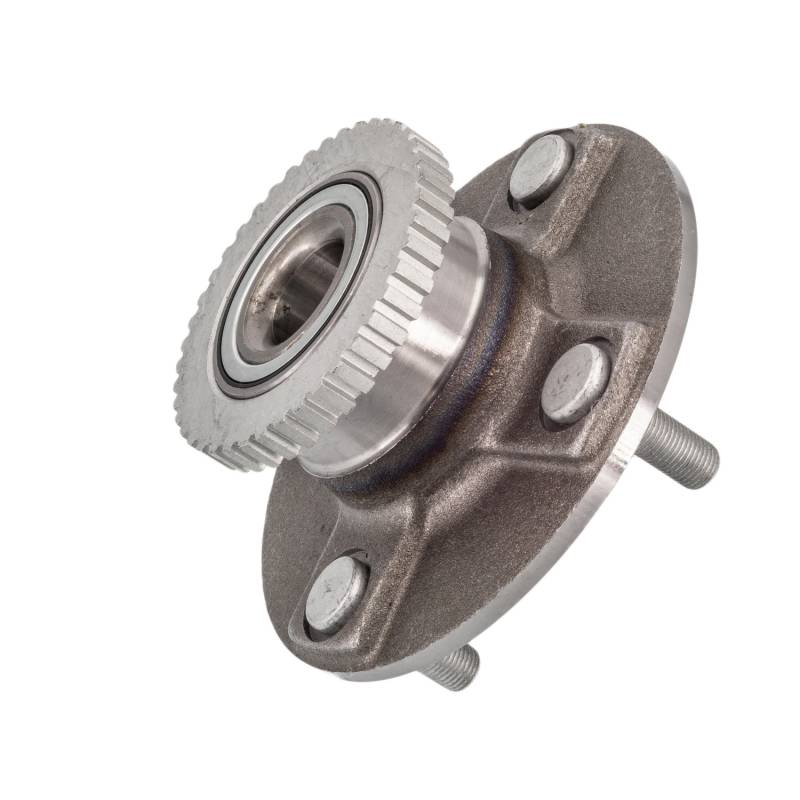

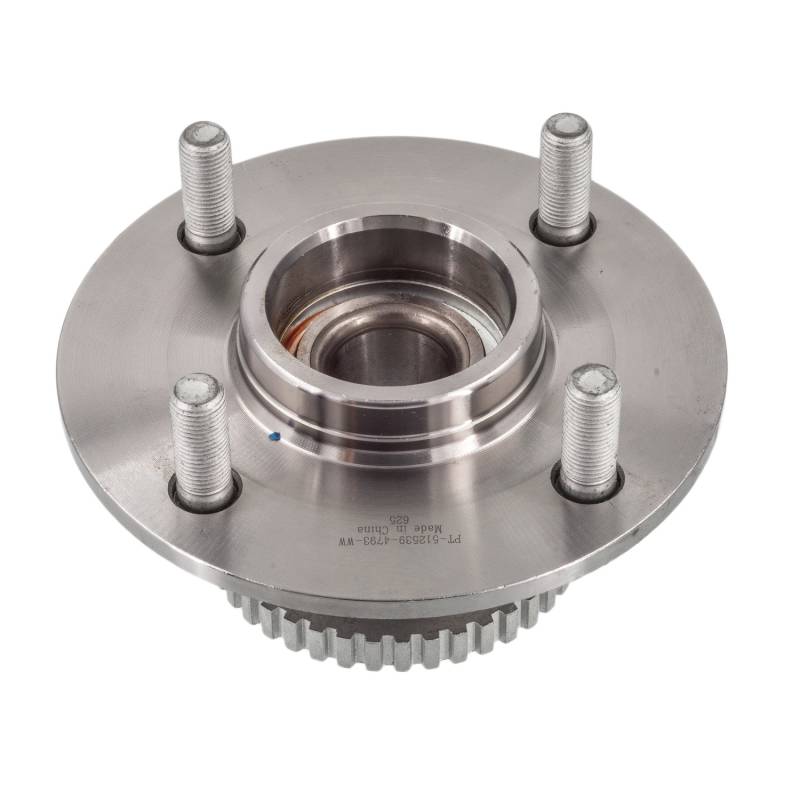

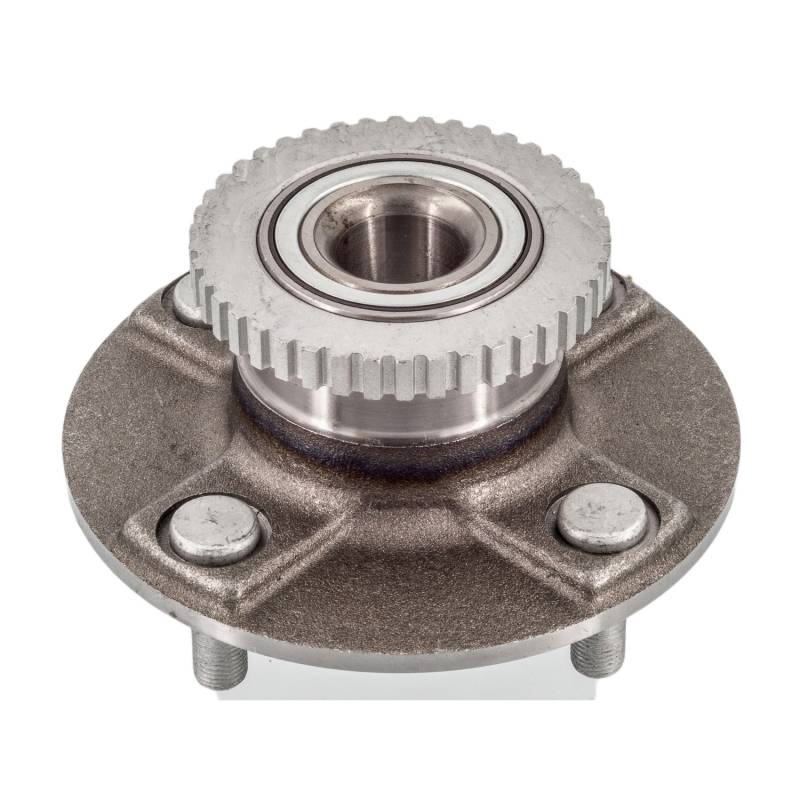

New Hub Assembly Compatible With Infiniti G20 2.0L 1995 1996 By Part Numbers Pt512539

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

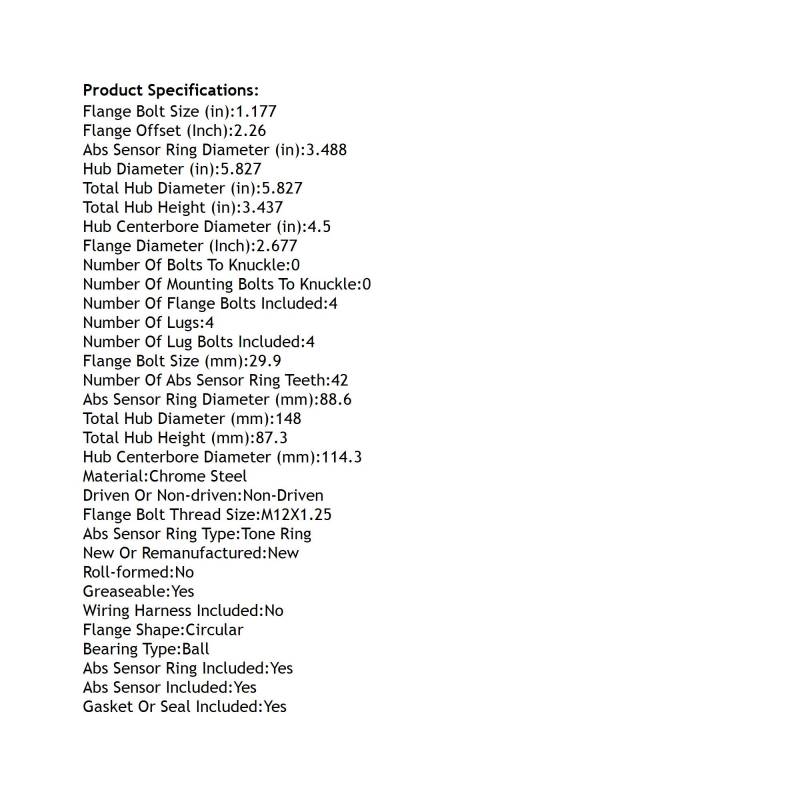

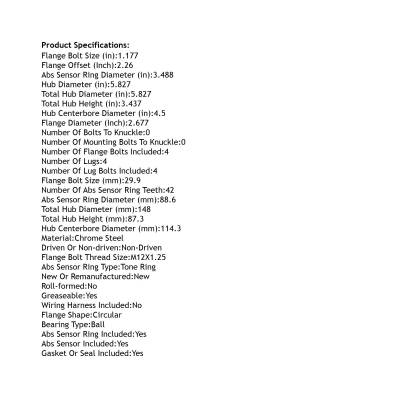

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.488
ABS SENSOR RING DIAMETER (MM): 88.6
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.177
FLANGE BOLT SIZE (MM): 29.9
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.677
FLANGE OFFSET (INCH): 2.26
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.827
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 42
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 3.437
TOTAL HUB HEIGHT (MM): 87.3
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512539
AUTOPART INTERNATIONAL: 1410-451710
MOOG HUB ASSEMBLIES: 512539

APPLICATIONS:
INFINITI G20 (1995-1996)
