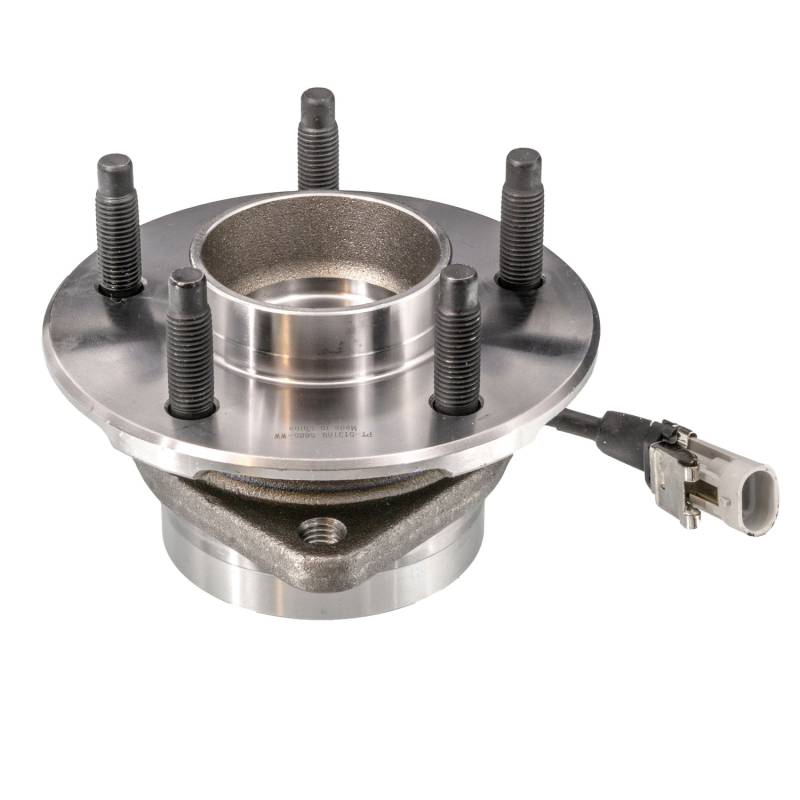

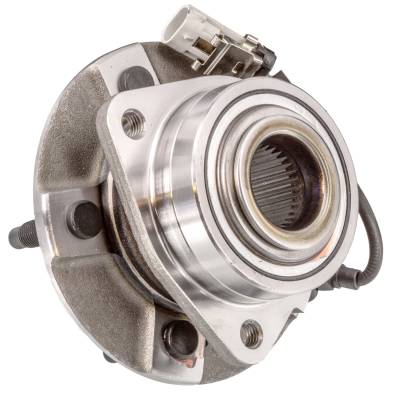

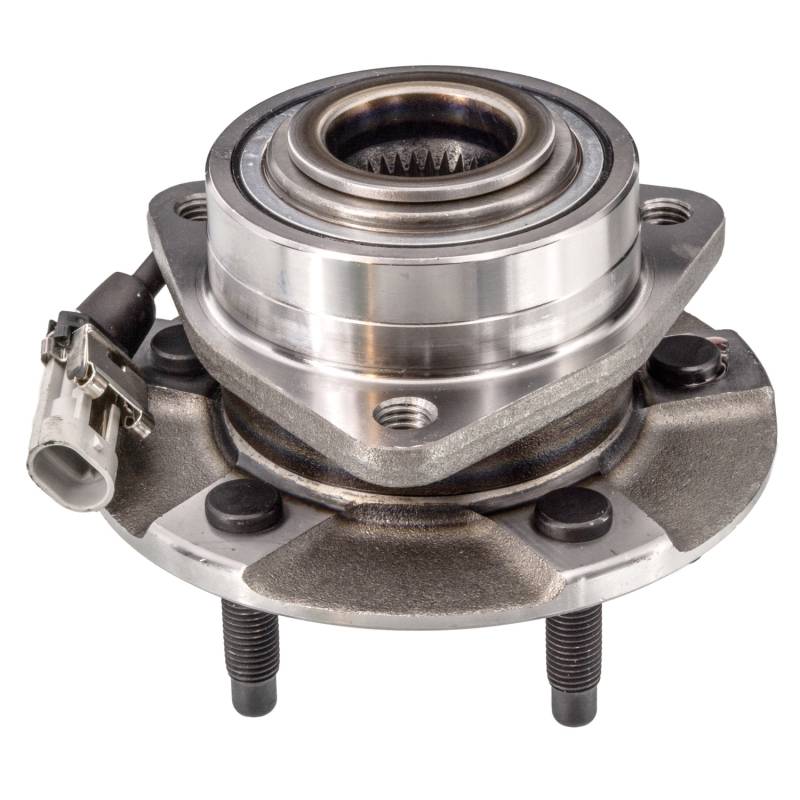

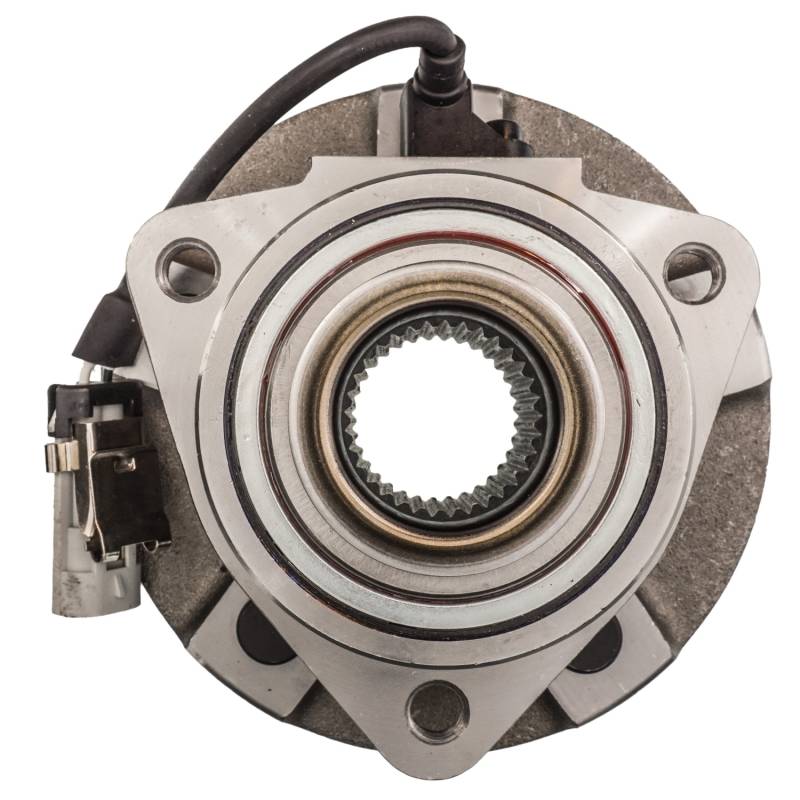

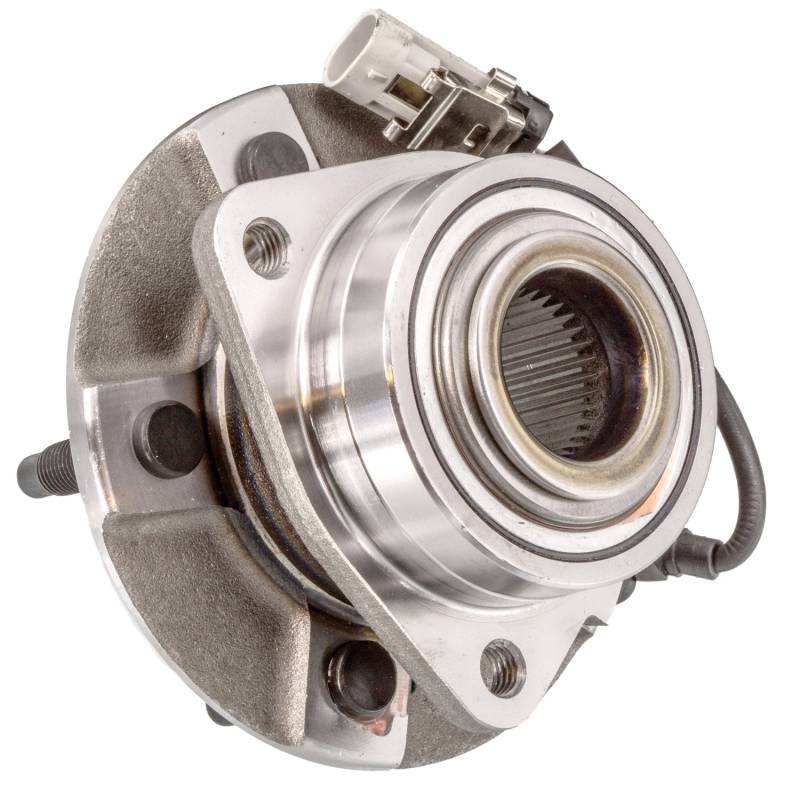

New Hub Assembly Compatible With Saturn Chevrolet Pontiac Vue Equinox Torrent 2002 2003 2004 2005

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.504
FLANGE BOLT SIZE (MM): 38.2
FLANGE BOLT THREAD SIZE: M12X1.500
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.654
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.91
HUB PILOT DIAMETER (INCH): 3.591
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 33
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.906
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 4.528
TOTAL HUB HEIGHT (MM): 115
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 3.937

REPLACES:
ACDELCO: 19383951 513189A
AUTOPART INTERNATIONAL: 1411-44703
BCA: WE60801
FAG US: 102034
GSP: 104189HD
MEVOTECH: H513189
MOOG HUB ASSEMBLIES: 513189
NAPA: PBR930326

APPLICATIONS:
SATURN VUE (2002-2007)
CHEVROLET EQUINOX (2005-2006)
PONTIAC TORRENT (2006-2006)
