New Hub Assembly Compatible With Acura Tl 3.2L 1996 1997 1998 By Part Numbers Pt512121 Br930229

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

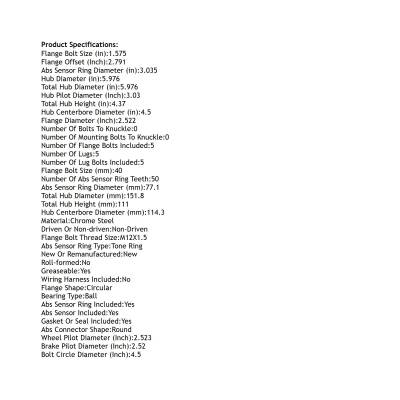

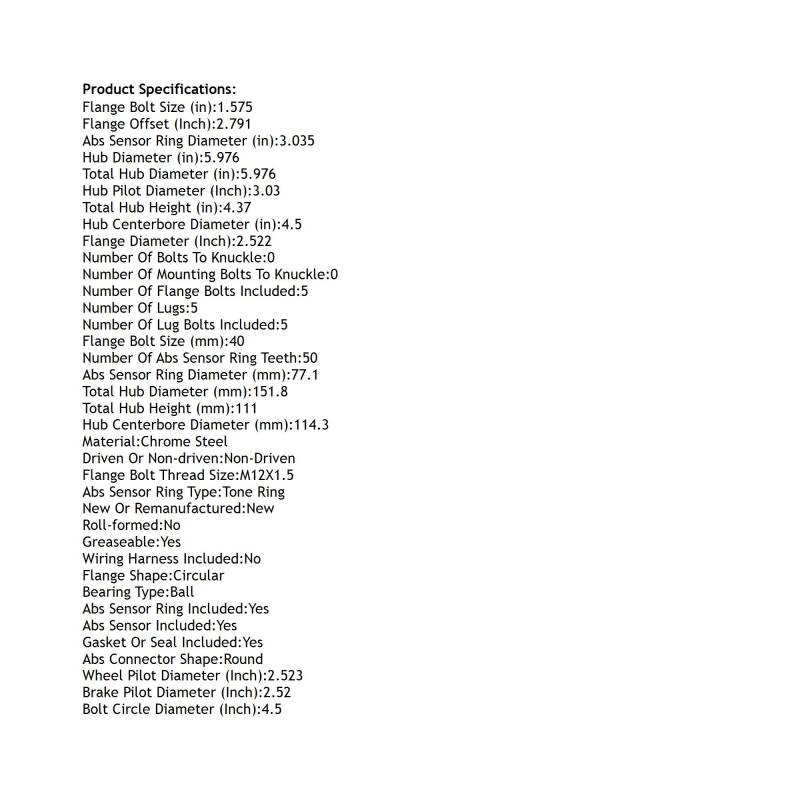

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.035
ABS SENSOR RING DIAMETER (MM): 77.1
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.52
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.575
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.522
FLANGE OFFSET (INCH): 2.791
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.976
HUB PILOT DIAMETER (INCH): 3.03
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 50
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.976
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.37
TOTAL HUB HEIGHT (MM): 111
WHEEL PILOT DIAMETER (INCH): 2.523
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512121
SKF: BR930229
TIMKEN: 512121
AUTOPART INTERNATIONAL: 1410-45664
BCA: WE60486
BECK/ARNLEY: 051-6107
CENTRIC PARTS: 40640007E
FAG US: 102480
GSP: 363121
MEVOTECH: H512121
MOOG HUB ASSEMBLIES: 512121
NAPA: PBR930229

APPLICATIONS:
ACURA TL (1996-1998)
