THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

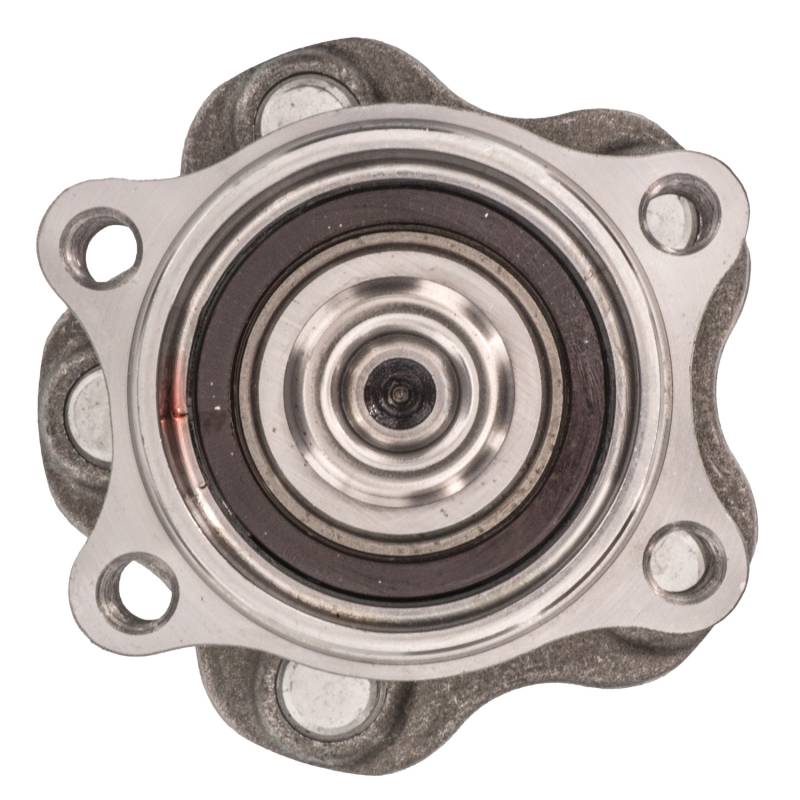

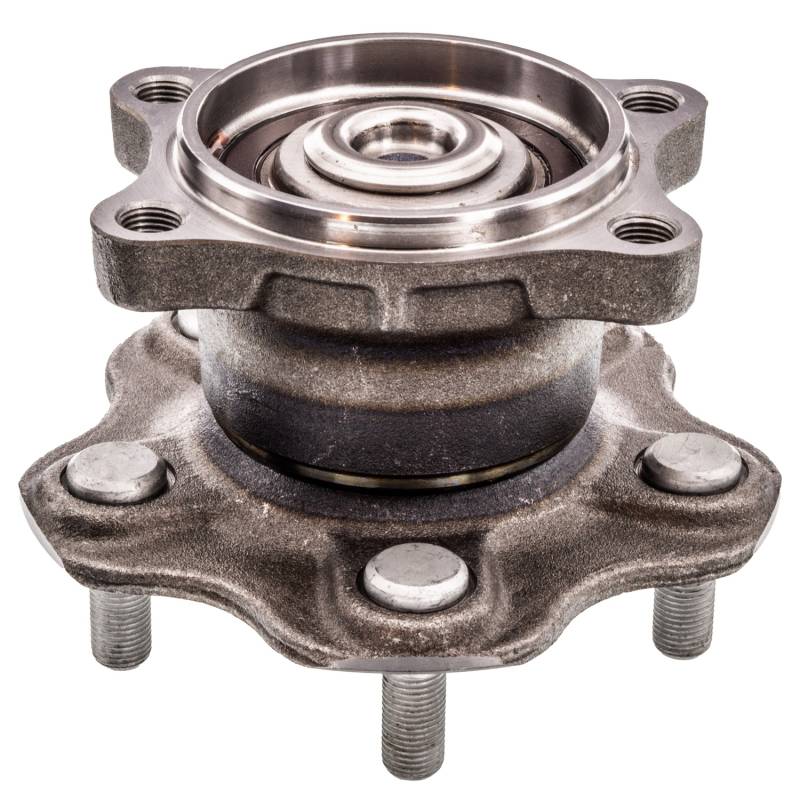

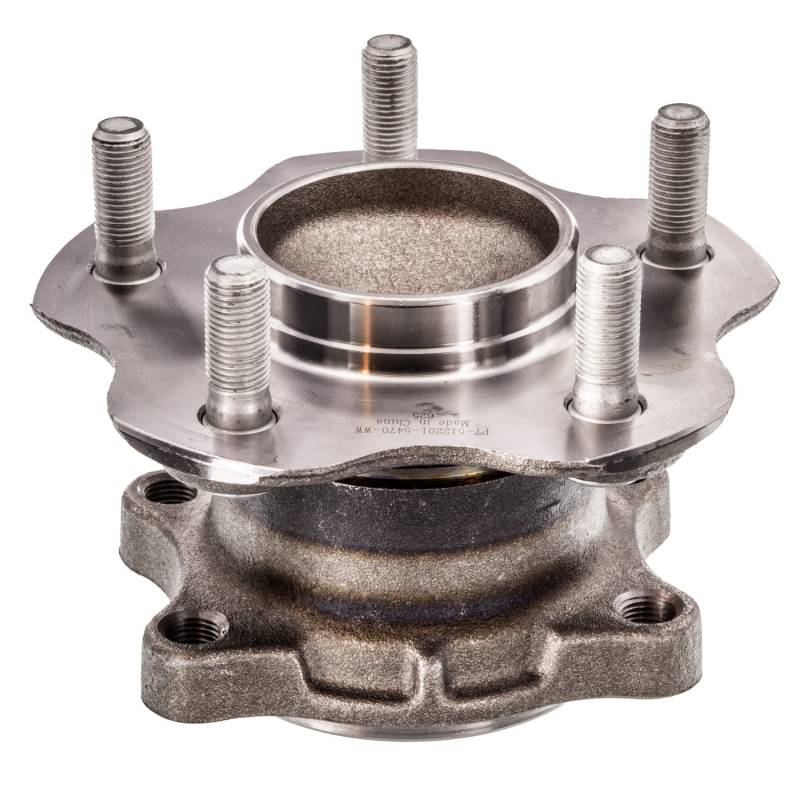

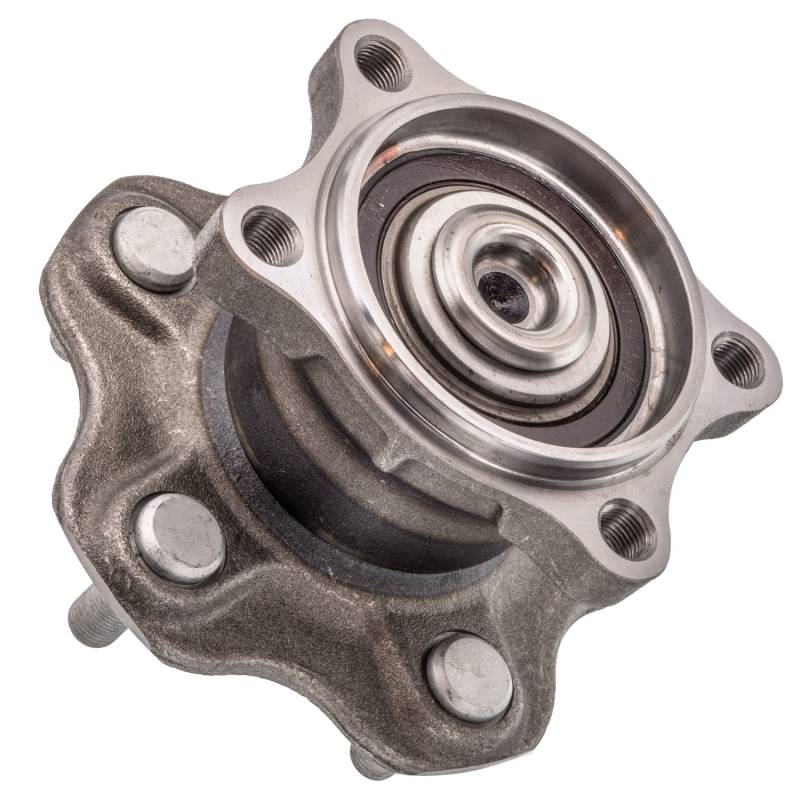

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

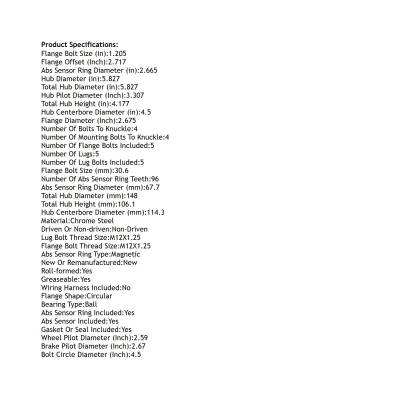

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.665
ABS SENSOR RING DIAMETER (MM): 67.7
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.67
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.205
FLANGE BOLT SIZE (MM): 30.6
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.675
FLANGE OFFSET (INCH): 2.717
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.827
HUB PILOT DIAMETER (INCH): 3.307
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 4.177
TOTAL HUB HEIGHT (MM): 106.1
WHEEL PILOT DIAMETER (INCH): 2.59
WIRING HARNESS INCLUDED: NO
REPLACES:
OTHER PART NUMBER: PT512201
SKF: BR930362
TIMKEN: 512201
BCA: WE60567
BECK/ARNLEY: 051-6202
CENTRIC PARTS: 40542005E
FAG US: 102095
GSP: 533201
MEVOTECH: H512201
MOOG HUB ASSEMBLIES: 512201
NAPA: PBR930362
APPLICATIONS:
NISSAN ALTIMA (2002-2006)
