THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

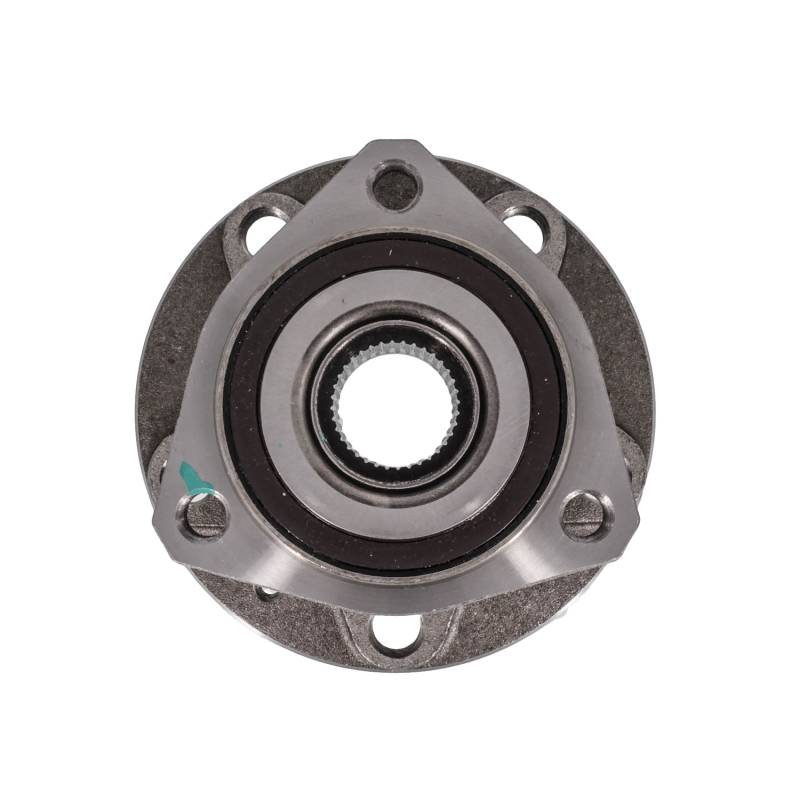

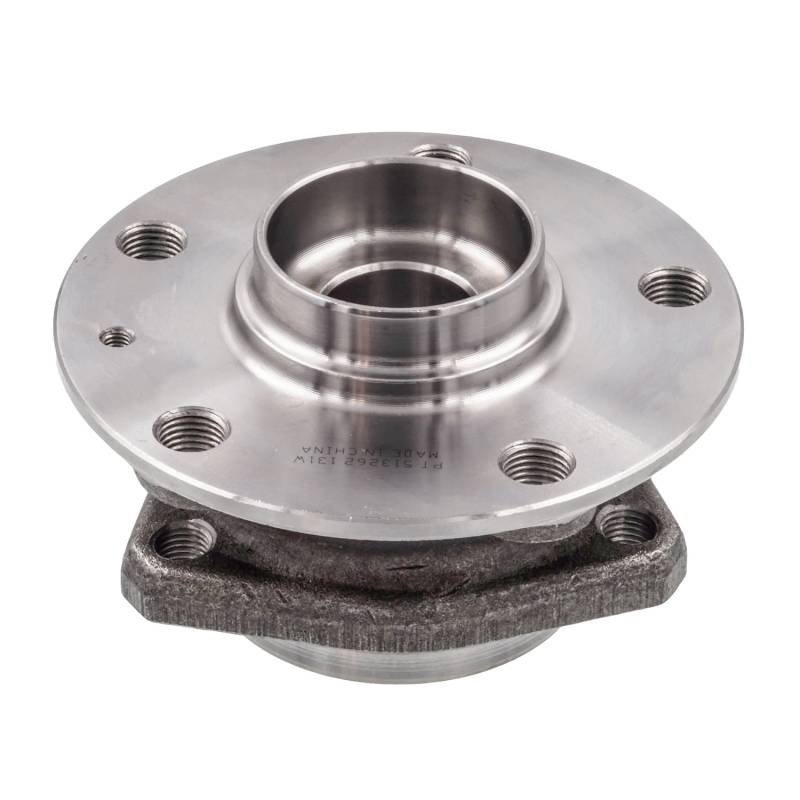

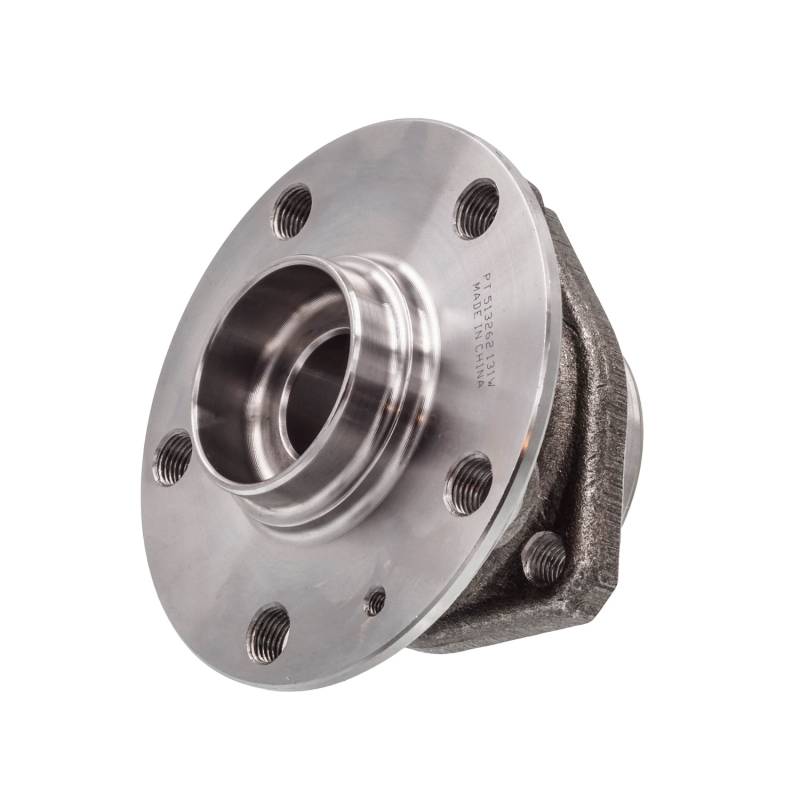

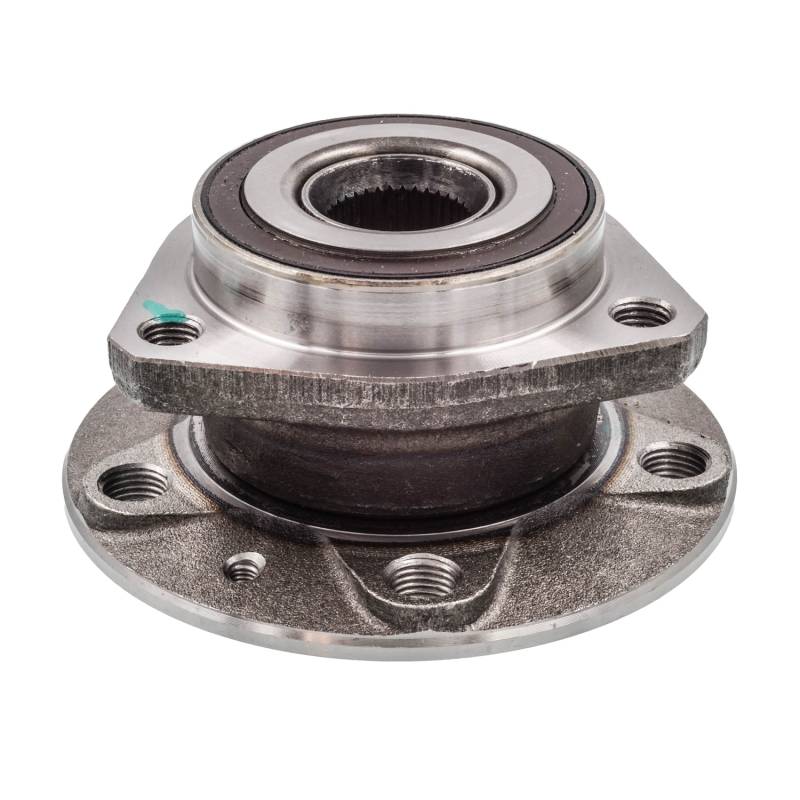

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

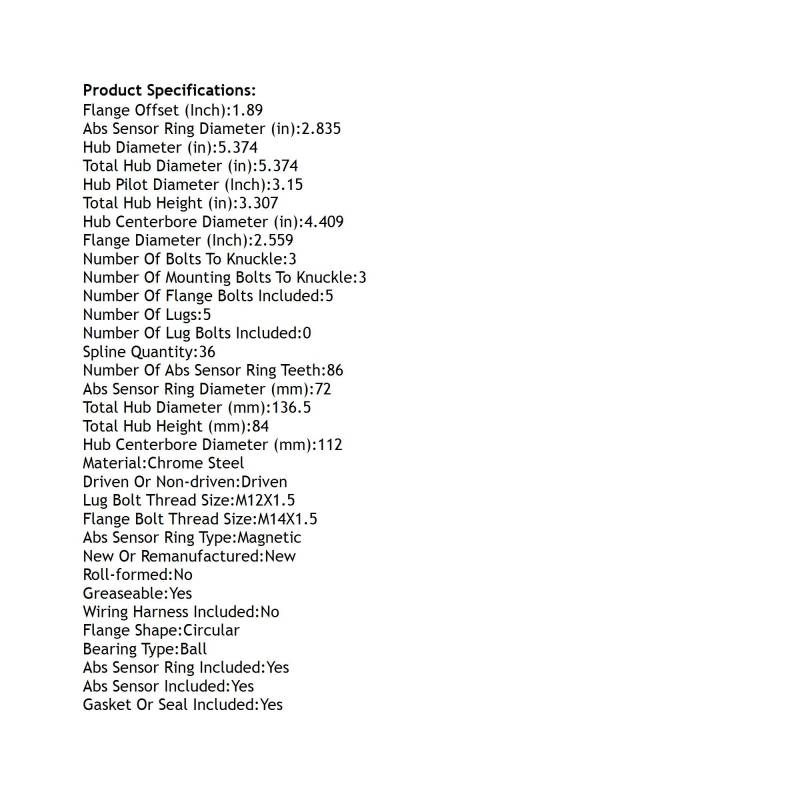

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.835
ABS SENSOR RING DIAMETER (MM): 72
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.559
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.409
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.374
HUB PILOT DIAMETER (INCH): 3.15
LUG BOLT THREAD SIZE: M12X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 86
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 36
REPLACES:
AUTOPART INTERNATIONAL: 1411-256287
BCA: WE61860
BECK/ARNLEY: 051-6255 051-6488
CENTRIC PARTS: 40033001
FAG US: 101644
GSP: 234262
MEVOTECH: H513262
MOOG HUB ASSEMBLIES: 513262
NAPA: PBR930823
APPLICATIONS:
AUDI A3 QUATTRO (2006-2008)
AUDI A3 (2006-2008)
VOLKSWAGEN GTI (2006-2010)
VOLKSWAGEN GOLF (2006-2021)
VOLKSWAGEN RABBIT (2006-2009)
VOLKSWAGEN EOS (2007-2016)
VOLKSWAGEN GOLF CITY (2007-2010)
VOLKSWAGEN R32 (2008-2008)
VOLKSWAGEN GOLF SPORTWAGEN (2010-2019)
VOLKSWAGEN GOLF R (2012-2019)
VOLKSWAGEN E-GOLF (2015-2019)
VOLKSWAGEN GOLF ALLTRACK (2017-2019)
AUDI S3 (2020-2020)
