THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

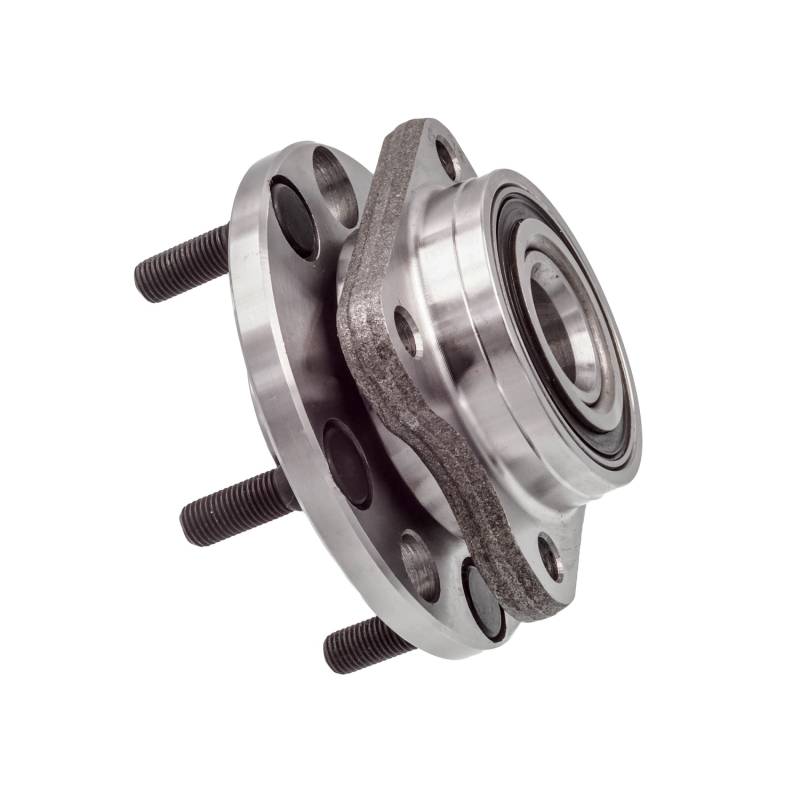

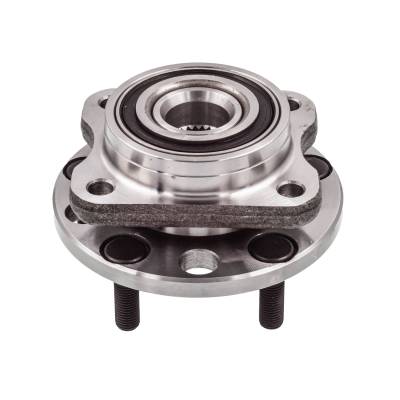

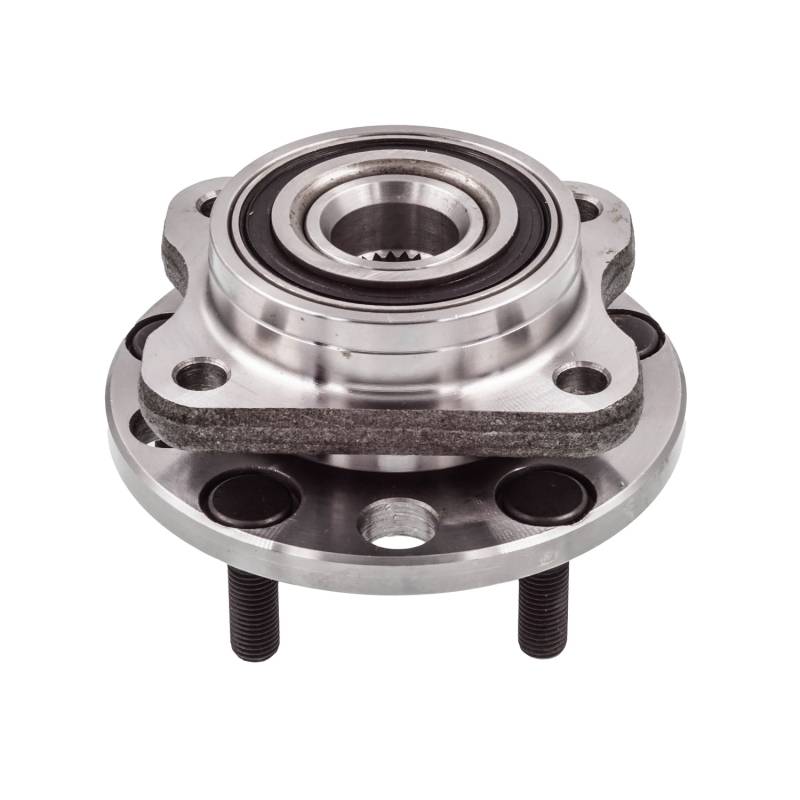

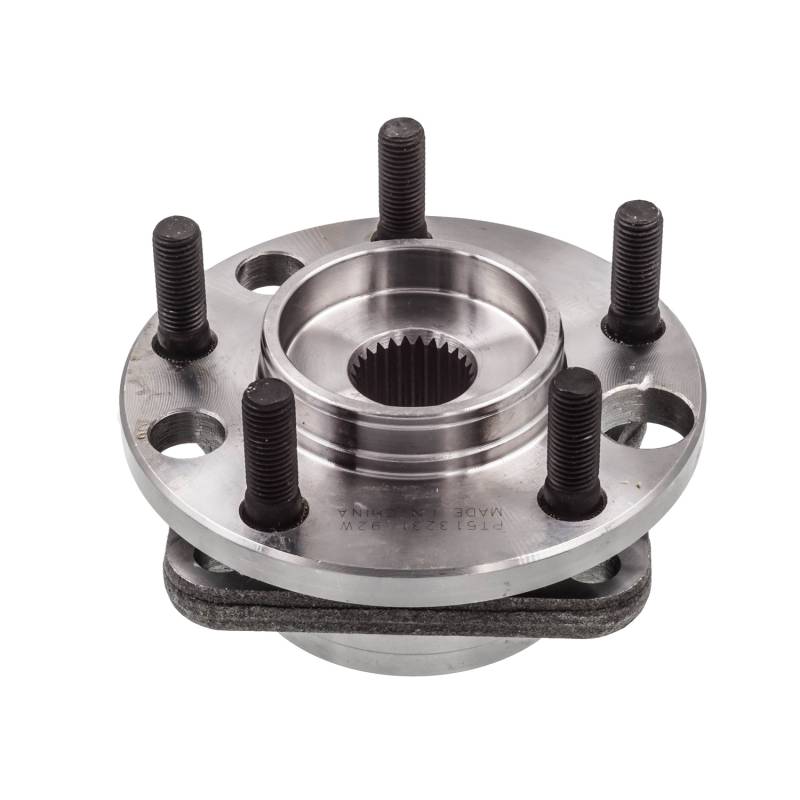

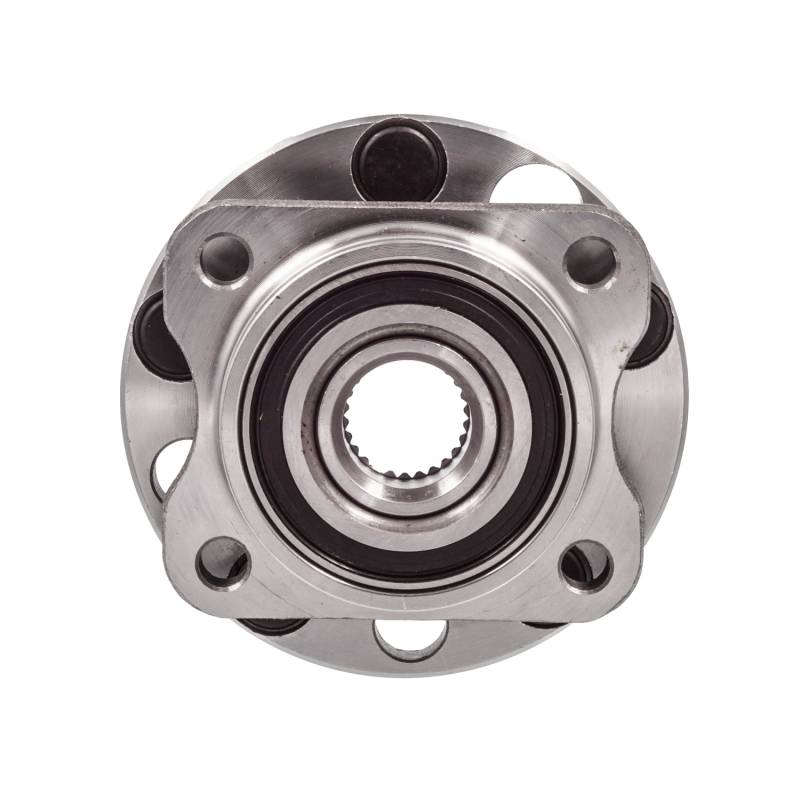

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.362
FLANGE BOLT SIZE (MM): 34.6
FLANGE BOLT THREAD SIZE: M12X1.500
FLANGE DIAMETER (INCH): 2.882
FLANGE OFFSET (INCH): 1.476
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.67
HUB PILOT DIAMETER (INCH): 3.425
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.669
TOTAL HUB DIAMETER (MM): 144
TOTAL HUB HEIGHT (IN): 3.681
TOTAL HUB HEIGHT (MM): 93.5
REPLACES:
AUTOPART INTERNATIONAL: 1411-49093
GSP: 124231
MOOG HUB ASSEMBLIES: 513231
NAPA: PBR930197
APPLICATIONS:
DODGE CARAVAN (1988-1988)
DODGE GRAND CARAVAN (1988-1988)
PLYMOUTH GRAND VOYAGER (1988-1988)
PLYMOUTH VOYAGER (1988-1988)
