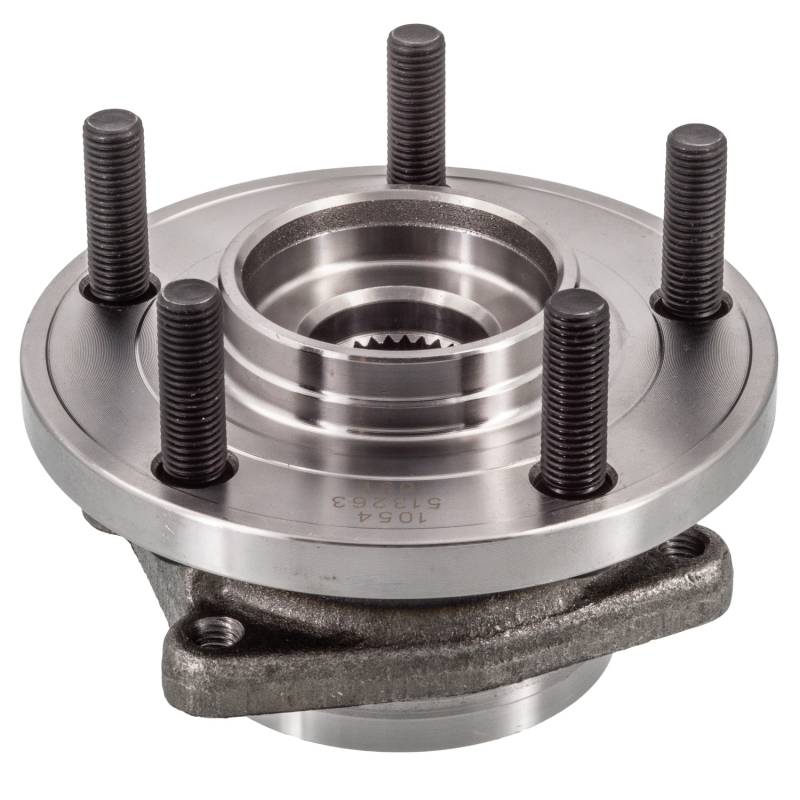

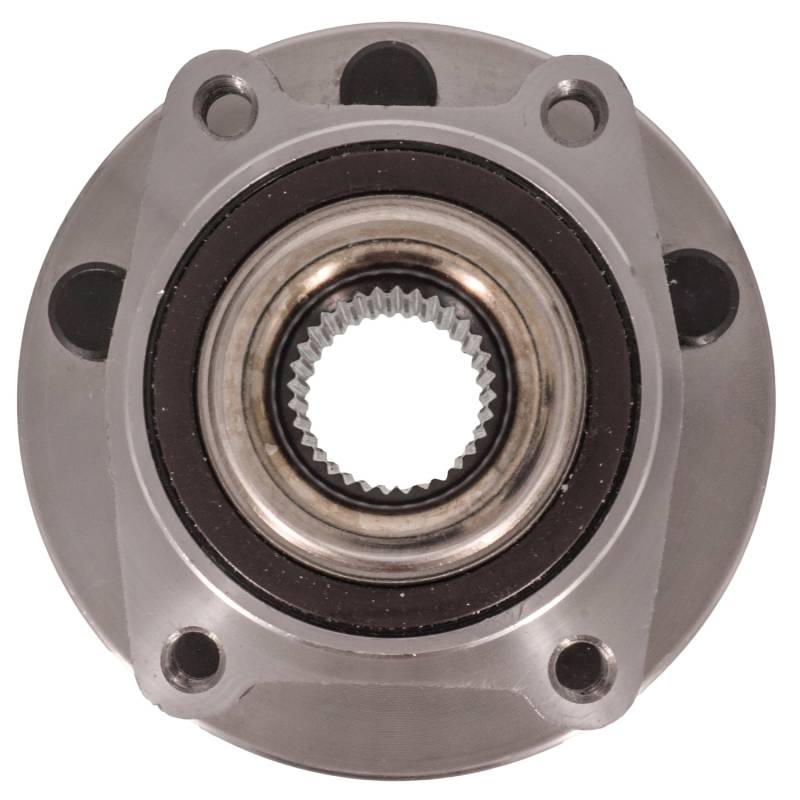

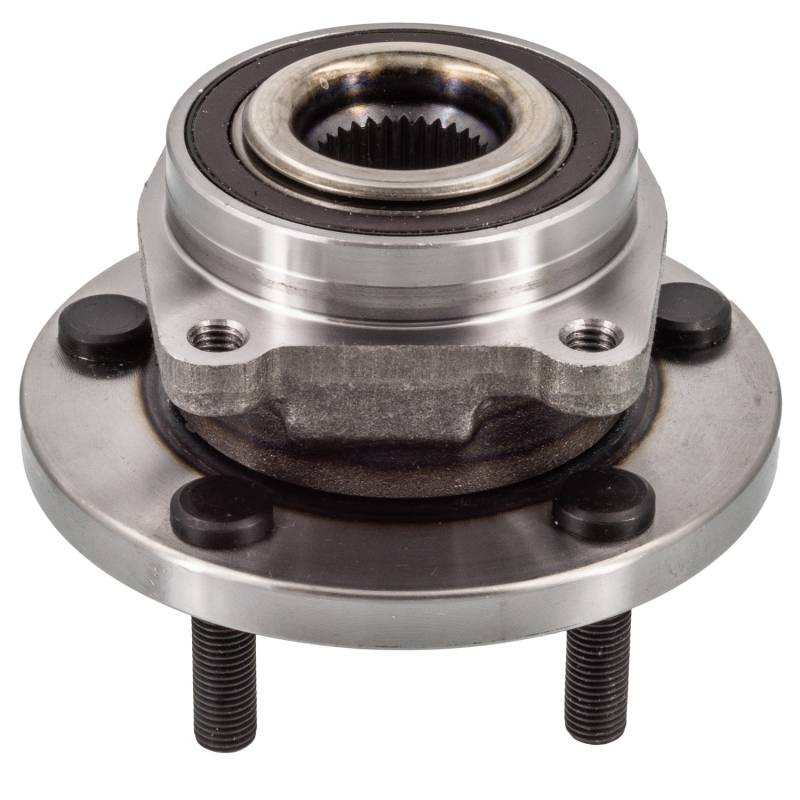

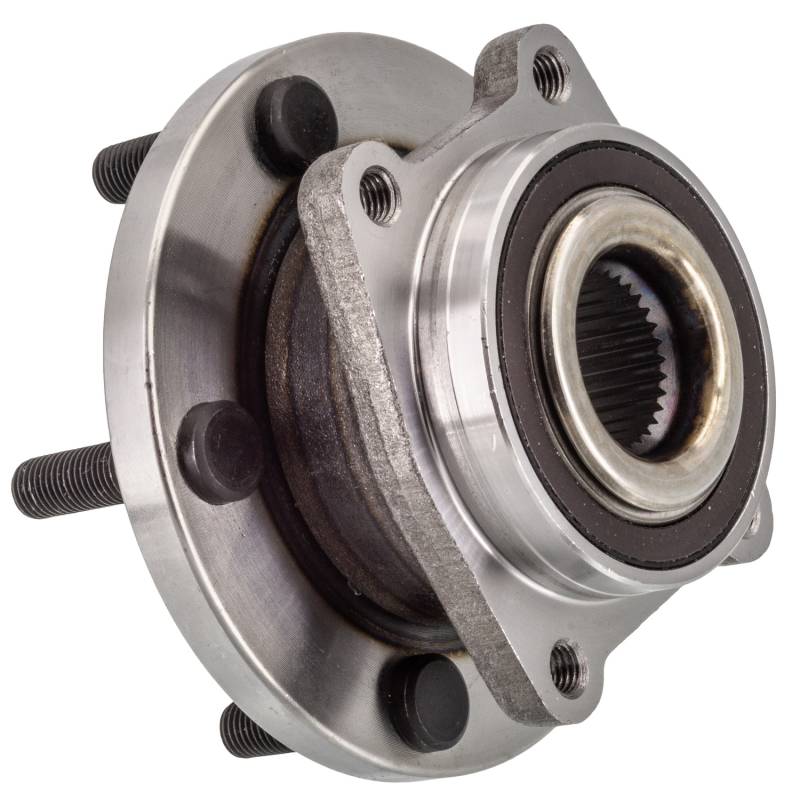

New Hub Assembly Compatible With Chrysler Dodge Sebring Avenger Caliber 200 2007 2008 2009 2010 2011

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.004
ABS SENSOR RING DIAMETER (MM): 76.3
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.378
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.717
FLANGE OFFSET (INCH): 1.913
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.563
HUB PILOT DIAMETER (INCH): 3.346
LUG BOLT THREAD SIZE: M10X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 86
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 32
TOTAL HUB DIAMETER (IN): 5.563
TOTAL HUB DIAMETER (MM): 141.3
TOTAL HUB HEIGHT (IN): 4.094
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-258199
BCA: WE60909
CENTRIC PARTS: 40063014
FAG US: 102051
GSP: 124263
MEVOTECH: H513263
MOOG HUB ASSEMBLIES: 513263
NAPA: PBR930711

APPLICATIONS:
CHRYSLER SEBRING (2007-2010)
DODGE AVENGER (2008-2014)
DODGE CALIBER (2009-2009)
CHRYSLER 200 (2011-2014)
