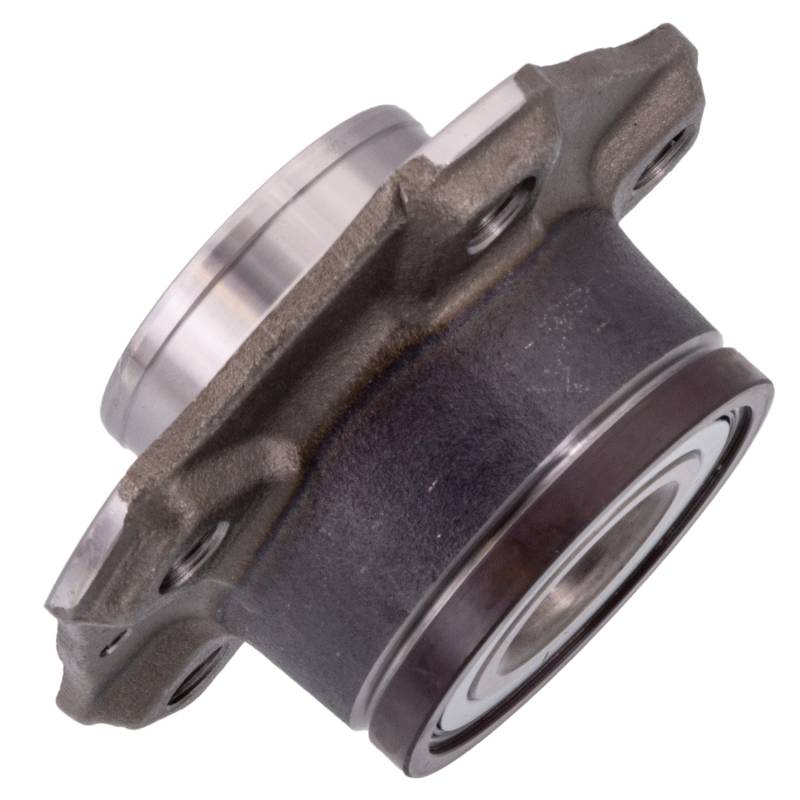

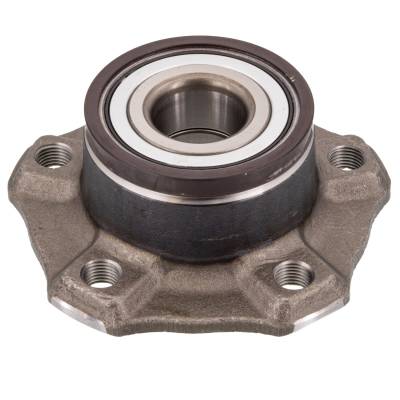

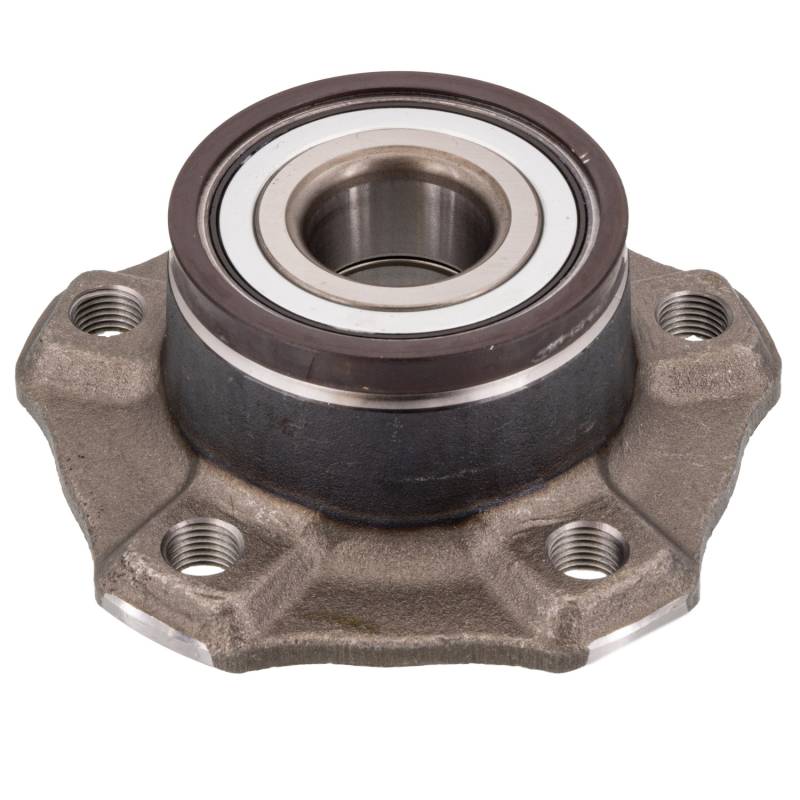

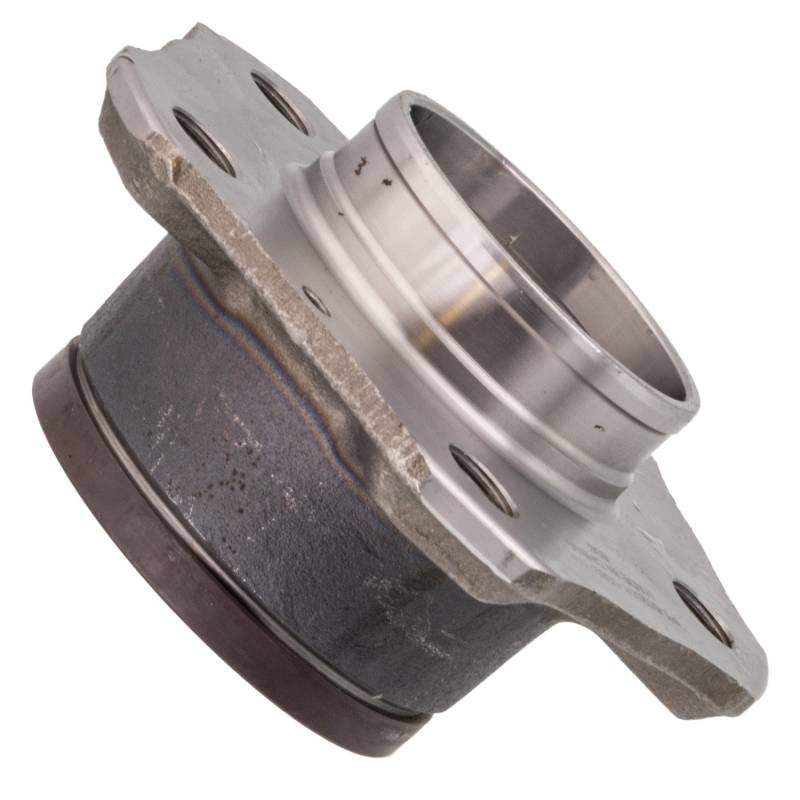

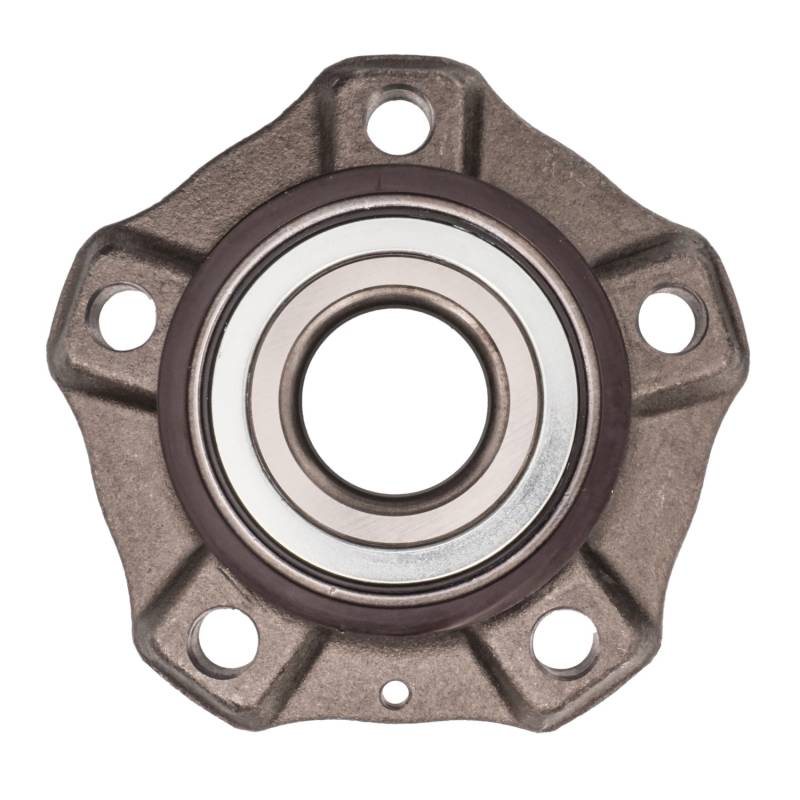

New Hub Assembly Compatible With Audi 2016 2017 2018 2019 2020 2021 2022 2023 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING DIAMETER (IN): 3.15
ABS SENSOR RING DIAMETER (MM): 80
ABS SENSOR RING INCLUDED: NO
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT THREAD SIZE: M14-1.5-6H
FLANGE DIAMETER (INCH): 2.68
FLANGE OFFSET (INCH): 1.9
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.41
HUB CENTERBORE DIAMETER (MM): 112
HUB DIAMETER (IN): 5.55
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.55
TOTAL HUB DIAMETER (MM): 141
TOTAL HUB HEIGHT (IN): 2.76
TOTAL HUB HEIGHT (MM): 70.1
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT512598
AUTOPART INTERNATIONAL: 1411-605208
BECK/ARNLEY: 051-6403
MOOG HUB ASSEMBLIES: 512598

APPLICATIONS:
AUDI A4 QUATTRO (2016-2021)
AUDI A4 ALLROAD (2016-2021)
AUDI A4 (2016-2020)
AUDI Q7 (2017-2018)
AUDI A5 QUATTRO (2018-2023)
AUDI A5 SPORTBACK (2018-2023)
AUDI A6 QUATTRO (2018-2018)
AUDI A6 (2018-2018)
AUDI RS5 (2018-2023)
AUDI S4 (2018-2023)
AUDI S5 SPORTBACK (2018-2023)
AUDI S5 (2018-2023)
AUDI RS5 SPORTBACK (2019-2023)
AUDI S7 SPORTBACK (2020-2022)
