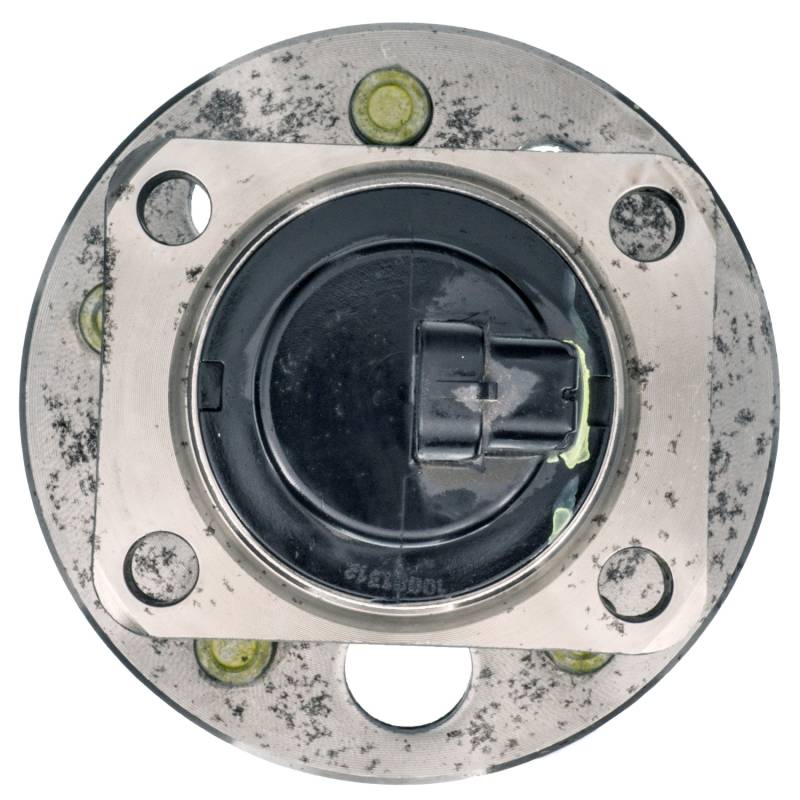

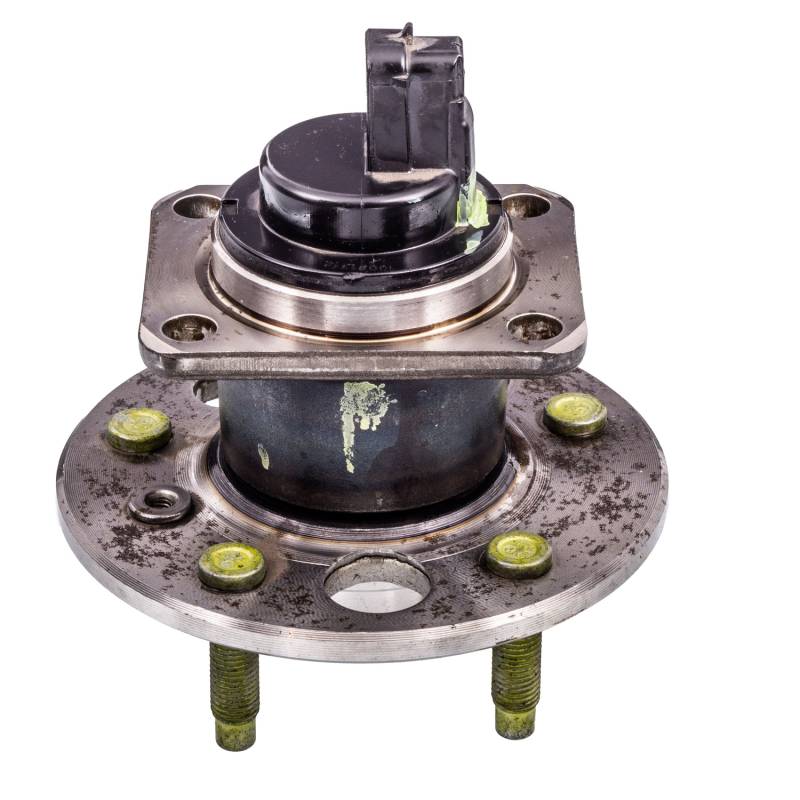

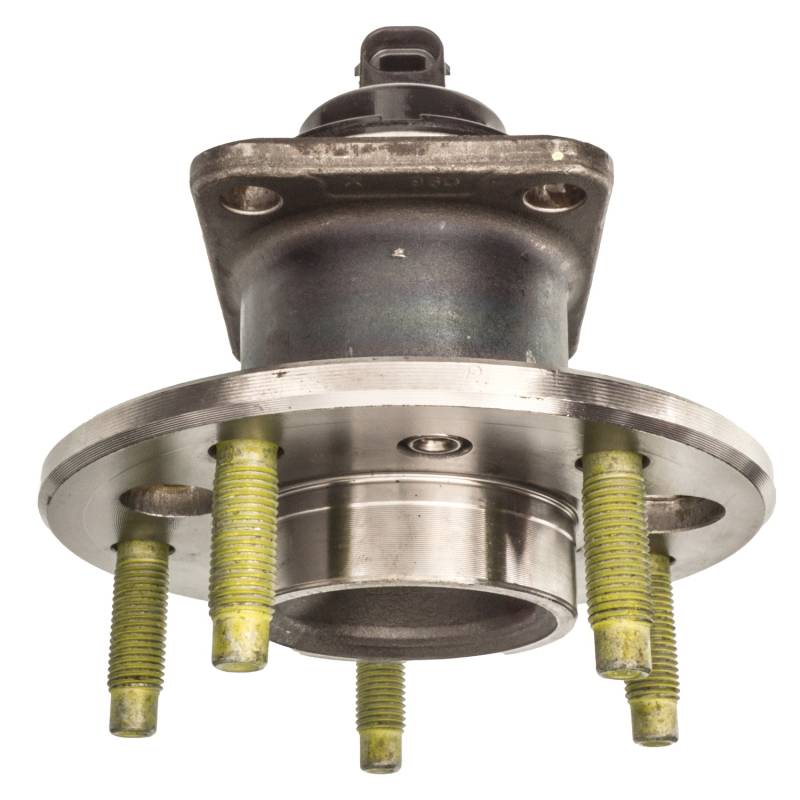

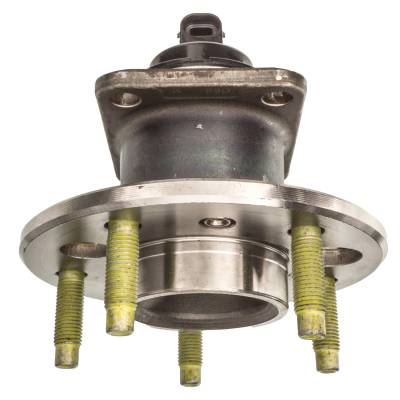

New Hub Assembly Compatible With Cadillac Allante Eldorado Seville Deville 4.6L 4.9L 1993 1994 1995

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

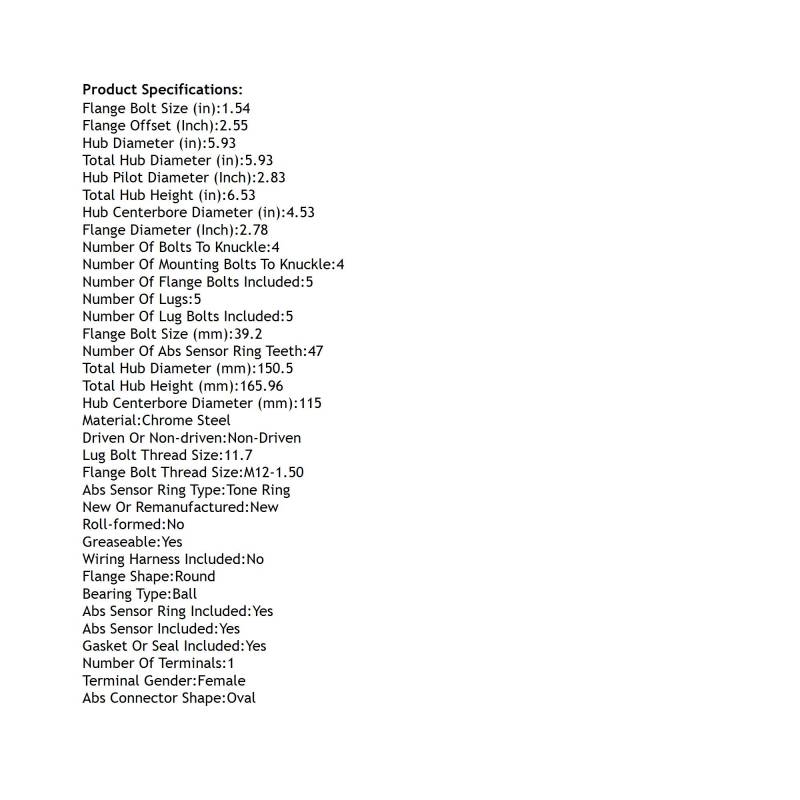

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39.2
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.93
HUB PILOT DIAMETER (INCH): 2.83
LUG BOLT THREAD SIZE: 11.7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.93
TOTAL HUB DIAMETER (MM): 150.5
TOTAL HUB HEIGHT (IN): 6.53
TOTAL HUB HEIGHT (MM): 165.96
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-02095
BCA: WE60888
CENTRIC PARTS: 40762016
FAG US: 102071
GSP: 103006
MEVOTECH: H512006
MOOG HUB ASSEMBLIES: 512006
NAPA: PBR930191

APPLICATIONS:
CADILLAC ALLANTE (1993-1993)
CADILLAC ELDORADO (1993-2002)
CADILLAC SEVILLE (1993-1997)
CADILLAC DEVILLE (1994-1999)
