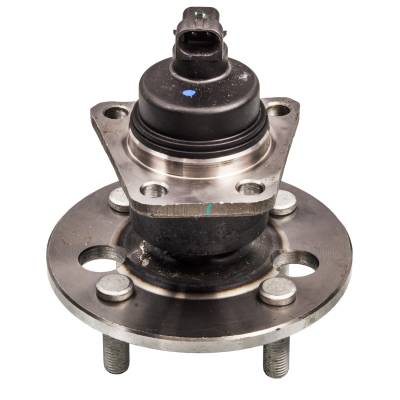

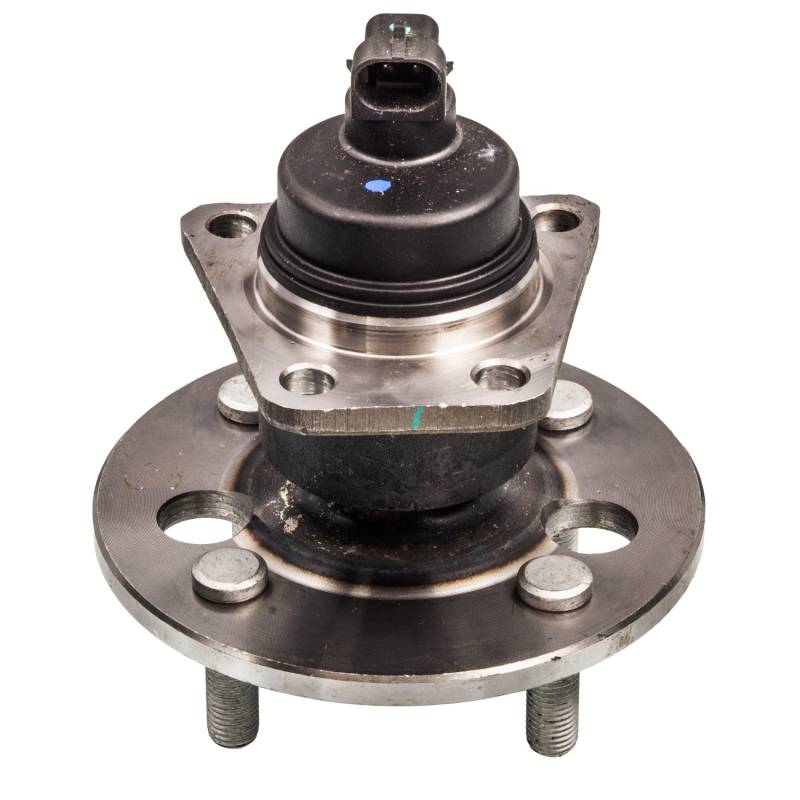

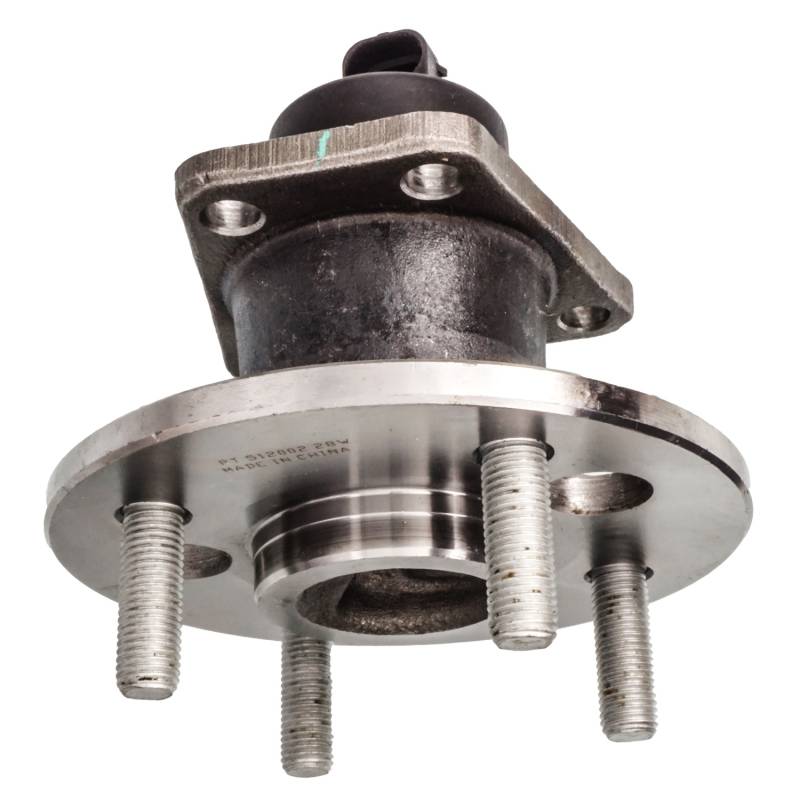

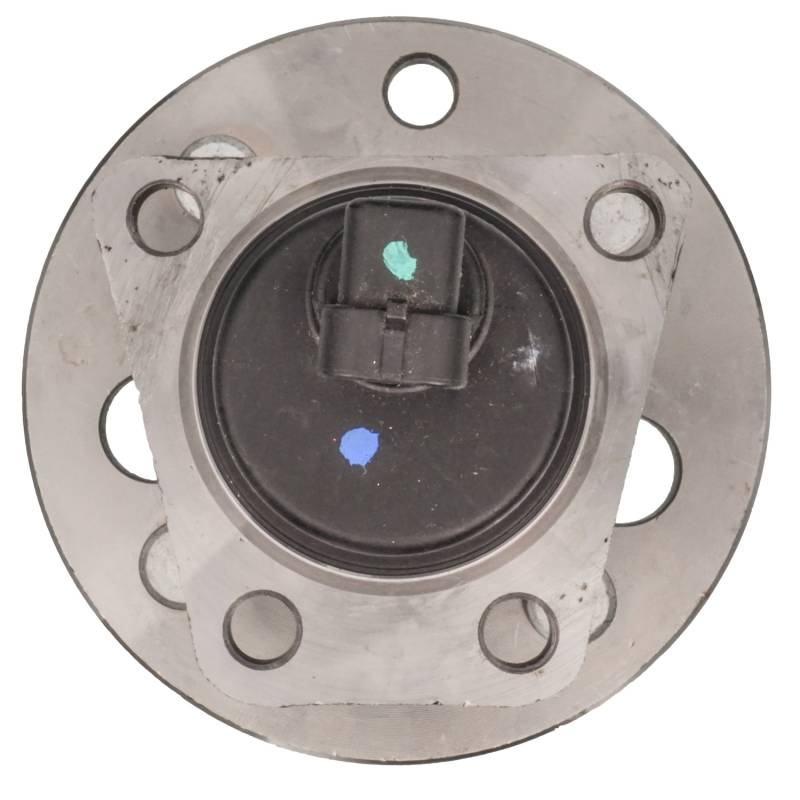

New Hub Assembly Compatible With Saturn Sc Sl1 Sl2 Sl Sc1 Sc2 Sw1 Sw2 1.9L 1991 1992 1993 1994 1995

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.299
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.264
FLANGE OFFSET (INCH): 2.552
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 3.937
HUB CENTERBORE DIAMETER (MM): 100
HUB DIAMETER (IN): 5.433
HUB PILOT DIAMETER (INCH): 2.402
LUG BOLT THREAD SIZE: 11
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.433
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 6.142
TOTAL HUB HEIGHT (MM): 156

REPLACES:
AUTOPART INTERNATIONAL: 1411-44756
BCA: WE60738
CENTRIC PARTS: 40762030E
FAG US: 102248
GSP: 103002
MEVOTECH: H512002
MOOG HUB ASSEMBLIES: 512002
NAPA: PBR930089

APPLICATIONS:
SATURN SC (1991-1992)
SATURN SL1 (1991-2002)
SATURN SL2 (1991-2002)
SATURN SL (1991-2002)
SATURN SC1 (1993-2002)
SATURN SC2 (1993-2002)
SATURN SW1 (1993-1999)
SATURN SW2 (1993-2001)
