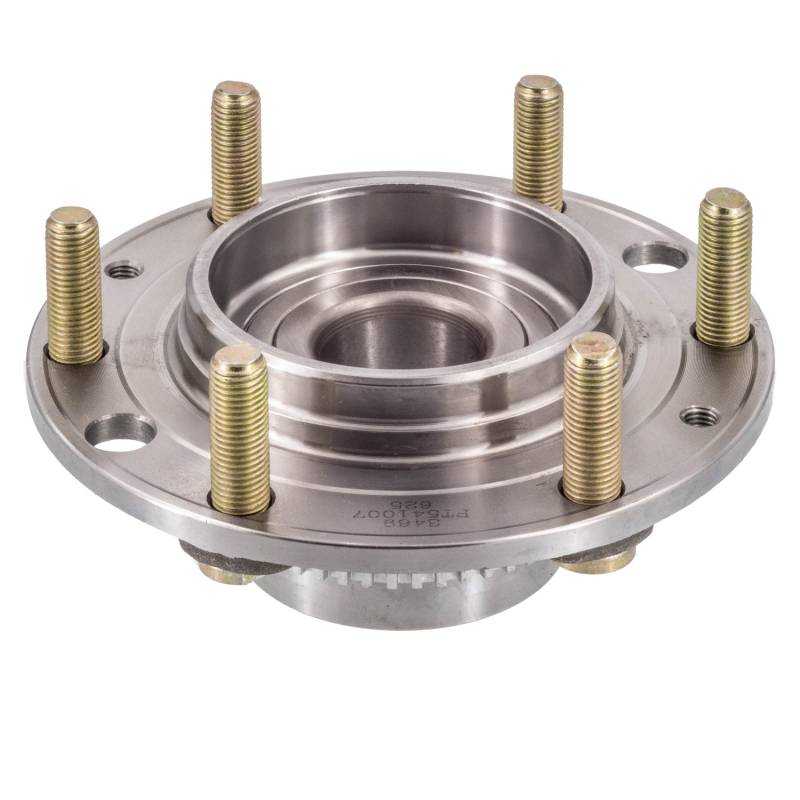

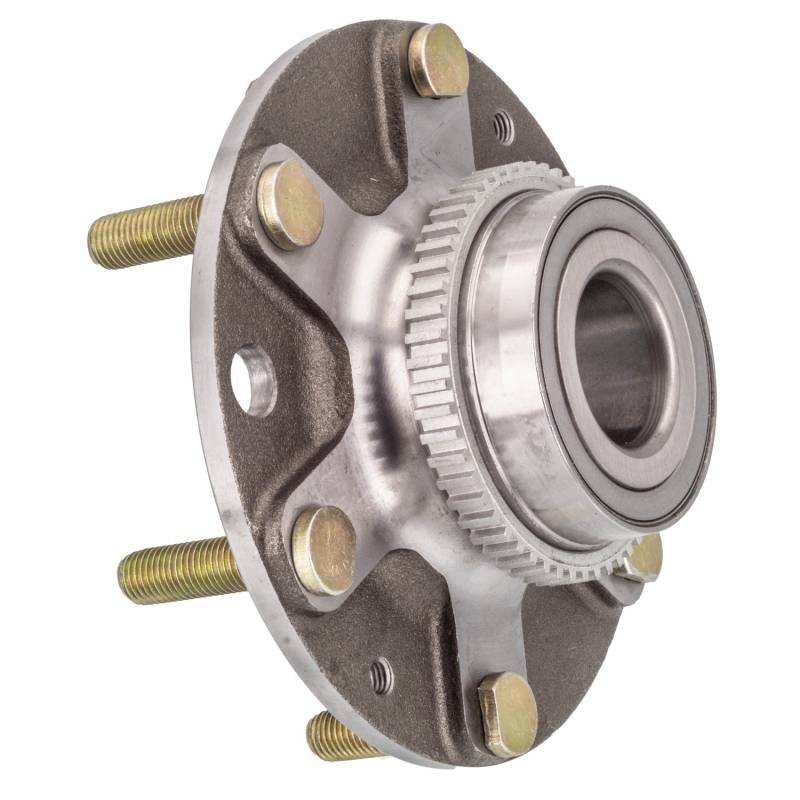

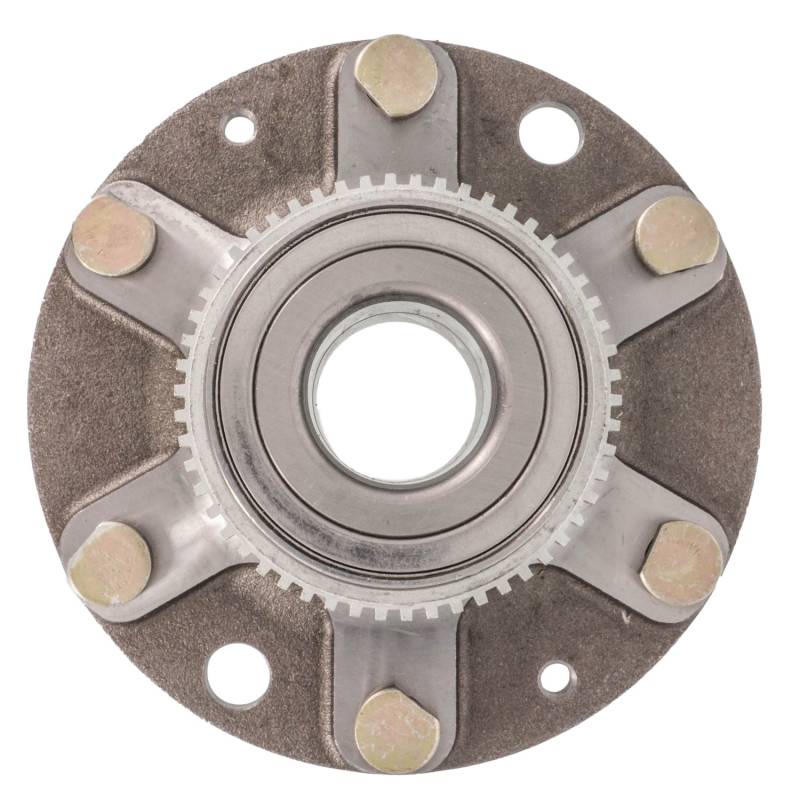

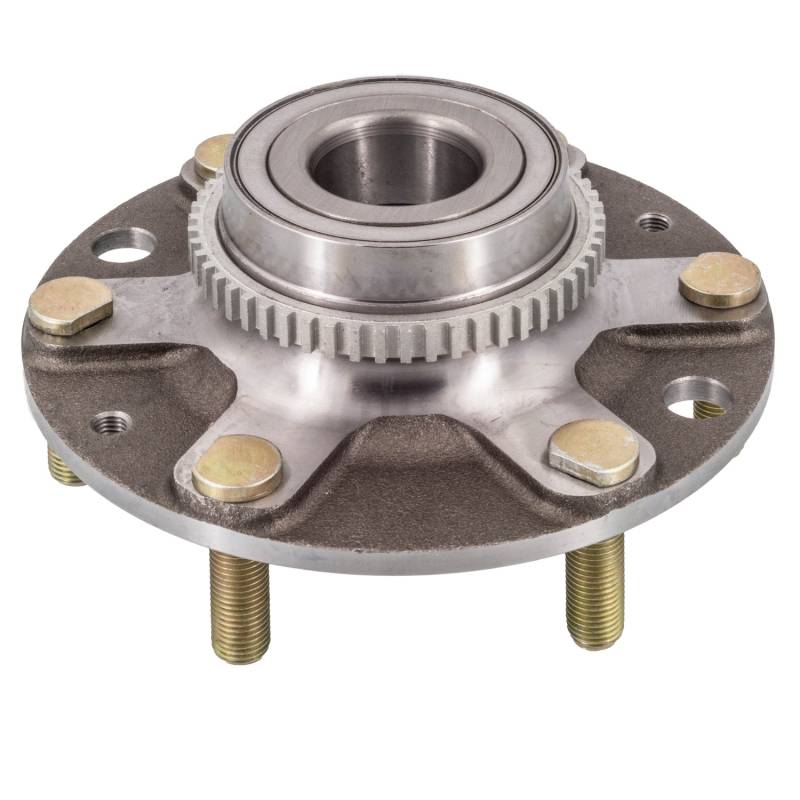

New Hub Assembly Compatible With Kia Hyundai Sedona Entourage 3.5L 3.8L 2006 2007 2008 2009 2010

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

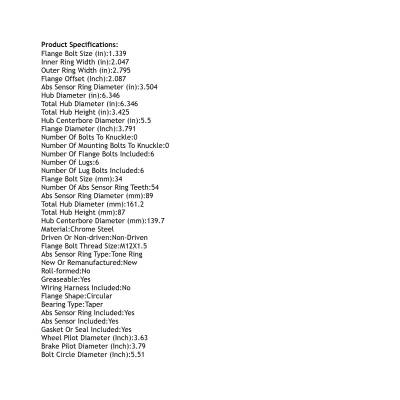

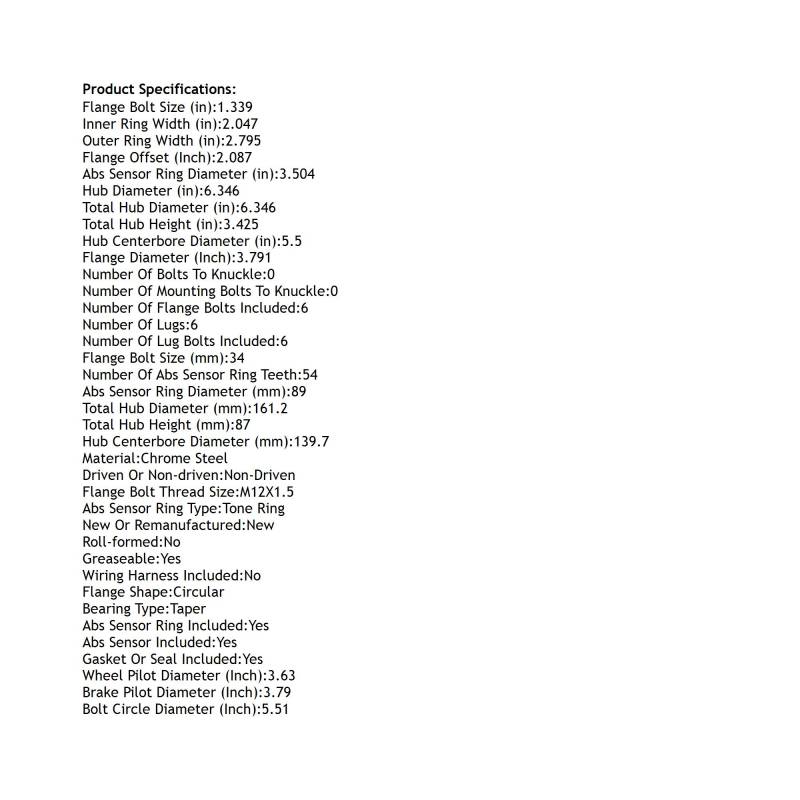

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.504
ABS SENSOR RING DIAMETER (MM): 89
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: TAPER
BOLT CIRCLE DIAMETER (INCH): 5.51
BRAKE PILOT DIAMETER (INCH): 3.79
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.339
FLANGE BOLT SIZE (MM): 34
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 3.791
FLANGE OFFSET (INCH): 2.087
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139.7
HUB DIAMETER (IN): 6.346
INNER RING WIDTH (IN): 2.047
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 54
NUMBER OF BOLTS TO KNUCKLE: 0
NUMBER OF FLANGE BOLTS INCLUDED: 6
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 0
OUTER RING WIDTH (IN): 2.795
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.346
TOTAL HUB DIAMETER (MM): 161.2
TOTAL HUB HEIGHT (IN): 3.425
TOTAL HUB HEIGHT (MM): 87
WHEEL PILOT DIAMETER (INCH): 3.63
WIRING HARNESS INCLUDED: NO

REPLACES:
OTHER PART NUMBER: PT541007
SKF: BR930610
TIMKEN: HA590016
AUTOPART INTERNATIONAL: 1411-248705
BCA: WE60959
BECK/ARNLEY: 051-6149
CENTRIC PARTS: 40551009E
FAG US: 806082
GSP: 372007
MEVOTECH: H541007
MOOG HUB ASSEMBLIES: 541007
NAPA: PBR930610

APPLICATIONS:
KIA SEDONA (2006-2014)
HYUNDAI ENTOURAGE (2007-2010)
