THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

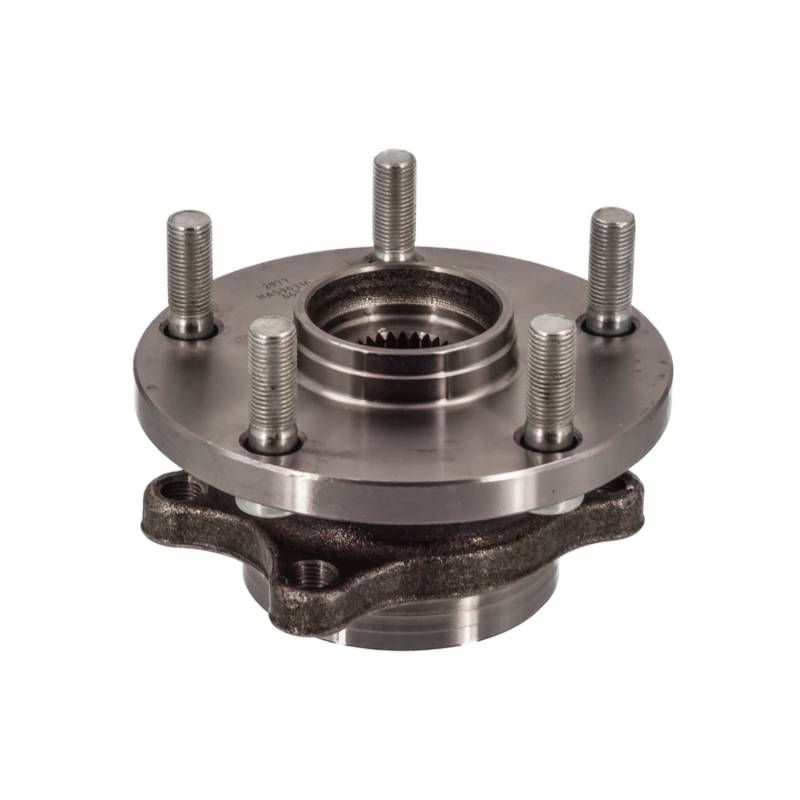

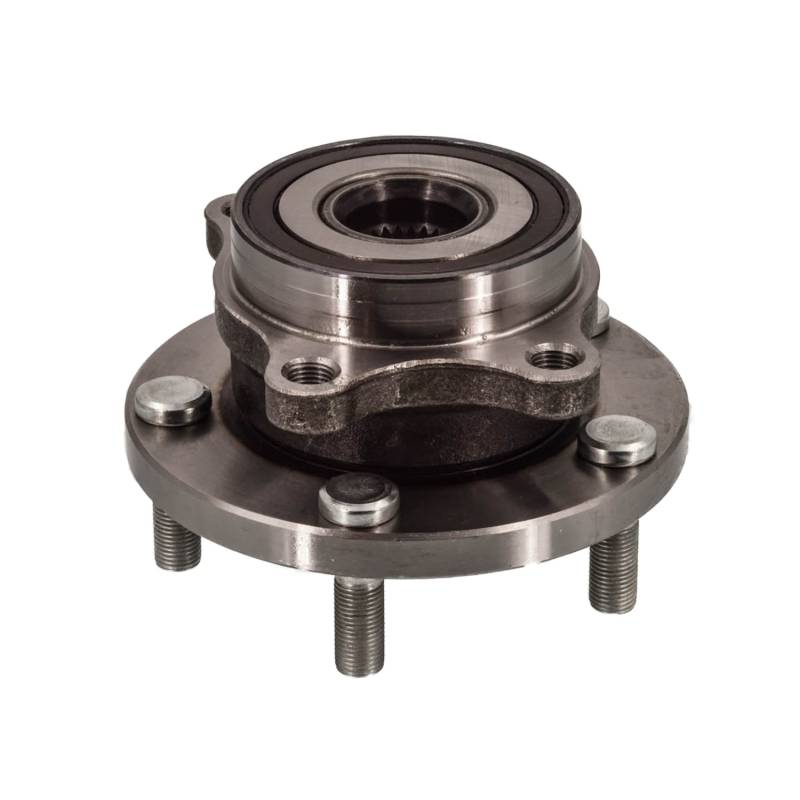

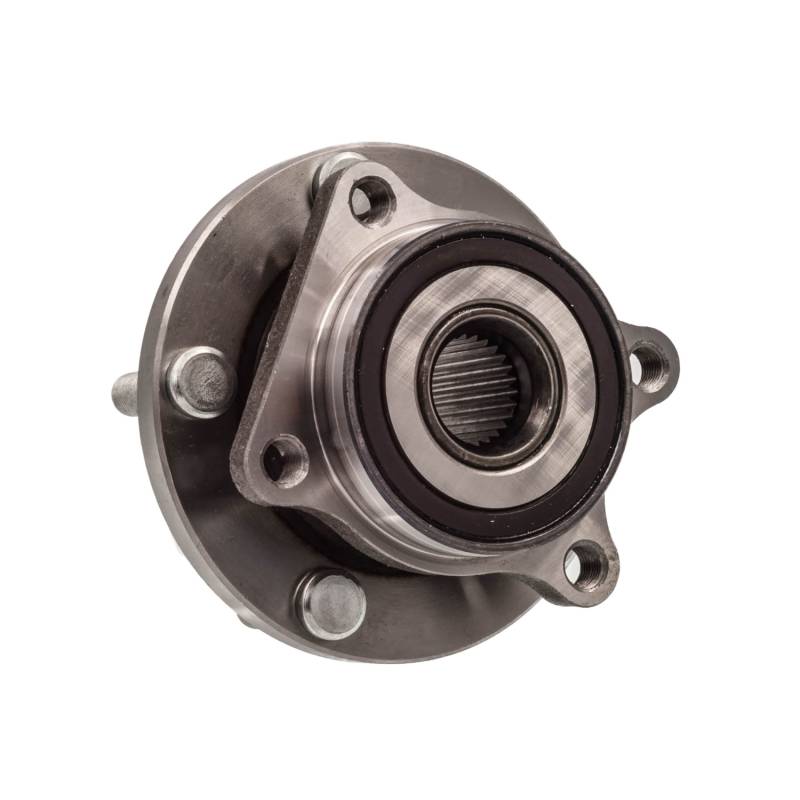

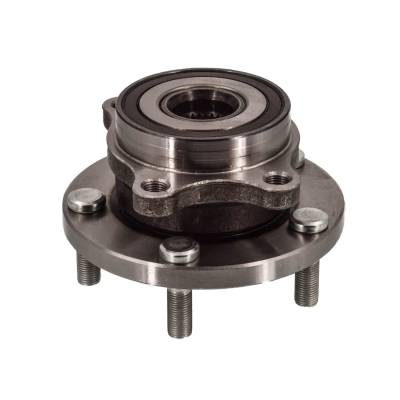

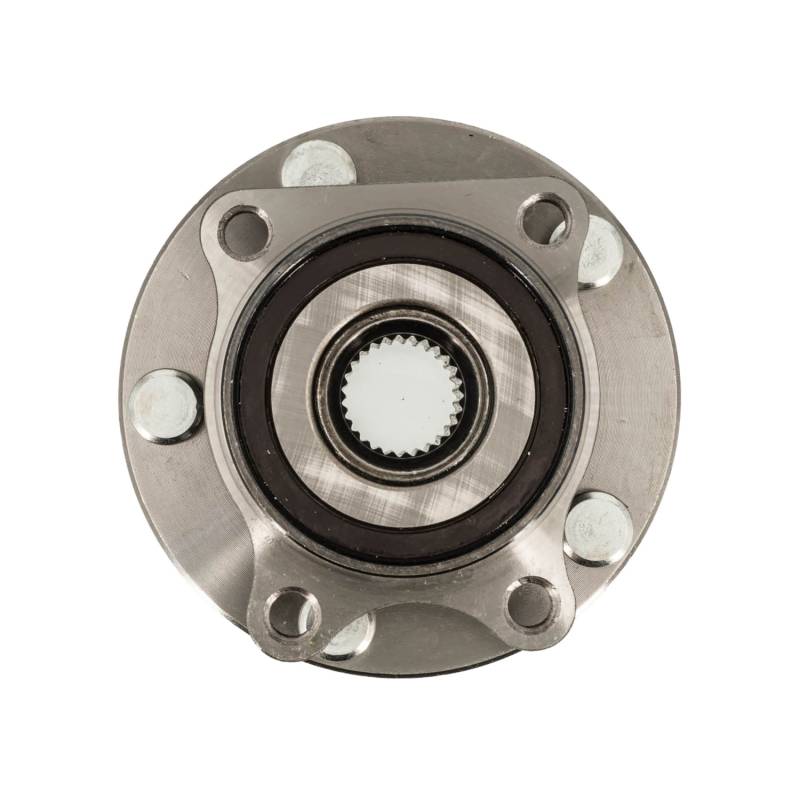

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.933
ABS SENSOR RING DIAMETER (MM): 74.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.181
FLANGE BOLT SIZE (MM): 30
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 2.283
FLANGE OFFSET (INCH): 1.827
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.433
HUB PILOT DIAMETER (INCH): 3.307
LUG BOLT THREAD SIZE: M12X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.433
TOTAL HUB DIAMETER (MM): 138
TOTAL HUB HEIGHT (IN): 3.677
TOTAL HUB HEIGHT (MM): 93.4
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-248723
BCA: WE60479
CENTRIC PARTS: 40047000
GSP: 664302
MEVOTECH: H513302
MOOG HUB ASSEMBLIES: 513302
NAPA: PBR930769
SUBARU: 28373CV000
APPLICATIONS:
SUBARU IMPREZA (2004-2014)
SUBARU WRX STI (2013-2014)
SUBARU LEGACY (2015-2023)
SUBARU OUTBACK (2015-2024)
SUBARU ASCENT (2019-2023)
SUBARU FORESTER (2019-2023)
