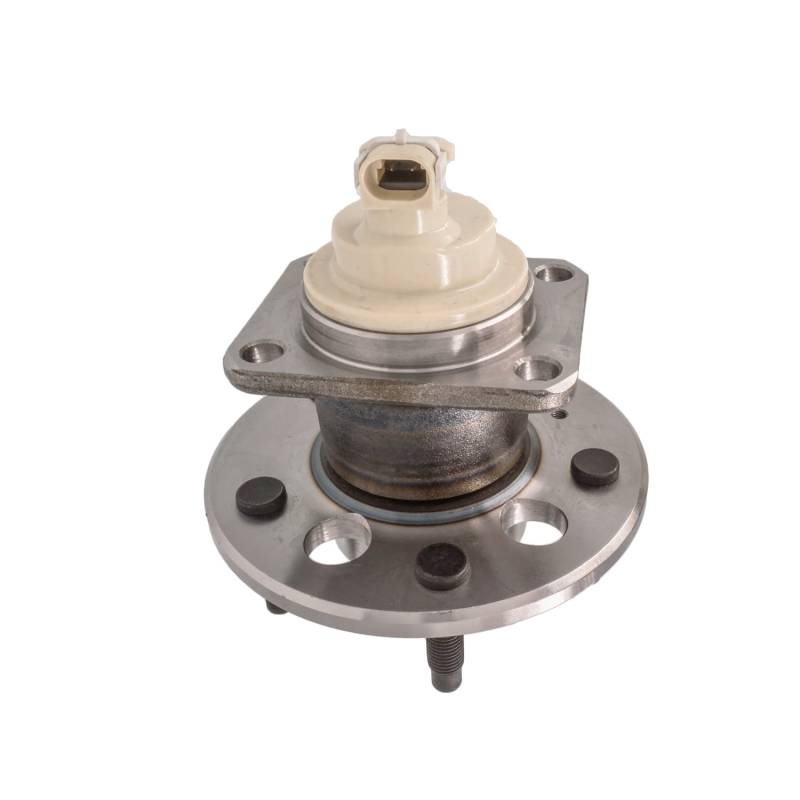

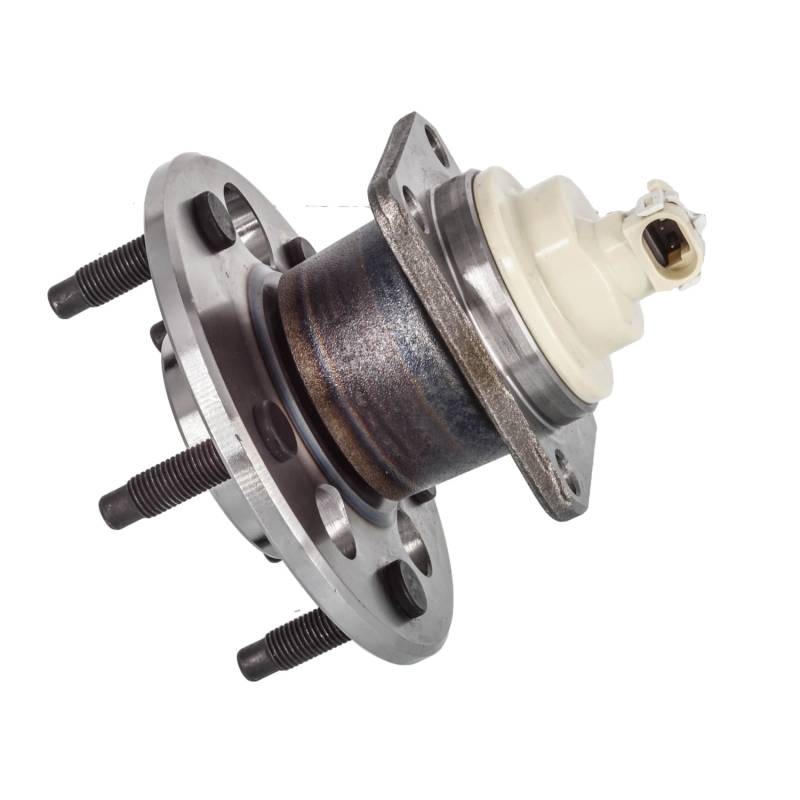

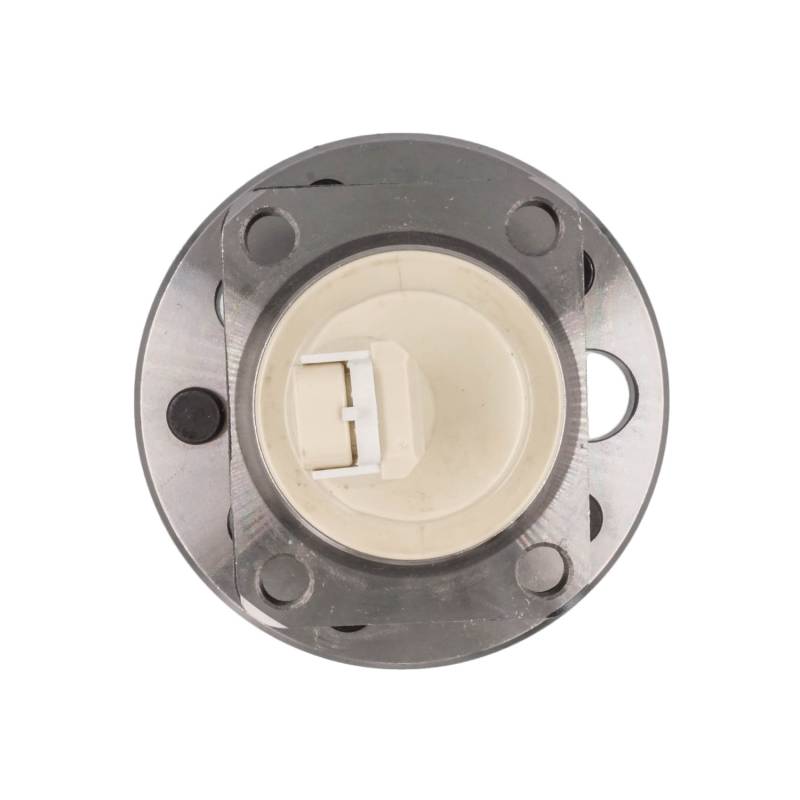

New Hub Assembly Compatible With Buick Pontiac Oldsmobile Chevrolet Regal Grand Prix Intrigue Monte

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

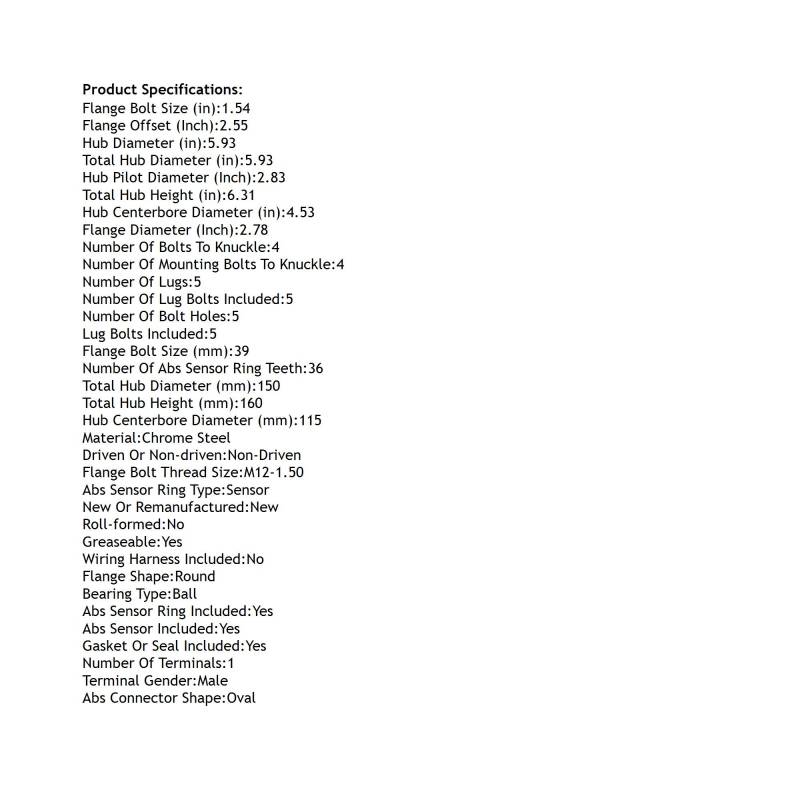

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.54
FLANGE BOLT SIZE (MM): 39
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.93
HUB PILOT DIAMETER (INCH): 2.83
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 36
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.93
TOTAL HUB DIAMETER (MM): 150
TOTAL HUB HEIGHT (IN): 6.31
TOTAL HUB HEIGHT (MM): 160
WIRING HARNESS INCLUDED: NO

REPLACES:
ACDELCO: RW20-14
BCA: WE60717
CENTRIC PARTS: 40762014
FAG US: 102257
GENERAL MOTORS: 12413091
GSP: 103237
MEVOTECH: H512237
MOOG HUB ASSEMBLIES: 512237
NAPA: PBR930075

APPLICATIONS:
BUICK REGAL (1997-2004)
PONTIAC GRAND PRIX (1997-2003)
OLDSMOBILE INTRIGUE (1998-2002)
CHEVROLET MONTE CARLO (2000-2005)
PONTIAC AZTEK (2001-2005)
CHEVROLET VENTURE (2002-2005)
BUICK CENTURY (2004-2005)
