New Hub Assembly Compatible With Hyundai Xg300 Xg350 3.0L 3.5L 2001 2002 2003 2004 2005 By Part

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

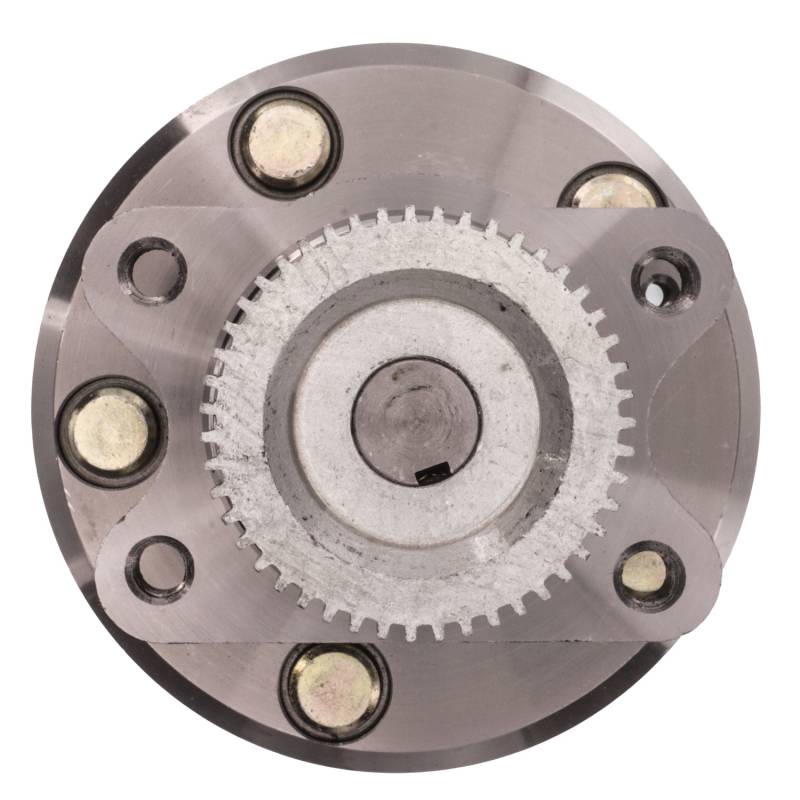

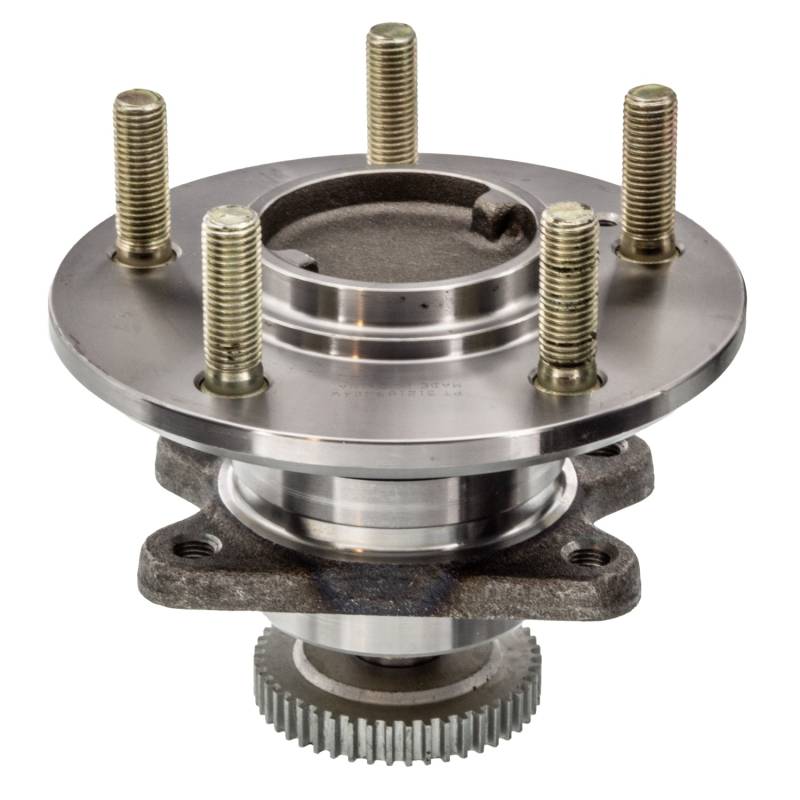

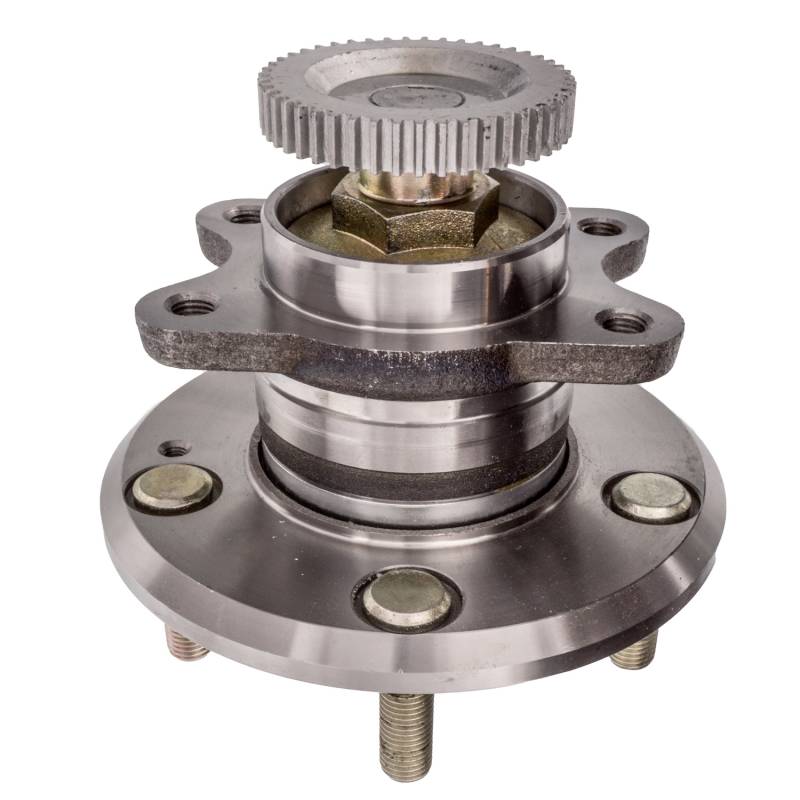

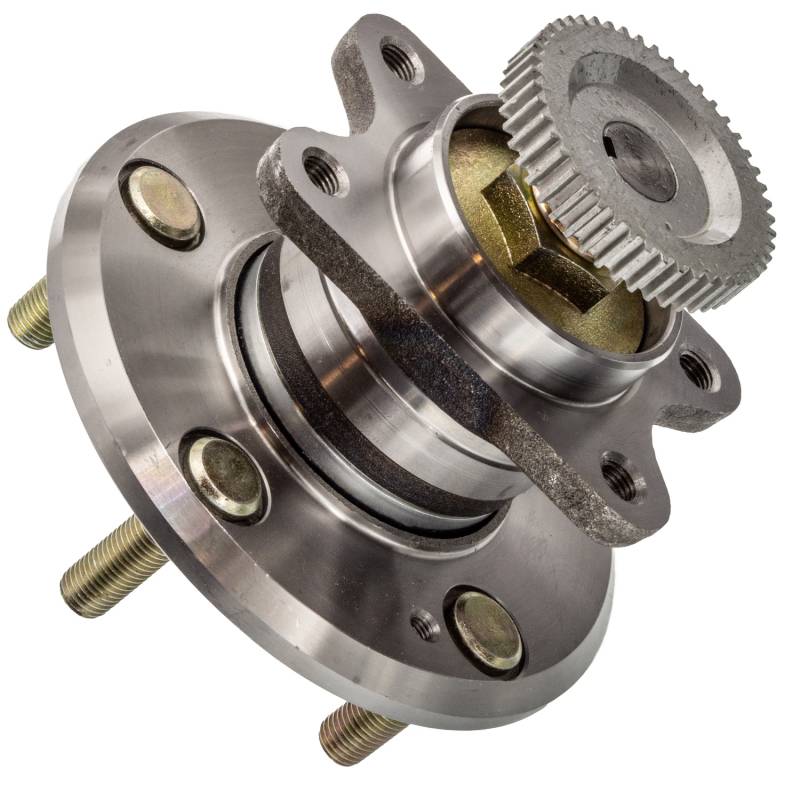

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

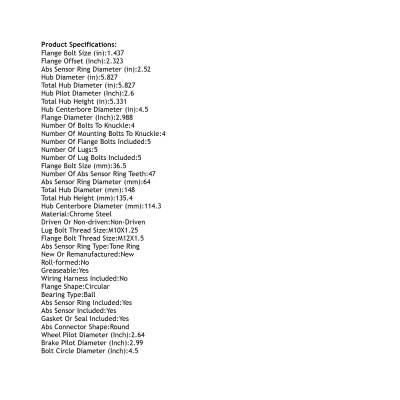

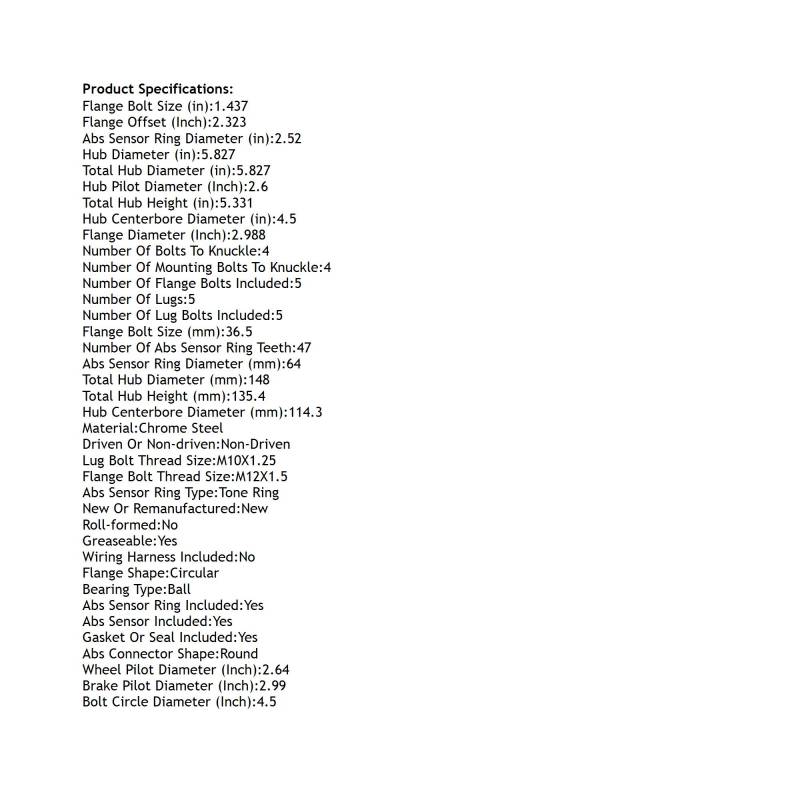

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.52
ABS SENSOR RING DIAMETER (MM): 64
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.99
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.437
FLANGE BOLT SIZE (MM): 36.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.988
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.827
HUB PILOT DIAMETER (INCH): 2.6
LUG BOLT THREAD SIZE: M10X1.25
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 5.827
TOTAL HUB DIAMETER (MM): 148
TOTAL HUB HEIGHT (IN): 5.331
TOTAL HUB HEIGHT (MM): 135.4
WHEEL PILOT DIAMETER (INCH): 2.64
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-49114
BCA: WE61470
BECK/ARNLEY: 051-6114
CENTRIC PARTS: 40651011
FAG US: 102317
GSP: 373189
MEVOTECH: H512189
MOOG HUB ASSEMBLIES: 512189
NAPA: PBR930287

APPLICATIONS:
HYUNDAI XG300 (2001-2001)
HYUNDAI XG350 (2002-2005)
