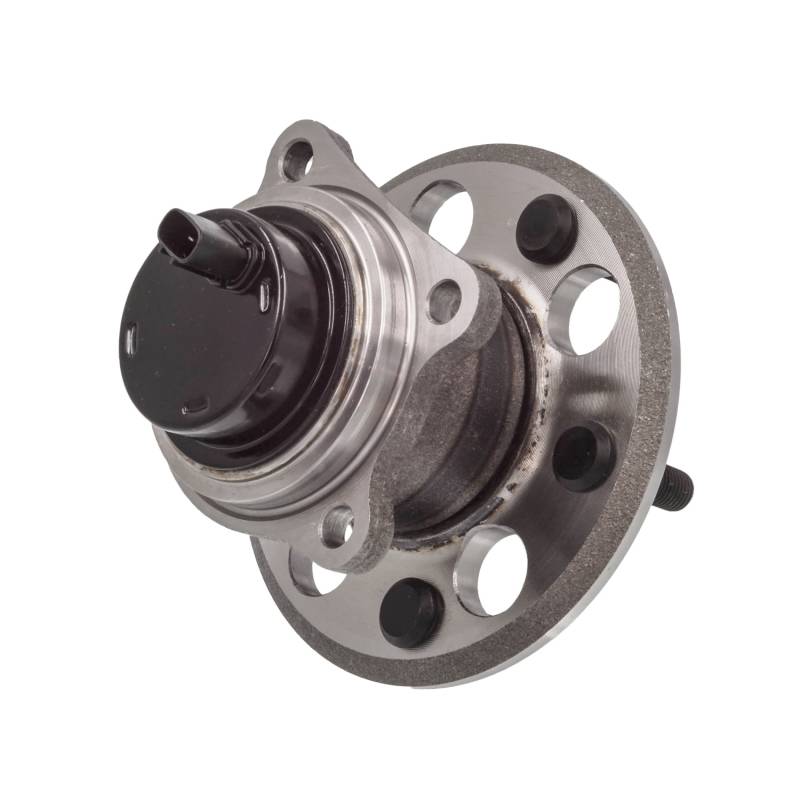

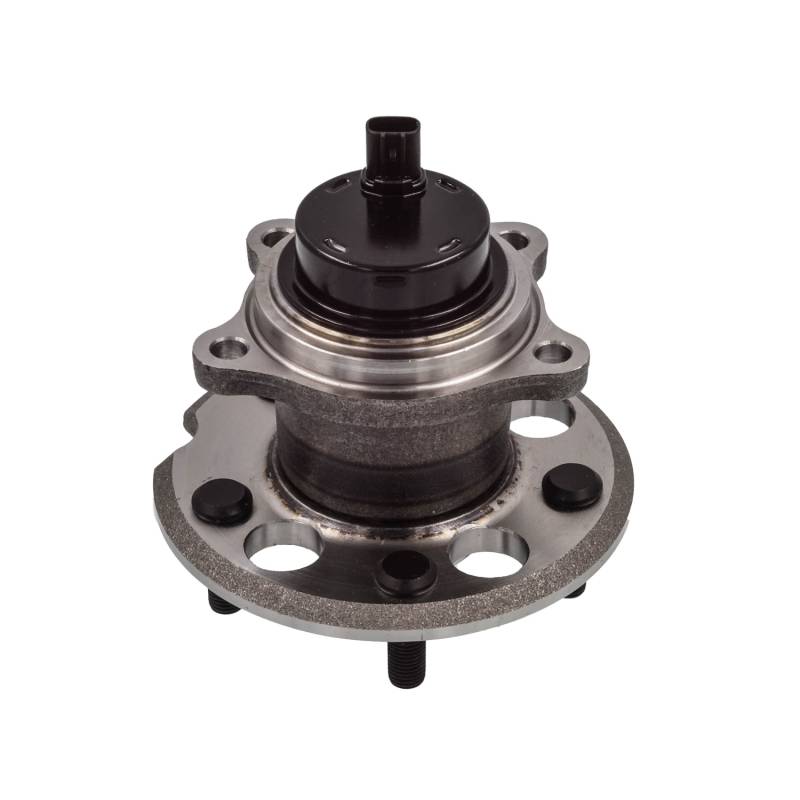

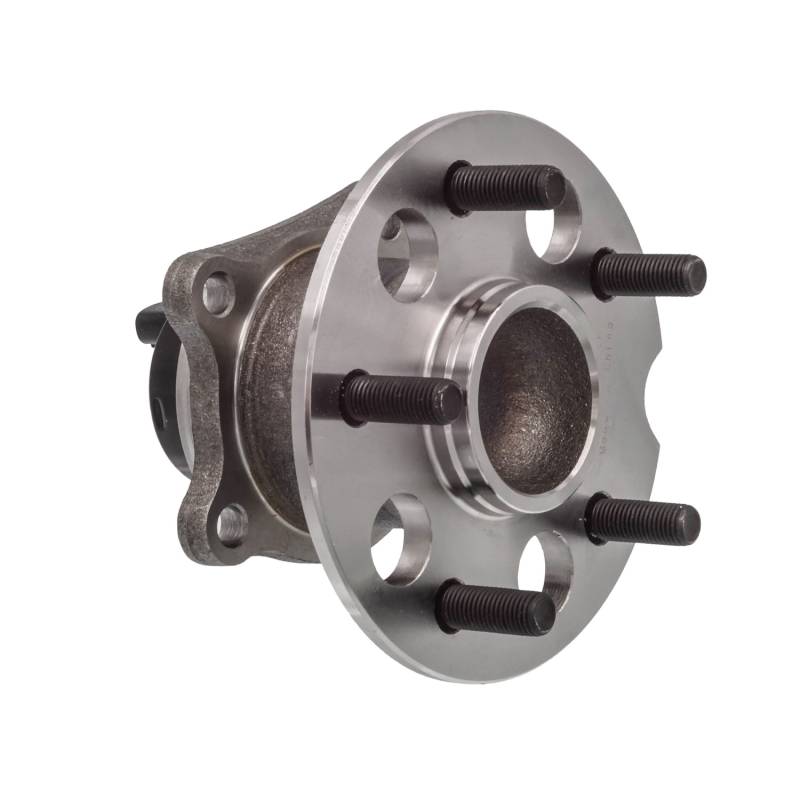

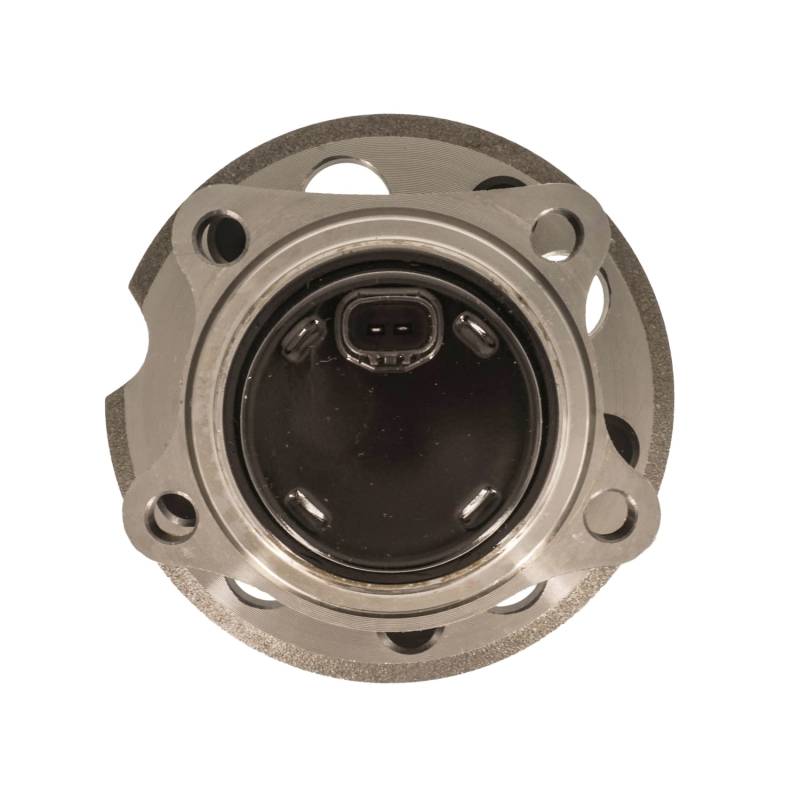

New Hub Assembly Compatible With Toyota Sienna 3.3L 3.5L 2004 2005 2006 2007 2008 2009 2010 By Part

(0) Reviews: Write first review
PT512280-PIO

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $149.77
Sale: $85.58
Save: 43%
Save: $64.19
    • Qty:
    Free Shipping!

    Description

    THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

    PRODUCT TYPE: HUB ASSEMBLY
    ASSEMBLY/SINGLE: SINGLE

    SPECIFICATIONS:
    ABS CONNECTOR SHAPE: RECTANGLE
    ABS SENSOR INCLUDED: YES
    ABS SENSOR RING INCLUDED: YES
    ABS SENSOR RING TYPE: SENSOR
    BEARING TYPE: BALL
    DRIVEN OR NON-DRIVEN: NON-DRIVEN
    FLANGE BOLT SIZE (IN): 1.35
    FLANGE BOLT SIZE (MM): 34
    FLANGE BOLT THREAD SIZE: M12-1.50
    FLANGE DIAMETER (INCH): 2.44
    FLANGE OFFSET (INCH): 2.72
    FLANGE SHAPE: ROUND
    GASKET OR SEAL INCLUDED: YES
    GREASEABLE: YES
    HUB CENTERBORE DIAMETER (IN): 4.5
    HUB CENTERBORE DIAMETER (MM): 114
    HUB DIAMETER (IN): 5.98
    HUB PILOT DIAMETER (INCH): 3.31
    LUG BOLTS INCLUDED: 5
    MATERIAL: CHROME STEEL
    NEW OR REMANUFACTURED: NEW
    NUMBER OF ABS SENSOR RING TEETH: 48
    NUMBER OF BOLT HOLES: 5
    NUMBER OF BOLTS TO KNUCKLE: 4
    NUMBER OF LUG BOLTS INCLUDED: 5
    NUMBER OF LUGS: 5
    NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
    NUMBER OF TERMINALS: 1
    ROLL-FORMED: YES
    TERMINAL GENDER: MALE
    TOTAL HUB DIAMETER (IN): 5.98
    TOTAL HUB DIAMETER (MM): 152
    TOTAL HUB HEIGHT (IN): 5.99
    TOTAL HUB HEIGHT (MM): 152
    WIRING HARNESS INCLUDED: NO

    REPLACES:
    AUTOPART INTERNATIONAL: 1411-248433
    BCA: WE60770
    BECK/ARNLEY: 051-6144
    CENTRIC PARTS: 40744010
    FAG US: 102111
    GSP: 693280
    MEVOTECH: H512280
    MOOG HUB ASSEMBLIES: 512280
    NAPA: PBR930437

    APPLICATIONS:
    TOYOTA SIENNA (2004-2010)
