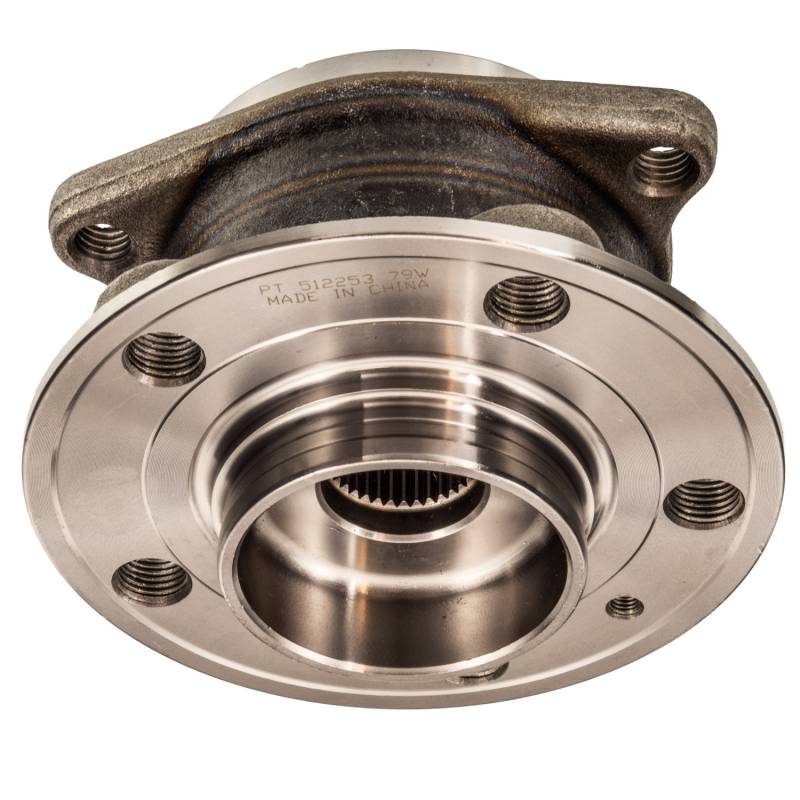

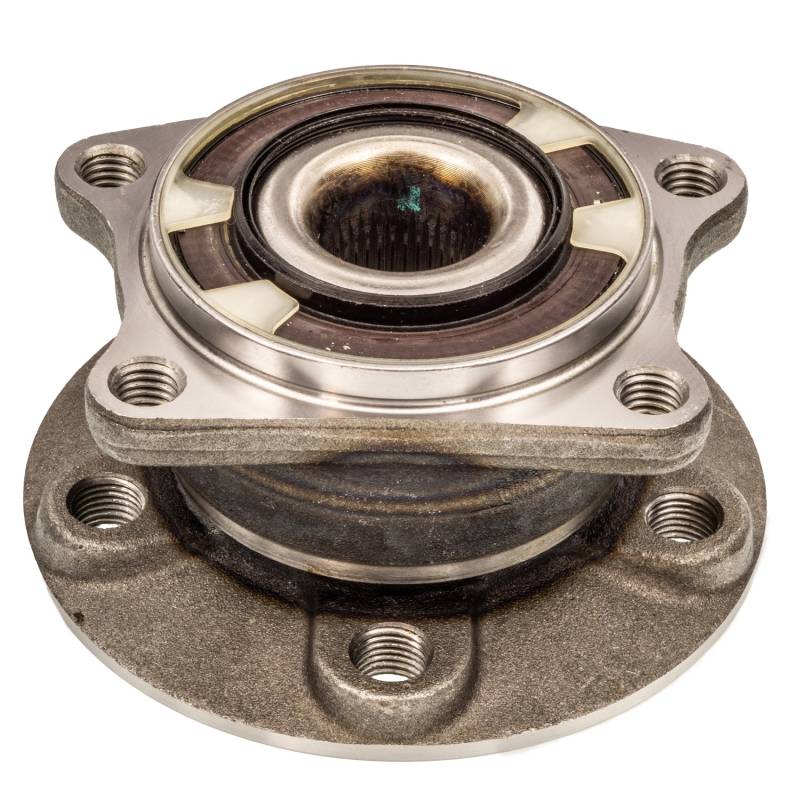

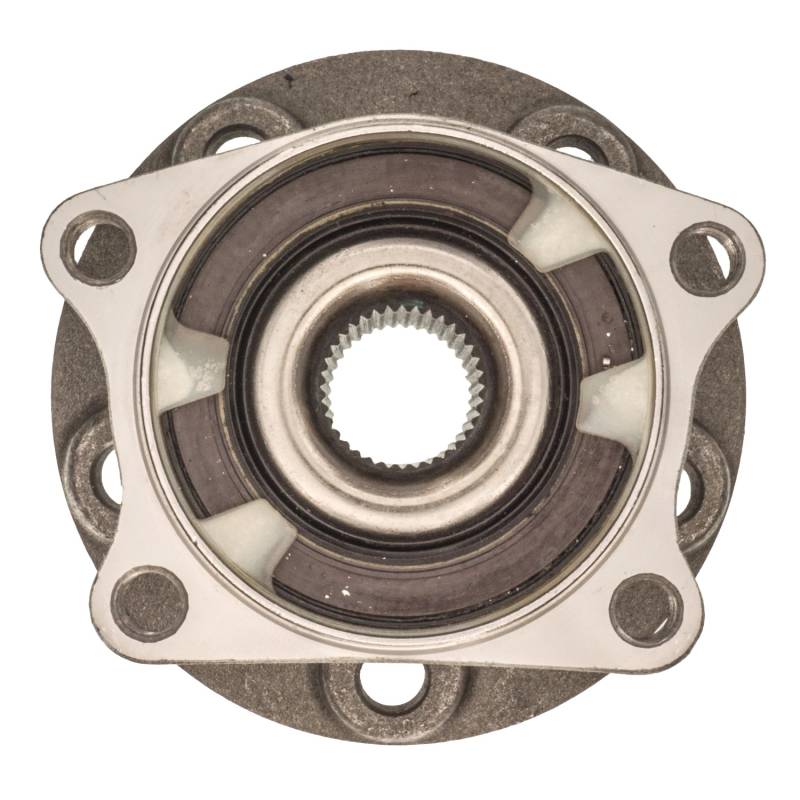

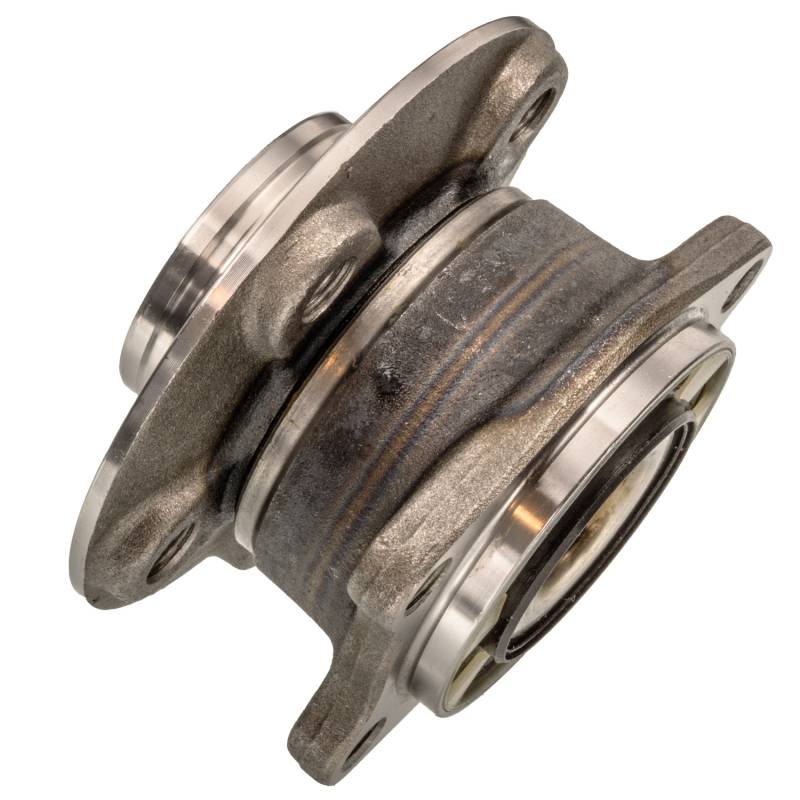

New Hub Assembly Compatible With Volvo V70 S60 Xc70 S80 2001 2002 2003 2004 2005 2006 2007 2008 2009

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

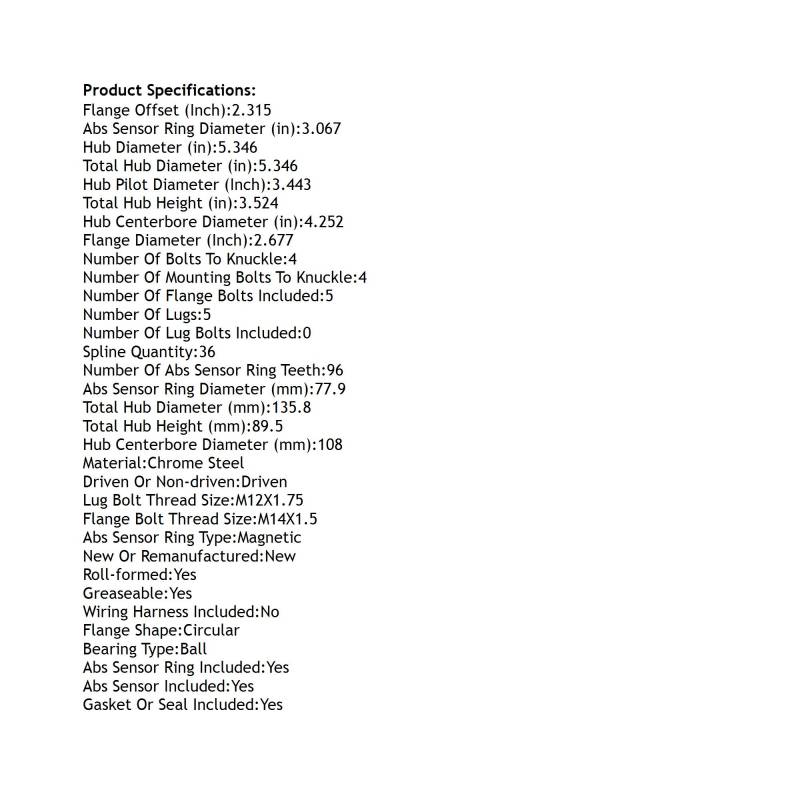

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 3.067
ABS SENSOR RING DIAMETER (MM): 77.9
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT THREAD SIZE: M14X1.5
FLANGE DIAMETER (INCH): 2.677
FLANGE OFFSET (INCH): 2.315
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.346
HUB PILOT DIAMETER (INCH): 3.443
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 96
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 0
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 36
TOTAL HUB DIAMETER (IN): 5.346
TOTAL HUB DIAMETER (MM): 135.8
TOTAL HUB HEIGHT (IN): 3.524
TOTAL HUB HEIGHT (MM): 89.5
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-49112
BCA: WE61479
BECK/ARNLEY: 051-6227
CENTRIC PARTS: 40039006
FAG US: 101640
GSP: 733253
MEVOTECH: H512253
MOOG HUB ASSEMBLIES: 512253
NAPA: PBR930389

APPLICATIONS:
VOLVO V70 (2001-2007)
VOLVO S60 (2003-2009)
VOLVO XC70 (2003-2007)
VOLVO S80 (2004-2006)
