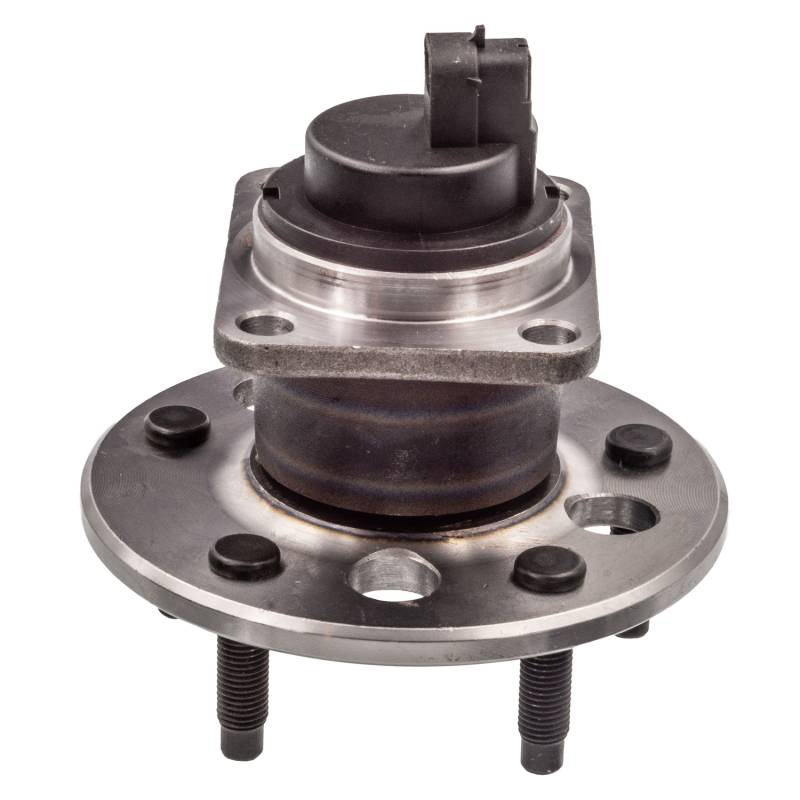

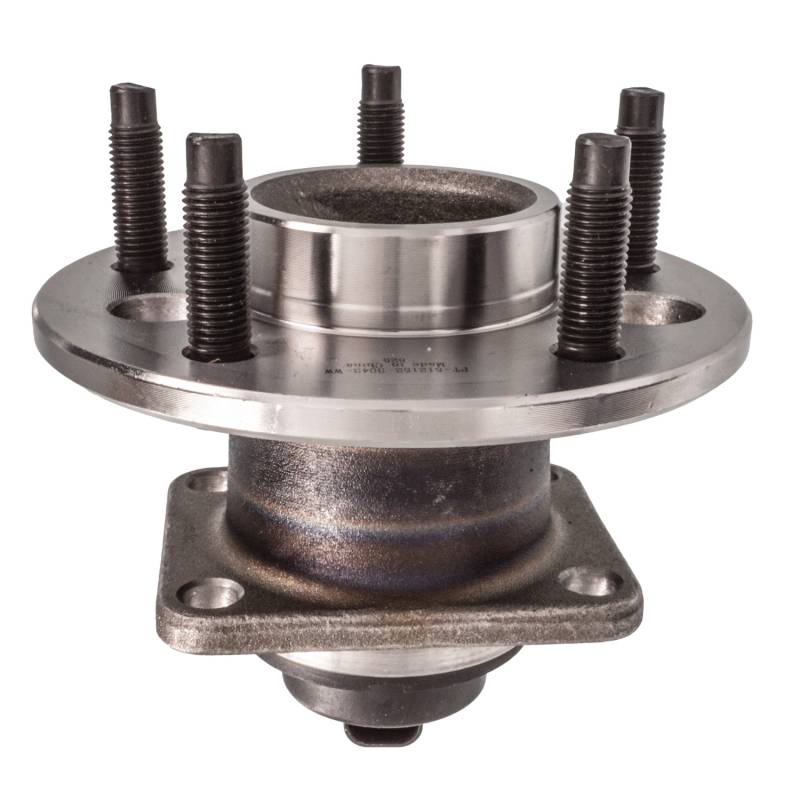

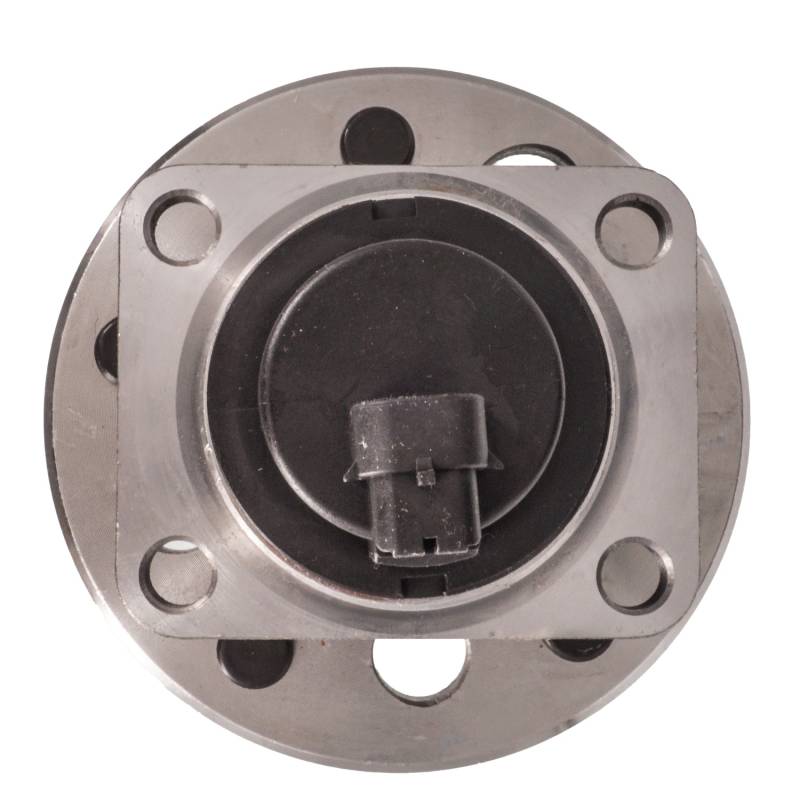

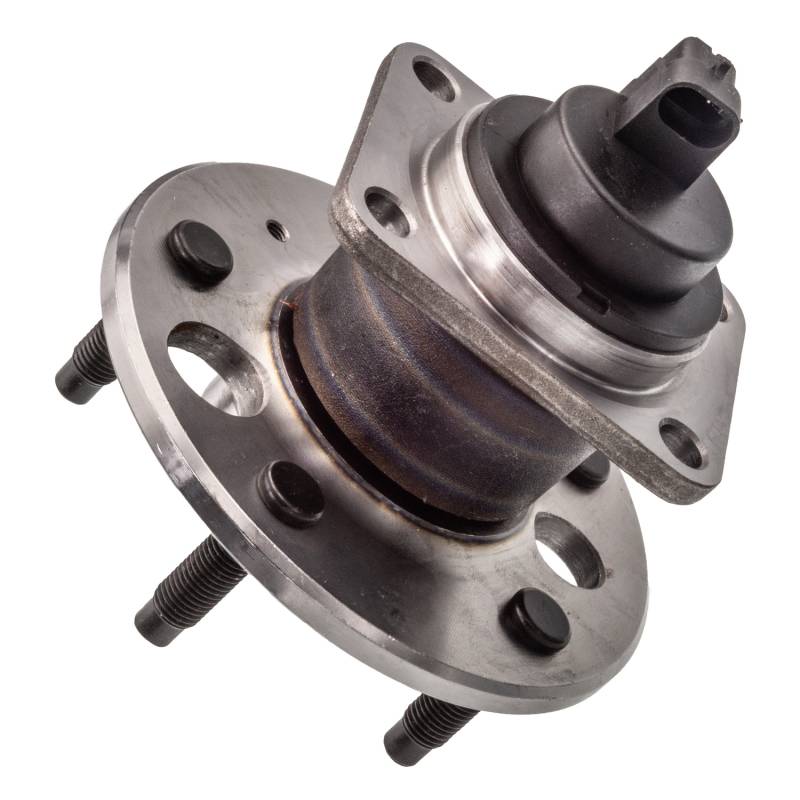

New Hub Assembly Compatible With Oldsmobile Pontiac Chevrolet Alero Grand Am Malibu Classic 1999

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

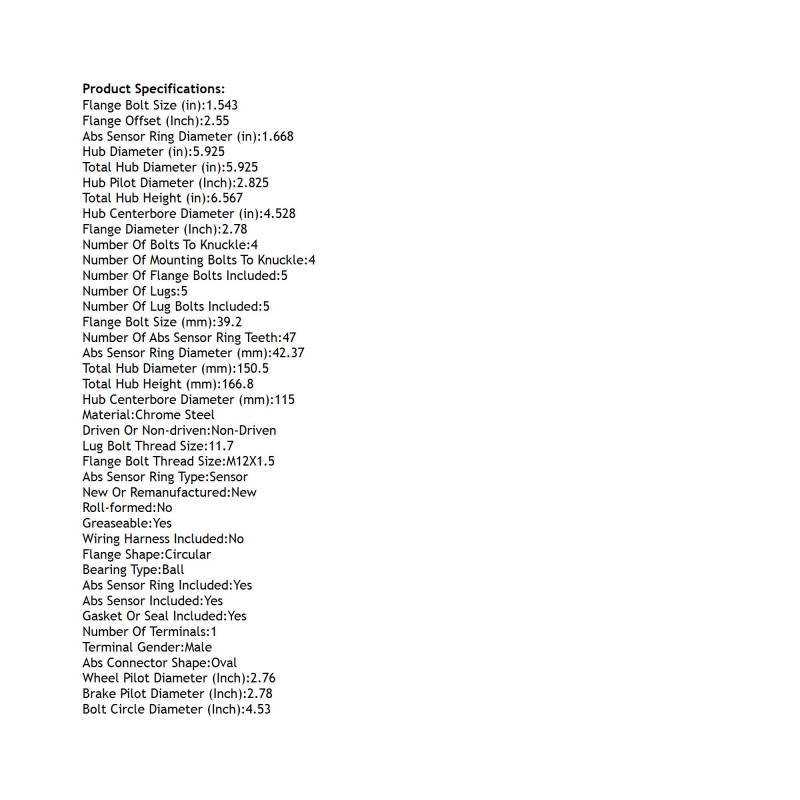

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.668
ABS SENSOR RING DIAMETER (MM): 42.37
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.53
BRAKE PILOT DIAMETER (INCH): 2.78
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.543
FLANGE BOLT SIZE (MM): 39.2
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 2.55
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.528
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.925
HUB PILOT DIAMETER (INCH): 2.825
LUG BOLT THREAD SIZE: 11.7
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.925
TOTAL HUB DIAMETER (MM): 150.5
TOTAL HUB HEIGHT (IN): 6.567
TOTAL HUB HEIGHT (MM): 166.8

REPLACES:
ACDELCO: R20-03
AUTOPART INTERNATIONAL: 1411-02460
BCA: WE60712
CENTRIC PARTS: 40762025
FAG US: 102079
GENERAL MOTORS: 12413003
GSP: 103152
MEVOTECH: H512152
MOOG HUB ASSEMBLIES: 512152
NAPA: PBR930098

APPLICATIONS:
OLDSMOBILE ALERO (1999-2004)
PONTIAC GRAND AM (1999-2005)
CHEVROLET MALIBU (2001-2003)
CHEVROLET CLASSIC (2004-2005)
