THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

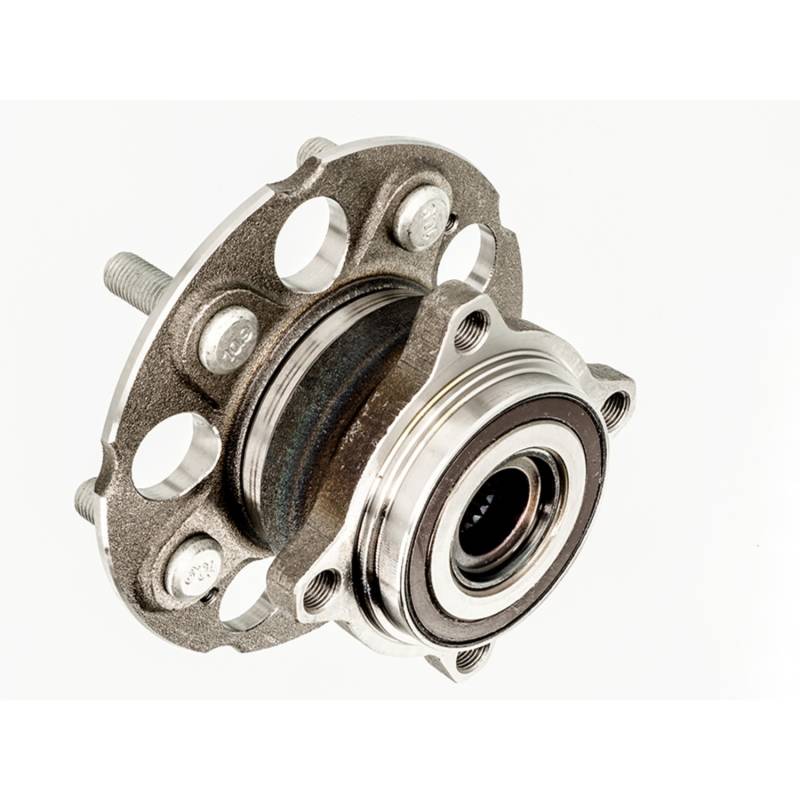

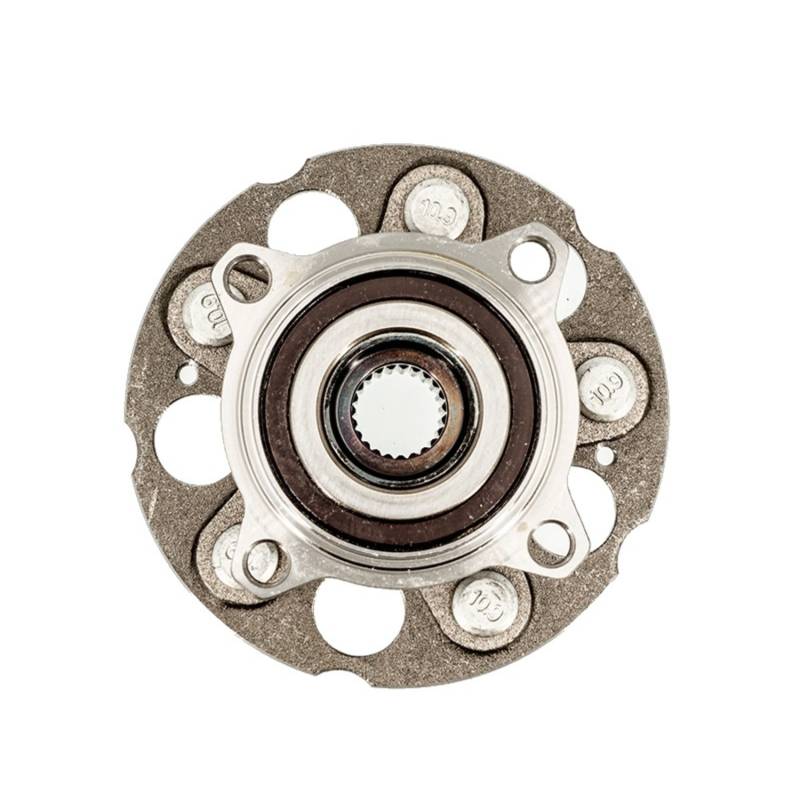

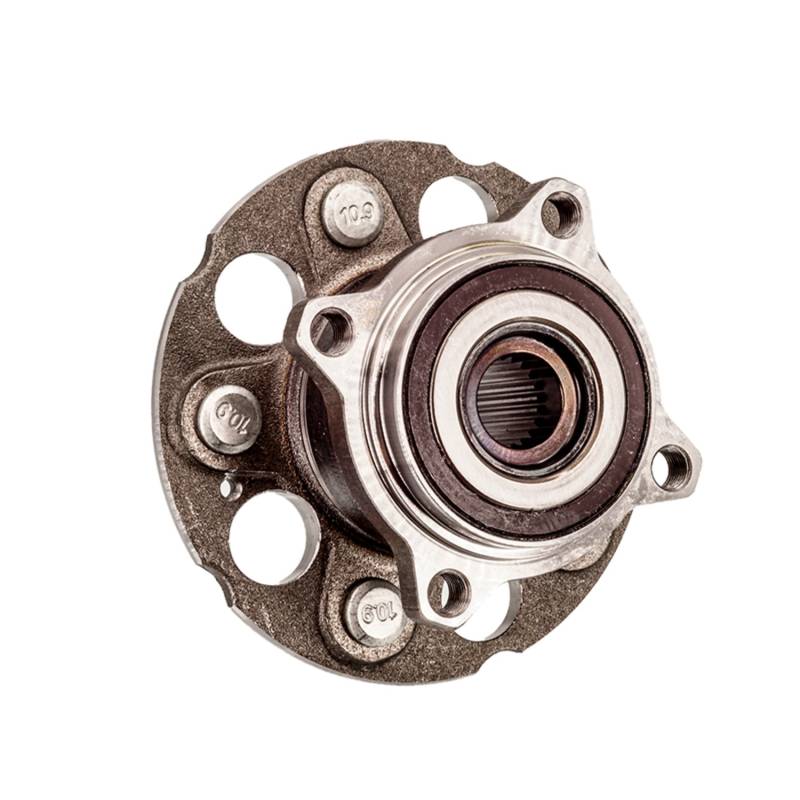

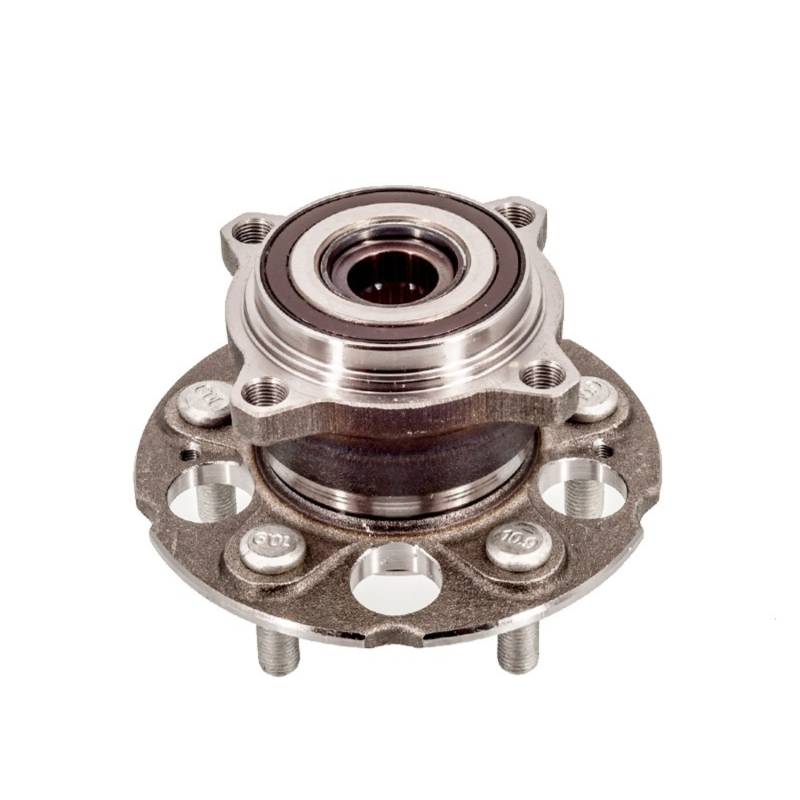

PRODUCT TYPE: HUB ASSEMBLY

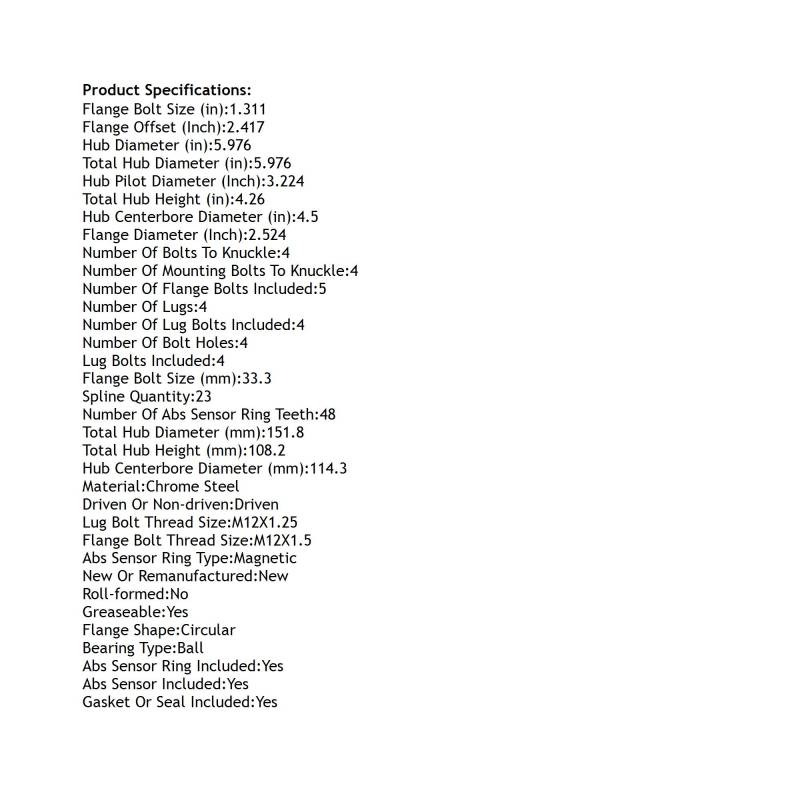

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.311
FLANGE BOLT SIZE (MM): 33.3
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.524
FLANGE OFFSET (INCH): 2.417
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.976
HUB PILOT DIAMETER (INCH): 3.224
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 23
TOTAL HUB DIAMETER (IN): 5.976
TOTAL HUB DIAMETER (MM): 151.8
TOTAL HUB HEIGHT (IN): 4.26
TOTAL HUB HEIGHT (MM): 108.2
REPLACES:
AUTOPART INTERNATIONAL: 1411-556358
BCA: WE60605
BECK/ARNLEY: 051-6448
CENTRIC PARTS: 40140001
FAG US: 102381
GSP: 363501
MEVOTECH: MB60310
MOOG HUB ASSEMBLIES: 512501
NAPA: PBR930909
APPLICATIONS:
HONDA CR-V (2012-2016)
ACURA RDX (2013-2015)
