THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

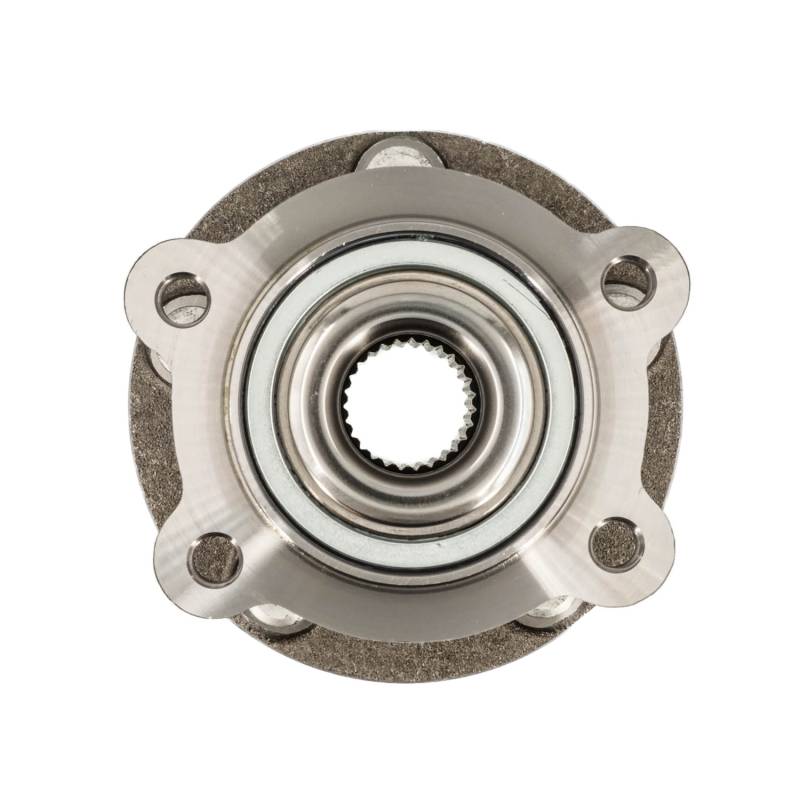

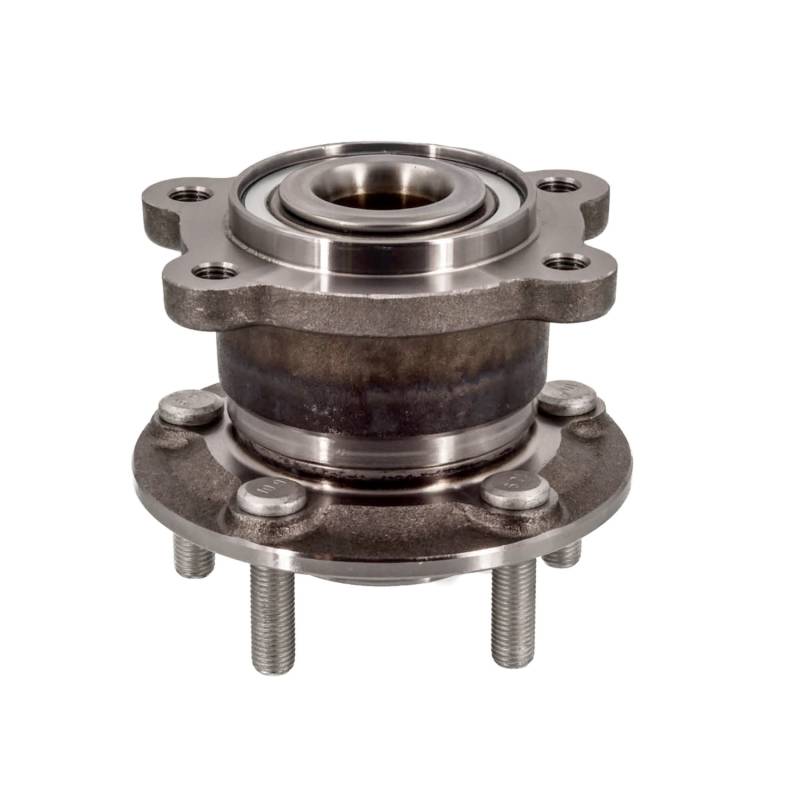

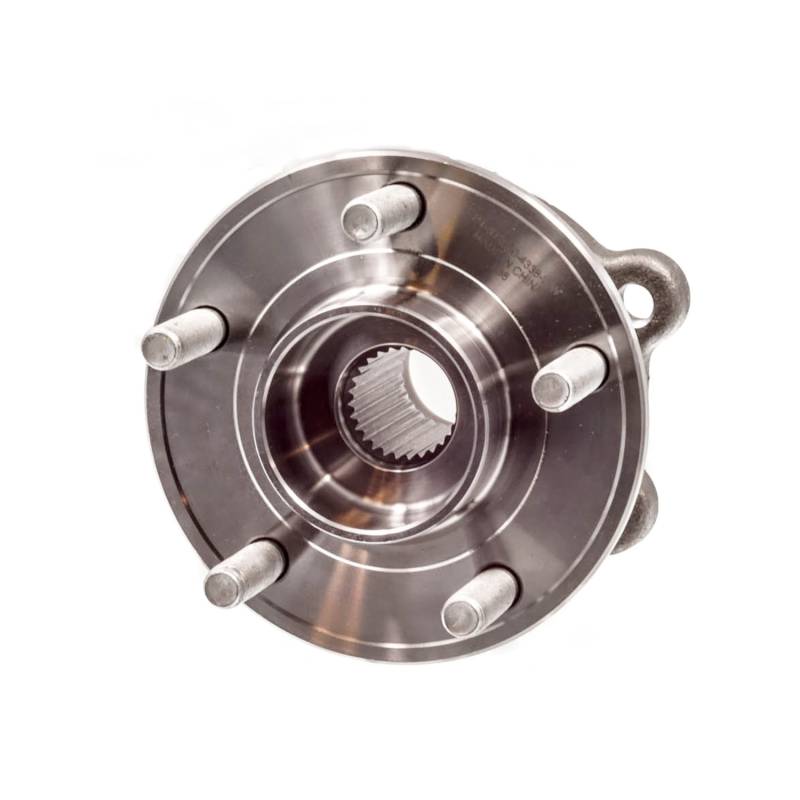

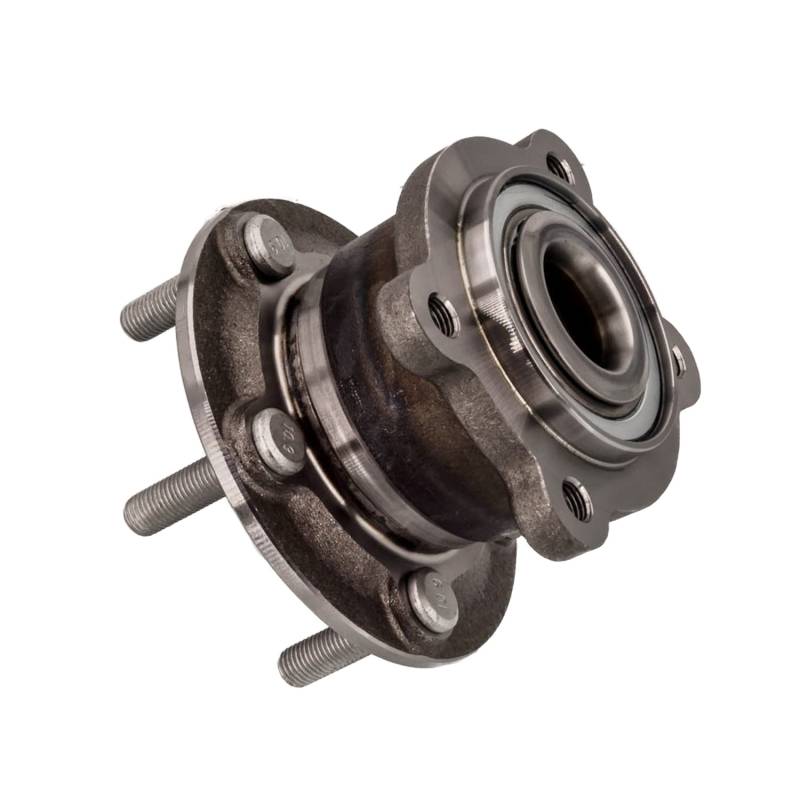

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.38
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 2.87
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.2
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 4.66
TOTAL HUB HEIGHT (MM): 118
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-556403
BCA: WE60592
CENTRIC PARTS: 40161005
FORD: CV6Z 1104 D CV6Z 1104 H
GSP: 113500
MEVOTECH: H512500
MOOG HUB ASSEMBLIES: 512500
MOTORCRAFT: HUB188 HUB222 CV6Z1104H
NAPA: PBR930952
APPLICATIONS:
FORD ESCAPE (2013-2019)
LINCOLN MKC (2015-2019)
