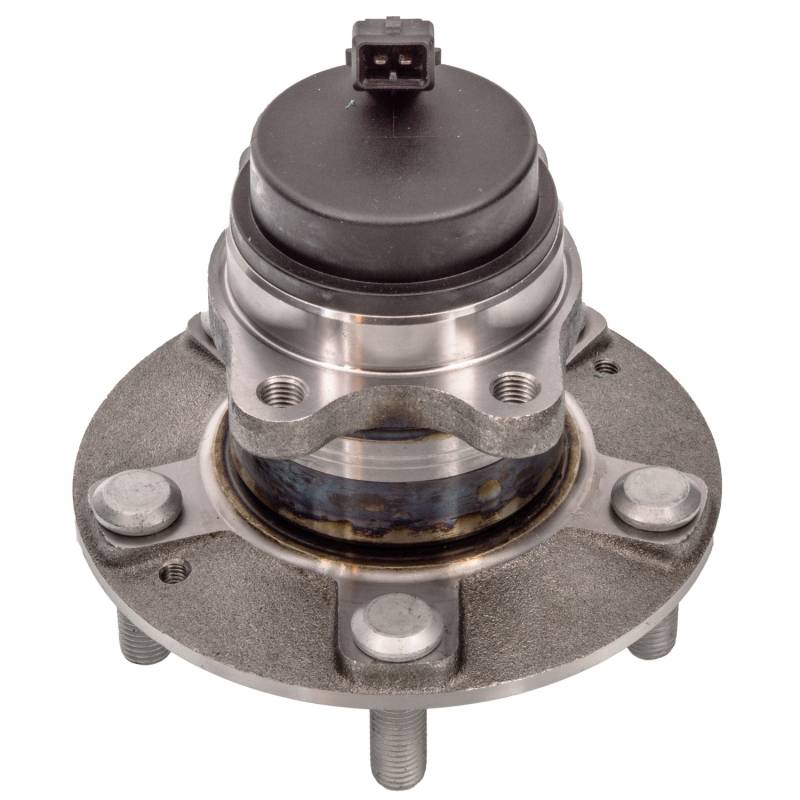

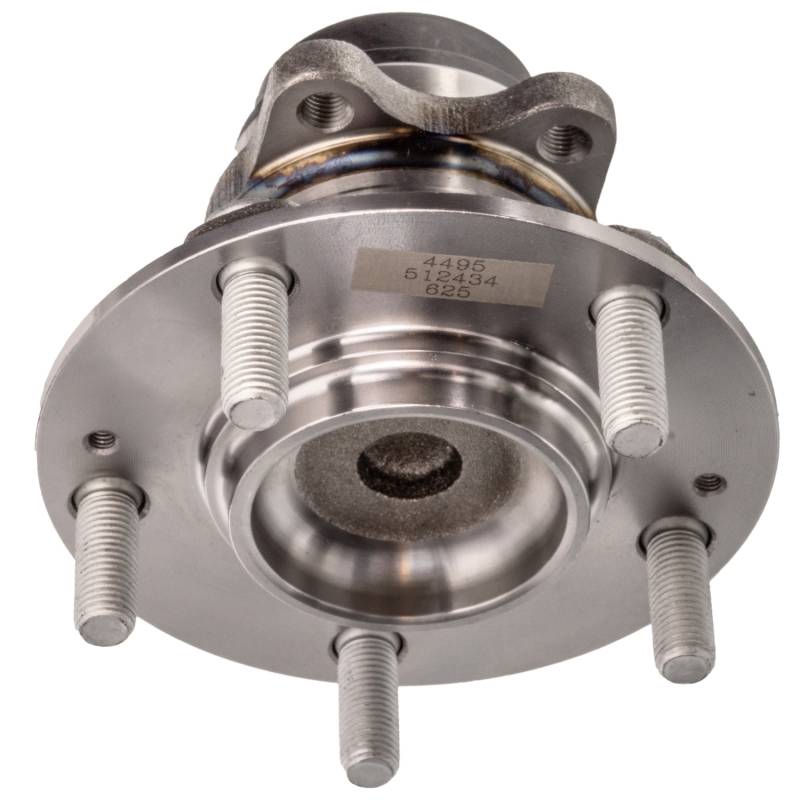

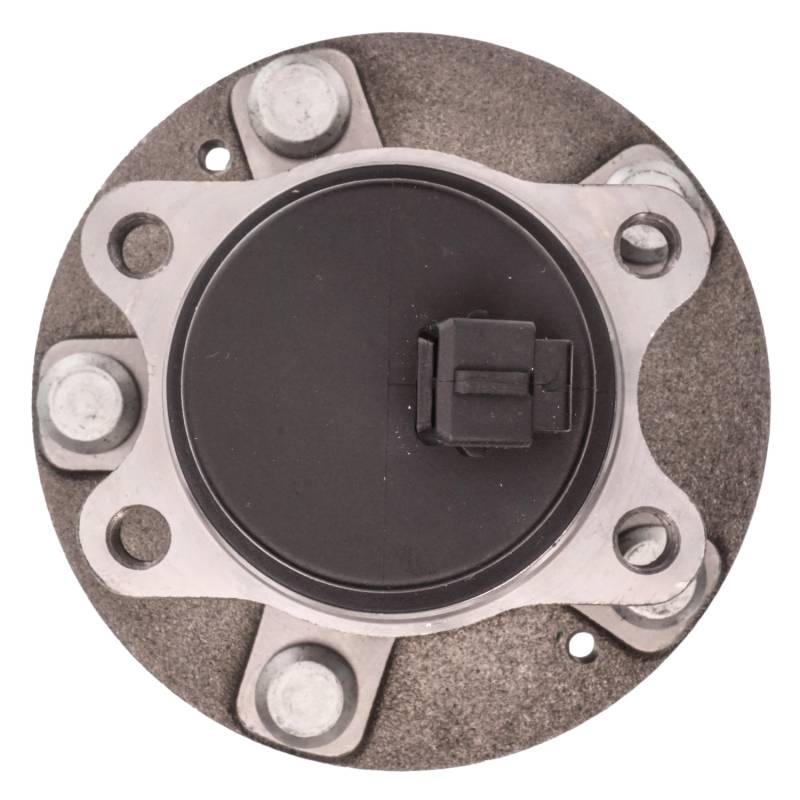

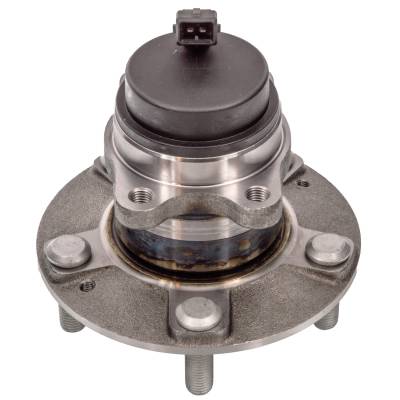

New Hub Assembly Compatible With Kia Soul 1.6L 2.0L 2010 2011 2012 2013 By Part Numbers Br930806

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.205
FLANGE BOLT SIZE (MM): 30.6
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.992
FLANGE OFFSET (INCH): 2.323
FLANGE SHAPE: RECTANGULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.472
HUB PILOT DIAMETER (INCH): 2.717
LUG BOLT THREAD SIZE: M10X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.472
TOTAL HUB DIAMETER (MM): 139
TOTAL HUB HEIGHT (IN): 5.614
TOTAL HUB HEIGHT (MM): 142.6
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-424536
BCA: WE60933
BECK/ARNLEY: 051-6380
CENTRIC PARTS: 40751004
FAG US: 101902
GSP: 753434
MEVOTECH: H512434
MOOG HUB ASSEMBLIES: 512434
NAPA: PBR930806

APPLICATIONS:
KIA SOUL (2010-2013)
