THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

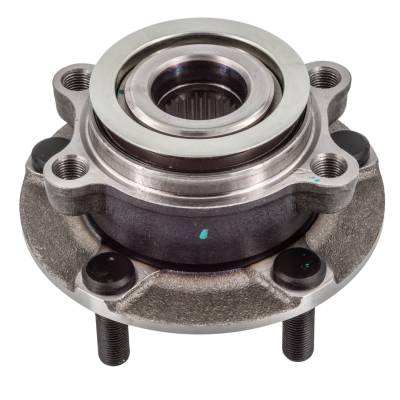

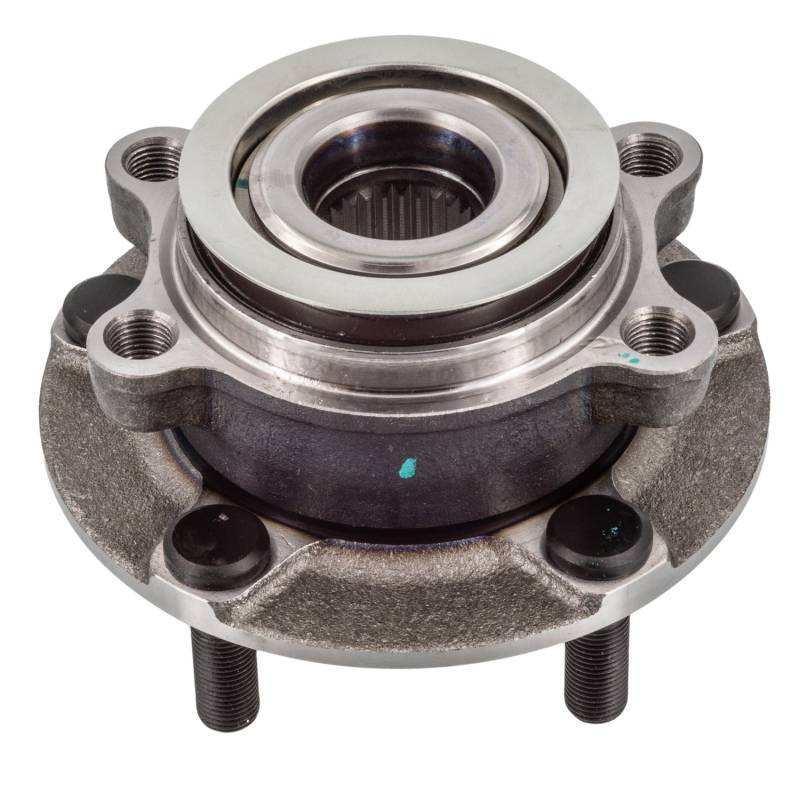

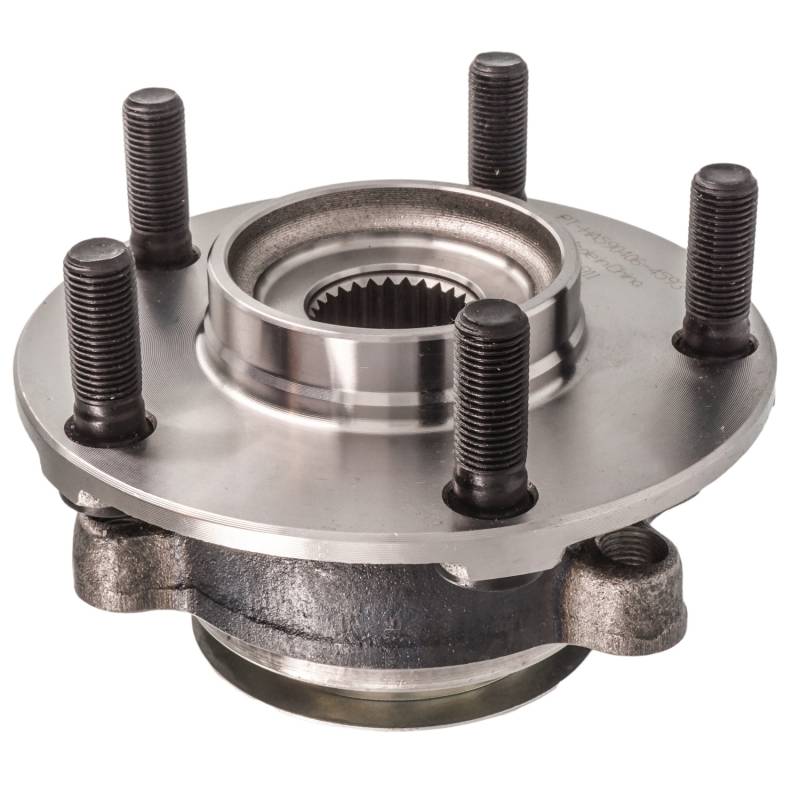

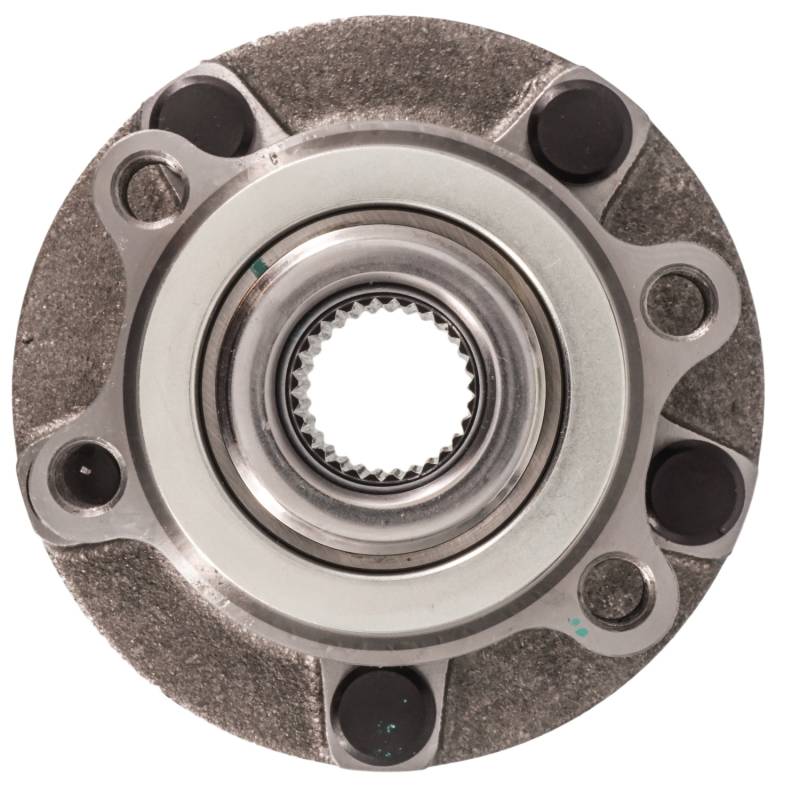

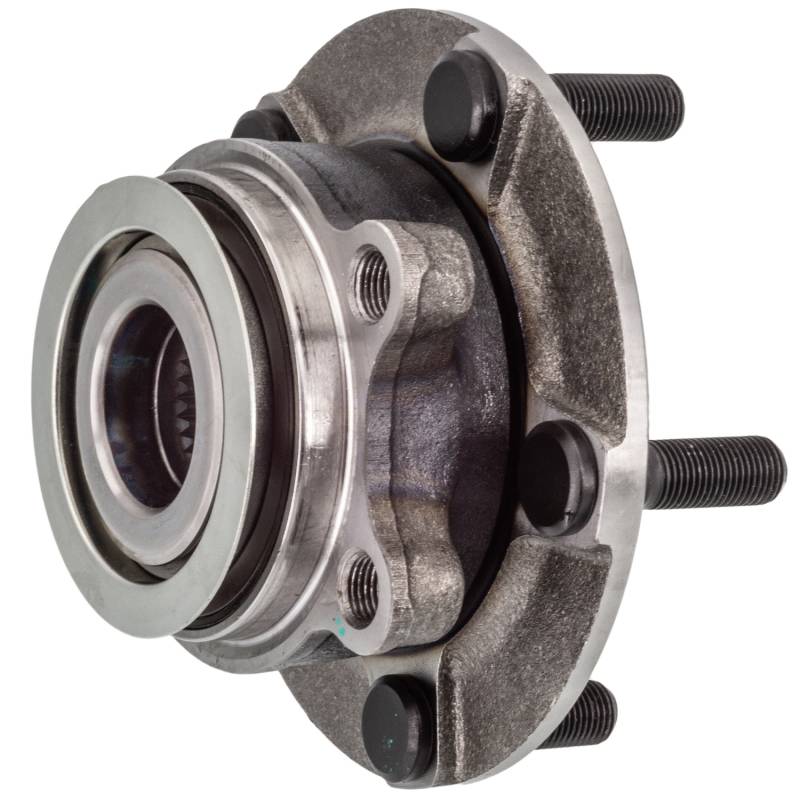

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE
SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.299
FLANGE BOLT SIZE (MM): 33
FLANGE BOLT THREAD SIZE: M12X1.25
FLANGE DIAMETER (INCH): 68
FLANGE OFFSET (INCH): 40.7
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.354
HUB PILOT DIAMETER (INCH): 80
LUG BOLT THREAD SIZE: M12X1.25
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: YES
SPLINE QUANTITY: 29
TOTAL HUB DIAMETER (IN): 5.354
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 3.579
TOTAL HUB HEIGHT (MM): 90.9
WIRING HARNESS INCLUDED: NO
REPLACES:
ACDELCO: 19318306
AUTOPART INTERNATIONAL: 1411-480993
BCA: WE60596
CENTRIC PARTS: 40142010
FAG US: 102748
GSP: 530009
MEVOTECH: MB30319
MOOG HUB ASSEMBLIES: 513336
NAPA: PBR930888
ZZZN: 40202-3RA0A
APPLICATIONS:
NISSAN JUKE (2011-2017)
NISSAN LEAF (2011-2012)
