THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

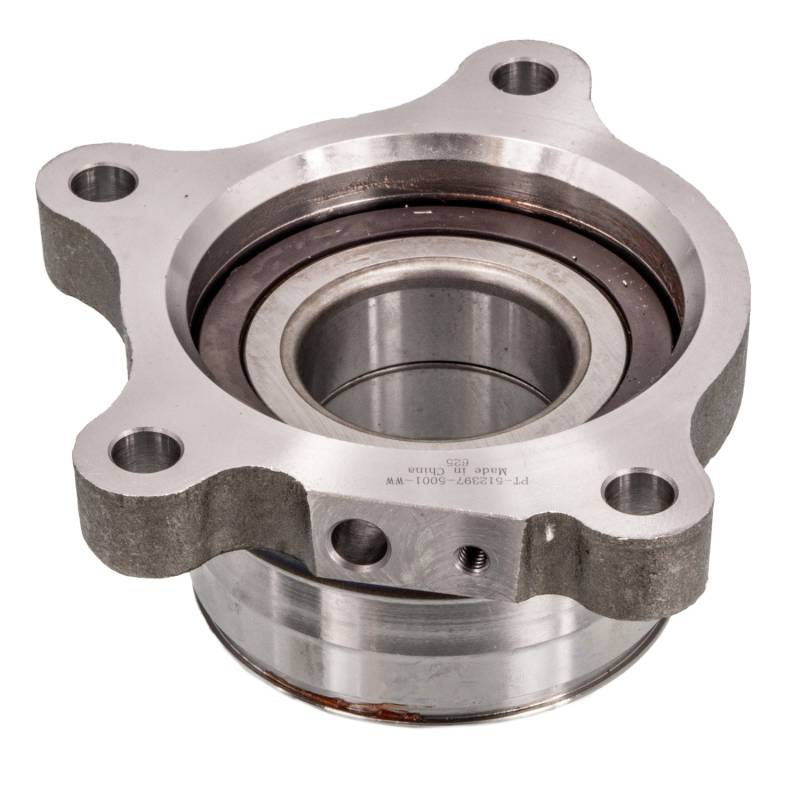

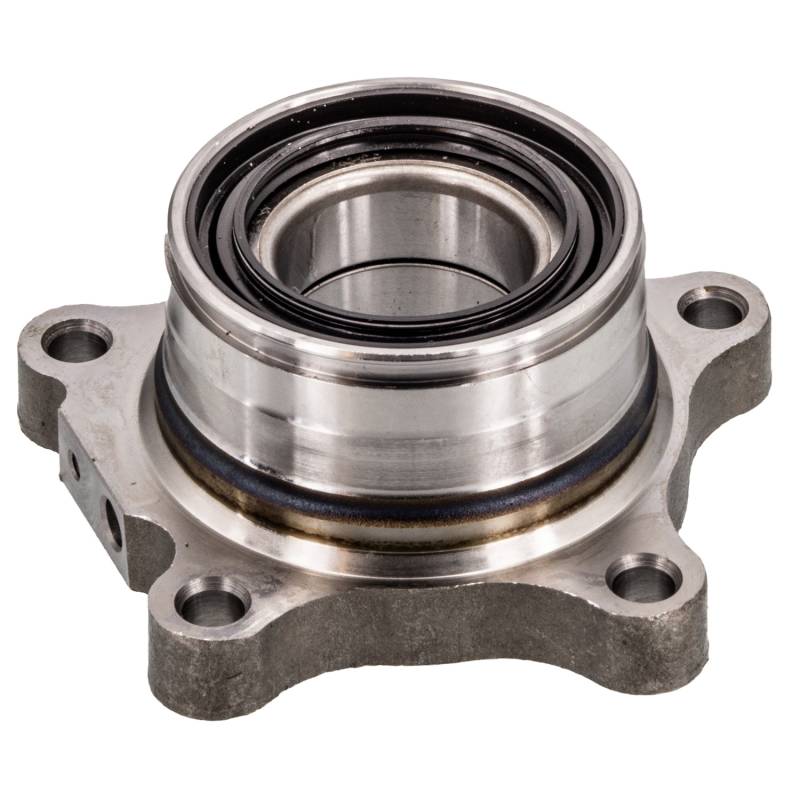

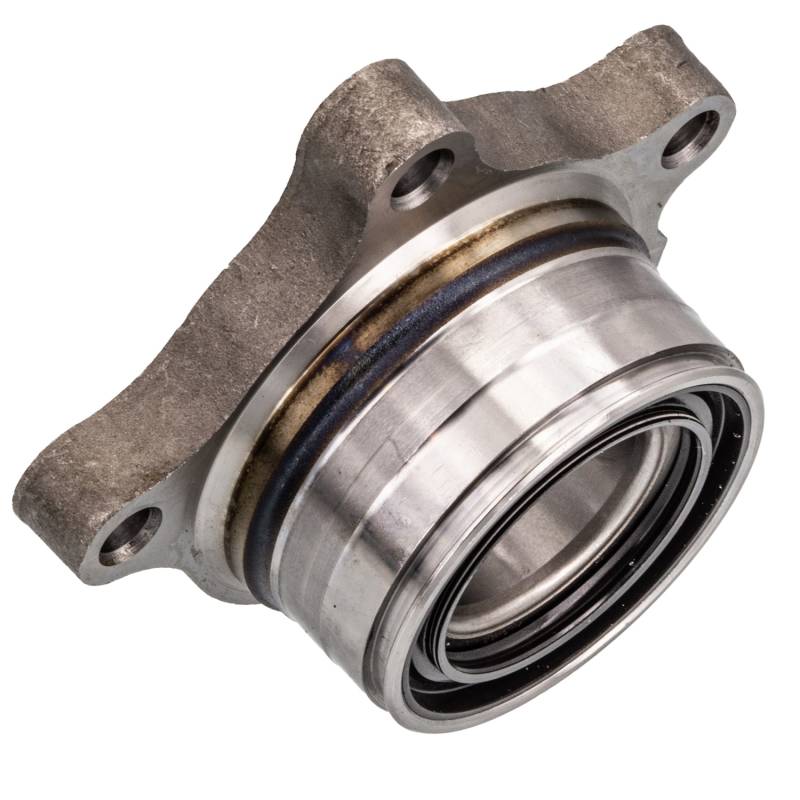

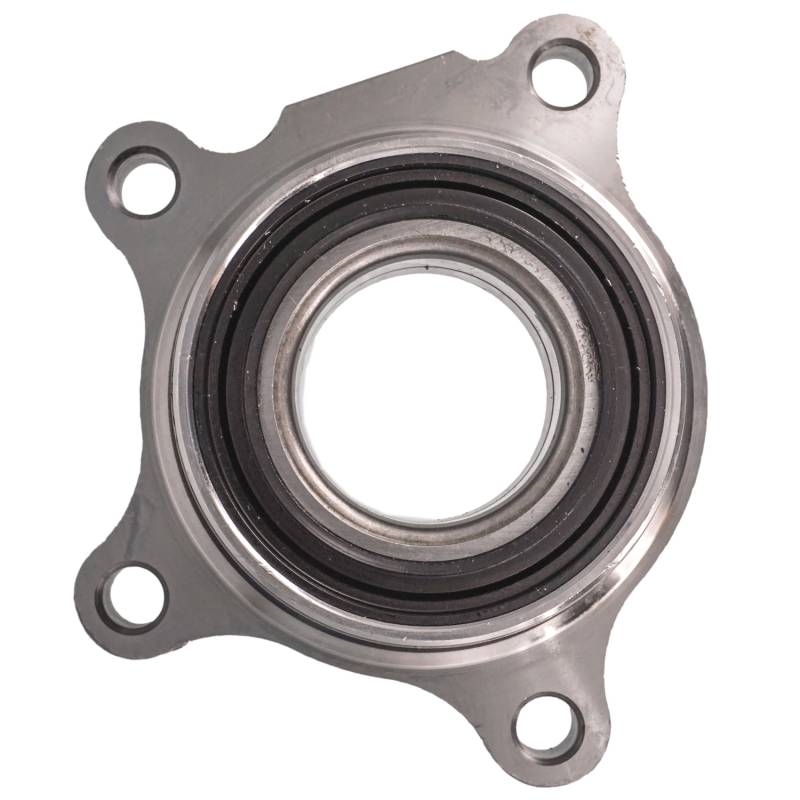

PRODUCT TYPE: HUB ASSEMBLY

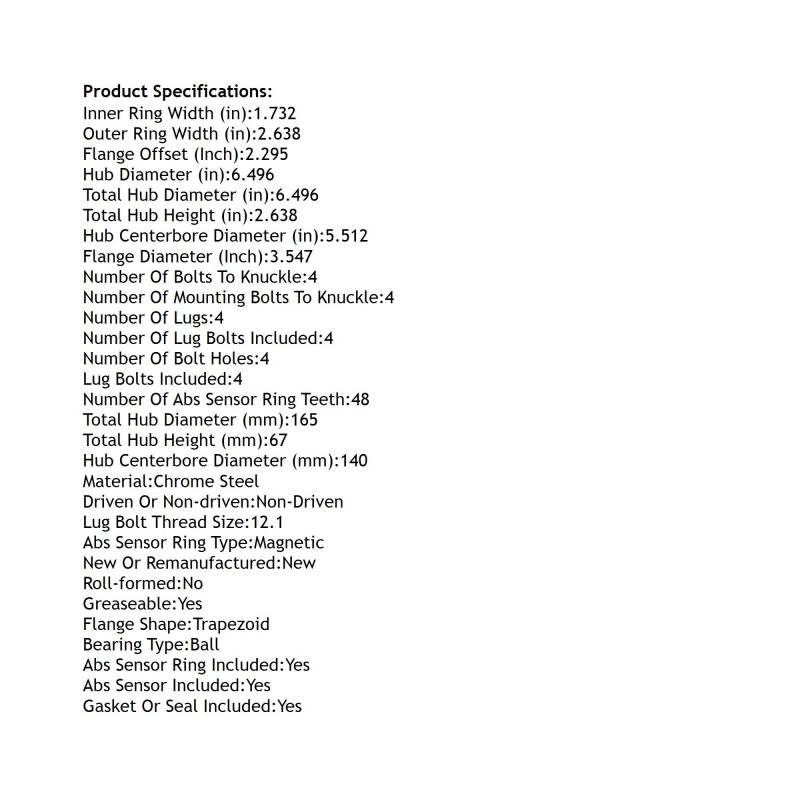

SPECIFICATIONS:
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: MAGNETIC
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE DIAMETER (INCH): 3.547
FLANGE OFFSET (INCH): 2.295
FLANGE SHAPE: TRAPEZOID
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.512
HUB CENTERBORE DIAMETER (MM): 140
HUB DIAMETER (IN): 6.496
INNER RING WIDTH (IN): 1.732
LUG BOLT THREAD SIZE: 12.1
LUG BOLTS INCLUDED: 4
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLT HOLES: 4
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 4
NUMBER OF LUGS: 4
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
OUTER RING WIDTH (IN): 2.638
ROLL-FORMED: NO
TOTAL HUB DIAMETER (IN): 6.496
TOTAL HUB DIAMETER (MM): 165
TOTAL HUB HEIGHT (IN): 2.638
TOTAL HUB HEIGHT (MM): 67
REPLACES:
AUTOPART INTERNATIONAL: 1411-424991
BCA: WE61199
CENTRIC PARTS: 40544015
MEVOTECH: H512397
MOOG HUB ASSEMBLIES: 512397
NAPA: PBR930617
APPLICATIONS:
LEXUS LX570 (2008-2021)
TOYOTA LAND CRUISER (2008-2021)
