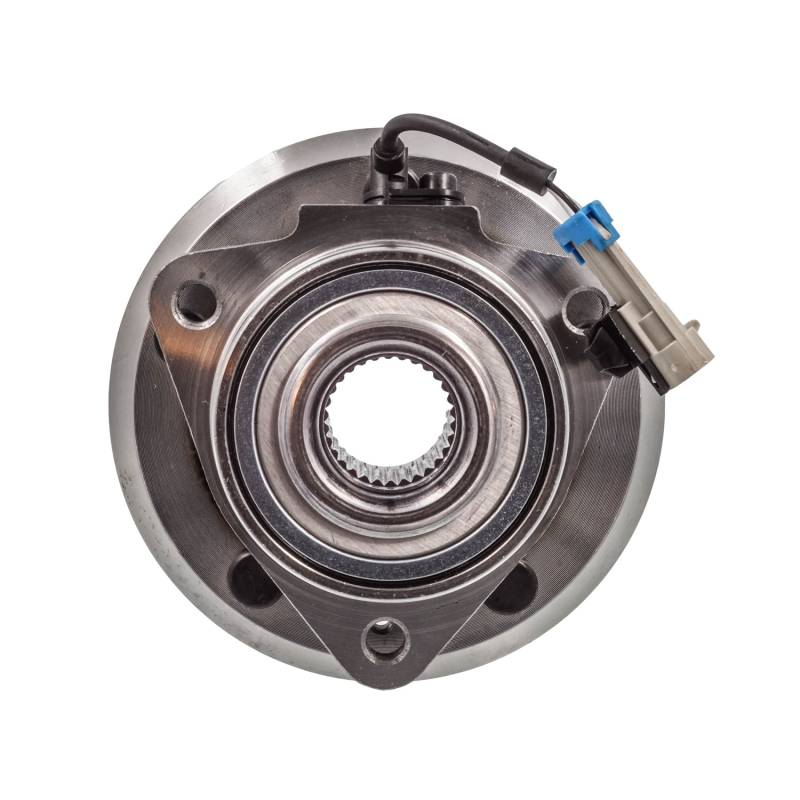

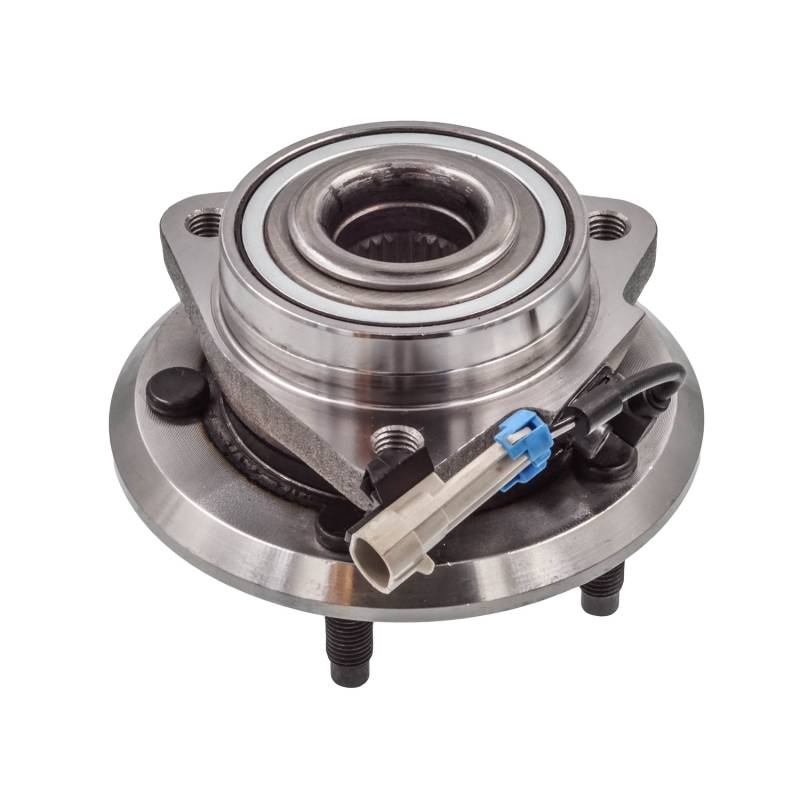

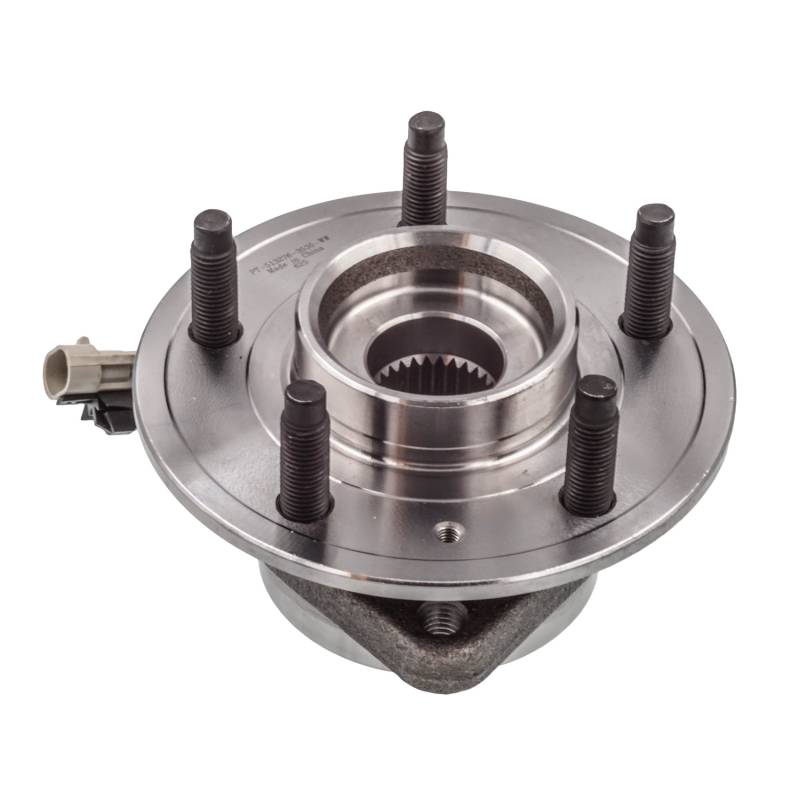

New Hub Assembly Compatible With Chevrolet Pontiac Suzuki Saturn Equinox Torrent Xl-7 Vue Captiva

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.44
FLANGE BOLT SIZE (MM): 36
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.65
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.53
HUB CENTERBORE DIAMETER (MM): 115
HUB DIAMETER (IN): 5.94
HUB PILOT DIAMETER (INCH): 3.59
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 47
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 30
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.94
TOTAL HUB DIAMETER (MM): 151
TOTAL HUB HEIGHT (IN): 4.09
TOTAL HUB HEIGHT (MM): 104
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 5.5

REPLACES:
ACDELCO: FW356
AUTOPART INTERNATIONAL: 1411-322481
BCA: WE60994
BECK/ARNLEY: 051-6384
CENTRIC PARTS: 40262025
FAG US: 102225
GSP: 104276
MEVOTECH: H513276
MOOG HUB ASSEMBLIES: 513276
NAPA: PBR930663

APPLICATIONS:
CHEVROLET EQUINOX (2007-2009)
PONTIAC TORRENT (2007-2009)
SUZUKI XL-7 (2007-2009)
SATURN VUE (2008-2010)
CHEVROLET CAPTIVA SPORT (2012-2015)
