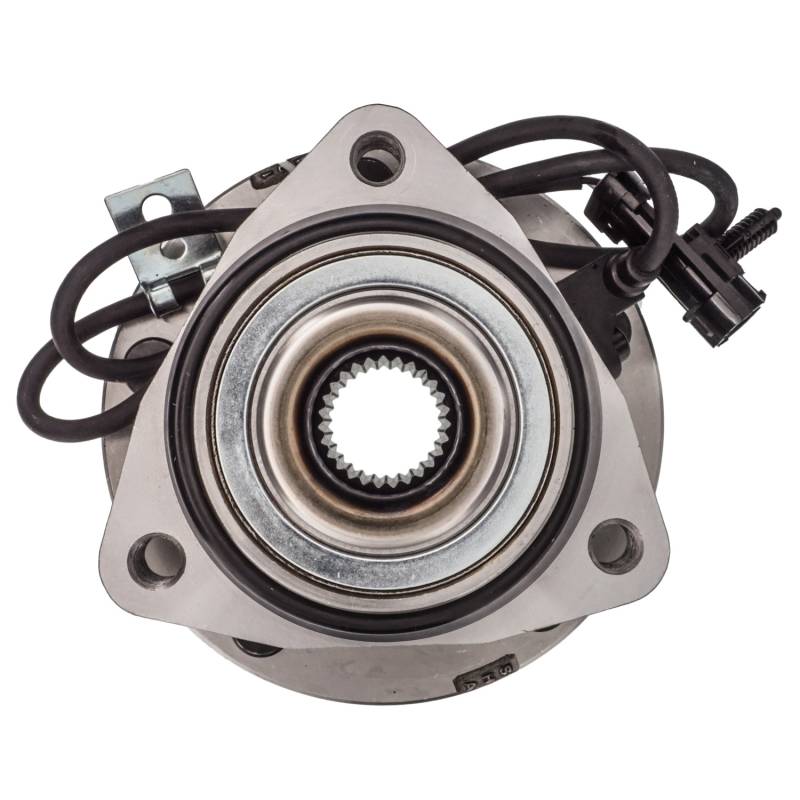

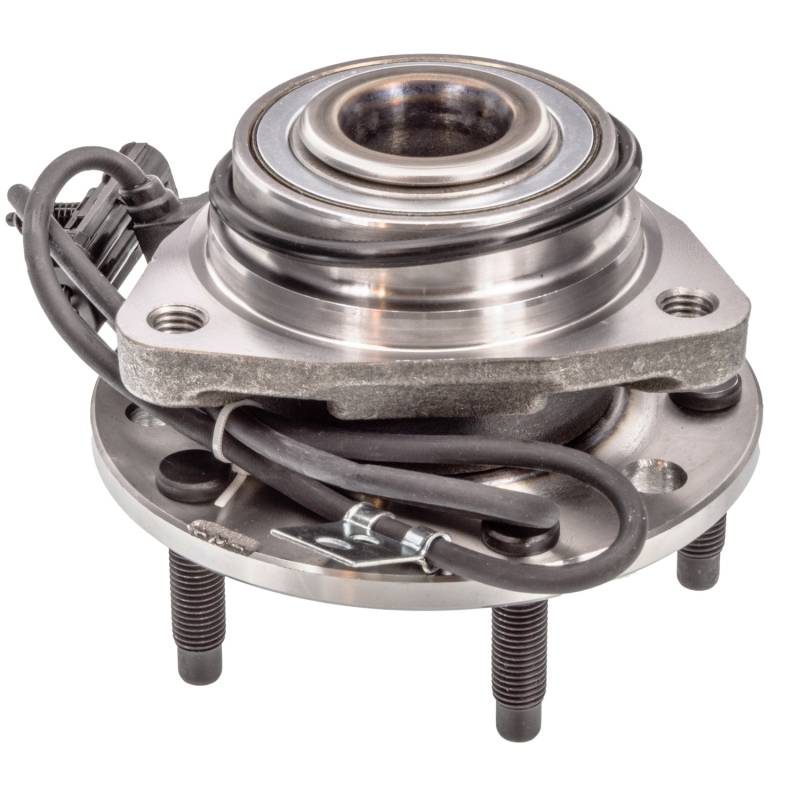

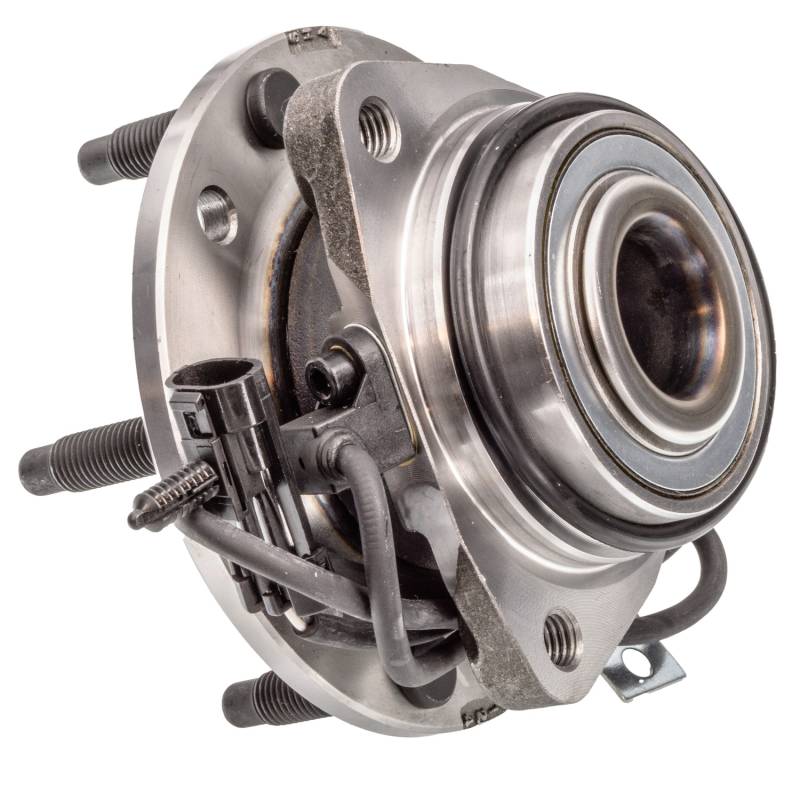

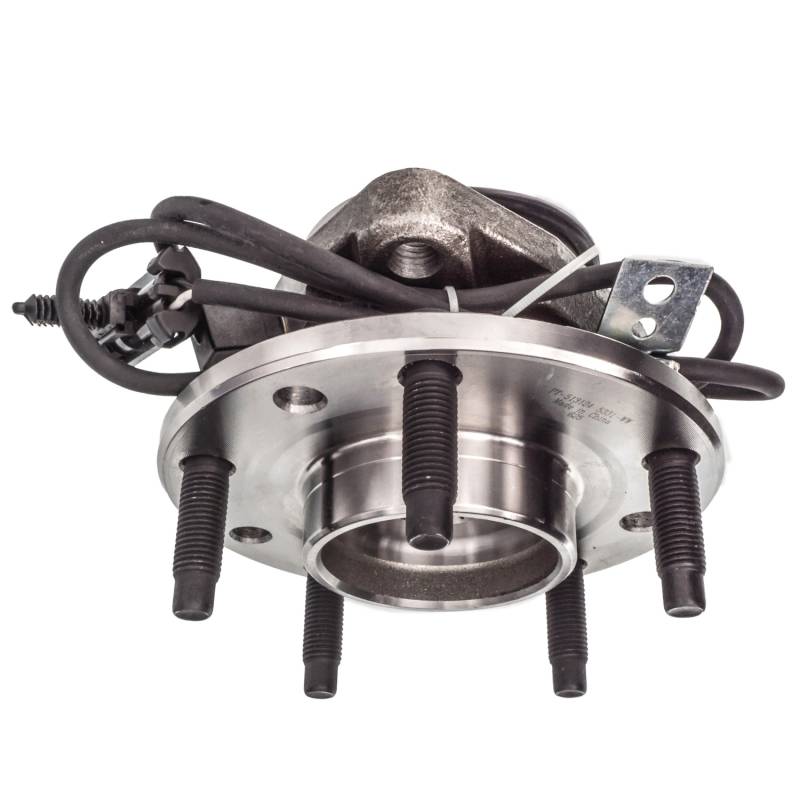

New Hub Assembly Compatible With Chevrolet Gmc Oldsmobile Isuzu Blazer S10 Sonoma Bravada Jimmy

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

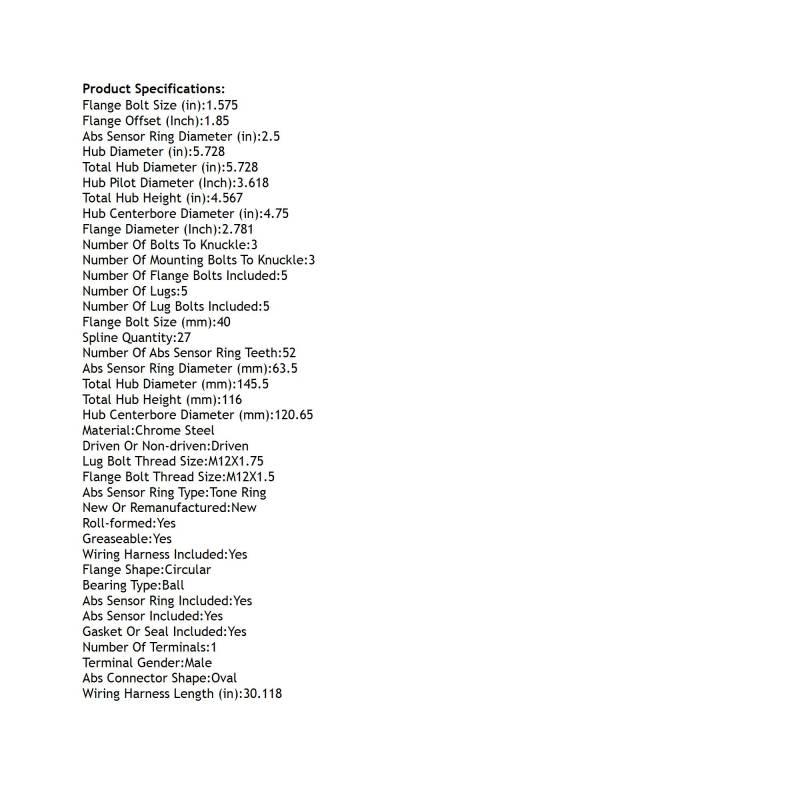

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.5
ABS SENSOR RING DIAMETER (MM): 63.5
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.575
FLANGE BOLT SIZE (MM): 40
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.781
FLANGE OFFSET (INCH): 1.85
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.75
HUB CENTERBORE DIAMETER (MM): 120.65
HUB DIAMETER (IN): 5.728
HUB PILOT DIAMETER (INCH): 3.618
LUG BOLT THREAD SIZE: M12X1.75
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 52
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
SPLINE QUANTITY: 27
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.728
TOTAL HUB DIAMETER (MM): 145.5

REPLACES:
OTHER PART NUMBER: PT513124
SKF: BR930097
ACDELCO: FW127 FW317
AUTOPART INTERNATIONAL: 1411-45585
BCA: WE60718
BECK/ARNLEY: 051-6170
CENTRIC PARTS: 40266006
FAG US: 102029
GENERAL MOTORS: 7470607 12413045
GSP: 104124HD
MEVOTECH: H513124
MOOG HUB ASSEMBLIES: 513124
NAPA: PBR930097

APPLICATIONS:
CHEVROLET BLAZER (1997-2005)
CHEVROLET S10 (1997-2004)
GMC SONOMA (1997-2004)
OLDSMOBILE BRAVADA (1997-2001)
GMC JIMMY (1998-2005)
ISUZU HOMBRE (1998-2000)
