THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

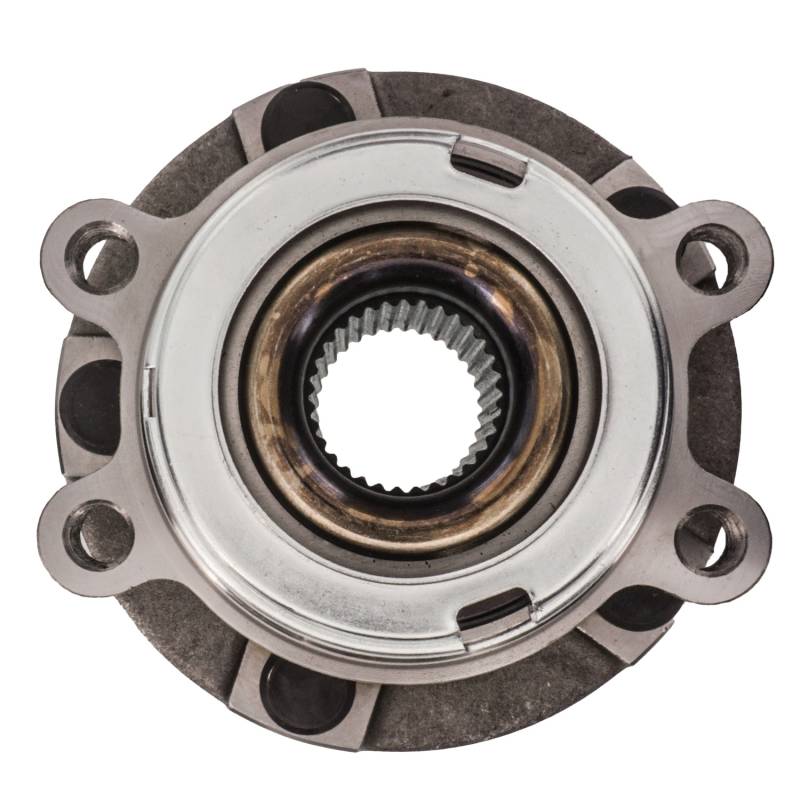

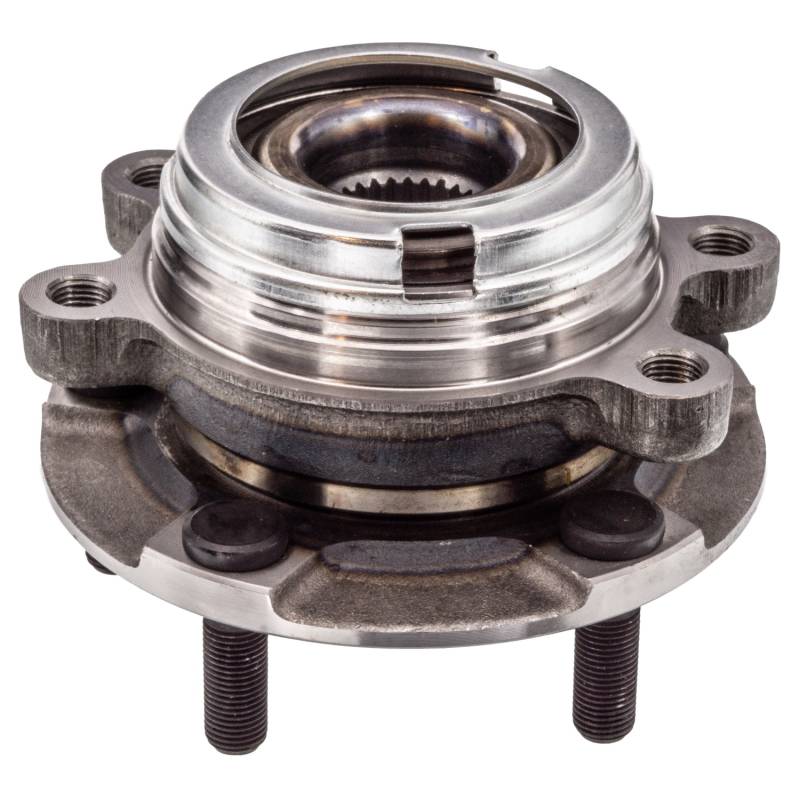

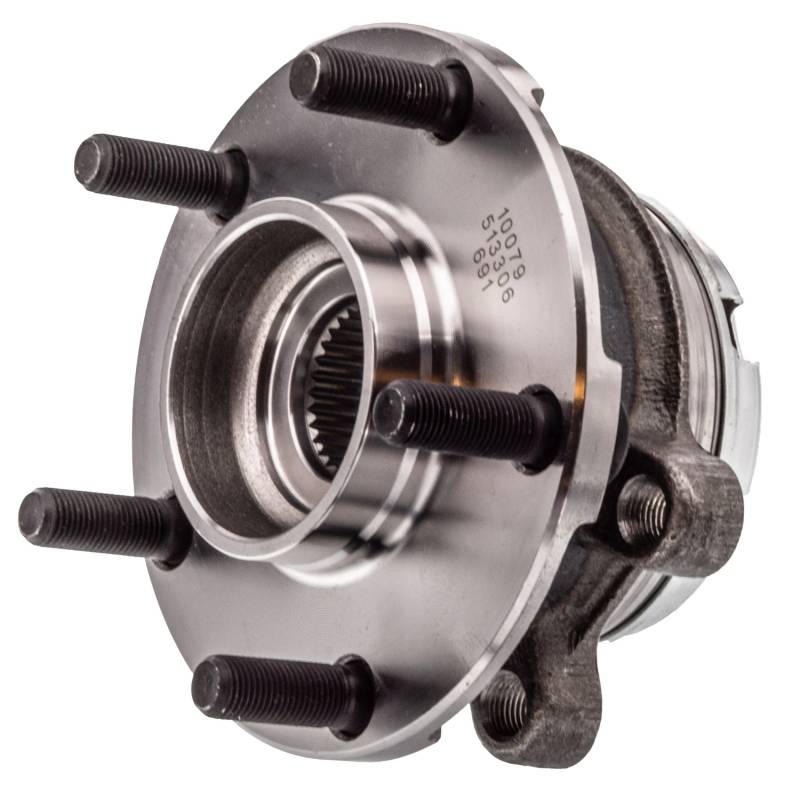

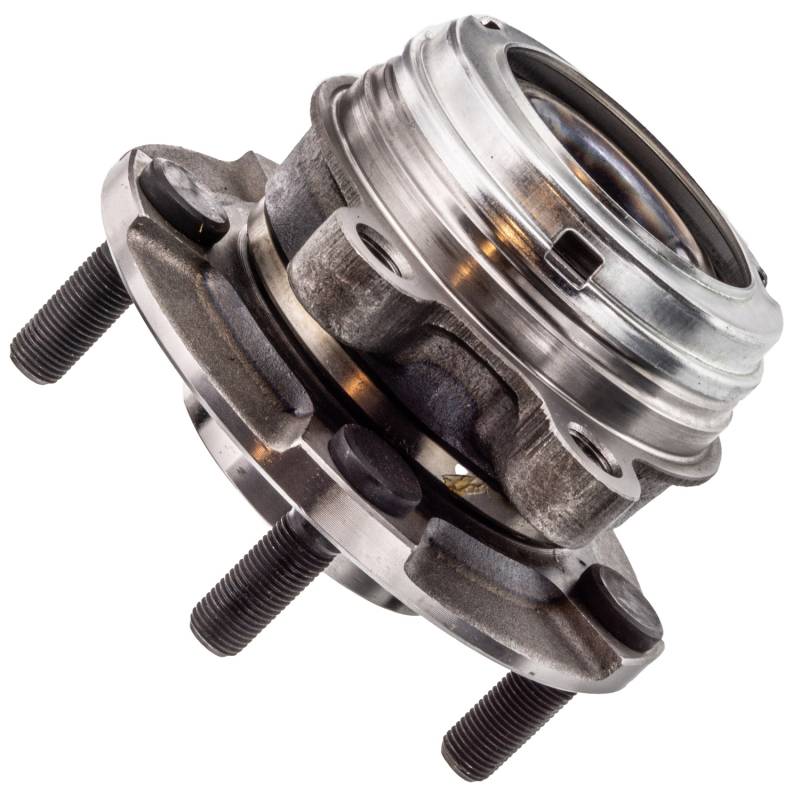

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.259
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 2.48
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.251
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.354
HUB PILOT DIAMETER (INCH): 2.488
LUG BOLT THREAD SIZE: 10
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 26
TOTAL HUB DIAMETER (IN): 5.354
TOTAL HUB DIAMETER (MM): 136
TOTAL HUB HEIGHT (IN): 4.012
TOTAL HUB HEIGHT (MM): 101
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-256286
BCA: WE61483
BECK/ARNLEY: 051-6293
CENTRIC PARTS: 40020000E
FAG US: 101865
GSP: 113306
JAGUAR: C2S46772
MEVOTECH: H512306
MOOG HUB ASSEMBLIES: 512306
NAPA: PBR930522
APPLICATIONS:
JAGUAR X-TYPE (2002-2008)
