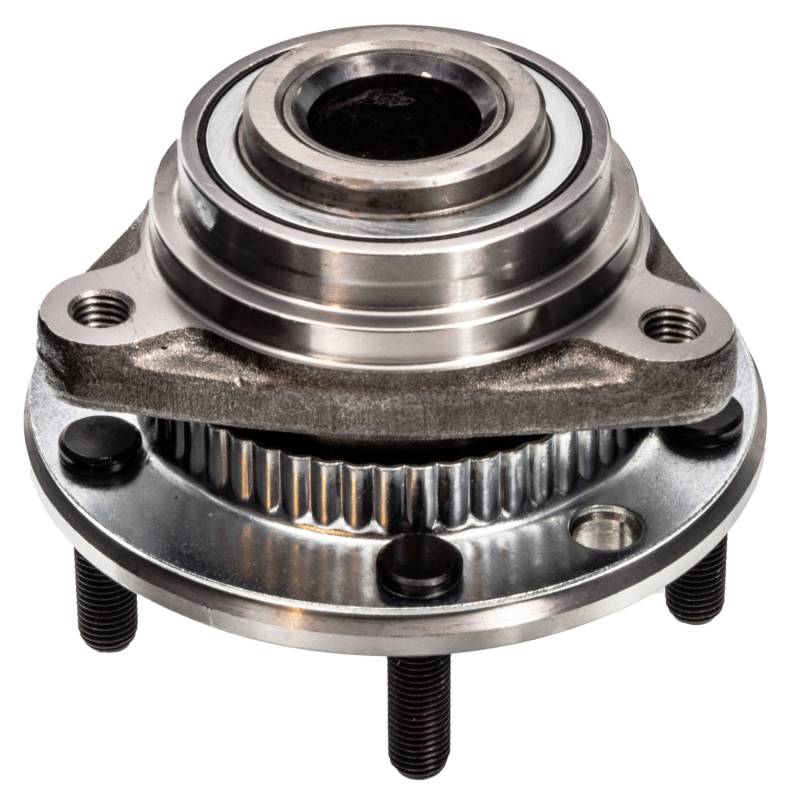

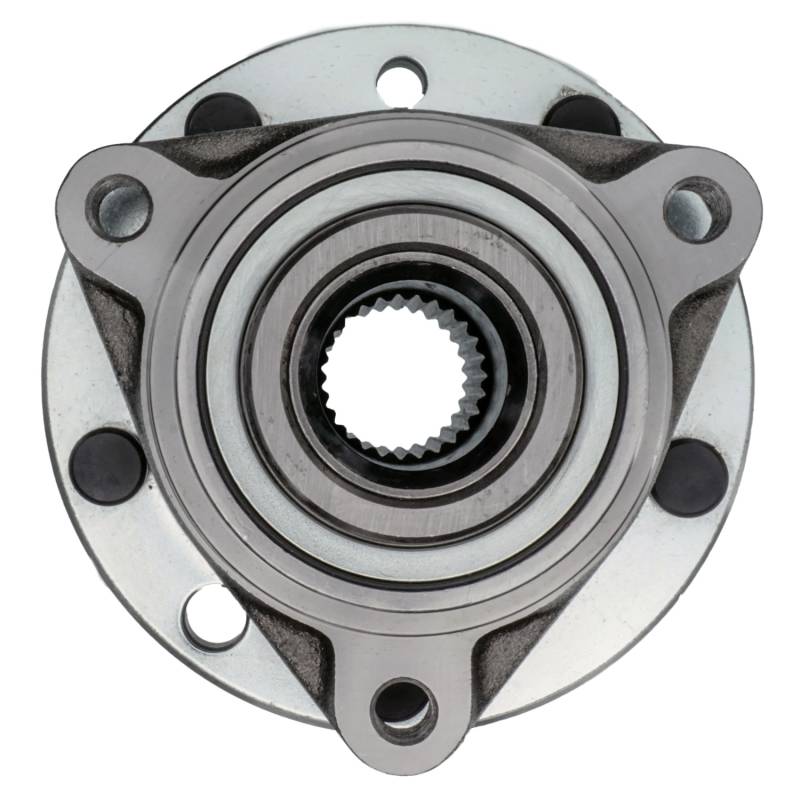

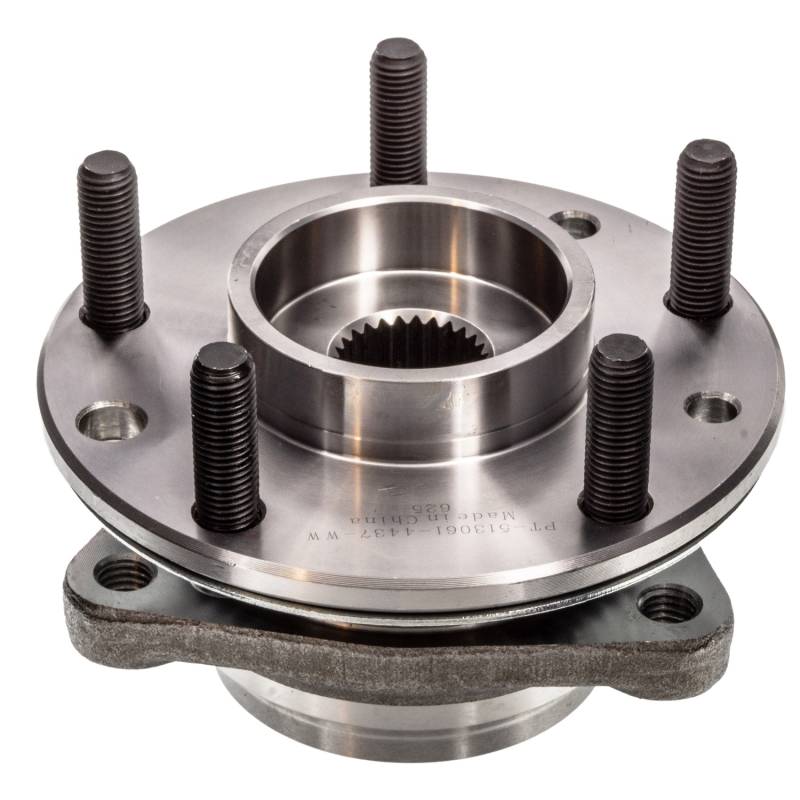

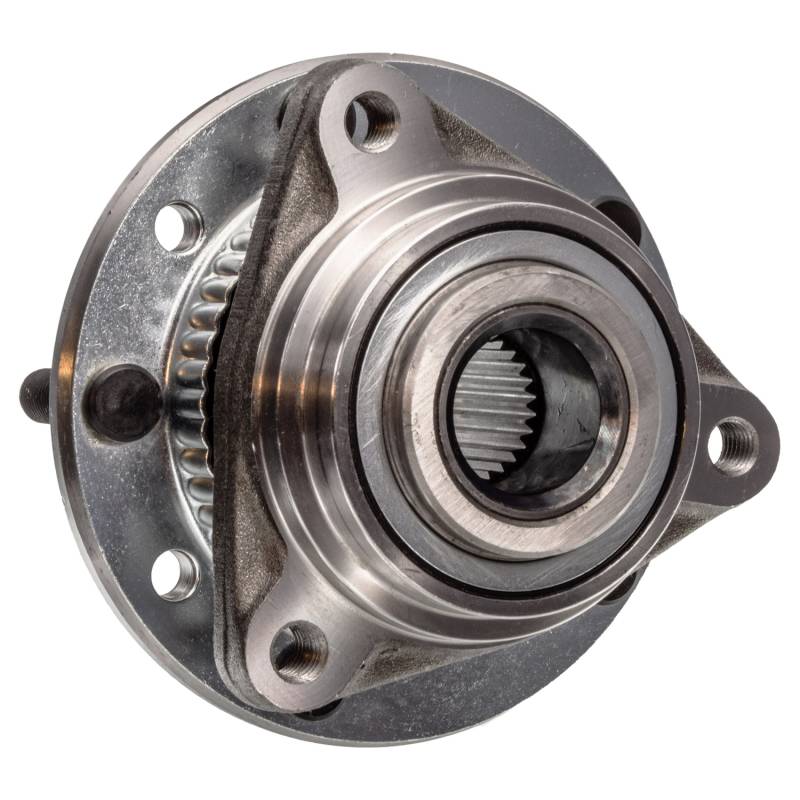

New Hub Assembly Compatible With Chevrolet Gmc Oldsmobile S10 Blazer S10 S15 Jimmy S15 Sonoma

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY
ASSEMBLY/SINGLE: SINGLE

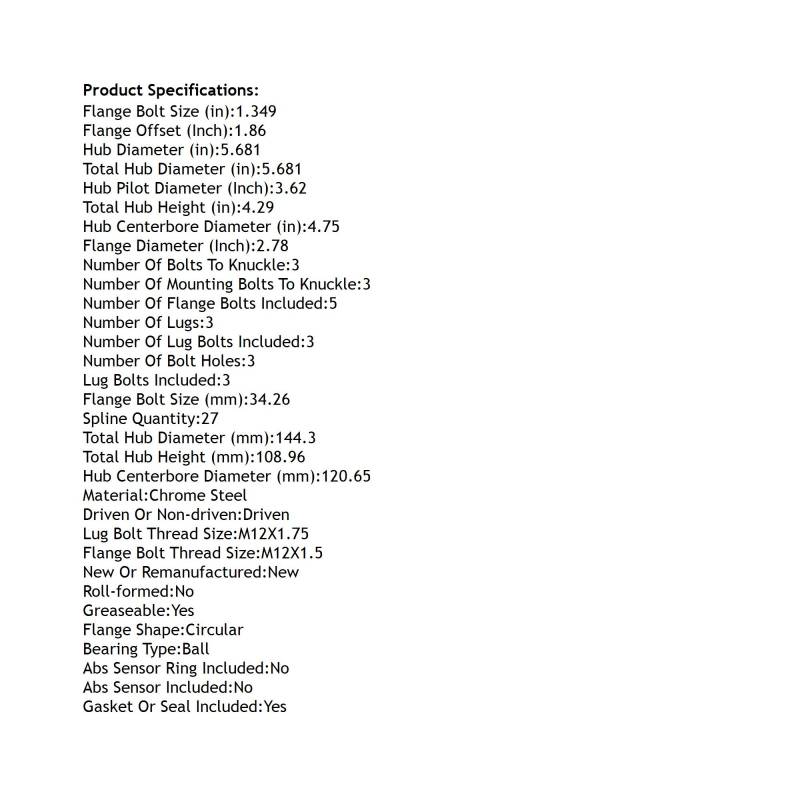

SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.349
FLANGE BOLT SIZE (MM): 34.26
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.78
FLANGE OFFSET (INCH): 1.86
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.75
HUB CENTERBORE DIAMETER (MM): 120.65
HUB DIAMETER (IN): 5.681
HUB PILOT DIAMETER (INCH): 3.62
LUG BOLT THREAD SIZE: M12X1.75
LUG BOLTS INCLUDED: 3
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 3
NUMBER OF BOLTS TO KNUCKLE: 3
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 3
NUMBER OF LUGS: 3
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 3
ROLL-FORMED: NO
SPLINE QUANTITY: 27
TOTAL HUB DIAMETER (IN): 5.681
TOTAL HUB DIAMETER (MM): 144.3
TOTAL HUB HEIGHT (IN): 4.29
TOTAL HUB HEIGHT (MM): 108.96

REPLACES:
OTHER PART NUMBER: PT513061
SKF: BR930064
TIMKEN: 513061
AUTOPART INTERNATIONAL: 1411-45537
BCA: WE60833
CENTRIC PARTS: 40166000E
FAG US: 102054
GSP: 104061
MEVOTECH: H513061
MOOG HUB ASSEMBLIES: 513061
NAPA: PBR930064

APPLICATIONS:
CHEVROLET S10 BLAZER (1990-1994)
CHEVROLET S10 (1990-1997)
GMC S15 JIMMY (1990-1991)
GMC S15 (1990-1990)
GMC SONOMA (1991-1997)
GMC SYCLONE (1991-1991)
OLDSMOBILE BRAVADA (1991-1996)
GMC JIMMY (1992-1997)
GMC TYPHOON (1992-1993)
CHEVROLET BLAZER (1995-1997)
