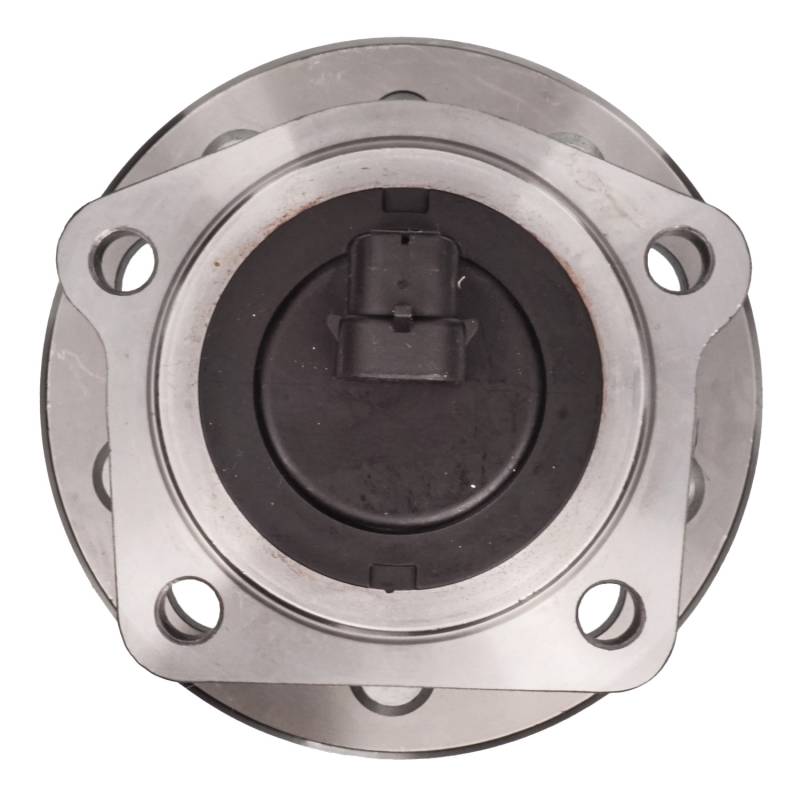

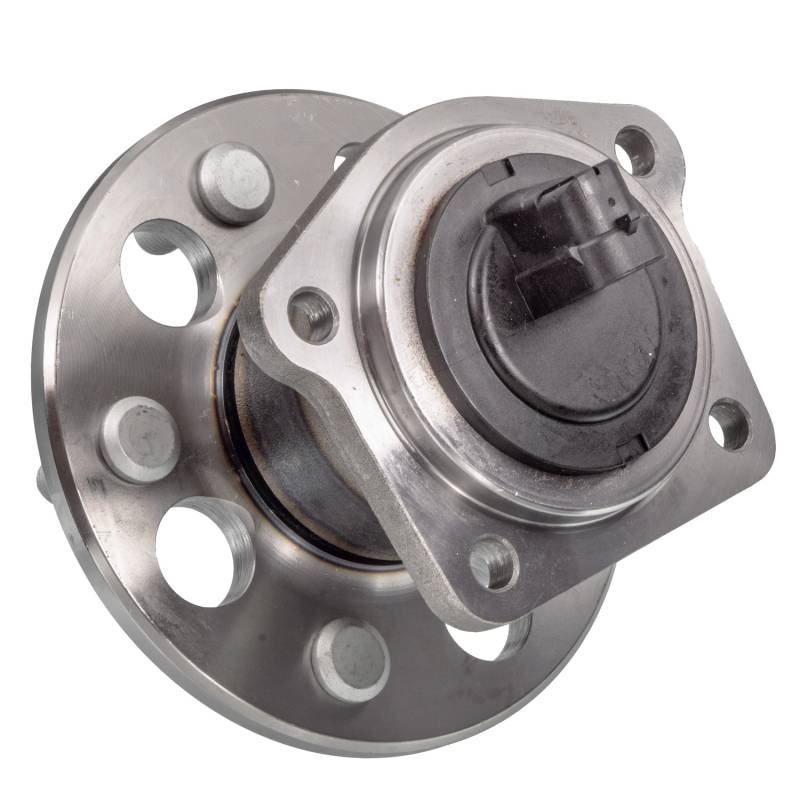

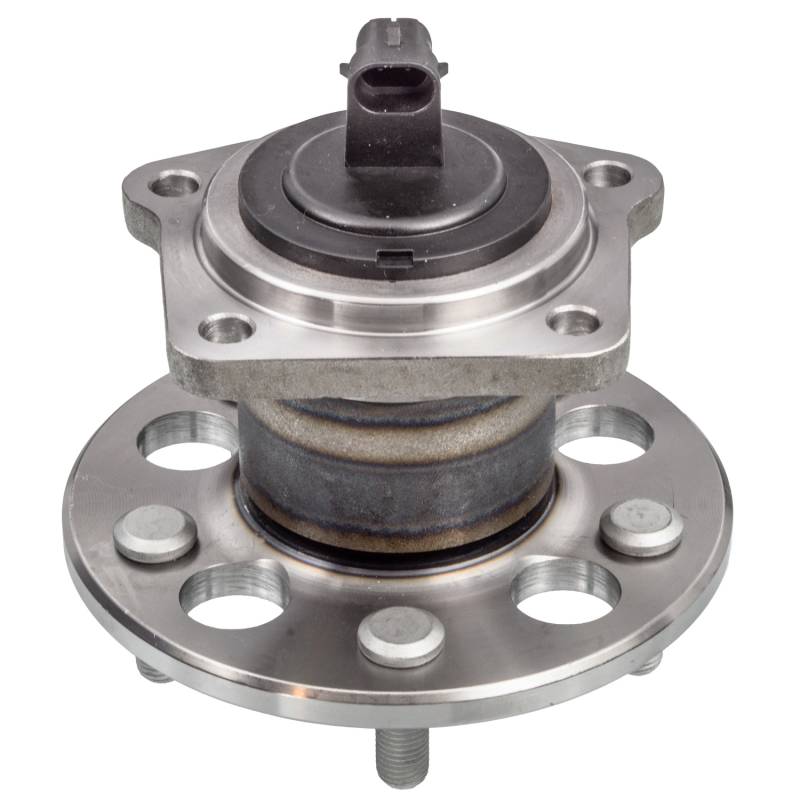

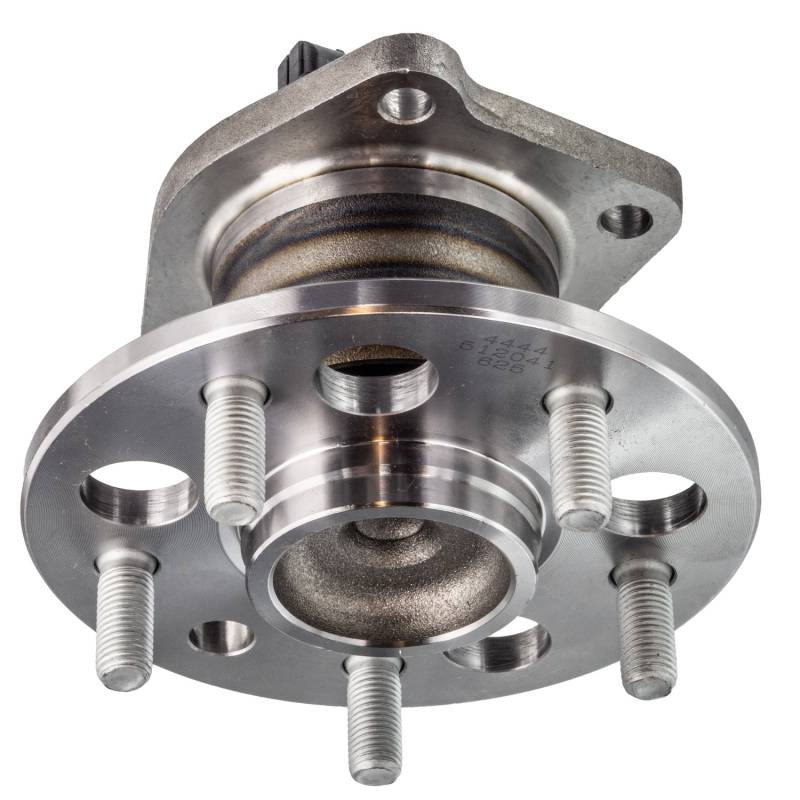

New Hub Assembly Compatible With Toyota Sienna 3.0L 1998 1999 2000 2001 2002 2003 By Part Numbers

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

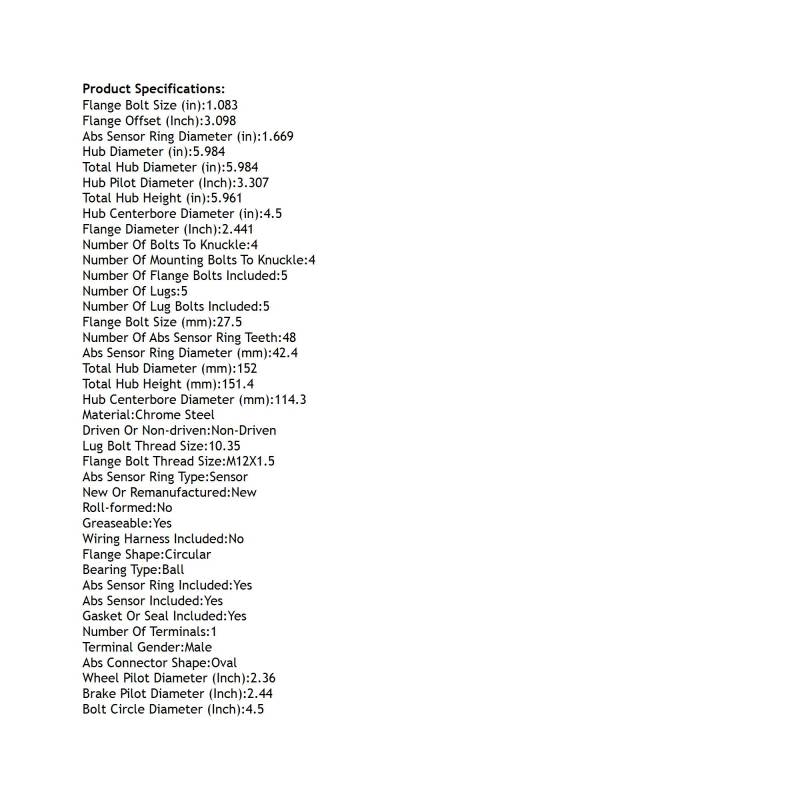

SPECIFICATIONS:
ABS CONNECTOR SHAPE: OVAL
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 1.669
ABS SENSOR RING DIAMETER (MM): 42.4
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
BOLT CIRCLE DIAMETER (INCH): 4.5
BRAKE PILOT DIAMETER (INCH): 2.44
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.083
FLANGE BOLT SIZE (MM): 27.5
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.441
FLANGE OFFSET (INCH): 3.098
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.5
HUB CENTERBORE DIAMETER (MM): 114.3
HUB DIAMETER (IN): 5.984
HUB PILOT DIAMETER (INCH): 3.307
LUG BOLT THREAD SIZE: 10.35
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 48
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: NO
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.984
TOTAL HUB DIAMETER (MM): 152
TOTAL HUB HEIGHT (IN): 5.961
TOTAL HUB HEIGHT (MM): 151.4
WHEEL PILOT DIAMETER (INCH): 2.36
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-45638
BCA: WE61918
BECK/ARNLEY: 051-6208
CENTRIC PARTS: 40744009
GSP: 693041
MEVOTECH: H512041
MOOG HUB ASSEMBLIES: 512041
NAPA: PBR930339 PBR930495

APPLICATIONS:
TOYOTA SIENNA (1998-2003)
