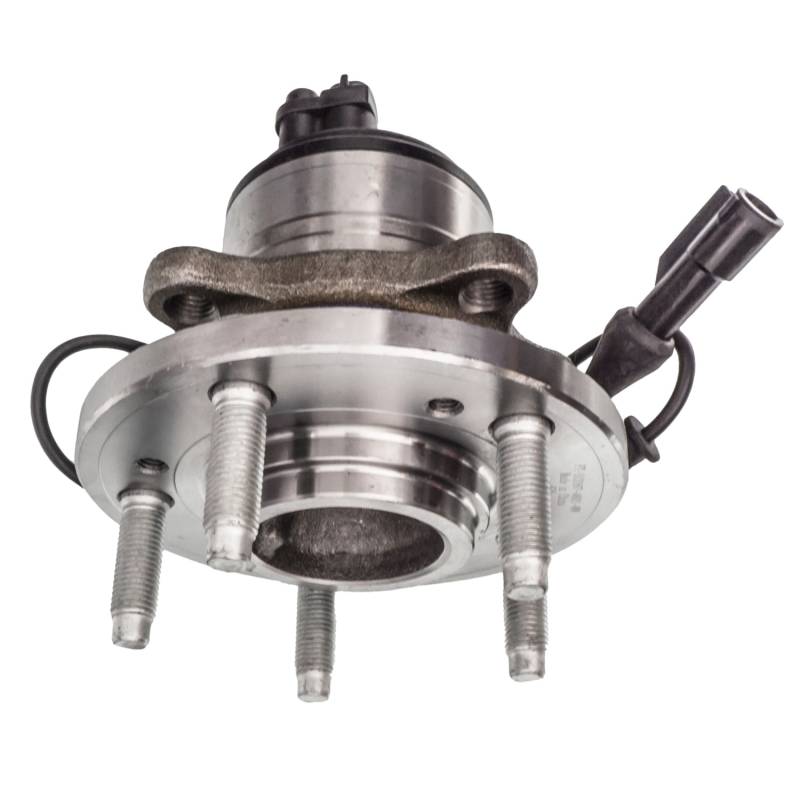

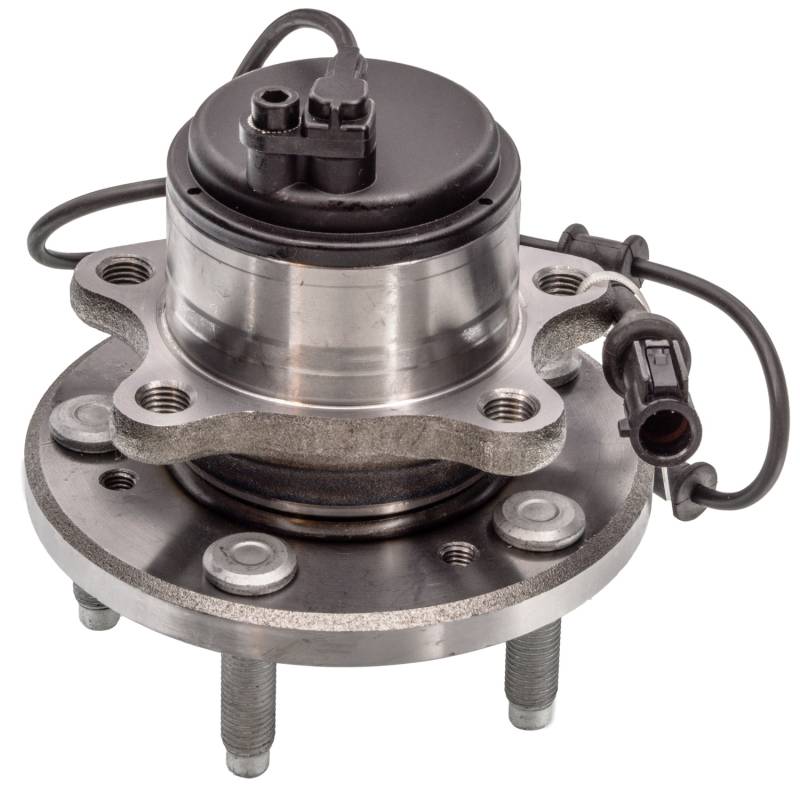

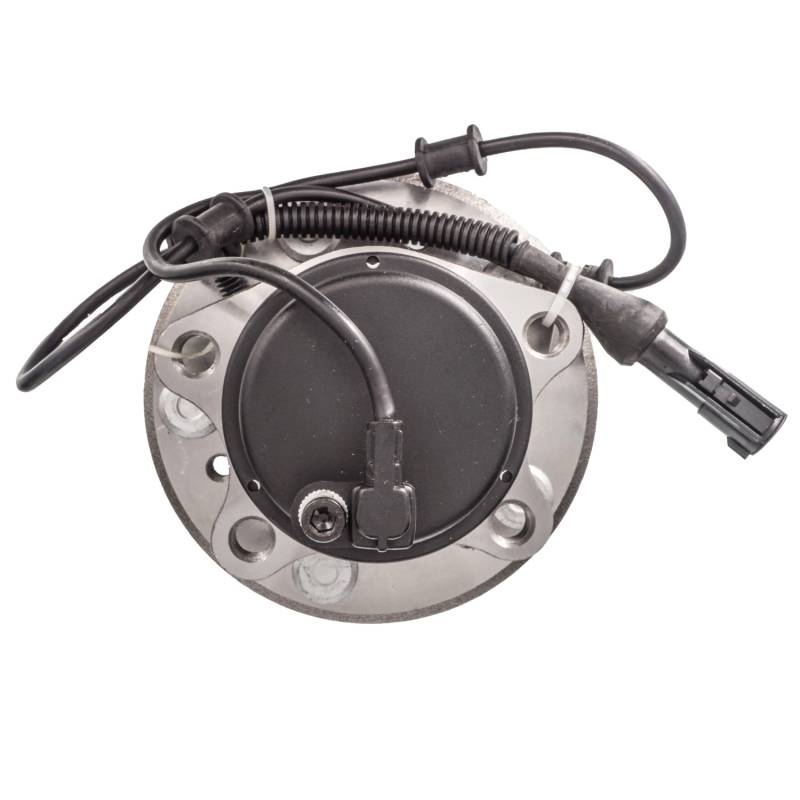

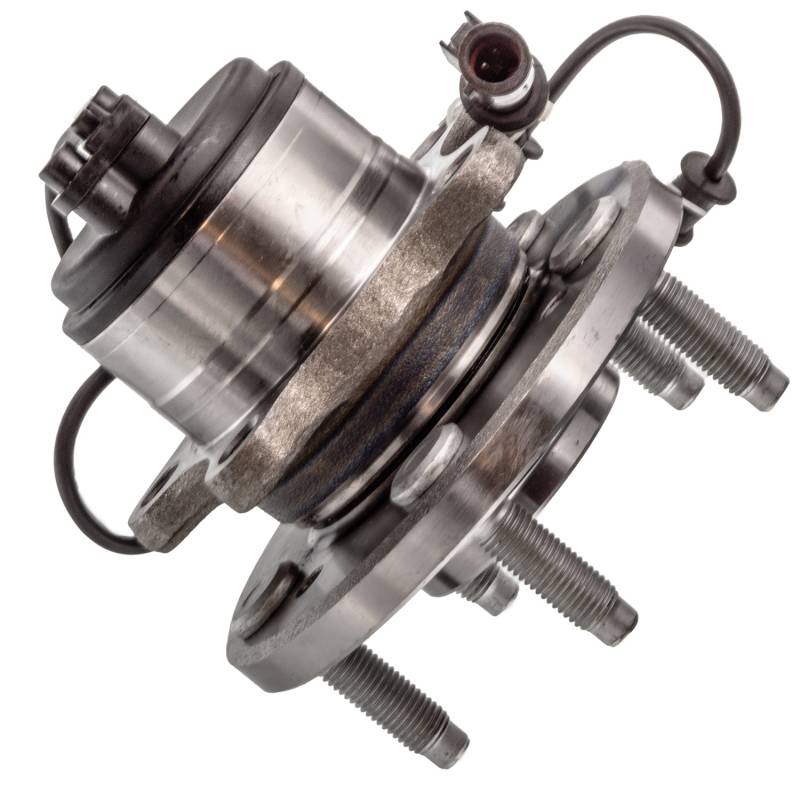

New Hub Assembly Compatible With Lincoln Ford Ls Thunderbird 3.0L 3.9L 2000 2001 2002 2003 2004 2005

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

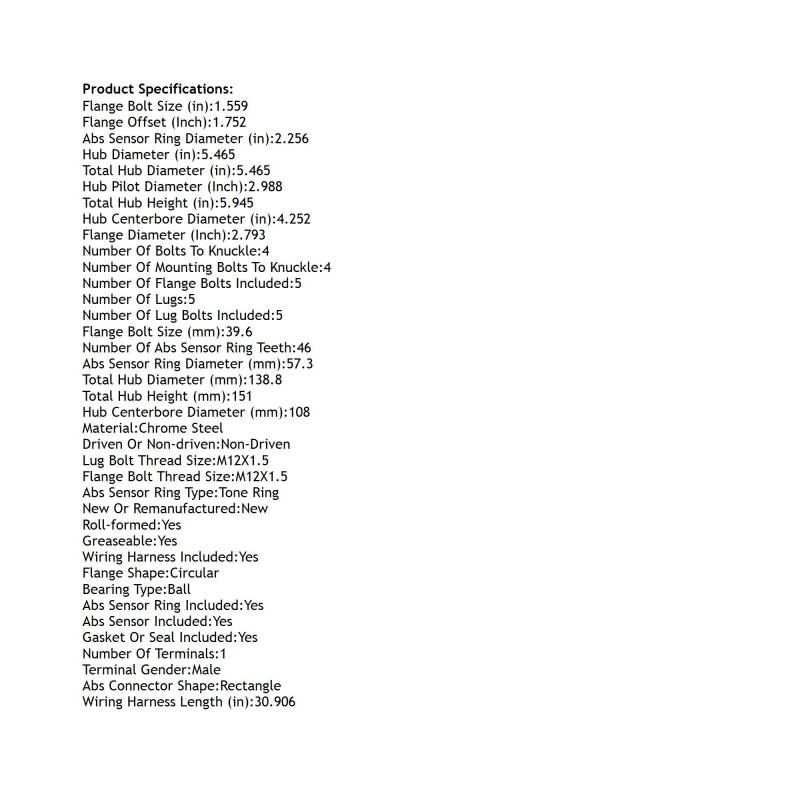

SPECIFICATIONS:
ABS CONNECTOR SHAPE: RECTANGLE
ABS SENSOR INCLUDED: YES
ABS SENSOR RING DIAMETER (IN): 2.256
ABS SENSOR RING DIAMETER (MM): 57.3
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: TONE RING
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.559
FLANGE BOLT SIZE (MM): 39.6
FLANGE BOLT THREAD SIZE: M12X1.5
FLANGE DIAMETER (INCH): 2.793
FLANGE OFFSET (INCH): 1.752
FLANGE SHAPE: CIRCULAR
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.252
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.465
HUB PILOT DIAMETER (INCH): 2.988
LUG BOLT THREAD SIZE: M12X1.5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF ABS SENSOR RING TEETH: 46
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF FLANGE BOLTS INCLUDED: 5
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: MALE
TOTAL HUB DIAMETER (IN): 5.465
TOTAL HUB DIAMETER (MM): 138.8
TOTAL HUB HEIGHT (IN): 5.945
TOTAL HUB HEIGHT (MM): 151
WIRING HARNESS INCLUDED: YES
WIRING HARNESS LENGTH (IN): 30.906

REPLACES:
AUTOPART INTERNATIONAL: 1411-44696
BCA: WE60432
CENTRIC PARTS: 40761003
FAG US: 102207
FORD: HUB20 5W4Z1104BA
GSP: 114167
MEVOTECH: H513167
MOOG HUB ASSEMBLIES: 513167
MOTORCRAFT: HUB20
NAPA: PBR930213

APPLICATIONS:
LINCOLN LS (2000-2006)
FORD THUNDERBIRD (2002-2005)
