THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

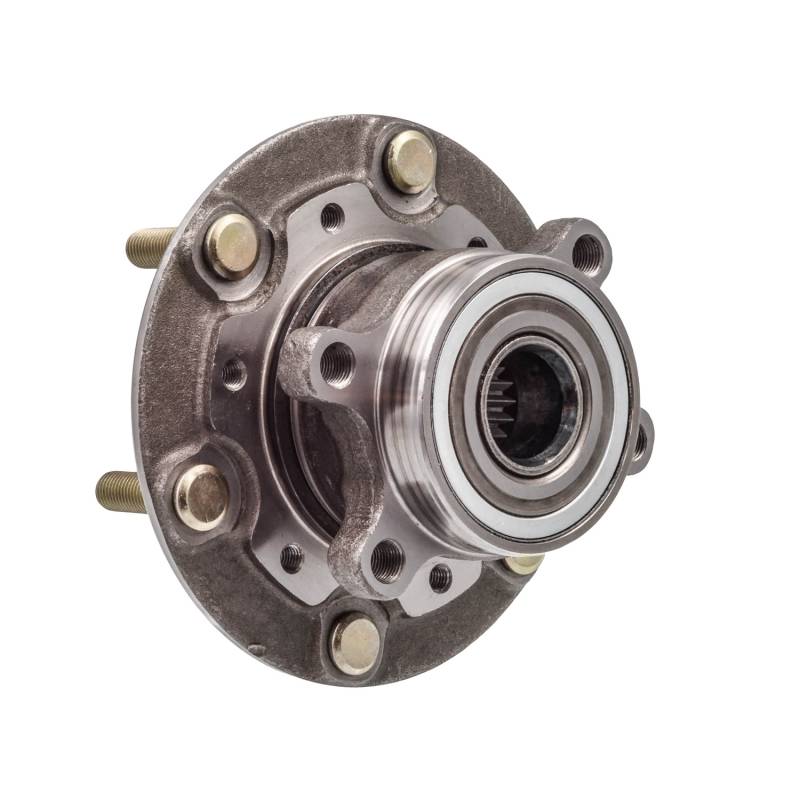

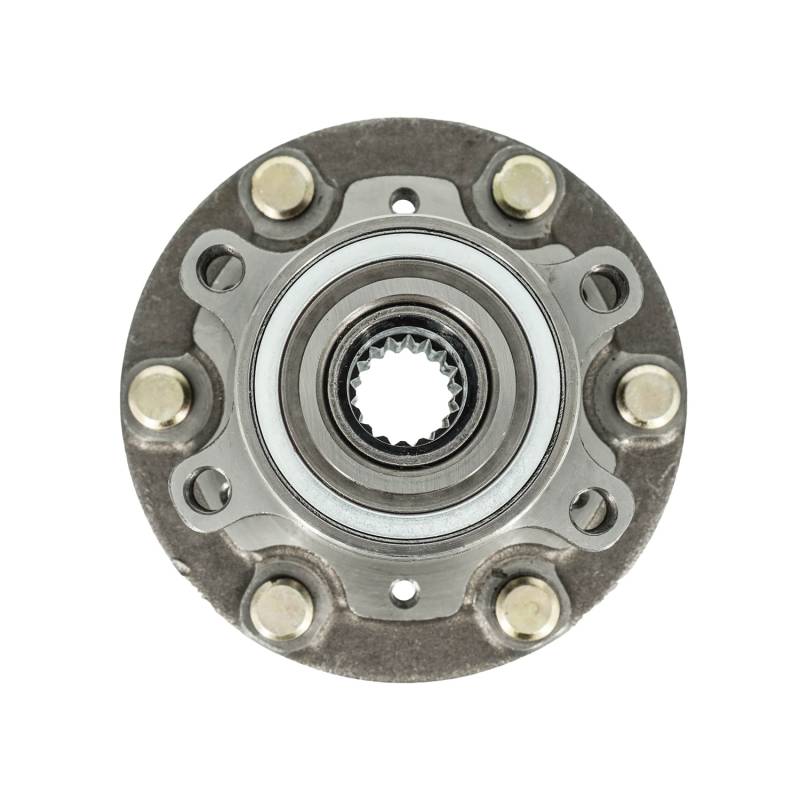

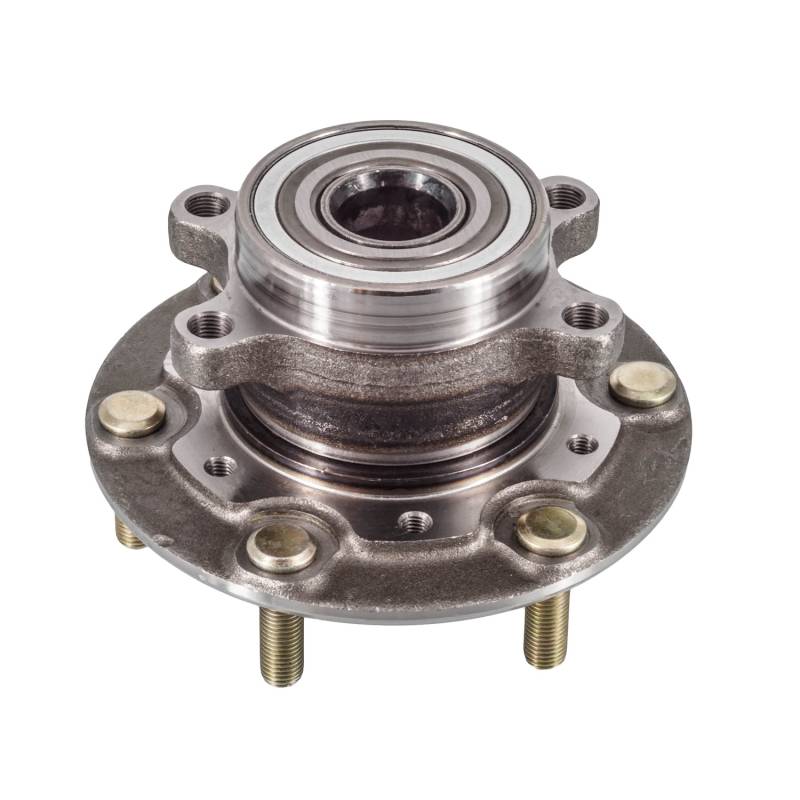

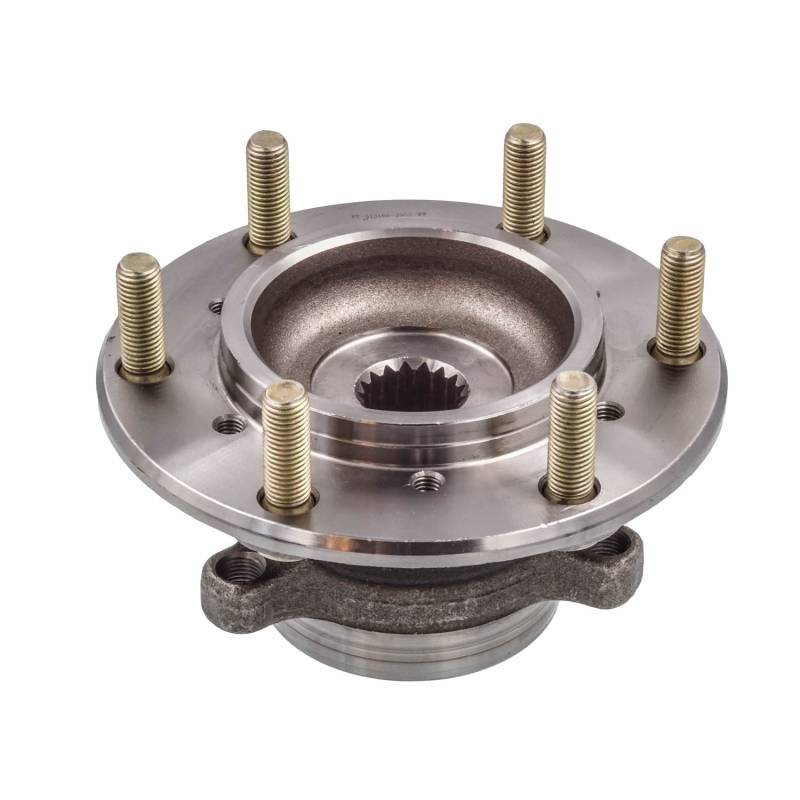

PRODUCT TYPE: HUB ASSEMBLY
SPECIFICATIONS:
ABS SENSOR INCLUDED: NO
ABS SENSOR RING INCLUDED: NO
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: DRIVEN
FLANGE BOLT SIZE (IN): 1.28
FLANGE BOLT SIZE (MM): 32
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 3.98
FLANGE OFFSET (INCH): 2.3
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 5.5
HUB CENTERBORE DIAMETER (MM): 139
HUB DIAMETER (IN): 6.54
HUB PILOT DIAMETER (INCH): 3.27
LUG BOLTS INCLUDED: 6
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 6
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 6
NUMBER OF LUGS: 6
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
ROLL-FORMED: NO
SPLINE QUANTITY: 17
TOTAL HUB DIAMETER (IN): 6.54
TOTAL HUB DIAMETER (MM): 166
TOTAL HUB HEIGHT (IN): 4.29
TOTAL HUB HEIGHT (MM): 109
WIRING HARNESS INCLUDED: NO
REPLACES:
AUTOPART INTERNATIONAL: 1411-44801
BECK/ARNLEY: 051-6286
CENTRIC PARTS: 40043000E
GSP: 694166
ISUZU: 8972099645
MEVOTECH: H513166
MOOG HUB ASSEMBLIES: 513166
APPLICATIONS:
HONDA PASSPORT (2002-2002)
ISUZU AXIOM (2002-2004)
ISUZU RODEO SPORT (2002-2003)
ISUZU RODEO (2002-2004)
