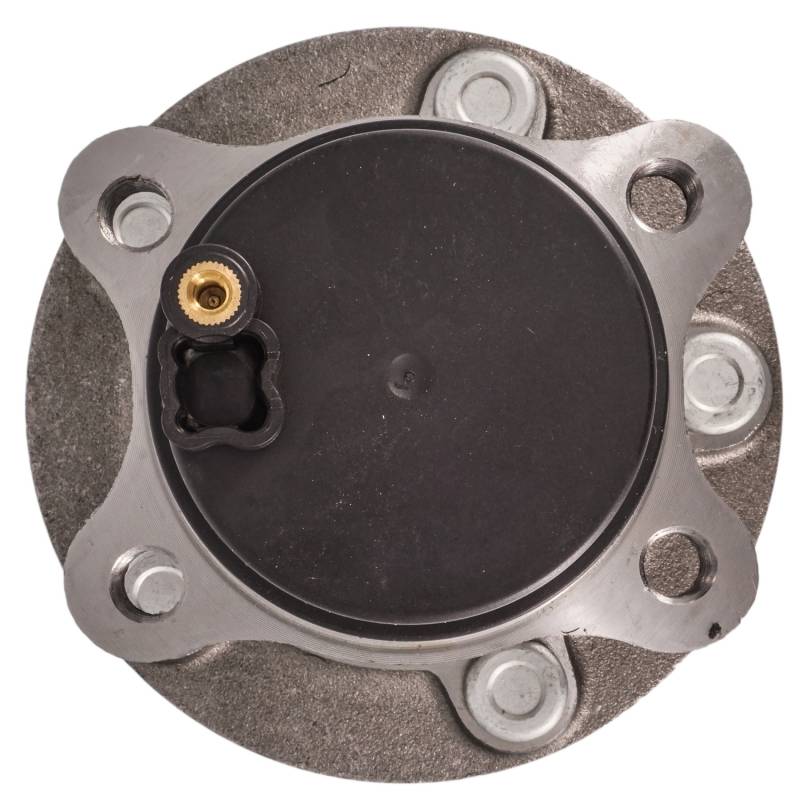

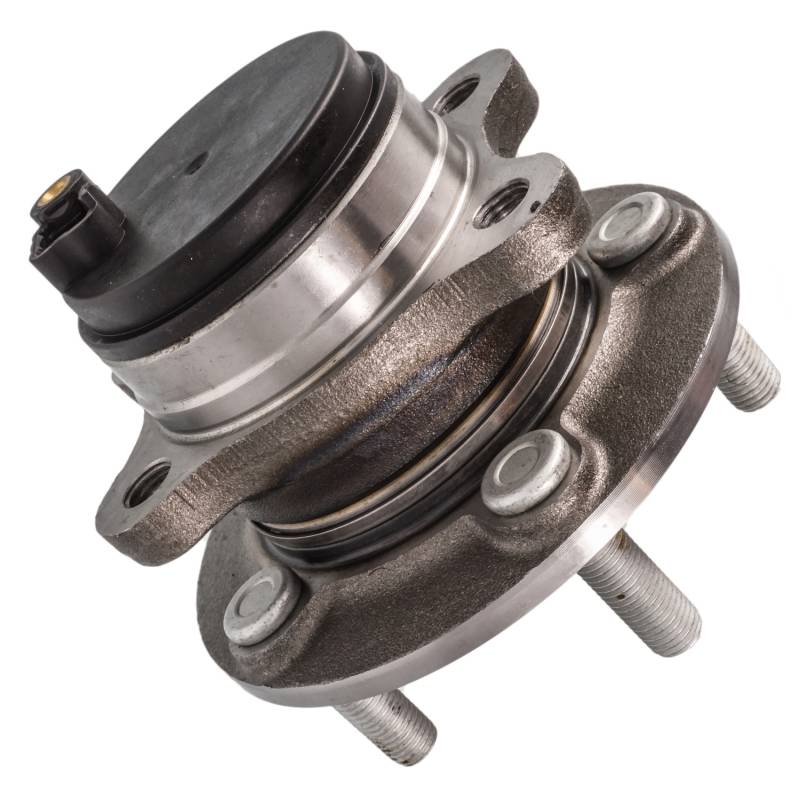

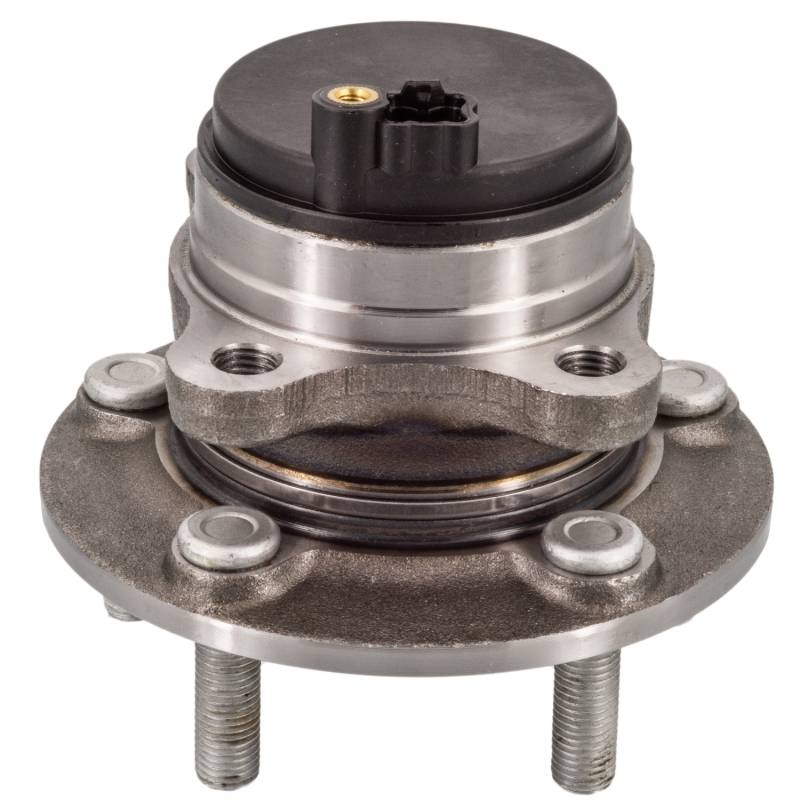

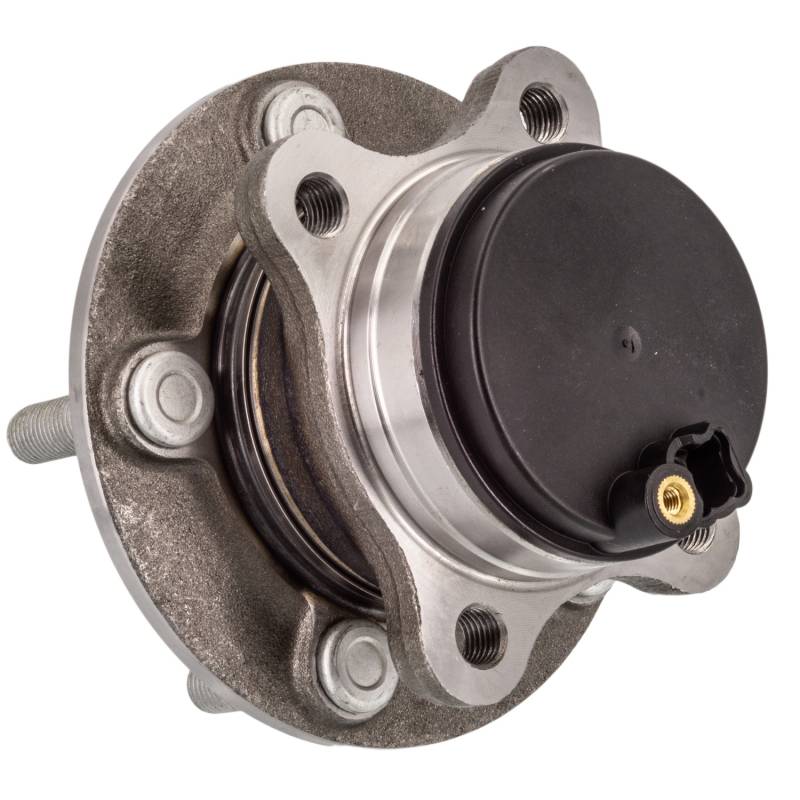

New Hub Assembly Compatible With Lincoln Ford Mkz Fusion Police Responder Hybrid Ssv Plug-In Hybrid

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT TYPE: HUB ASSEMBLY

SPECIFICATIONS:
ABS CONNECTOR SHAPE: ROUND
ABS SENSOR INCLUDED: YES
ABS SENSOR RING INCLUDED: YES
ABS SENSOR RING TYPE: SENSOR
BEARING TYPE: BALL
DRIVEN OR NON-DRIVEN: NON-DRIVEN
FLANGE BOLT SIZE (IN): 1.38
FLANGE BOLT SIZE (MM): 35
FLANGE BOLT THREAD SIZE: M12-1.50
FLANGE DIAMETER (INCH): 2.5
FLANGE OFFSET (INCH): 1.89
FLANGE SHAPE: ROUND
GASKET OR SEAL INCLUDED: YES
GREASEABLE: YES
HUB CENTERBORE DIAMETER (IN): 4.25
HUB CENTERBORE DIAMETER (MM): 108
HUB DIAMETER (IN): 5.35
HUB PILOT DIAMETER (INCH): 3.15
LUG BOLTS INCLUDED: 5
MATERIAL: CHROME STEEL
NEW OR REMANUFACTURED: NEW
NUMBER OF BOLT HOLES: 5
NUMBER OF BOLTS TO KNUCKLE: 4
NUMBER OF LUG BOLTS INCLUDED: 5
NUMBER OF LUGS: 5
NUMBER OF MOUNTING BOLTS TO KNUCKLE: 4
NUMBER OF TERMINALS: 1
ROLL-FORMED: YES
TERMINAL GENDER: FEMALE
TOTAL HUB DIAMETER (IN): 5.35
TOTAL HUB DIAMETER (MM): 135
TOTAL HUB HEIGHT (IN): 4.92
TOTAL HUB HEIGHT (MM): 125
WIRING HARNESS INCLUDED: NO

REPLACES:
AUTOPART INTERNATIONAL: 1411-556410
CENTRIC PARTS: 40761009
FAG US: 575141.15
FORD: DG9Z 1104 F DG9Z 1109 A DG9Z 1109 C
FVP: WH590480
GSP: 113497
MEVOTECH: H512497
MOOG HUB ASSEMBLIES: 512497
MOTORCRAFT: HUB310 HUB411 HUB426
NAPA: PBR930874

APPLICATIONS:
LINCOLN MKZ (2013-2016)
FORD FUSION (2014-2020)
FORD POLICE RESPONDER HYBRID (2019-2020)
FORD SSV PLUG-IN HYBRID (2019-2020)
